M2D Drone thermal camera Long range Eo/Ir Ultra light micro mini flir thermal imaging day and night vision uav, uas, ugv drone gimbal for applications that require the lightest and smallest camera possible.
M2D micro gyro stabilized drone thermal camera gimbal can easily be mounted on Quad/multi copters and platforms like the DJI Phantom UAV, The M2D Mounts
to all DJI UAV’s and All commercial and custom drones. The M2D drone thermal camera is a rugged EO-IR gimbal thats also ideal for short, mid, and long range zoom remote sensing applications on fixed wing and rotary aircrafts.
Multi axis gyro stabilization, precision sensor and optics along with ultra light weight small rugged housing makes the M2D drone thermal camera a top pick for integrators, manufacturers and security/military professionals.
JUST RELEASED M2D v6 ultra high performance
lightweight HD long range EO/IR gimbal
AVAILABLE WITH INFRARED OR VISIBLE 0.5 mRAD LASER
THE M2D IS A TOP EOIR TURRET PICK AMONG DRONE MANUFACTURERS CATERING TO GOVERNMENT, MILITARY AND DEFENSE APPLICATIONS.
THE SYSTEM OFFERS EXCEPTIONAL EOIR LONG RANGE
IMAGERY WITH ROCK-STEADY STABILIZATION IN
A RUGGED – ULTRALIGHT COMPACT GIMBAL.
AVAILABLE IN HD THERMAL IMAGING CHANNEL

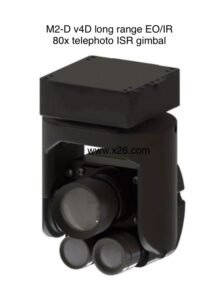

UPDATE; NOW AVAILABLE M2D v4D with IR and LONG RANGE 80x
TELEPHOTO EO ZOOM CHANNEL
Background: Military unmanned vehicles UAV’s of today and tomorrow rely heavily on electro-optical EO Infrared IR sensor payloads to perform their missions. Ultra light drone thermal cameras are a key part of an integrated, gyro stabilized aerial eo-Ir imaging package For observation, security and surveillance.
These are the sensors that detect light in many different spectra, and enable unmanned vehicles to see. Electro-optical Infrared EOIR payloads are the sensors
that enable unmanned vehicles (UAV/UAS/DRONE) to see and avoid obstacles, detect movement, navigate accurately, find the enemy, and warn of the potential
for buried improvised explosive devices (IEDs).
Designers of electro-optical Infrared Thermal EOIR – T sensor payloads for unmanned vehicles are under intense
pressure to evolve their technologies to keep pace with fast-moving trends in the unmanned vehicles industry.
Perhaps in no other market are needs for ever-smaller,
lighter, and less expensive payloads as urgent as they are in the unmanned vehicles business. Small size, weight, and power consumption-known by its ubiquitous
acronym SWaP-is a paramount concern.
COMING SOON: M7D ultra long range MWIR COOLED
EOIR HD low cost gimbal
Unmanned systems, UAV’s Uas, Suas, Drones, Unmanned Robots, especially the airborne variety, are proliferating at an explosive rate, and demand is extending
beyond the military to more cost-sensitive industries such as law enforcement, agriculture, commercial remote sensing, traffic monitoring, and sporting events.
Put simply, a growing number of people need unmanned vehicles that are small, inexpensive, and reliable, and they need electro-optical sensor payloads to match.
Not only is there demand for ever-smaller, lighter, and less expensive electro-optical Infrared IR (thermal FLIR imaging, Thermal imaging IR Infrared Camera)
Gimbal Turret payloads, but demand for capability also is increasing.
As electro-optical and electronic component technology becomes smaller, lighter, and more affordable, payload designers sometimes have the option of choosing
between smaller size and weight, or more capability. Sometimes they strive to do both, and this presents some interesting possibilities in design tradeoffs.
Unmanned aerial vehicles (UAVs) are at the forefront of unmanned vehicle research, development, and procurement. Although no less important than
unmanned ground vehicles (UGVs) and unmanned marine vehicles, it is the UAV that is setting the agenda for unmanned electro-optical sensor payloads.
At the top of that UAV/UAS/Drone/Robot agenda is a broad trend toward large and growing numbers of relatively small UAVs that can provide local-area
and short-duration surveillance-the kinds of UAVs that can provide squad leaders a view over the next hill.
In the not-too-distant past there was a big push on developing sensor technology, and size and weight didn’t matter because DOD had large aircraft like
Global Hawk and Predator, as well as manned aircraft, hyperspectral imaging sensors are small and rugged enough to fit on relatively small UAVs.
Hyperspectral imaging is a sophisticated discipline that samples a wide variety of bandwidths in the light spectrum to provide a rich data set and detect
objects of interest not visible to single-bandwidth imaging sensors.
The key element to to reduce size and weight, that is Key!
Engineers started with a very small gimbal, and added high-definition visible-light video along with hyper spectral sensor payload.
The imperative for small size and light weight has forced mfg’s to a common material set able to withstand harsh environmental
conditions such as the stress placed on UAV takeoffs and landings.
“The tarmac in the Middle East can be 120 degrees, and the payload must go to
thousands of feet a few minutes later where it is much colder,”
As electro-optical Infrared (Thermal imaging FLIR camera) Gimbal Turrets (EOIR FLIR) payloads for unmanned vehicles must continue to shrink in size,
the engineering challenges become heavier and force engineers to make some custom designs where years ago they would have considered only off-the-shelf solutions.
Many thermal cameras and shortwave infrared (SWIR) cameras available off the shelf are not made to withstand the physical rigors of small UAV, As a result,
Companies have been forced to evaluate the size of electro-mechanical elements of these sensors, and invest in new detector technology for electro-mechanical components
Custom design like this does not come cheaply, but electro-optical payload designers are seeking cost savings elsewhere.
The Evolution of Small lightweight affordable EOIR Thermal imaging Gimbal Turret Payloads incorporating
FLIR TV SWIR MWIR LWIR, CCD, BSTFA, Color Night vision, Cooled and Uncooled Infrared Technology will continue
To advance with the advent of smaller more efficient and sensitive detectors and lasers, The Gyro Stabilization will Get much better and smaller as well.
The M2D Mini UAV UAS DRONE Thermal Gimbal Payload Represents one of the smallest stabilized EOIR LWIR Uncooled Gimbal in the market today!
We are here to help assist you in selecting the absolute highest quality, cost effective
day/night video security/surveillance system for your needs.
Micro Stabilized FLIR Thermal and Visual UAV Payload M2-D
SIERRA PACIFIC SEPTEMBER 11, 2015 GIMBAL, STABILIZED GIMBAL, UNCATEGORIZED LEAVE A COMMENT

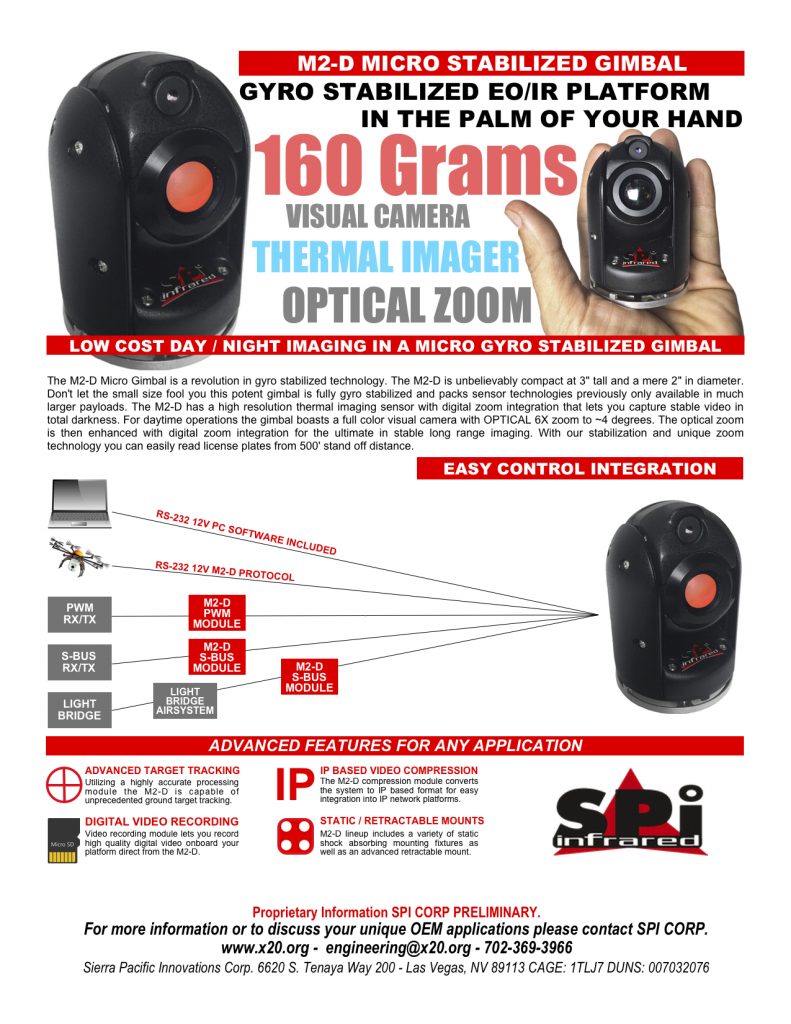

A micro gimbal for UAV and vehicle use that only weighs 160 grams is an amazing thing all by itself. But a micro gimbal that weighs 160 grams, has both a FLIR thermal camera and a visual camera with optical zoom and is gyro stabilized now that is something that you would call impossible. But its not. It is real. The unbelievable new M2-D micro stabilized gimbal features a 640×480 high resolution thermal camera with all the features (gain, level, polarity, color, digital zoom, etc). Co located is a very nice EO visual camera with OPTICAL zoom. Thats right this is not a kludge digital zoom but a true optical zoom down to 4.5 degrees FOV. Then of course there is a digital zoom kicker on top of that. Normally a 4 degree FOV in a UAV or ground vehicle will produce a very shaky unusable image. Thats why everyone fly’s with the consumer grade GoPro with its super wide angle lens. When using wide angle optics it is very easy to get smooth relatively shake free images but it is also very hard to get usable imagery and detail from any altitude. Try reading license plates with a GO PRO (maybe if your flying at 10′ AGL). The M2-D has advanced gyro stabilization just like the $1,000,000 FLIR balls that they fly on helicopters and military aircraft. This degree of stabilization is way beyond the consumer Chinese stuff you see on the web. With the Micro M2-D Gyro Stabilized EO/IR gimbal you can zoom in and read license plates from hundreds of feet AGL. This becomes a very useful tool for a wide range of applications. Ideal for a multitude of rotary and fixed wing uav’s, uas, ugv, multicopters, quadcopters, hexacopters. The unit is also compatible with DJI products.
Control is also simple. There is a PC interface for bench use or integration into a larger software driven system. But, the most popular feature is the handy protocol converters. These tiny boxes can interface with any common Radio Control format. There is a PWM interface and a hot SBUS interface. Both easily integrate with auto pilot or manual controllers. They are both fully map-able via USB interface and included software. The M2-D is built to the most exacting standards to withstand the harsh environment of UAV and Ground vehicle operation. There are also a host of accessories to make integration into any flying platform a breeze. There is a series of mounting options starting with a basic hard mount shock absorbing plate all the way up to a full blown retractable affair that can lift the payload completely up and into the body of the UAV when needed. Its clear that the UAV imaging payload world has been stood on its head by SPI CORP. The M2-D is higher performance than any other system on the market. But that’s just the beginning of the story. The M2-D is about 1/4 the size of anything else on the market with these features and to seal the deal it is also a fraction of the price of anything ever made. Finally (as if this wasn’t enough), there is a geo reference tracking module that allows the unit to be directed to specific geo target locations and also return specific coordinates of any spot on the ground being viewed. This is real top end hardware and amazingly available in the ultra compact Micro Stabilized M2-D gimbal platform.
Size: 159g ultra light micro mini stabilized long range gimbal
Payload: EOIR LONG RANGE HD FLIR THERMAL IR AND EO HD VISUAL WITH ZOOM
Stabilization: GYRO STABILIZED
Overview: Fraction of any other system, smallest available, highest resolution IR photo sensor
The M2D Mini UAV UAS drone thermal flir gimbal Payload Represents one of the smallest stabilized EOIR LWIR Uncooled Gimbal in the market today!
Complete long range zoom EO-IR gimbal camera systems can house long range LWIR MWIR SWIR high-definition video tracking, target tracking and image enhancement and processing capabilities. Multi sensor gimbal payload systems enable users to select a range of cameras and sensors unique to individual mission requirements and can be deployed onboard a broad selection of fixed-wing UAVs, unmanned helicopters, UGVs and USVs. We have laser pointers and LRF laser rangefinder options as well.
EO IR Sensors for UAVs
EO-IR sensors and camera systems are suited to a broad spectrum of unmanned aerial platforms, including VTOL multirotor UAVs, fixed-wing and hybrid UAVs, as well as tethered drones, aerostats and balloons. In addition they can be fitted to fixed site installations, unmanned ground vehicles (UGV) and unmanned surface vehicles USV).
Miniature EO/IR Gimbals
Developed for short, medium and long-range aerial missions, EO/IR gimbal payloads for UAVs are designed to meet a variety of SWAP (Size Weight and Power) requirements. Often miniature EO/IR gimbals are engineered for specific mission types and conditions, for example daytime, night-time and tactical operations. Lightweight and easy to mount, they can be efficiently swapped out depending on drone and/or mission requirements.
Gyro-Stabilised EO/IR Gimbals
Depending on the type and maximum payload capacity of the UAV or unmanned system, gyro-stabilized EO/IR gimbals can have 2, 3 or 4 axis:
2-axis gimbals – gyro stabilized pitch and roll
3-axis payloads – gyro stabilized yaw, pitch and roll
4-axis systems – gyro stabilized yaw, pitch and roll, plus up and down motion
Gyro-stabilized EO gimbals can be fitted, alongside a variety of LWIR (longwave infrared), MWIR (medium wave infrared), SWIR (shortwave infrared) and NIR (Near infrared) thermal cameras.
EO/IR Gimbal Camera Systems
EO/IR gimbal camera systems can contain a variety of cameras and sensors, such as single and double Field of View (FOV) cameras, daytime and night-time sensors, thermal imaging cameras, CCD sensors, and various strength optical zoom cameras.
The M2D family of rugged, mini, lightweight long range multi sensor EO/IR Gimbal for UAVs & Drones offer the smallest, lightest and highest performing EO/IR gimbals at the lowest most affordable pricing. Ideal for integrators looking to save time and money, the systems are easy to learn, mount and operate. Options include long range HD cooled MWIR and LWIR uncooled zoom thermal down to 1 degree FOV (Field of View) with 10 kilometer human detection and 20 kilometer vehicle detection capabilities.
The m2-d Electro-optical (EO) and infrared (IR) thermal imaging payloads are utilized within drone and unmanned systems targeting and tracking systems, developed for high end surveillance, security and defense applications.
Our systems are mounted on multiple high level drones.
The M2D EO/IR gimbal payloads are manufactured for UAVs (unmanned aerial vehicles), drones and unmanned vehicles (including USVs and UGVs) as well as manned fixed-site installations.
Applications for the M2D EO/IR gimbals fitted to unmanned systems include; counter-drone measures, unmanned aerial and ground vehicle observation, surveillance and targeting, coastal and border patrol, and security.
Used for detection, recognition and identification of aerial, land-based and maritime targets, gyro stabilized EO/IR gimbals form a critical part of unmanned surveillance systems. Capable of real-time, short, medium and long-range detection, they are used for ISTAR (Intelligence, Surveillance, Targeting and Reconnaissance), as well as counter-UAS and anti-drone defenses, and search and rescue operations.
EO/IR gimbal payloads, cameras and sensors are also used onboard industrial inspection drones, UAVs used for mapping, survey, aerial inspection and environmental monitoring. The SPI gimbal family of EOIR gimbals are the worlds most robust platforms with small size, light weight, compact structure, high adaptability, lower power dissipation and great cost-efficiency, features include ultra sharp HD image quality, long range zoom optics, Video tracking, real-time target detection and target tracking, manual / auto-tracking and target locking (lock-on)
