S100 / S150 / S225 / S300 Continuous Zoom LWIR MWIR long range
FLIR thermal imaging day and night camera systems with full IP,
Available on GSA schedule
The S100 / S150 / S225 and S300 represent the pinnacle of uncooled Thermal imaging FLIR technology with advanced precision Continuous zoom
F1 Germanium lenses and advanced hand selected military grade
IR sensors. The systems are totally maintenance free and are built to
work 24 / 7 / 365 uninterrupted for years.
S100 long range PTZ thermal camera

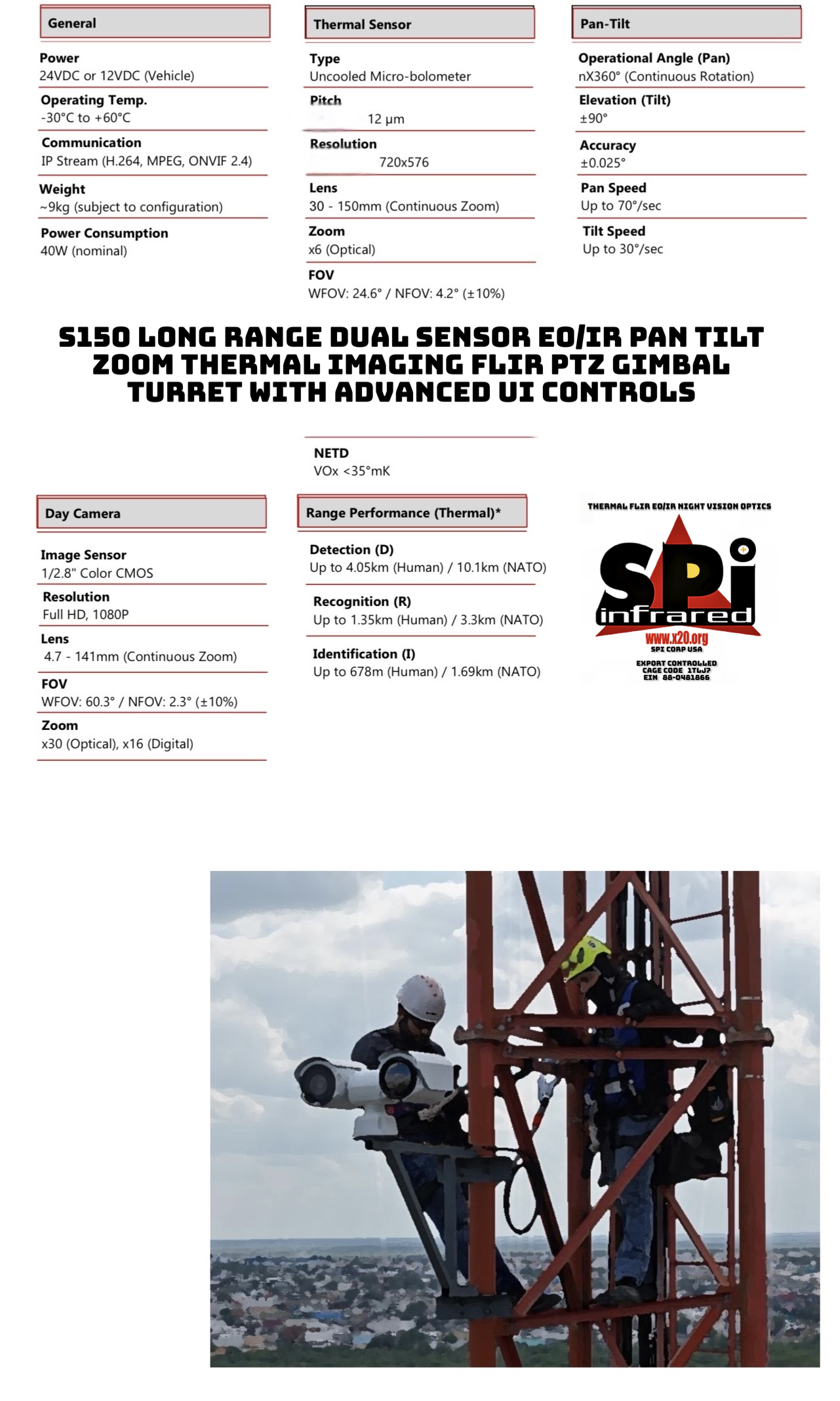

S150 long range PTZ thermal camera

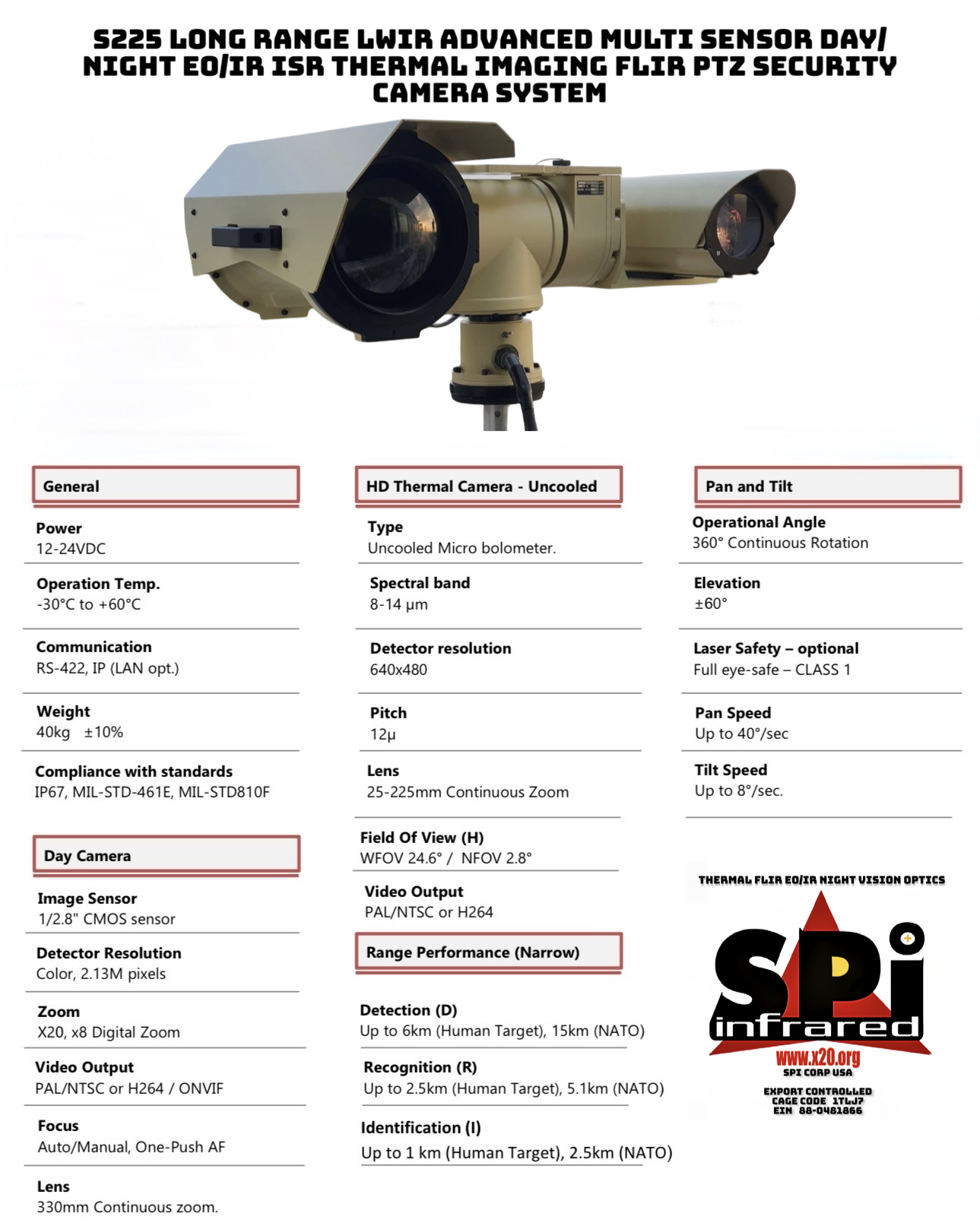

S225 Flir long range PTZ thermal camera

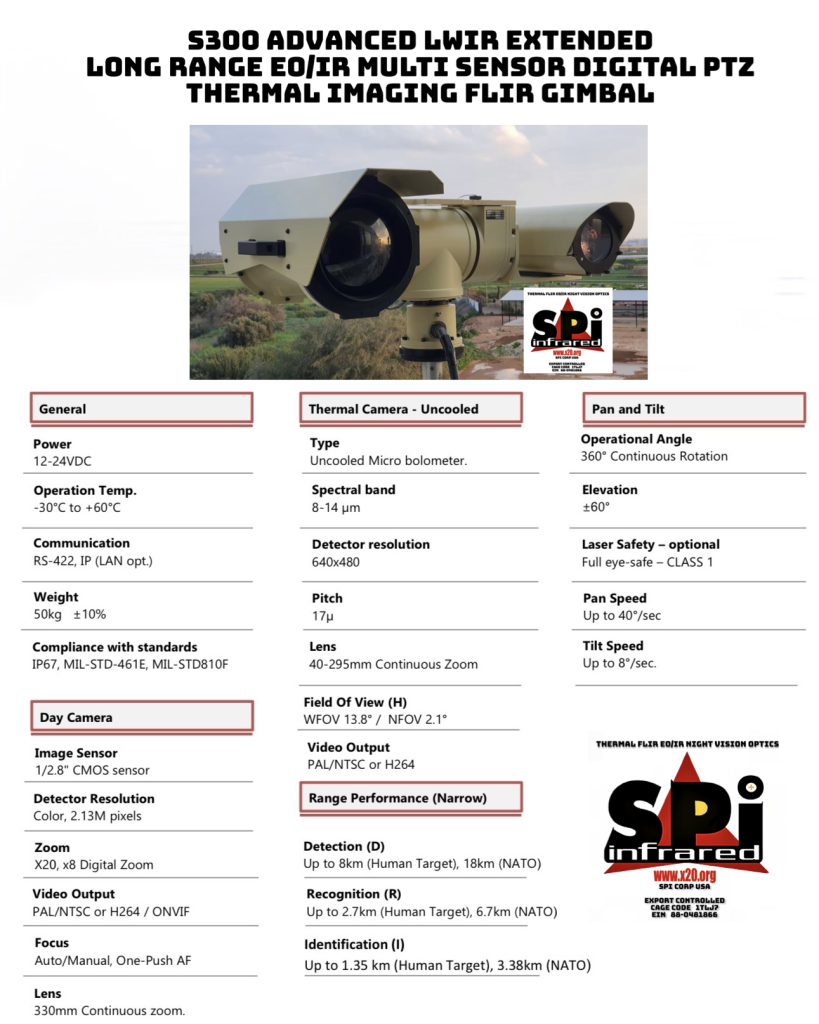

S300 Flir long range PTZ thermal
The S series systems are rugged, all weather systems that are easy to mount, use and learn.
The EO/IR gimbals utilise universal protocol with Pelco D, milestone,
ONVIF protocols with either Analog or
IP Ethernet connectivity for local or remote C2 operation,
APPLICATIONS:
ISR EO/IR+ Military Range Imaging | Target/laser ID/Characterization
Border / Frontier / Coastal Shoreline Security & Surveillance
UAV/UAS/DRONE Detection / countermeasures
Counter Missile / Rocket / Projectiles
IR Seeker
Perimeter Security
Homeland Security
Force Protection – Special Operations
FOB Security
24/7/365 Imaging in Day/Night/Dusk of Extreme long range miniature targets
Space Launch / recover vehicle
Satellites
Fire Identification and prevention
Oil and Gas leak detection
ADVANTAGES:
Hand Selected EO/IR Sensors with the absolute best image quality/sensitivity
Can incorporate High grade LWIR/MWIR/SWIR/CMOS/NIR/ULLL/I2 Camera system
Top of the line Electronics, mechanical components & Detector & Optical Materials
All weather – Ruggedized system can withstand extreme cold and hot harsh environments
Easy To Mount / Learn / Operate and maintain
Universal Connectivity system can easily be used in a wide array of local or remote operations
Precision Gimbal with for ultra fine Pan & Tilt positioning.
Gyro-Stabilized (optional)
Custom Built to customer specifications and requirements catering to exact mission needs. Long
Range LRF Laser Range Finder (optional)
A plethora of Add-on cameras, sensors, optics, lasers for a true multi spectral system
Manufactured with in house precision instruments
Optical Elements centering machine
Sanitized / Clean build Workstation and environment
Calibrated with precision IR Collimators
Calibrated with Blackbody and Test Targets
Co-Aligned and boresighted with extreme precision for accuracy
System Calibration from 300nm – 14000nm
Designed with High end ZEMAX/Tracepro/Solidworks
Overview;
SPI long distance HD thermal imaging PTZ flir cameras
Our long-range FLIR PTZ platforms give you full 360° pan, wide-angle tilt, and continuous zoom control from a single gimbal. Gyro-stabilization keeps the picture steady when you zoom all the way in, which is critical for identifying targets out to roughly 50 km.
Every system ships with a matching day-vision EO camera (CMOS, low-light) so you get true 24/7 coverage. You can add other payloads as needed, for example:
- SWIR cameras
- Laser rangefinders
- Auto-tracking and radar cueing
- GPS and digital compass
- Laser dazzlers or pointers
- IR illuminators
- Microphones, speakers, and spotlights
- High-speed cameras
We build each gimbal to order, so if you need a specific sensor or accessory, we can integrate it.
Image options
- Cooled MWIR or uncooled LWIR
- HD formats or standard 640 × 480 / 640 × 512 VGA / 1280×1024 / 1920×1080
- Detector choices include InSb, HOT MCT, and SLS with pixel pitches down to 10 µm. Reliable coolers extend MWIR life and cut maintenance.
Typical deployments
Border security, coastal watch, airports and runways, forward operating bases, critical-infrastructure sites, and any location that needs long-range day-night surveillance. Mounting is flexible: building roofs, vehicles, trailers, telescoping masts, vessels of all sizes, tripods, or fixed poles.
In short, these PTZ EO/IR systems give you long-range reach, clear imagery, and the freedom to tailor the payload to your mission.
Contact us for a wide array of cooled mwir and uncooled
LWIR systems custom figure to fit your exact application
