Long Range Thermal PTZ FLIR Cameras:
Technologies and Features category product selection

SPI offers cost-effective, long-range, electro-optical, visual and thermal imaging Flir PTZ Pan Tilt Zoom sensors, optics and gimbals that can be completely custom-built to exceed your expectations. Long Range PTZ day+night vision multi-sensor EO/IR gimbals for ground, marine and aerial applications.
Options include, but are not limited to:

  • Long range Cooled MWIR and UnCooled LWIR Thermal imaging FLIR Cameras
  • Ultra Long-Range Fast, Coated, hardened Zoom telephoto thermal imaging Germanium Lenses
  • SD, HD High Definition microbolometer, HOT MCT, InSb ultra sensitive thermal flir IR Cameras
  • Robust Multi axis 360 degree Gyro Stabilized Pan & Tilt gimbals
  • Gyro stabilized micro mini named and unmanned drone thermal camera turret balls
  • SD and HD long range low light visible CMOS color EO continuous zoom cameras
  • Long Range LRF Laser Range Finders exceeding 20 kilometer
  • Long Range IR Infrared Laser Pointers/illuminators/designators Exceeding 10 mile distances
  • Rugged All-Weather IP 67, IP 68, MilSpec, MilStd Designs
  • A Host of custom optional add on sensors such as SWIR, LRAD, Laser Dazzlers, CCTV camera countermeasure,
    Color night vision, and specialty exotic sensors to compliment our Day/Night PTZ platforms
  • Anti Drone, UAV, UAS countermeasure and defeat gimbal systems
  • 3D Radar 360° Security and surveillance tracking with Slew to cue camera mating
  • Panoramic 360° thermal scanning gimbals for constant area security and surveillance

X26 provides cost effective Long Range day and night vision multi sensor fixed and PTZ Pan Tilt Zoom Flir thermal imaging camera systems built to withstand the most demanding applications. Our High performance, all weather, reliable systems are available in COTS or Custom configurations and are built with the highest quality components.

M5 WSTI/SRTI/MRTI/LRTI Long Range PTZ
Thermal Imaging Flir EO/IR ISR camera
M1-D v3 compact Car vehicle mobile, marine
boat day/night vision PTZ thermal Flir gimbal
PTZ FLIR
M7 Falcon Long Range PTZ flir thermal imaging
security / surveillance Infrared camera system
Long range thermal PTZ flir camera
M9 cooled MWIR PTZ Ultra extreme long range Pan Tilt
Zoom multi sensor thermal flir imaging security camera
M11 Ultra Long Range thermal IR imaging flir camera for
Border, coastal, shoreline & flight line security/Surveillance
M2-D micro mini Lightweight gyro stabilized EOIR thermal imaging flir PTZ
gimbal for Manned and unmanned drone, UAV, UAS, SUAS, UGV platforms

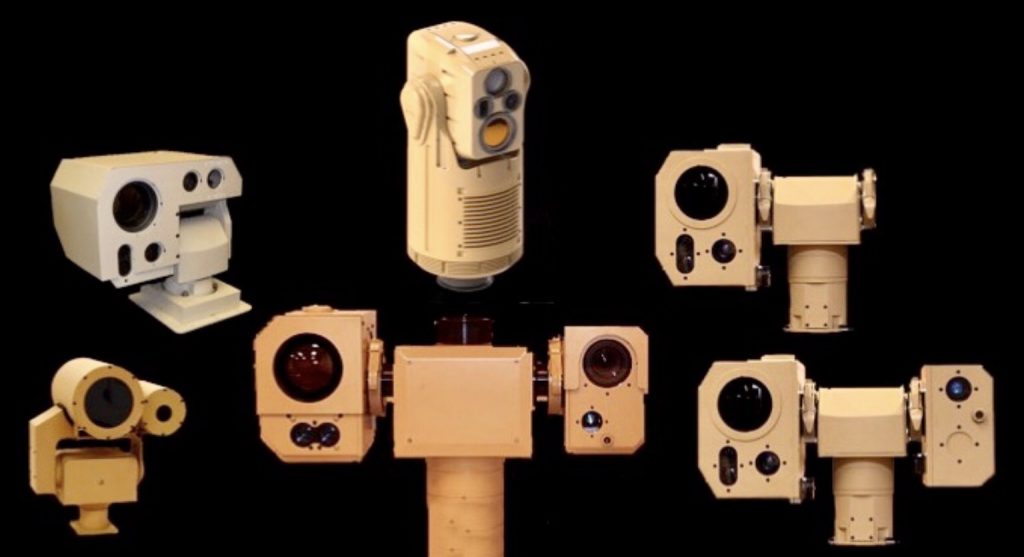

Our Long Range Thermal imaging PTZ FLIR Camera Product Offering

We offer a wide range of tried-and-tested, Military-grade, short, Mid – Long Range Thermal Imaging PTZ FLIR Cameras, including:

  • Extremely Compact and ultra lightweight UAV UGV Drone gimbal systems in the very popular micro M2-D mini gimbal Gyro stabilized EO/IR PTZ gimbal cameras
  • Amazing clear picture in a Non-Cooled Long Range LWIR Dual Camera system like the M7 Falcon
  • Extreme distance Long Range MWIR midwave Cooled Dual Camera systems like the M9 and M11, Our Robust systems can be custom designed and built to your exact requirements.
  • Our systems are ideal for ground, vehicle mobile and marine environments and are mounted on fixed installations, telescoping masts, tripods, poles in border, coastal, shoreline, ranges, bases and critical facilities where uninterrupted 24/7/365 day and night security and surveillance is essential.
TERMS AND CONDITIONS

Helping you understand the basic requirements when purchasing thermal or infrared products.

VISIT OUR BLOG

Join the conversation! We think you would love our community and it’s a great place to find Furniture announcements or general help.

Long range PTZ thermal imaging flir cameras overview

A new tool for seeing in total darkness, and in extreme weather conditions, is thermal imaging. Thermal imaging is the use of a thermal imaging camera to “see” thermal energy emitted from an object. Thermal imaging cameras produce images of invisible infrared or “heat” radiation. Based on temperature differences between objects, thermal imaging produces a crisp image on which the smallest of details can be seen. They work both during daytime and nighttime.

Most FLIR IR infrared Systems thermal imaging cameras contain an uncooled Vanadium Oxide detector. Not only does this produce excellent quality thermal images, since it is not containing any moving parts, it needs virtually no maintenance. Thermal imaging technology requires no additional lighting or illumination and has no regular maintenance costs.

What the science behind a thermal imaging FLIR IR night vision PTZ pan tilt gimbal turret camera?

(a) Exterior Housing – Usually composed of an aluminum bell shaped cover, The housing can be of all shapes and sizes from plastic to military grade hardened coated all weather NBC Nuclear Biological Chemical compliant
(b) IR FPA LWIR/MWIR/SWIR/CMOS Camera module
This is where the image FLIR, MWIR, LWIR, SWIR, night vision, intensified, cmos, long wave, short wave, mid wave cooled and uncooled detector and sensors reside, CCD sensor, optical zoom germanium DFOV, TFOV, Fixed and CZ continuous zoom lenses, and the motors that control Zoom and Focus are located.
(c) PTZ Pan Tilt control board
The PTZ control board processes RS485 data that converts it into mechanical movements. Some are Pelco, Pelco Extended and are available in a wide array of protocols supporting VMS, GUI, ONVIF, IP, ETHERNET, FIBER, MICROWAVE, ANALOG, DIGITAL and WIRELESS
(d) PTZ motors – are the small motors that allow the thermal FLIR and CCTV HD camera to perform up, down, left and right functions. Marked by the arrows are two step motors; the one to the top controls up and down movements and the one at the bottom controls left and right movements, some systems have no motors and other methods of moving the cameras PTZ, some use brushless motors.

Long range thermal imaging flir cameras

Our Long Range Pan Tilt Zoom (PTZ) Thermal Imaging FLIR cameras are installed worldwide in critical facility environments for;

  • Port Security/surveillance Thermal imaging Pan Tilt PTZ FLIR
  • Coastal Security/surveillance Thermal imaging Pan Tilt PTZ FLIR
  • Border Security/surveillance Thermal imaging Pan Tilt PTZ FLIR
  • Perimeter Security/surveillance Thermal imaging Pan Tilt PTZ FLIR
  • Shoreline Security/surveillance Thermal imaging Pan Tilt PTZ FLIR
  • Long Range Security/surveillance Thermal imaging Pan Tilt PTZ FLIR
  • Airport Security/surveillance Thermal imaging Pan Tilt PTZ FLIR
  • Runway Security/surveillance Thermal imaging Pan Tilt PTZ FLIR
  • Maritime Security/surveillance Thermal imaging Pan Tilt PTZ FLIR
  • Marine Security/surveillance Thermal imaging Pan Tilt PTZ FLIR
  • Critical Infrastructure Security/surveillance Thermal imaging Pan Tilt PTZ FLIR
  • Vehicle mounted Security/surveillance Thermal imaging Pan Tilt PTZ FLIR
  • Multi Sensor Security/surveillance Thermal imaging Pan Tilt PTZ FLIR
  • Dual Sensor Security/surveillance Thermal imaging Pan Tilt PTZ FLIR
  • Panoramic scanning Security/surveillance Thermal imaging Pan Tilt PTZ FLIR
  • Drone, UAV, UAS, SUAS Security/surveillance Thermal imaging Pan Tilt PTZ FLIR
  • Range Security/surveillance Thermal imaging Pan Tilt PTZ FLIR
  • Covert / Special operations tactical Security/surveillance Thermal imaging Pan Tilt PTZ FLIR
  • Unmanned Ground Vehicle UGV Security/surveillance Thermal imaging Pan Tilt PTZ FLIR
  • EO-IR Security/surveillance Thermal imaging Pan Tilt PTZ FLIR
  • ISR Security/surveillance Thermal imaging Pan Tilt PTZ FLIRlong range thermal camera

Overview of long range SD and HD (high definition) LWIR and MWIR thermal imaging IR FLIR PTZ pan tilt cameras

Because everything generates heat, thermal imaging cameras can see as well at night as they can during the day. Cameras dependent on visible light are useless at night or in poor visibility without supplementary illumination from lamps, LEDs or lasers.
See clearly also in broad daylight and in total darkness night vision
SPI’s long range IR FLIR PTZ pan tilt thermal imaging cameras will not only protect borders and assets against intruders during the darkest of nights. The cameras are also perfectly suited for daytime surveillance. The long range infrared cooled and uncooled FLIR thermal imaging cameras will detect objects that remain invisible to the naked eye. For example, people hiding in the shadows or in the bushes will be detected. The cameras are also not blinded by glare from the sun.
Force Protection, Border Security and Surveillance The Ultra extreme NFOV long range FLIR thermal imaging night vision PTZ surveillance systems cover more territory and enable detection and classification better than any other sensor suite available. Networkable video and control make the long range FLIR thermal imaging systems the perfect border security imaging solution. The systems can be connected to a radar in a so called “slew to cue” configuration. If the radar detects an object, the camera turns in the correct direction so that you get a visual image from that blip on your radar screen.
Coastal Surveillance Some countries are bordered by thousands of kilometers of coastline. The long range ptz pan tilt zoom FLIR thermal imaging systems are the perfect tools to monitor what is happening along the coastline. They can be used to intercept illegal immigrants or to detect other threats coming from the sea. They are perfect for Vessel Traffic Monitoring and can work together with Automatic Identification Systems (AIS) and radars.

X26.com long range thermal flir night vision scopes, binoculars, monoculars, goggles, clip on and PTZ imaging systems
Perimeter Security Airports, air force bases, hydroelectric power plants, refineries, oil and gas pipelines and any other large infrastructure objects have perimeters that can be kilometers long. The ultra extreme FLIR thermal imaging systems provide the ultimate security solution. Detection ranges can exceed 50 kilometers KM.

Quick and accurate Pan & Tilt unit The ultra compact, ultra precision IP68+ Pan & Tilt unit is designed for heavy duty service in extremely demanding environments, from hot desert to arctic conditions. This positioning unit includes slip-ring connections for the different signals (video, power and data), which allow for infinite horizontal rotation, and provide DC servo drives for the rotary movement in both axes. High precision gears provide fast accurate movement, free from backlash and extremely low hysteresis, through a continuous 360° rotation. The performance contributes to find targets faster, as well as to get a good and stable display of the sensors’ pictures even in very narrow fields of view. Incremental encoders allow for accurate geo-referencing of targets with precise read-out of the vertical and horizontal angles. Our PTZ pan tilt gimbals are the longest lasting most reliable positioning gimbals available. Enhanced electronic and active gyro stabilization ensures jitter free imagery at extreme long ranges and while operating the system on the move on mobile/windy harsh mast/pole/tripod hydraulic and retractable platforms.
Laser Range Finder LRF, SPI’s ultra extreme long range day/night vision MWIR midwave cooled and long-wave LWIR uncooled systems can be equipped with long range eye safe Laser Range Finder. Combined with the GPS system and the electromagnetic compass, it will allow you to exactly determine where a suspected object is located and how far it is away even at extreme standoff long ranges.
Easy to install learn and operate, Our long range thermal IR infrared imaging PTZ pan tilt gimbal systems are designed to be easily installed and operated from remote or local C2.

Long range thermal imaging flir PTZ cameras

  • With Long range PTZ or pan / tilt / zoom thermal imaging becoming relatively cheaper and an integral part of Short, medium, long and extreme ultra long range Surveillance, security, observation systems, a whole range of uses becomes both possible and economically viable. long range Thermal flir PTZ cameras can be an excellent complement in many situations where conventional cameras diminish their performance as low light levels are present. They are, of course, unparalleled in a situation of twilight, thermal cross-over, near darkness and total darkness. They can also be an option in areas that are very difficult to illuminate effectively, for example a sea front, a harbor, or any other vast expanse of open water thus making SPI’s long range PTZ thermal infrared imaging Ir cameras paramount for use in marine, boat, vessel and ship applications. Similarly, artificial light not only runs the risk of revealing where the cameras are placed, enabling parties to avoid or vandalize them, but can also create projected shadows in which an intruder can avoid detection. Furthermore, spotlights can blind as well as illuminate. So cameras that do not rely on light can be the preferred solution in many different traffic situations, whether it is in railway tunnels, on air strips, runways, or on regular streets. Long Range Thermal flir PTZ cameras, on the other hand, cannot be blinded by bright lights or laser beams.SPI Corp’s long range multi sensor Eoir flir thermal imaging camera systems offer substantial long distance detection ranges allowing the operator to be positioned at very far distant standoff locations offering ample time to react, to threats or targets of interest. Long range imaging systems provide a benefit to the user when coupled with an array of sensors and geo locating modules especially in specialty military, security and surveillance applications. The farther you are, the more time you have to react and not be seen.What the science behind a long range thermal imaging FLIR IR night vision PTZ pan tilt gimbal turret camera(a) Housing – Usually composed of an aluminum bell shaped cover, The housing can be of all shapes and sizes from plastic to military grade hardened coated all weather NBC Nuclear Biological Chemical compliant
    (b) Camera module
    This is where the image FLIR, MWIR, LWIR, SWIR, night vision, intensified, cmos, long wave, short wave, mid wave cooled and uncooled detector and sensors reside, CCD sensor, optical zoom germanium DFOV, TFOV, Fixed and CZ continuous zoom lenses, and the motors that control Zoom and Focus are located.
    (c) PTZ Pan Tilt control board
    The PTZ control board processes RS485 data that converts it into mechanical movements. Some are Pelco, Pelco Extended and are available in a wide array of protocols supporting VMS, GUI, ONVIF, IP, ETHERNET, FIBER, MICROWAVE, ANALOG, DIGITAL and WIRELESS
    (d) PTZ motors – are the small motors that allow the thermal FLIR and CCTV HD camera to perform up, down, left and right functions. Marked by the arrows are two step motors; the one to the top controls up and down movements and the one at the bottom controls left and right movements, some systems have no motors and other methods of moving the cameras PTZ, some use brushless motors.We can Customize your long range Pan Tilt Zoom Thermal, CCTV and other exotic sensor system to cater to your exact application,
    We have facilities that can satisfy any requirement in a rapid response timeframe. We offer the worlds longest range, best weapons grade all weather IP68 hardened PTZ EOIR
    imaging systems.
  • Long Range Visible HD CCTV cameras can compliment the Thermal cameras and assist in daytime and low light DRI (Detection, Recognition and Identification)Long range Critical infrastructure applications require not only continuous video surveillance and monitoring, but also a solution that yields highly reliable intrusion detection, with fewer false alarms. This need makes advanced video analytics a must for any adequate long range thermal/cctv surveillance system.Advanced analytics will provide multiple automated alarm notification options, including email, edge image storage, digital outputs or video management software (VMS) alarms. Incorporating high quality, unique and adaptive analytics can virtually eliminate false alarms, allowing security personnel to respond more efficiently and effectively, while also lowering overall cost for the end user.While traditional long range surveillance & security technologies such as radar, thermal flir imaging and visible cameras, or video analytics work well on their own, utilizing all of these options together provide an advanced perimeter detection system. For example, ground surveillance radar can detect possible threats beyond the fence line as they approach and send a signal to pan-tilt-zoom (PTZ) cameras, triggering them to slew to a specific location. From there, embedded analytics and visible cameras can further identify objects, notify authorized staff, and collect additional evidence through facial recognition or high-quality photos.Once a long range intrusion attempt is discovered, it is important to act fast. Organizing a response system that can initiate actions based on GPS location data, such as the slewing of FLIR PTZ cameras, automated intruder tracking or activated lighting sensors, greatly increases staff’s situational awareness while easing their workload. For instance, thermal imagers deployed in conjunction with video analytics can be used to generate an initial alarm event, which can then trigger a sequence of other security equipment and notifications for personnel to eventually respond to. Having all of this in place essentially lays the entire situation out in a way that allows responders to accurately understand and evaluate a scene.After the designated auto-response mechanisms have activated and done their job, it is time for responders to acknowledge and assess the situation. From here, authorized personnel can take the next appropriate step toward defending against and delaying the threat. Deterring suspicious activity can be achieved through real-time two-way audio, a simple but powerful tool. Often, control room operators can diffuse a situation by speaking over an intercom, telling the trespasser that they are being watched and that the authorities have been notified.The primary purpose of the delay facet of the overall perimeter protection strategy is to stall an attempted intrusion long enough for responders to act. Access control systems play a key role in realizing this objective. When a security officer sees a non-compliant, suspicious individual on the camera feed, the officer can lock all possible exits to trap them in one area all through the VMS.

Long Range PTZ FLIR thermal imaging Infrared camera systems are positionable FLIR (thermal imaging infrared cameras) that come integrated in a housing called a payload, the steerable PTZ FLIR system allows the user to move the camera to any desired position for target tracking locating and surveilling. Most all dual sensor and multi sensor PTZ FLIR systems come with a thermal imaging camera with either electronic digital telephoto zoom and or optical continuous zoom telephoto functions. To compliment the PTZ FLIR, a daytime long range (generally 500x zoom) CCTV cmos camera is incorporated with the system to allow for detailed daytime EO (Electro Optical) imaging. Additional sensors can be integrated into the complete PTZ flir camera payload system such as SWIR, X27 Color low light cmos BSI high ISO 4k HD night vision, NIR low light sensors (X26), LRF Laser Range Finder, DMC Digital Magnetic Compass, Geo location, GPS, as well as radars for slue to cue positioning. The M7 Falcon long range thermal imaging Flir PTZ camera system Is a great example of a PTZ Pan tilt Gimbal that can be packed with as many as 8 different cameras, sensors, modules and lasers.

SLUE to CUE Radar long range Thermal Imaging PTZ FLIR camera assistance is compete camera sensor suite coupled with a radar. The Radar continuously scans the entire scene and when it picks up any activity of interest, it performs a slue to cue radar function and moves the camera to the target area and now starts tracking that object of interest, The PTZ FLIR camera interacts together with the SLUE to CUE radar and will alert the user of the action initialed while tracking that object in real time. Systems are mil-std810 and are ideal for ISR, c4isr, istar, star, Force Protection, Perimeter Direction, mss, mobile surveillance systems, Emergency Vehicle Situational Awareness, UGV Navigational Aid, border/coastal/frontier long range security and surveillance, Port & Ship Safety and Security, long range Remote Surveillance, long range mast or fixed pan tilt ptz scope trucks, Municipal and Utility Surveillance, ugv and autonomous vehicle navigation multi spectral/sensor system suite, and a host of unique custom long range imaging applications.

Our newly designed long range PTZ Flir thermal imaging cameras Incorporate cutting edge new advanced IDCA long life coolers with SLS, NBN, HOT MCT, and INSB detectors for longer range, longer life and greater detection capabilities, these new PTZ Pan Tilt Zoom FLIR thermal imaging cameras will have smaller continuous zoom hardened coated germanium lenses, smaller micro pitch sensors for long standoff ranges in border, shoreline, coastal and military security and surveillance. Contact us for your specific needs, we can supply complete multi sensor pan tilt zoom PTZ gimbals or long ranger MWIR and LWIR thermal imaging standalone FLIR cameras.

Thermal imaging sees through smoke

THERMAL FLIR IMAGING CAMERAS ALSO HAVE THE UNIQUE CAPABILITY OF SEEING THROUGH DUST, HAZE AND SMOKE. THE IMAGE ABOVE REPRESENTS WHAT A THERMAL IMAGING FLIR CAMERA CAN SEE THROUGH A SMOKE FILLED SCENE, NOTE THE MOUNTAIN ON THE IMAGE ABOVE, THE AREA BY THE TREE IS FILLED WITH SMOKE TO THE HUMAN EYE, OUR THERMAL  IMAGING FLIR CAMERAS SEE RIGHT THROUGH SMOKE THUS GIVING THE OPERATOR AN EDGE TO CLEARLY SEE AREAS UNSEEN TO THE NAKED EYE.


Some Long Range PTZ Thermal imaging flir camera applications;

Military combat surveillance applications
FOB perimeter/critical facility infrastructure, high value security, the M5 mid-long Range PTZ flir camera is ideal for these types of perimeter security applications
Border / coastline / scope truck / homeland security / AWD / 4×4 / All Terrain /frontier patrol & security
Security and surveillance
Fully Integrated Sensor Suite
Tactical Combat armored vehicle, The M1-D is an ideal PTZ thermal imaging flir camera for vehicles, cars and a multitude of mobile on the move applications.
Law Enforcement
Drone/UAV/UAS/SUAS Detection
IED Detection
Critical facility security (power stations, prisons, government offices)
Mobile, mast or tripod mounted for sea & land monitoring
Vehicle safety applications (railways, mines, heavy equipment)
Cruise ship man overboard detection & rescue
Land & sea security, search & rescue operations
Border/Frontier/Shoreline/Coast/Runway/Airstrip/Tripod/Radar Applicable
Laser IR Diode illuminators available in a variety of ranges from short/medium, long and ultra extreme long range
Military/Law Enforcement/Search and Rescue/Coastal/Frontier/Border + DEA & SWAT applications
Windows or MAC software compatibility
Remote operation with Ethernet, ip, LAN, fiber, solar, wireless, microwave gps and compass radar compatible slew to cue, slew to alert and alarm detection
Software development kit (SDK) for customized functionality / command and control

Thermal Infrared FLIR Imaging DRI (Detection, Recognition, Identification)

Detection, (D) Recognition, (R) & Identification (I) (DRI)  (Johnston criteria) , is the universal standard for rating thermal IR FLIR cameras and is a commonly used keyword.

Detection
Detection means that you will be able to see the target, it means that the target is visible on the image monitor, and that there is a good chance that the target is actually something of suspicion that may need further investigation or consideration.

Recognition
Recognition means that you are able to recognize an object’s class (human vs car, human vs animal, truck vs tank, etc).

Identification
Identification of an object means that you are able to differentiate between
objects. For example, being able to identify the exact type of vehicle not just
its shape.

Long range thermal camerasISR Intelligence Surveillance Reconnaissance Security with long range thermal imaging flir PTZ EOIR camera systems.

Like any other long range IR or Infrared night vision camera, a long range PTZ thermal or thermographic flir imaging camera collects electromagnetic radiation which is formed into an image. But while a conventional cmos/ccd, tv, eo or ccd/cctv cameras works in the range of visible light, i.e. with wavelengths between approximately 400 and 700 nanometers (0.4–0.7 μm), a thermal imaging flir camera is designed to detect radiation with greater wavelengths, up to around 14,000 nanometers (14 μm), some people refer to thermal imaging at heat sensing or heat imaging because the cameras literally see heat and make it visible to the human eye either through a monitor, viewfinder or other imaging screen.  Radiation in this part of the electromagnetic spectrum is referred to as infrared, or commonly IR, which in turn can be divided into several sub-groups. Near-infrared light has a wavelength of about 0.7–1.5 µm, which is just beyond what the human eye can see. Camera sensors, on the other hand, can be built to detect and make use of this type of radiation. A so-called day-and-night camera uses an IR-cut filter during daytime to filter out IR-light so it will not distort the colors of images as perceived by the human eye. When the camera is in night mode, the IR-cut filter is removed. Since the human eye is unable to see infrared light the camera displays the image in black and white. Near infrared light or NIR also (requires some kind of light source – either natural, such as moonlight, or man-made, such as street lights or a dedicated IR-lamp.

Moving away from visible light, the rest of the IR-spectrum is usually divided into the following categories: Short-Wave Infrared (SWIR), approx. 1 – 3 µm Mid-Wave Infrared (MWIR), approx. 3 – 5 µm Long-Wave Infrared (LWIR), approx. 8 – 12 µm Very Long-Wave Infrared (VLWIR), approx. 12 – 25 µm Far-Wave Infrared (FWIR), approx. 25 µm – 1 000 µm or 1 mm Note that there is a gap between 5 µm (MWIR) and 8 µm (LWIR). This part of the waveband is virtually unusable for thermal imaging purposes because of the high spectral absorption of the atmosphere in this range. Microwaves have a wavelength exceeding 1 mm. At the far end of the spectrum are radio waves, with a wavelength of 1 meter and more. In the other end of the spectrum, wavelengths shorter than those of visible light are successively referred to as ultraviolet, x-rays, and gamma rays.

long range flir PTZ thermal security cameraStandard Definition (SD) and HD High Definition resolution from the Long range Pan Tilt Zoom (PTZ) thermal imaging flir camera Provides an optional 16:9 wide screen video that shows more of the important part of the scene and fits well on modern screens.

Most all of today’s long range thermal flir imaging PTZ Camera systems come with VGA (640×480) resolution which may not seem like a lot of pixels compared to modern DSLR cameras or camcorders that typically have a minimum of 20 megapixels. The thermal imaging chip or FPA Focal Plane Array uses more expensive materials and is more expensive than standard silicon CMOS sensors. Even a SD standard VGA Definition long range thermal imaging flir camera system provides a very usable image. New HD long range thermal imaging flir cameras are available in XGA 1024×768 HD resolution, SXGA 1280×1024 and 1080p 1920×1080 HD thermals Cores and engine are coming out and are being utilized in more applications. Systems like the M9 long range PTZ thermal imaging flir camera can be integrated with HD MWIR thermal imaging flir cameras These sensors are quite a bit more expensive than the VGA model, especially if the long range flir camera is of the cooled midwave MWIR variant. Our M11 PTZ long range flir camera is another robust gimbal that can be integrated with HIgh definition HD thermal imaging camera cores.

X26.com provides long range thermal imaging cameras that are equipped with powerful continuous optical zoom capability on the thermal imager. It offers excellent situational awareness but also the possibility to zoom-in on very far away objects, and see more detail, once a target has been detected. Some of our long range lenses can detect humans at over 40 kilometers and vehicles at 50 kilometers. The camera operators can see farther recognize more detail and react more quickly to security threats. The advantage of continuously zooming compared to other systems that are using a rotating lens system is that there is no switch or swapping between the different images. You can gradually zoom in while keeping your focus all the time. The unit has quick auto focus & has a plethora of upgradeability options to make sure the system stays current with your evolving surveillance network.

An object’s thermal radiation is also dependent on its temperature – the hotter it is the more thermal radiation it emits. Humans cannot see this, but we can sense it, for example, when we approach a camp fire or enter a sauna. The greater the temperature difference in a scene, the clearer will the thermal flir images will be. Furthermore, some materials will have a different emissivity in the mid-wave infrared spectrum than in the long-wave span. For imaging purposes these differences in emissivity are, for the most part, of secondary importance since the camera’s sensitivity can be defined as its capability to distinguish between temperature differentials. Thermal images are sometimes associated with bright, intense colors – which may seem a bit odd considering that the camera works outside the spectrum of visible light. The answer is that the colors are created digitally, so-called pseudo-colors but produce a very vivid crisp useable picture. Each color or nuance represents a different temperature, usually white and red for higher temperatures, over green, blue and violet for colder ones. The reason is foremost practical since the human eye is better at distinguishing different shades of color than different shades of grey. Detectors used for thermal imaging can be broadly divided into two types: Cooled thermal imagers that typically operate in the mid-wave infrared (Long range MWIR) band and uncooled thermal imagers that operate in the long-wave infrared (long range LWIR) band. Ultra Extreme long range Cooled and uncooled systems both have thier advantages in the world of distant range narrow FOV thermal imaging applications.

SPI Corp’s long range multi sensor Eoir flir thermal imaging camera systems offer substantial long distance detection ranges allowing the operator to be positioned at very far distant standoff locations offering ample time to react, to threats or targets of interest. Long range imaging systems provide a benefit to the user when coupled with an array of sensors and geo locating modules especially in specialty military, security and surveillance applications. The farther you are, the more time you have to react and not be seen. Recently thermal imaging flir sensors / detectors are being manufactures with smaller micro pixel pitches, this allow us to get more distance out if the lens, we can get down to micro pitch sizes as low as 5 microns offering the operator an effective focal length of up to 1800mm which provides an extraordinary reach in critical areas such as borders, forward observation bases, coastlines, shorelines, air fields and other important areas that require 24/7 protection.

Long range thermal imaging flir cameras play a vital role in aerial airborne imaging applications. These thermal cameras are packed inside gyro stabilized gimbals next to an assortment of other sensors such as visible low light daytime cameras, iR lasers, laser range finders, swir and LIDAR sensors. These PTZ EO/IR ISR day and night vision gimbals are being used on systems like drones, UAV, UAS, SUAS, UGV, USV, and manned and unmanned applications. The M2-D is a great example of a small lightweight micro mini gyro stabilized thermal imaging flir gimbal.

These gimbals typically need to be very lightweight and very small in order to allow the Drone to have great endurance while airborne, the lighter and smaller the Multi sensor thermal imaging gimbal camera, the more you can stay up in the air and collect important visual data.
