M11 Long range flir camera

LONG RANGE THERMAL PTZ FLIR CAMERA
PART SPI-M11-HD

CHARACTERISTICS

Long range flir camera system for ISR, security and surveillance applications
Pan/Tilt 360° Continuous Rotation / 90° +/-
Long Range, High fidelity vivid color low light CMOS zoom daytime EO imager
Rock steady, jitter free gyro stabilization
Large selection of complimentary sensors, lasers and add-on modules

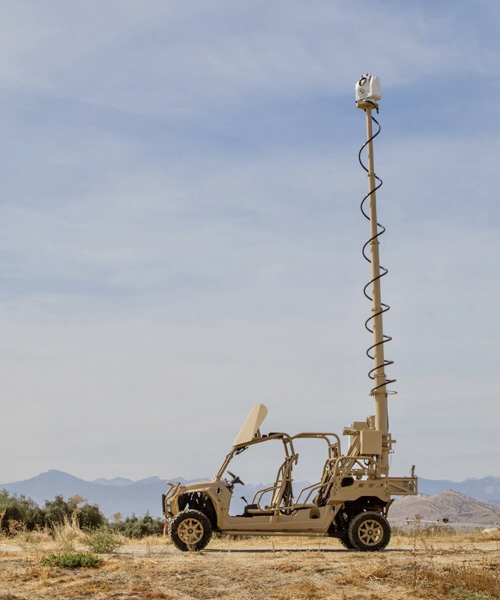

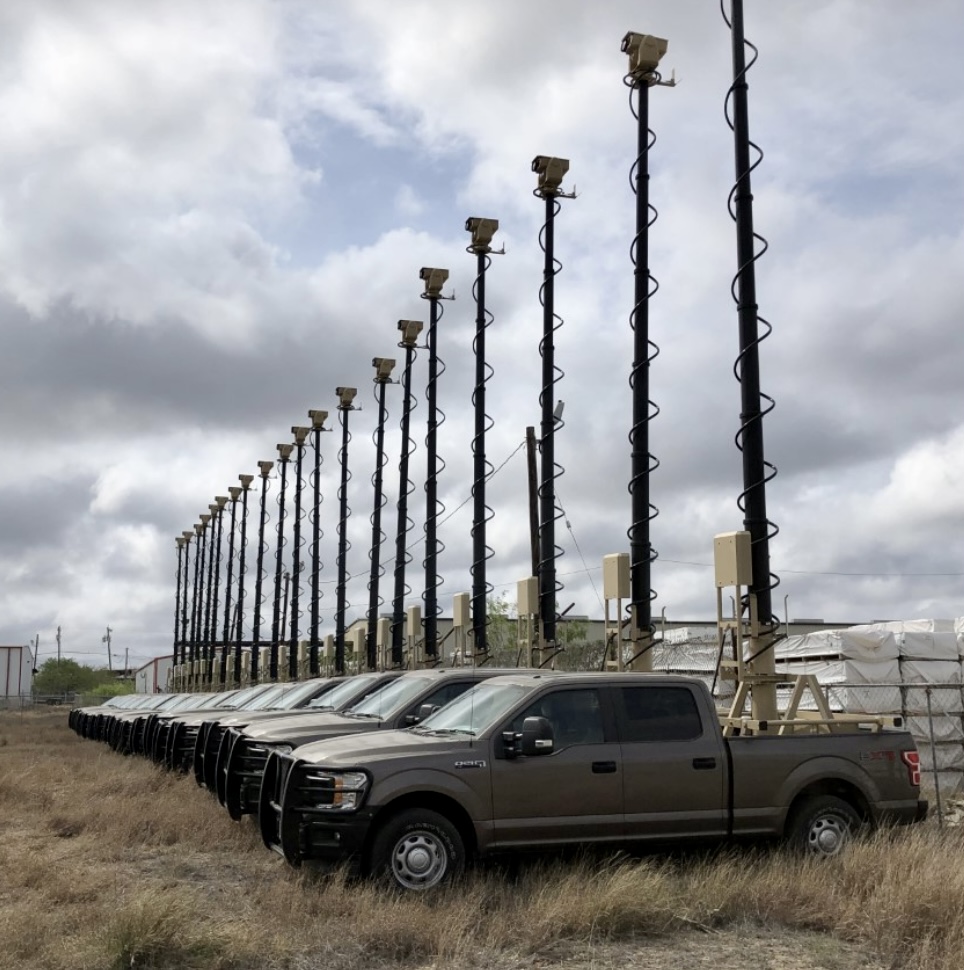

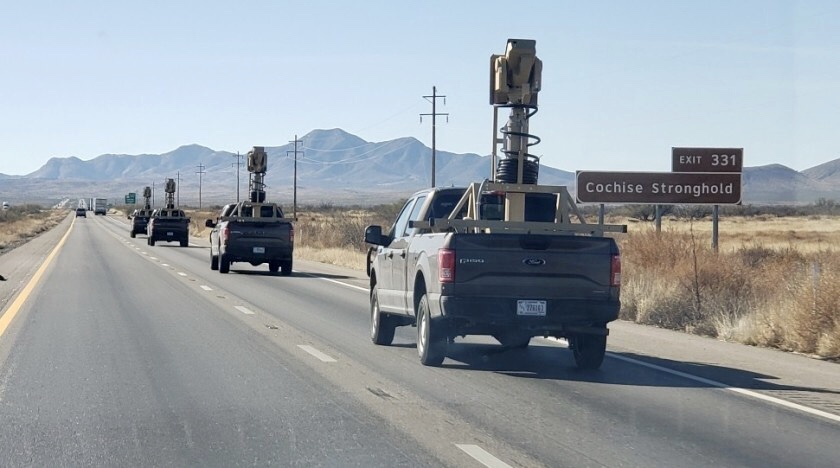

Ideal for mobile, fixed, mast / pole / tripod mounted applications

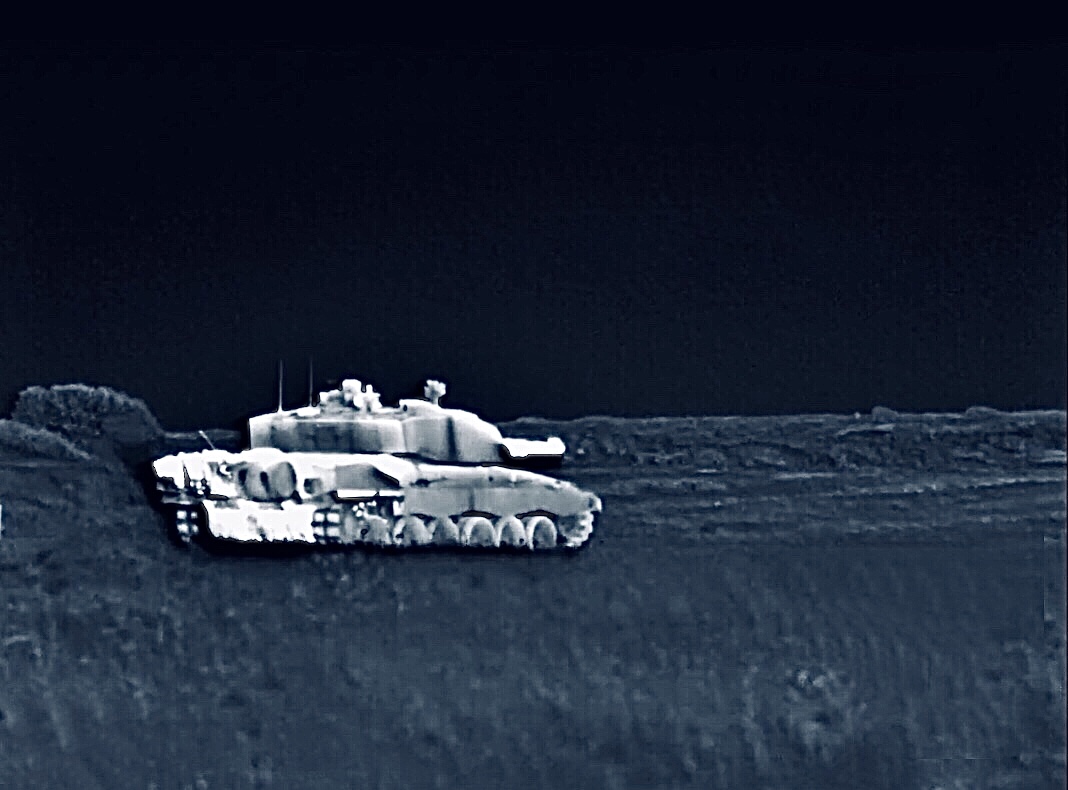

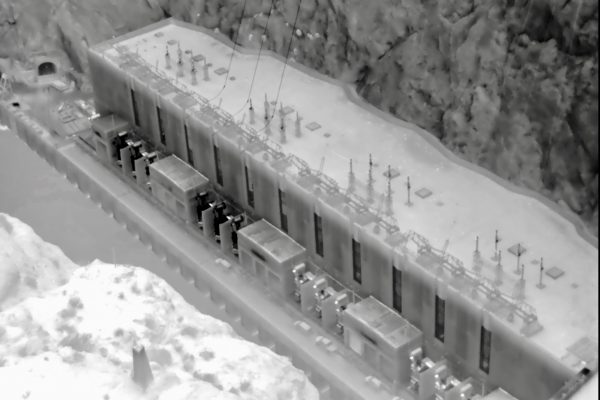

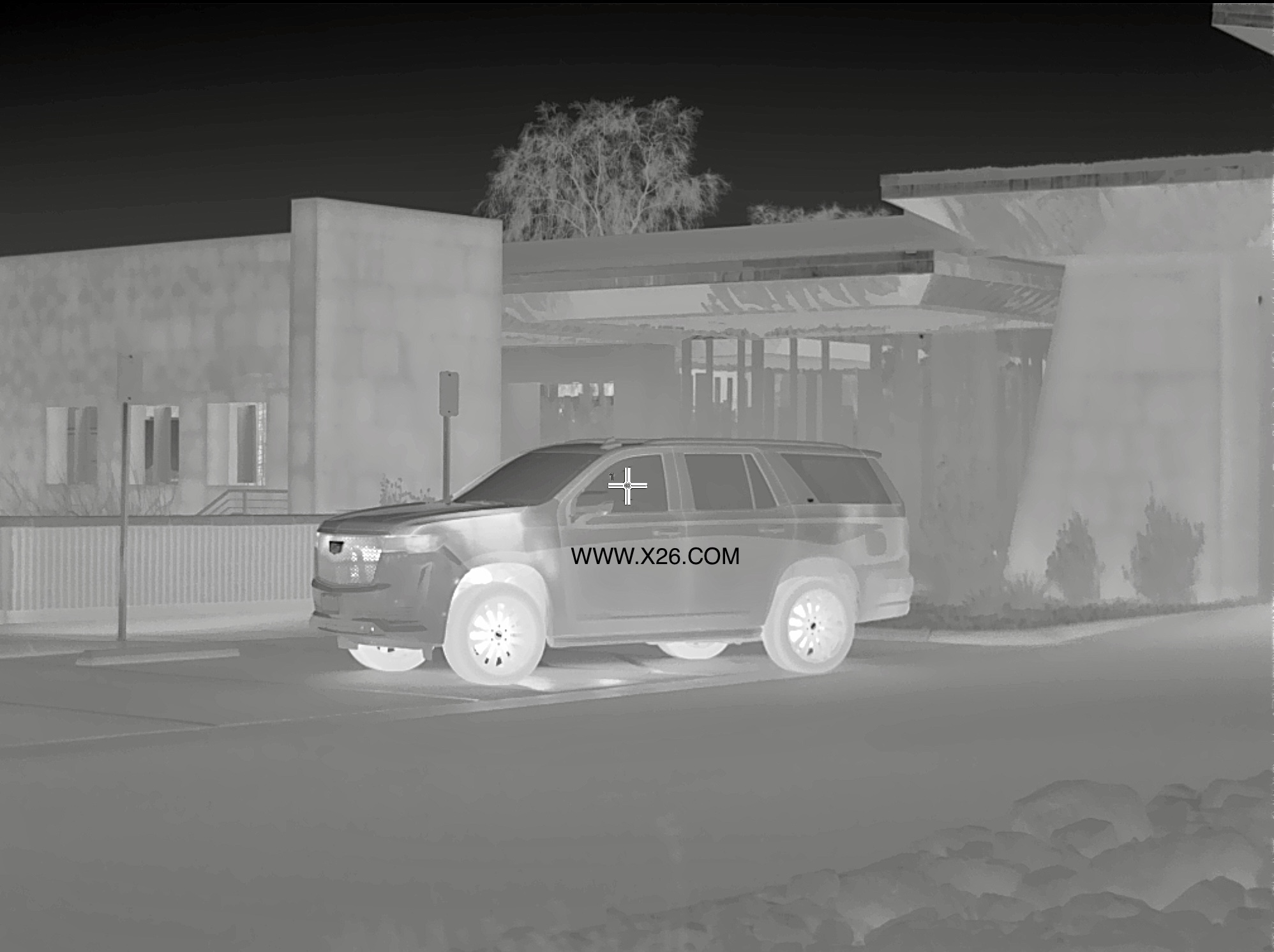

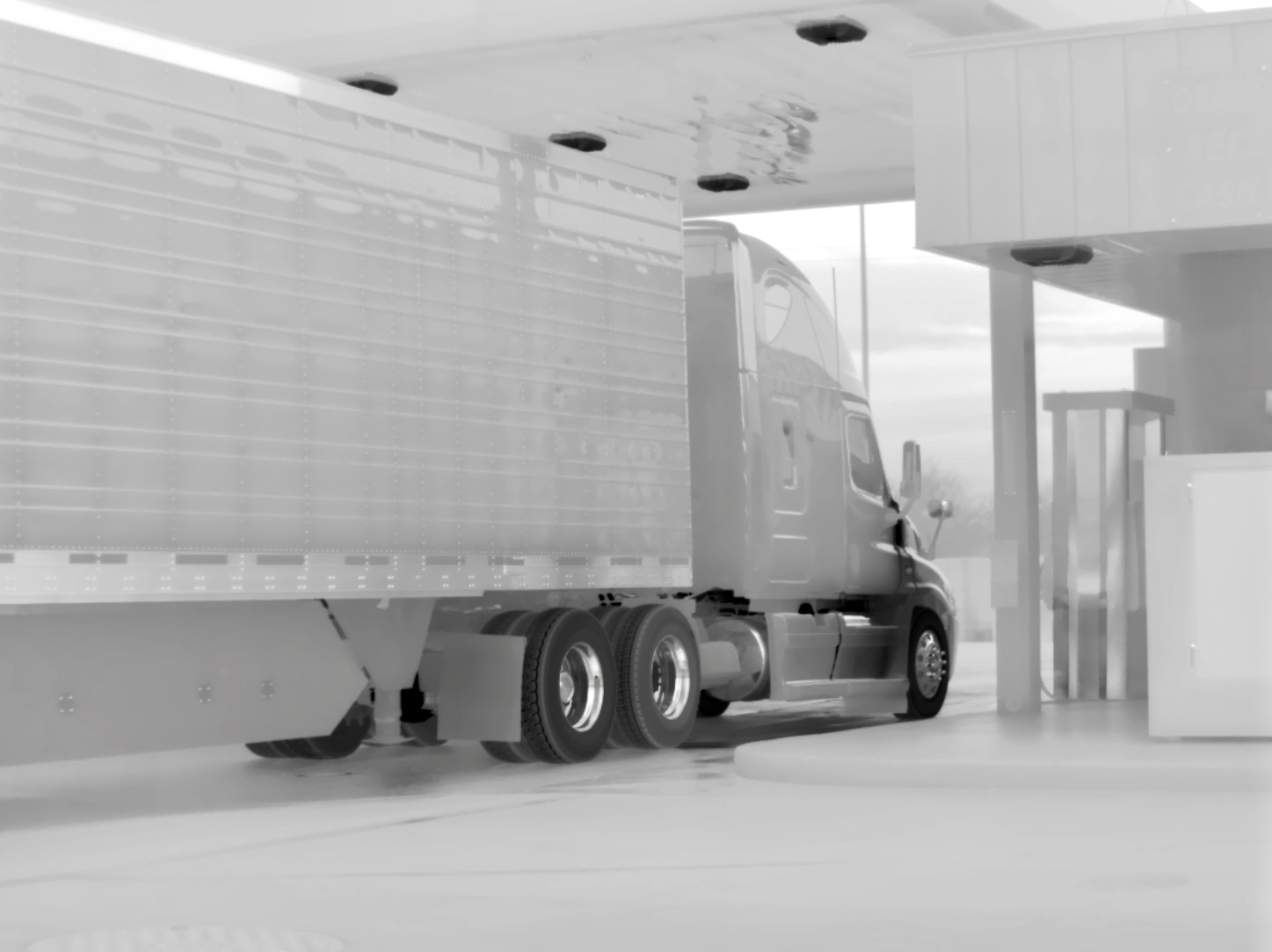

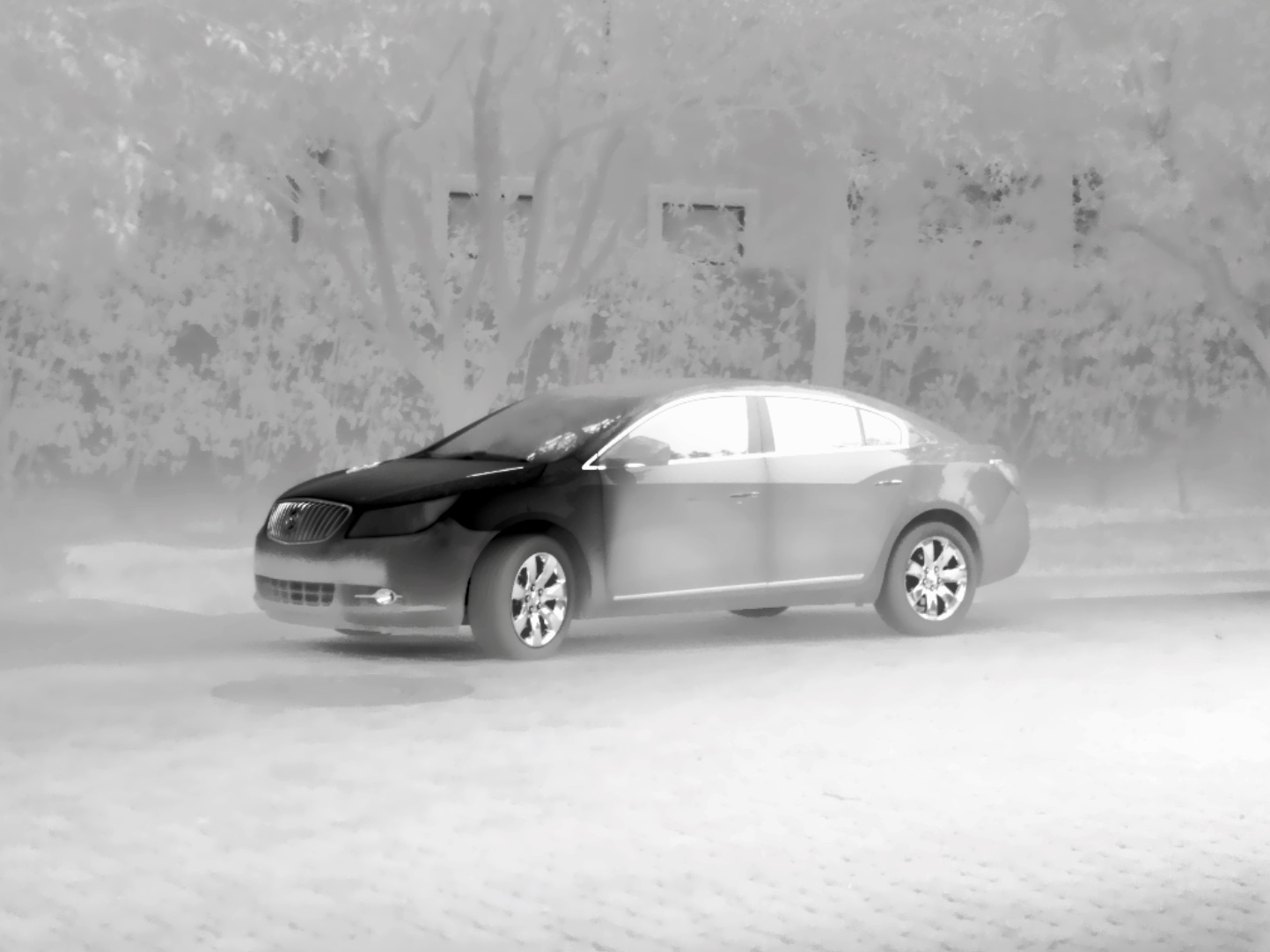

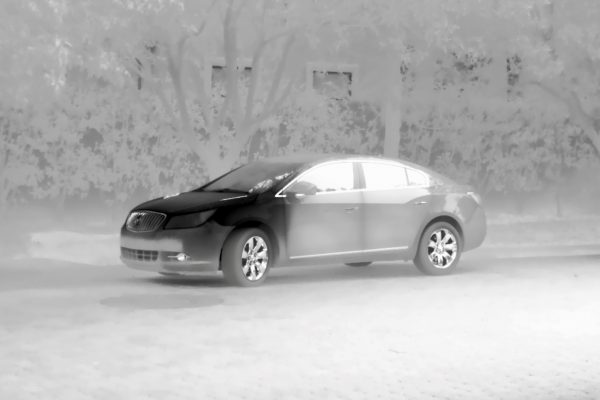

SD or HD InSb/HOT cooled MWIR Long range flir camera
Long range Smooth continuous zoom flir Germanium IR lenses
Thermal Sensor 60hz frame rate, 640 x 512 or 1280 x 1024 HD
Focus/Gain Motorized/Auto & Manual

PACKAGE INCLUDES

  • M11 Long range flir cameras PTZ EO/IR Imaging System
  • Cabling
  • IRF Laser Range Finder (optional)
  • Long-Range Illuminator (optional)Manual
  • Operators Manual
  • Lens Tissue

DESCRIPTION AND FEATURES

The M11 all weather Long range flir camera is an integrated multi sensor imaging system. It is a rugged, operationally qualified package with a range of sensor configurations. The M11 Long range PTZ thermal imaging flir camera utilizes a high-performance pan and tilt system that is ideal for day/night surveillance over long-range distances, in the harshest environmental conditions. The M11 long range flir camera was specifically designed to support the highest performance sensors available. In addition to the high-performance imaging sensors, the gimbal can accommodate optional sensors, including a laser range finder, laser pointer/ designator, and laser zoom imaging illuminator & many other devices. The M11 Long range flir camera has been selected for multiple US Military and US border Patrol security and surveillance programs.



The M11 utilizes state-of-the-art, high-grade, pan tilt zoom gimbals that are built with the highest performing sensors available. This rugged weapon-grade gyro-stabilized gimbal turret offers multi-sensors, including long-range cooled InSb MWIR FPA thermal imaging Flir detector with extreme long-range CZ (Continuous Zoom) autofocus lenses, The daytime visible HD camera is comprised of the lowest light-gathering ultra-sensitive CMOS sensors with long range zoom lenses. The M11 long range flir camera has an optional add-in LRF Laser Range Finder, IR (Infrared) lasers, GPS, Compass, and SWIR, NIR, and LWIR options. The absolute electronically and mechanically most reliable, highest performing, and most rugged systems available in the world. The M11 long range flir Camera has rock steady gyro stabilization giving the user jitter free visual acuity at long distances.


FUNCTIONS:

Situational Awareness:
The M11 PTZ Pan Tilt FLIR Thermal Imaging Camera provides a 16:9, widescreen video to show more of the scene at a glance.
Exceptional Long Range:

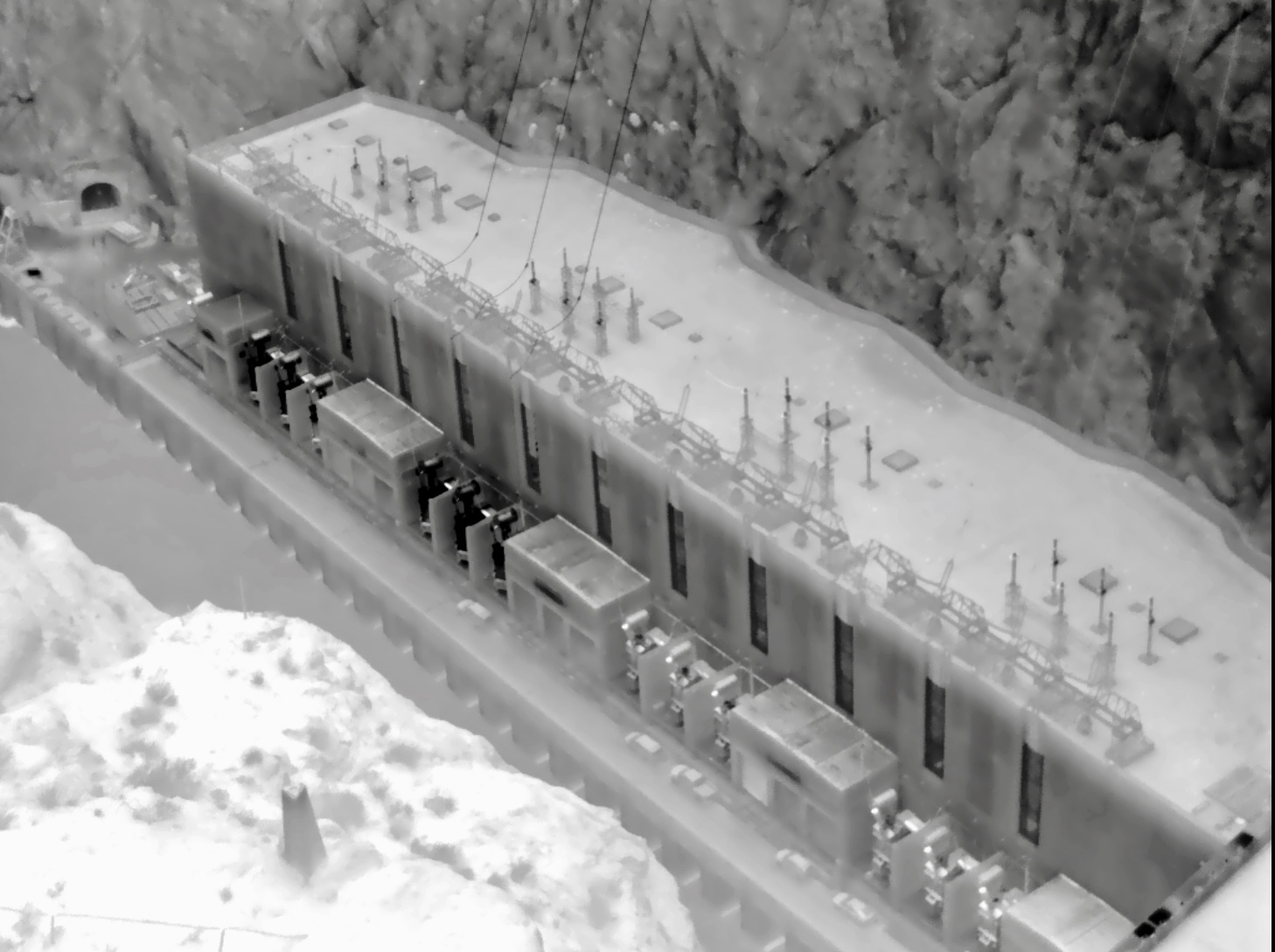

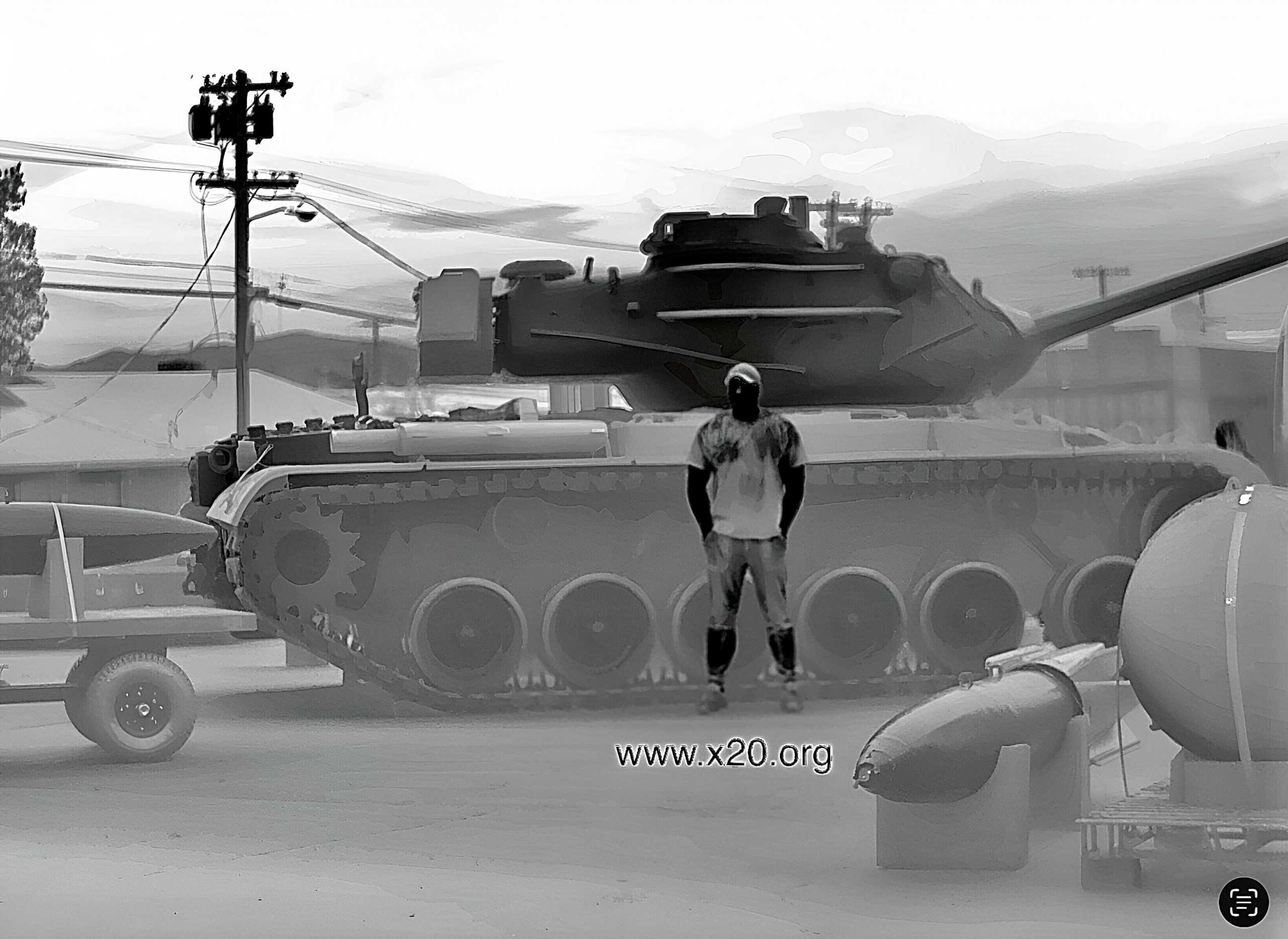

Using a cooled detector, the M11 PTZ Pan Tilt FLIR Thermal Imaging Camera provides exceptional long-range performance with detection of man-sized targets beyond 20km and vehicles beyond 32km.
Continuous Zoom:
Continuous zoom with target focus in both a wide field of view and during zoom for effective target assessment, ensures users always have an optimized field of view for targets at any range.
Advanced Algorithms:
The latest MWIR IR Image Processing Engine with advanced algorithms developed to generate a perfect picture with minimal adjustment, Anti Fog/Haze, and turbulence Mitigation is standard.
Rugged All-Weather Housing:
Our housings are the mist rugged in the industry, These rugged units get submerged and operated fully prior to shipping, Our intense final inspection assures that all Mechanical, optical and electronic aspects are triple checked for smooth operation.
Customizable:
The M11 Daylight and Thermal Surveillance (P/T/Z) Multi-Sensor (cooled) MWIR 3-5um Thermal FLIR Imaging System that can be custom built and tailored to your exact requirements with rapid delivery and affordability.

  • Pan/Tilt 360° Continuous Rotation / 90° +/-
  • CZ Autofocus lens from 25mm – 1550mm
  • IP68+
  • Customizable to your exact mission specs
  • Optional LRF Laser Range Finder, Laser pointers and Infrared illuminators
  • Optional Targeting, tracking, slew to cue radar integrations
  • Rugged, all weather IP68+ system can can withstand any harsh environment
  • Reliable system with Ultra long life coolers
  • SWIR, NIR, and LWIR options

SYSTEM FEATURES

• 360° azimuth/continuous rotation
• Direct drive servo motors
• Payload balanced over the azimuth
providing low inertia ideal for high
speed tracking
• High resolution imaging in extreme
environmental conditions
• Fully network enabled for integration
into existing IP surveillance networks
• Optional:
– Active Gyro stabilization – jitter free image stabilization
• Integrated system controller: controls
all motion & sensors via single Ethernet connection. This allows for changing sensor types without re-coding the user C2 interface.
SENSOR OPTIONS
HD Day Camera Features:
• 0.006 lux 1” HD CMOS BSI Day/low light EO imaging camera
• 200 or 500mm continuous zoom with high
speed auto focus
• Heat haze/wave removal & electronic
image stabilization optional

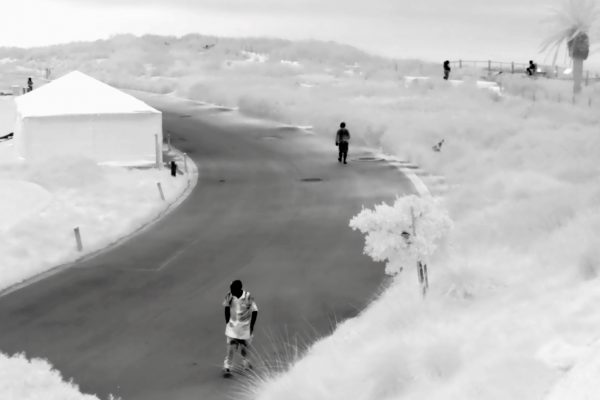

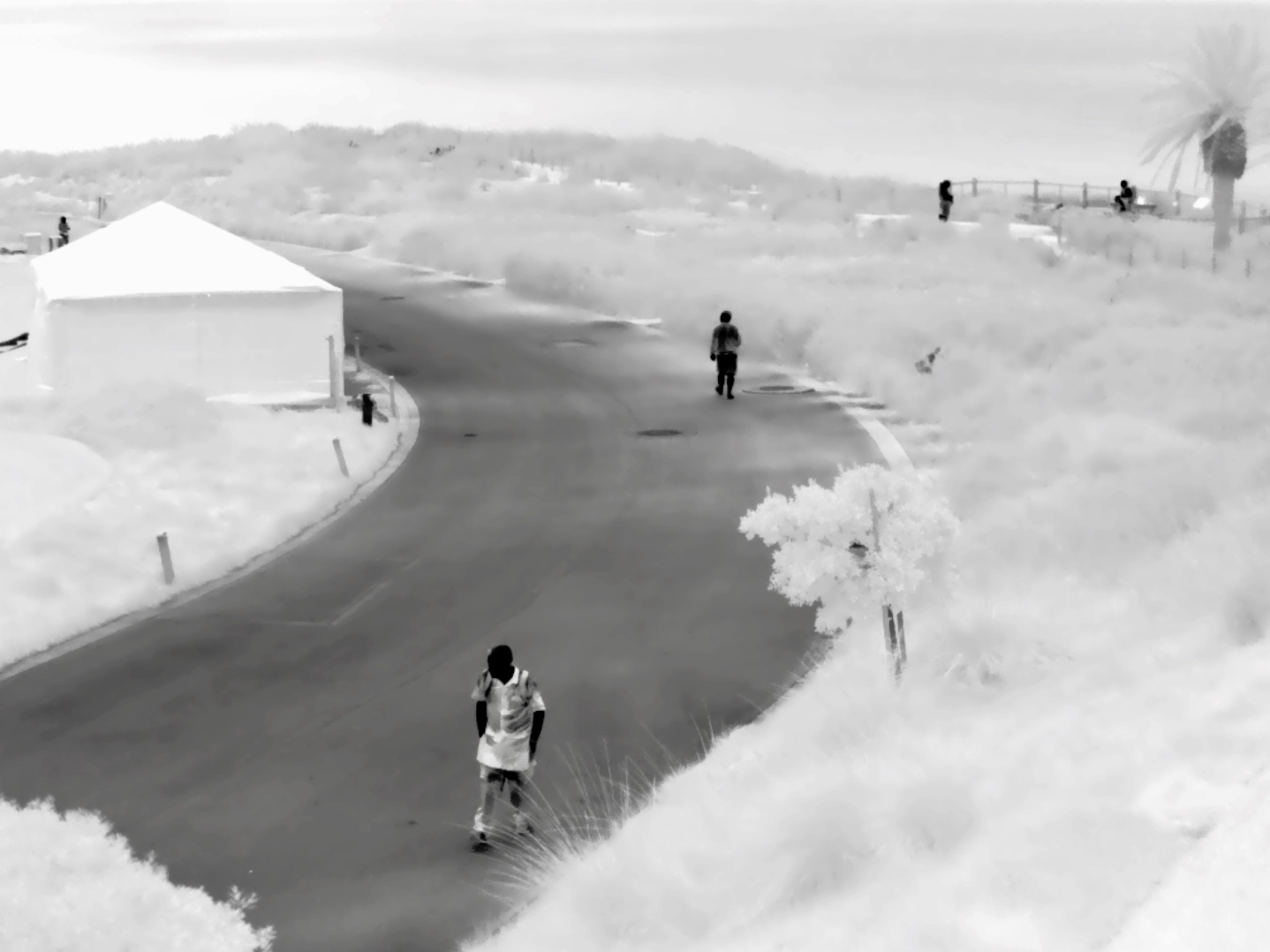

• NIR imaging
SD & HD Thermal MWIR Camera Features:
• 420mm continuous zoom lens, auto focus & manual focus
• Electronic image stabilization
• Turbulence mitigation
• HD resolution, 1280 x 1024 pixels, ultra long life cooler
• Edge enhancement &
contrast enhancement
Option 2 Thermal MWIR Camera Features:
• 700mm continuous zoom lens, auto focus & manual focus
• Electronic image stabilization
• Turbulence mitigation
• 640 x 512 pixels, HD 1280 x 1024 Available, ultra long life cooler
• Edge enhancement &
contrast enhancement
SD Short Range Thermal LWIR Camera Features:
• 225mm continuous zoom lens auto focus & manual focus
• Image stabilization
• Turbulence mitigation
• 640 x 512 pixels,
• Edge enhancement &
contrast enhancement
Military Laser Pointer Features:
• Eye safe at the aperture
• 15km range
• 4Hz flashing mode
• 30Hz continuous mode
Military Laser Ranger Finder Features:
• Eye safe at the aperture
• 20km range
• Solid state design for long life

Long range flir camera

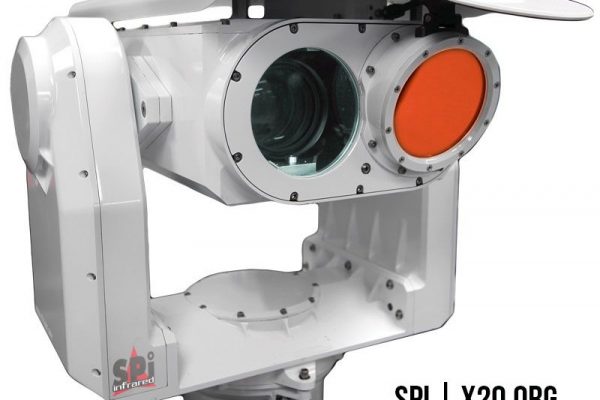

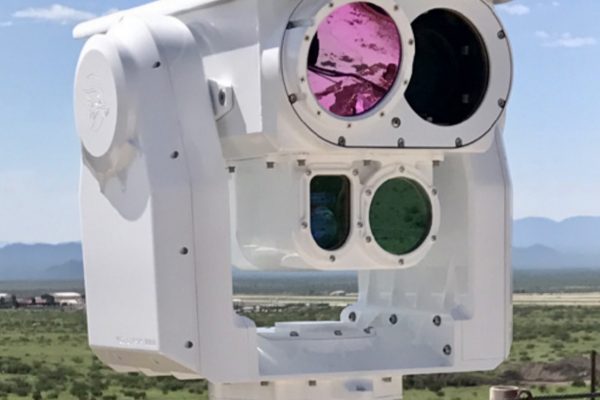

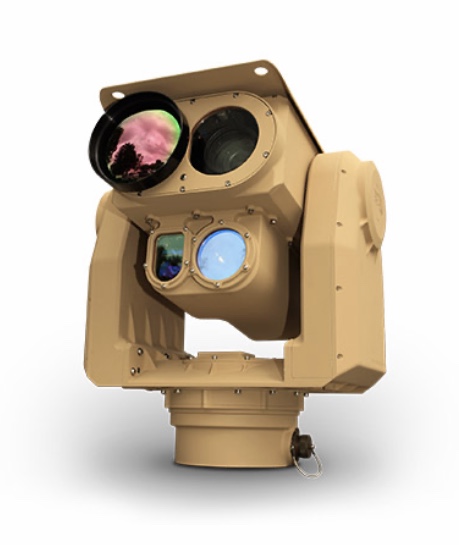

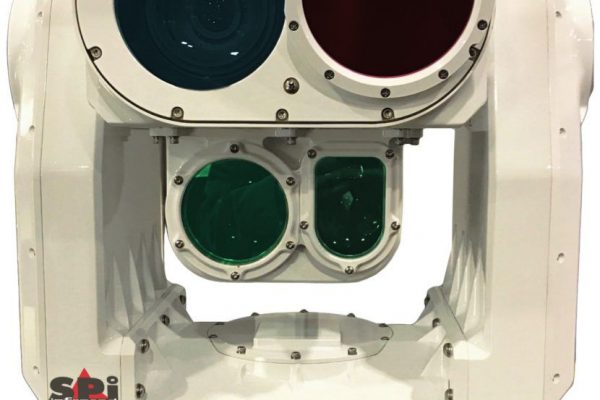

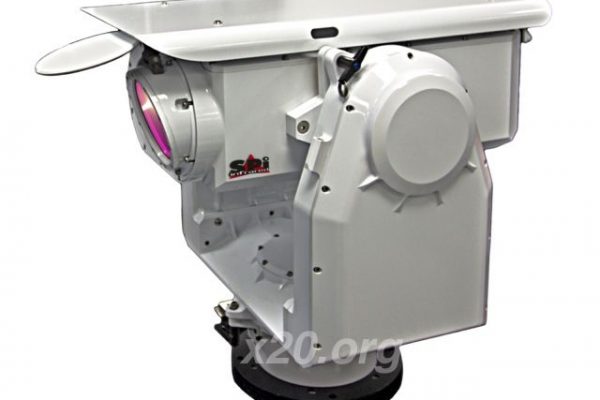

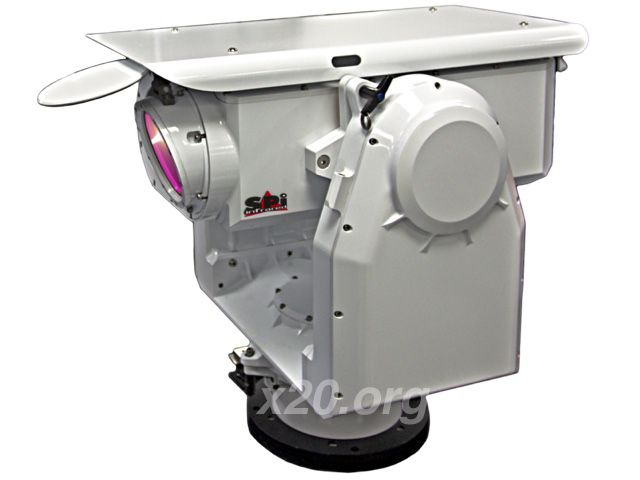

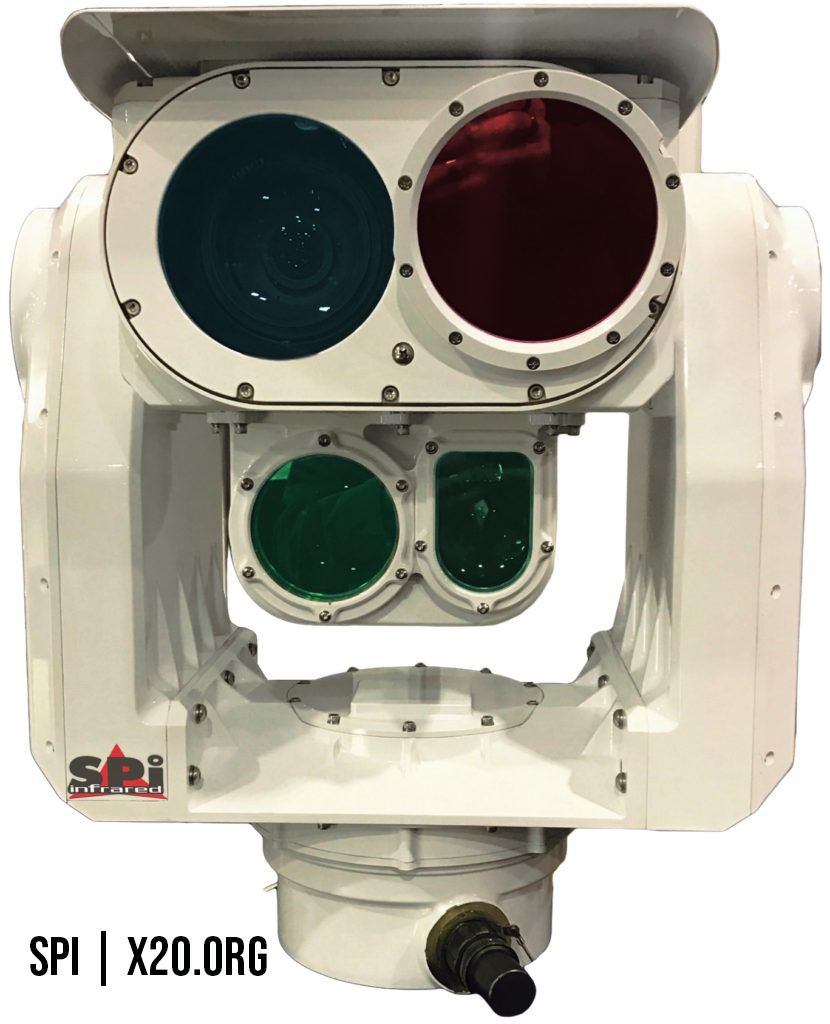

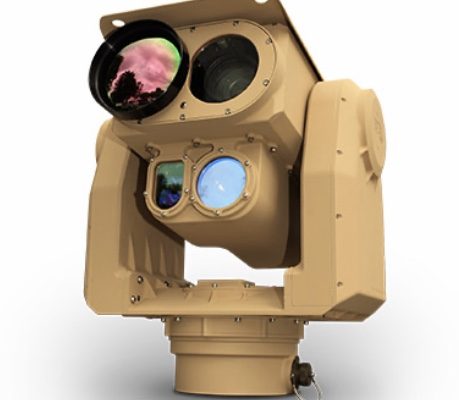

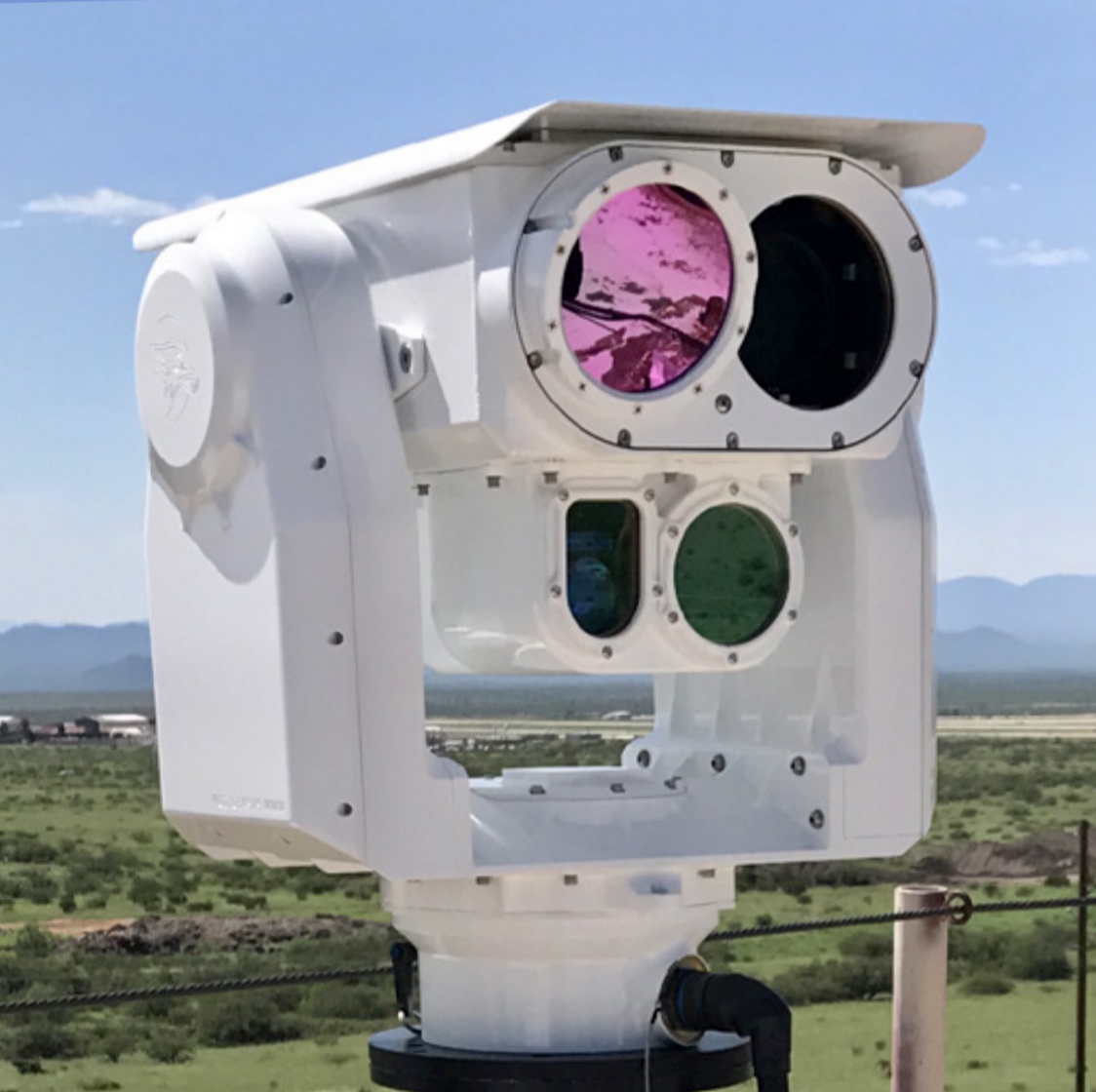

M11 heavy duty IP68 rugged Long range PTZ thermal imaging camera shown with 500mm Zoom HD 1” CMOS EO camera, 700mm Zoom MWIR HD IR camera, 20 KM 1550nm Laser RangeFinder and 15 KM 850nm IR laser pointer/illuminator

Long range flir camera

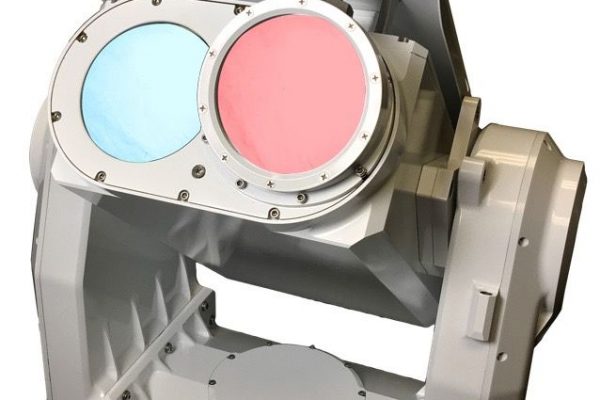

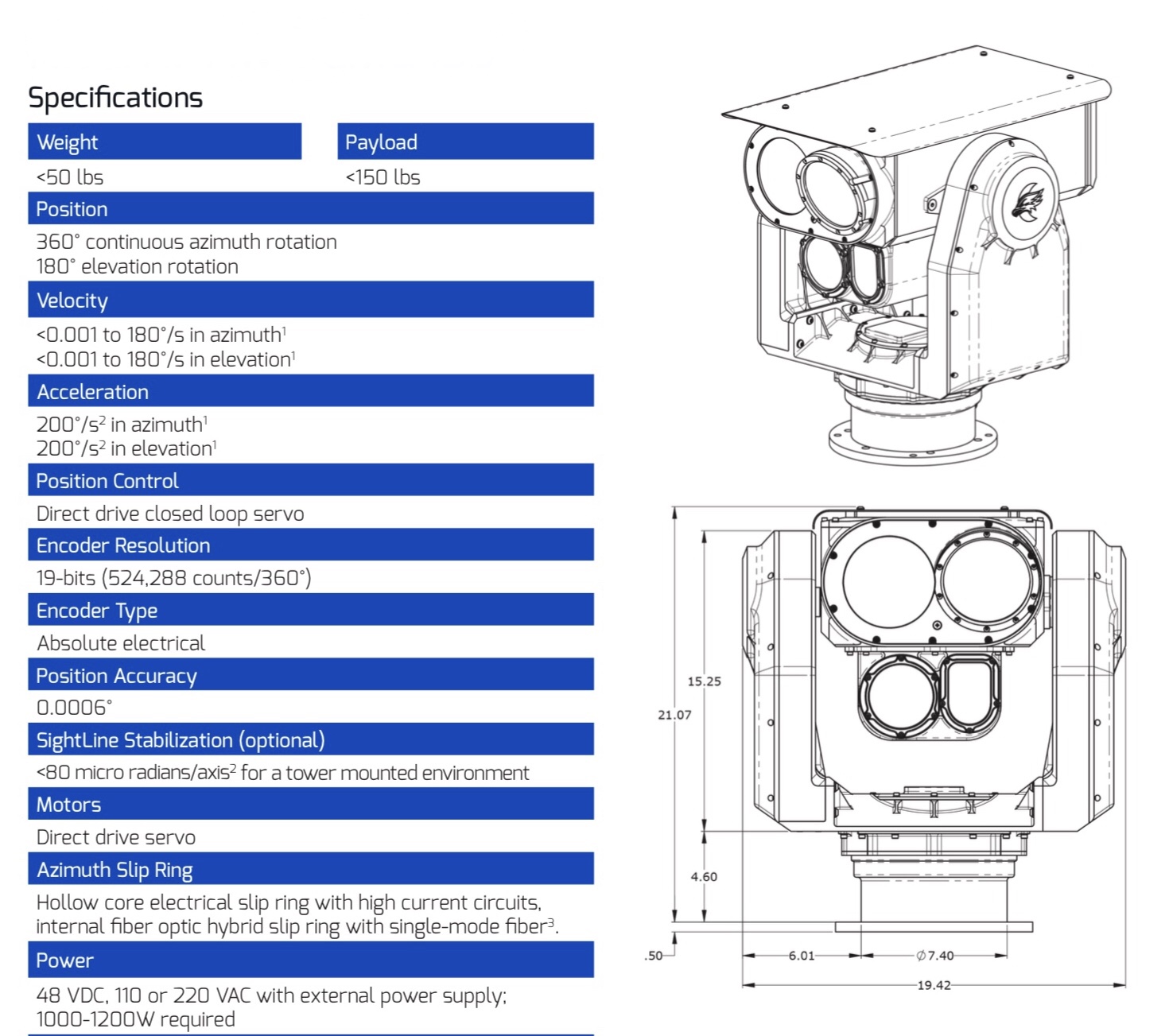

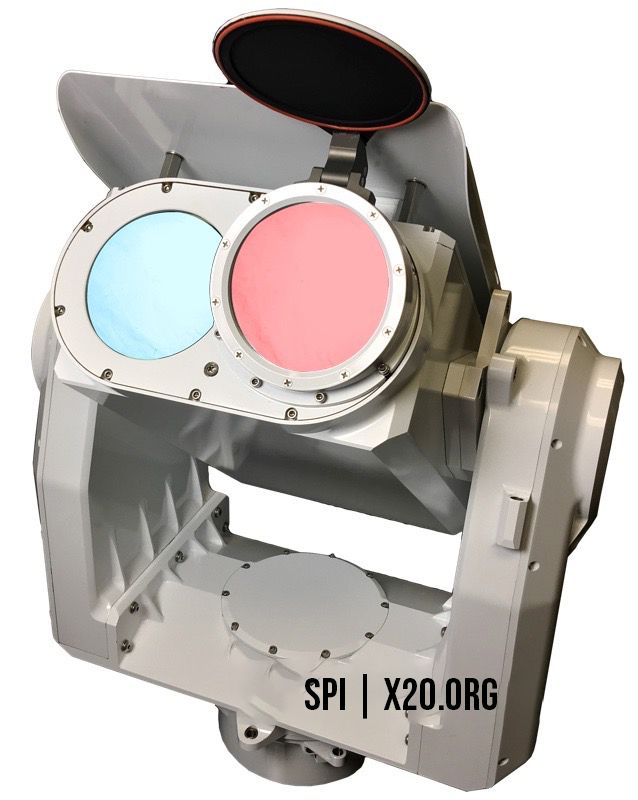

M11 gimbal positioner mechanical specifications, our gimbals Pack the highest quality, most rugged and reliable titanium gears and motors.

SPECIFICATIONS

Thermal Imaging Camera

Type Maintenance free uncooled VOX Microbolometer FPA Focal Plane Array or cooled MWIR InSb
Resolution 640 x 512 or 1280 x 1024 HD
Lenses 400mm or 700 mm continuous zoom F4 MWIR lenses, 225mm continuous zoom f1.3 LWIR
(WIDER AND NARROWER FIXED AND ZOOM OPTICS AVAILABLE, PLEASE INQUIRE)
Wavelength Long Wave Infrared LWIR or Mid Wave Infrared
Spectral Range 3 – 5 or 7 – 14 Microns
NETD High sensitivity 20 mK
Detection Over 20km (depending on Optics chosen)
Identification Over 5km (depending on Optics chosen)
Operational Altitude 7.5 Miles
Shock 1500 g @ 0.4 msec
Solar Protection Yes
NUC Auto/Manual Silent, Instant
Imaging Detail/Contrast enhancement. Full auto imaging AGC contrast & brightness
Polarity Black hot / White Hot
Color 16 Styles
Electronic Zoom 1-10x Electronic Zoom
Alarm/Alert 16 region target selection
Range Finder OSD ranging with Human and Vehicle target symbology
Hot Spot Auto Hot spot scene detection THERMAL IMAGING LENS Material Germanium
Type Hardened, Anti Reflective coated, Sealed
Optical Zoom Athermalized, Parfocal Continuous high speed Optical zoom
Motor Precision Stainless
F Rating F/1.2
Focus Automatic/ Manual
Calibration In line calibrated to thermal sensor without vignetting, blooming, distortion
Transmission High 85.3%
Vibration Compensation Yes
Upgrade Sensor Support Up to WUXGA 1920×1200 IR Detector Sensor type: 1 / 2.8 “progressive scan CMOS
Scanning System Progressive scanning
Signal System PAL / NTSC
Video Output

DAYTIME/LOWLIGHT CAMERA

Resolution 50Hz: 25FPS (1920×1080) 60Hz: 30fps (1920×1080) 50Hz: 25FPS (1280×960); 60Hz: 30fps
(1280×960) 50Hz: 25FPS (1280×720) 60Hz: 30fps (1280×720)
Color 0.05Lux @ (f1.8, AGC on) black and white: 0.01LUX @ (f1.8, AGC on)
SNR >52dB
Lens Focal length 8-310mm, 40x optical zoom
Aperture Value F1.8-f6.0
Horizontal Field of View Angle 41.3o – 2.0o (wide angle – telescope) close range 10 mm – 1500 mm (wide angle – telescope)
Zoom Speed About 3.5 seconds (optical, wide-angle telescope)
Day/Night Conversion Mode ICR filter

BSI CMOS CCTV EXTENDED FEATURES

Focus Mode Auto / manual / primary focus
Exposure Mode Auto exposure / aperture priority / shutter priority / manual exposure
Day and Night Mode Auto / color / black and white electronic shutter 1 / 1 second to 1 / 30000 second
White Balance Auto 1 / Auto 2 / indoor / outdoor / manual / sodium lamp / fluorescent lamp
Backlight Compensation Off / On
Gain 16 level adjustable
Bad Point Compensation Support
Wide Dynamic Off / On, adjustable at 15 levels
Digital Noise Reduction 3D
Lens Initialization Built in
Image Quality Adjustment Brightness, contrast, sharpness and saturation can be adjusted
Digital Zoom  12 network function
Video Compression H.265/H.264
Compressed Output Code Rate 32kbps-16mbps
Audio Compression G.722.1, G.711-a law, G.711-u law, MP2l2, G.726, AAC, PCM
Storage Function Supports micro SD / micro SDHC / micro SDXC card (up to 256g)
Image Setting  Movement function can be adjusted through client or IE browser
Intelligent Alarm motion detection, blocking alarm, memory full, memory error
Support Protocol TCP / IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS, IPv6 (SIP, SRTP, optional), gb28181, onvif, psia, CGI, ISAPI three stream support

CMOS/BSI LOW LIGHT IMAGER

Pixels 2MP electrical focus
HD Infrared Correction Optical IR correction design, diurnal focus
Auto Aperture Support
Night-Day Wide Spectrum 0.4-0.75um visible broad spectrum window and 0.8-0.95um NIR narrow spectrum window with day-night independent double-pass window to improve the signal-to-noise ratio of imaging light and stray light
Preset Position Precision potentiometer, DC5V, zoom focusing feedback
Interface C/CS

STRUCTURE

Material Integral aluminum alloy housing, sealed and waterproof
Structure Integration double window design
Window Glass 4mm microcrystalline infrared high-efficiency transparent HLIN optical glass, transmittance > 98%
Surface Spraying PTA three-resistance coating, anti corrosion (optional)
Temperature Control The whole system adopts thermal balance design + wide temperature electronic and optoelectronic devices, with built-in heating and heat dissipation components, which can work in low temperature and high temperature environment
Weather Proof IP66, water-proof, dust-proof
Connector Aviation Water-Proof Connector

PTZ

Load Duty 30kg CNC Pan-Tilt
Pan & Tilt 0 – 360° continuously, Tilt +45°~-45°
Rotation Speed Pan: 0.01~30°/S, Tilt 0.01~15°/S, support with lens focus speed adaptive function
Preset 255 preset, support lens zooming and focus preset
Accuracy ±0.1°
Cruise Line-Scan Support 6 cruise line, 1 line scan
Watching Pre-positioning/Automatic Cruise Route/Automatic Scanning Route
Power-Off Memory Support (restoring pre-power-off position, preset point status, cruise status, line-scanning status)
Azimuth Information Support angle query, return and positioning
Zero Correction Support for north-to-zero remote correction function
Power Consumption about 80W
Weight 29 kg

IP

Network Interface RJ45. 10/100 Base-T adaptive (integrated video output and RS485 control)
Network Protocol TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2.0, GB28181
Support Onvif  2.0 a
Pelco Support Pelco-P, Pelco-D baud rate 2400, 4800, 9600, 19200 (optional)
Power Supply AC/DC24V, Anti-reverse connection protection
Interface Aviation waterproof connector

ENVIRONMENTAL

Working Temperature – 25° ~60° (- 40° Optional)
Storage Temperature -45 ~ +70
Humidity <90%
Seismic Resistance 0.2g (in accordance with GB/T15211-2013 5.4 harsh grade 2
Impact Resistance 15g (in accordance with GB/T15211-2013 5.3 harsh grade 3)
Lightning Protection Built-in surge protection interface circuit, 4000V power supply, 2000V signal
Salt Spray Prevention Continuous spray for 96 hours at pH 6.5 to 7.2, no change in surface
Protection Level IP68+
Consumption ±150W

X99 LONG RANGE RADAR M11 INTEGRATION FOR TRUE
TRACKING AND SLUE TO CUE APPLICATIONS

Radar integrated with long range PTZ thermal imaging flir camera
The X99 radar is the latest upgrade to our proven heritage
of ground surveillance radar (GSR) technology and expertise.
The X99 long range radar provides wide area situational awareness
in a lightweight, low power package that is easy
to setup and use. The radar’s high reliability results in a low cost of ownership.
Maintainability is simplified with a modular design for field servicing.
The X99 precision radar can be coupled with the M11 long range PTZ thermal imaging EOIR
multi sensor flir camera system. By incorporating the X99 Radar to the M9 long range gimbal, you
Get true tracking and slue To cue capabilities.
Superior accuracy in range, azimuth and target acquisition allow for better performance
with image cueing, classification, and identification of targets. Automation of
electro-optic sensor cueing, audible alerts, multi- target tracking, and advanced
anti- clutter techniques are just a few of the features that allow system operators to focus
on what’s really important – the threat.
The X99 radar is reliable in all weather conditions and extremely high ambient temperatures.
Engineered and designed with the end user in mind, the radar is extremely easy to
setup and use, yet rugged enough to withstand repeated emplacements in any environment.
Multiple X99 radars are deployed worldwide – a testament to its reputation as a long range
GSR providing an unrivaled combination of performance and value.
The X99 radar is designed and manufactured in the USA.



CONFIGURATIONS
• Expeditionary (backpackable) • Fixed site (tripod or tower)
• Mobile (vehicle)

BENEFITS
• Operational in the most
severe weather conditions (extreme heat, wind, rain and salt fog)
• Transports easily and can be installed/set up rapidly by one person and in less than 10 minutes
• Intuitive, user-friendly operation and automated tasks make it easy to deploy

GENERAL SPECIFICATIONS
• Weight: < 45 lb (21 kg)
• Input power: < 100W (battery, vehicle, solar or AC power)
• Transmit type: Pulse-Doppler
• Operating frequency: 16.21-16.50 GHz (Ku band)
• Interface: Ethernet / XML (SEIWG ICD-0101B, cursor on target)
• Detection range:
– 12 km for a single person (0.5 m2)
– 21 km for small vehicles (10 m2)
– 32 km for large vehicles (30 m2)
– 48 km max instrumented range
• Minimum detection range: 50 m
• Minimum detection velocity: 0.25 m/s
• Elevation range: -33° to +22°
• Elevation beamwidth: 3.8°
• Range / azimuth accuracy: 10 m / 0.2°
• Azimuth coverage: Definable sector or full 360°
• Operating temperature: -40° C to +65° C
• Environment: Qualified to MIL-STD 810G
• Electromagnetic interference: Qualified to MIL-STD-461F, FCC Part 15 certified
• Ultra reliable system

FEATURES
Rapid update rate Low false alarm rate
Automated sensitivity settings for weather and clutter management
Simultaneous short and long range coverage
Automated priority target track mode
Performs ground, coastal and surveillance of low flying aircraft missions
Integrates with C2 and cues imaging sensors with high accuracy
Networkable
Built-in test for automatic fault isolation
Automatic clutter filtering compensates for mast or tower sway
Tracks up to 500 targets simultaneously
Automatic data recording with playback
Frequency agility Audio alert capability
Web interface for command and control
Multiple language user interface
