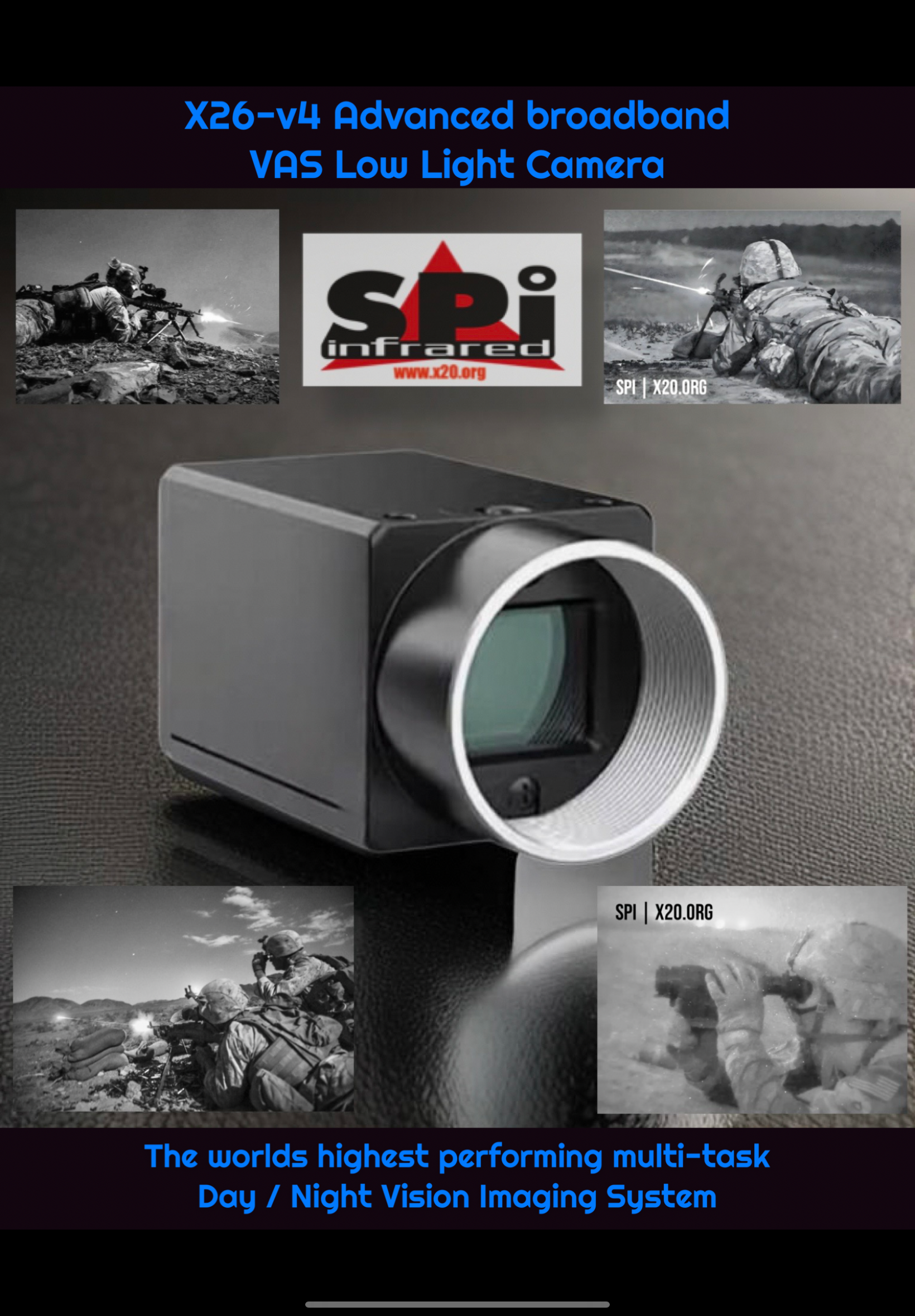

The X26-v4 is a low-SWaP novel high technology broadband visual augmentation system
built for missions requiring real-time situational awareness in
day~starlight degraded environments.
It features an ultra-low light level (LLL) electronically
intensified SuperCMOS AI sensor with low latency,
high speed, high frame rate performance for a true day/night immersive experience.
The modular, power-efficient core is designed for integration into portable, weapon-mounted, PTZ, and hands-free platforms, supporting a wide range of dismounted and tactical applications.
The X26v4 sensor covers the 400–1,200 nanometer range and delivers a compact, lightweight, low-SWaP solution for integration into short-, medium-, and long-range ISR and target acquisition systems. It supports multi-sensor, broadband, fused configurations, and is compatible with handheld, hands-free, weapon-mounted, fixed, PTZ manned, and unmanned platforms.

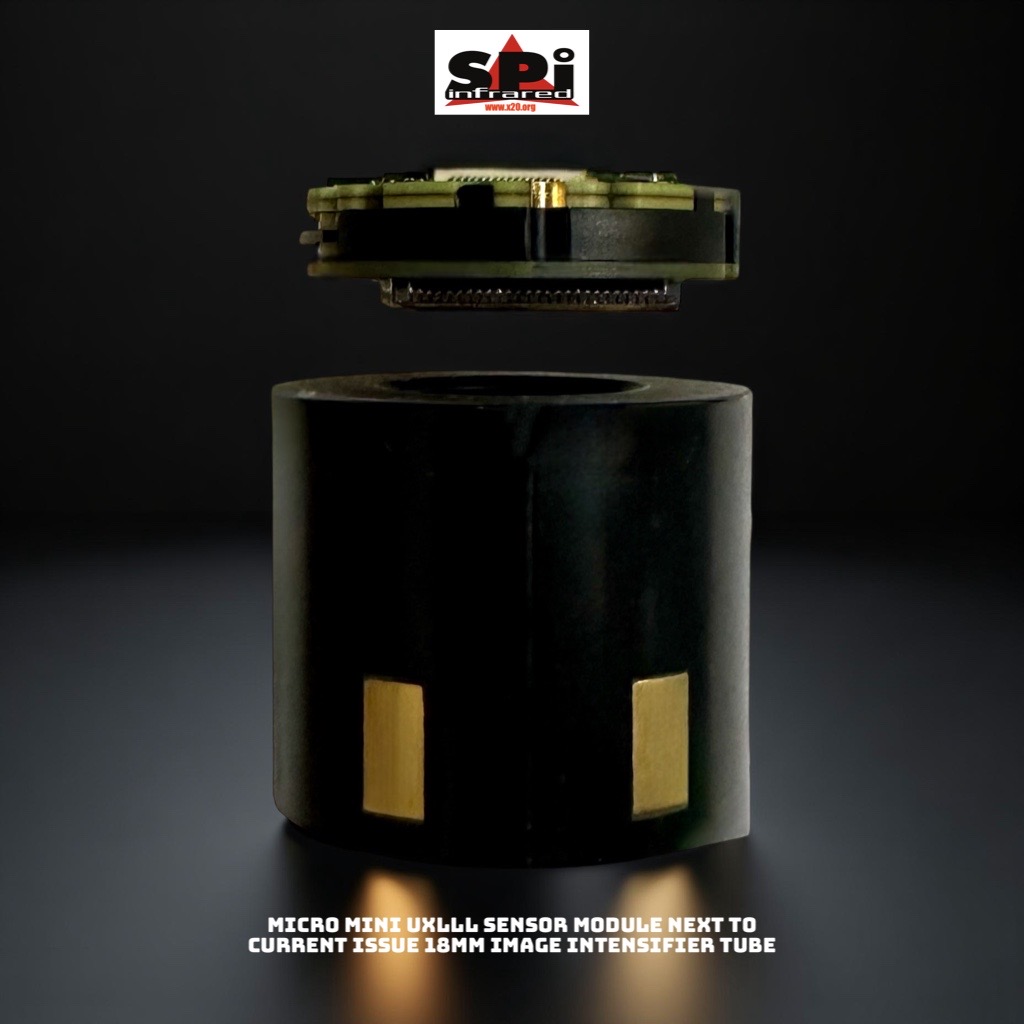

The X26v4 is built for use across day, dusk, and night operations, even in harsh environmental conditions. Unlike traditional image intensifier (I²) tubes, it can withstand direct exposure to intense light sources without risk of damage ensuring mission continuity and equipment survivability.
The X26v4 NO LAG, high speed system outputs truly immersive high fidelity video without image smear / delay and significantly exceeds the sensitivity / low-light-level (LLL) performance of currently fielded cameras and imaging systems, offering unmatched operational capability in limited visibility environments.

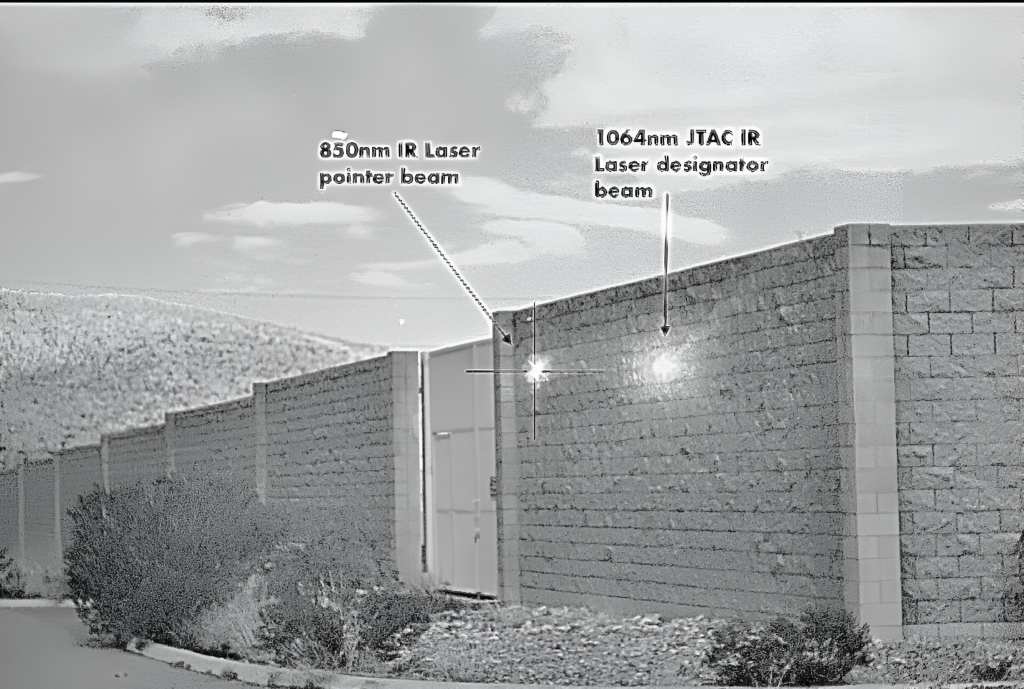

JTAC 1,064 nanometer IR SEESPOT Laser designator detection in DAYTIME (Shown with LWIR Thermal imager sensor channel on top left corner of screenshot)
X26v4 Advanced Solid-State Visual Augmentation System
Ultra-Low Light Imaging | AI-Enhanced | Day/Dusk/Night Operations
The X26v4 is an advanced, AI-enabled solid-state imaging system that outperforms traditional I² tube-based night vision devices. It is fully operational across day, dusk, and night with no risk of damage from intense light exposure—eliminating the limitations of legacy image intensifiers.
Key Capabilities:
- Sensor Technology:
- AI-enhanced solid-state short, mid, and long range imaging
- Ultra-low light level (ULLL) broadband FPA
- No I² tubes – immune to direct bright light damage
- 1064 nm laser detection for “See Spot” JTAC applications in Day, Twilight “pinkie” and night
- Operational Advantages:
- Fully passive, day-safe imaging system
- Robust performance in fog, haze, and environmental clutter
- Real-time, low-latency video with high fidelity in low-light conditions
- Micro-miniature, ultra-lightweight form factor
- Compatible with a wide range of COTS lightweight lenses
- Rugged and reliable – no moving parts or fragile components
- Broad spectral response from 400–1200 nm, sees the 1064 laser, Illuminators and enemy low wavelength Laser range finders.
- Versatile Integration:
- Suitable for handheld (Monocular or binocular style systems, rail-mounted, weapon-mounted, PTZ, and hands-free configurations
- Integrates into manned/unmanned ground, air, and maritime platforms (UGV, UAV, USV)
- Ideal for RWS (remote weapon station), gimbals, turrets, scopes, EO/IR systems, and multi-sensor payloads
- Mission Applications:
- ISR, target acquisition, surveillance, and navigation
- Unattended ground sensors (UGS)
- C-UAS detection and engagement
- Homeland Security and law enforcement operations
- Scientific and medical imaging in extremely low-light conditions
|
Features |
|
| Sensor Resolution | 1 MPX or 2 MPX |
| Pixel Pitch | 20 µm BSTFA broadband sensor |
| Processing Engine / Digital |
MDIS real-time image enhancement / Networkable |
| Spectral Range | 400–1200 nm |
| Laser Detection Capability |
IR with JTAC 1064 nm (See Spot) designator in day / dusk/ night |
| Imaging Mode / latency |
Fully passive, day-safe – crisp, real time imagery exceeding traditional 60HZ sensors. |
| Form Factor | Ultra-compact, low SWaP |
| AC / DC | Low power consumption |
| Environmental Resilience |
Haze/Fog-penetrating, clutter-tolerant |
Summary:
The X26v4 delivers next-generation Ultra Low light level performance in a compact, cost-effective, and combat-ready platform. Its tubeless, solid-state design offers superior reliability operational flexibility over legacy I² systems—making it ideal for today’s dynamic military and special operations missions.
Additional Applications & Functional Capabilities
- Target Discrimination & Combat ID
- Aid in rapid target discrimination
- Combat identification (CID)
- Friend or Foe (IFF) recognition
- Low-light facial recognition and biometric ID
- Night Vision & Imaging Superiority
- True game-changing digital LLL smart sensor technology

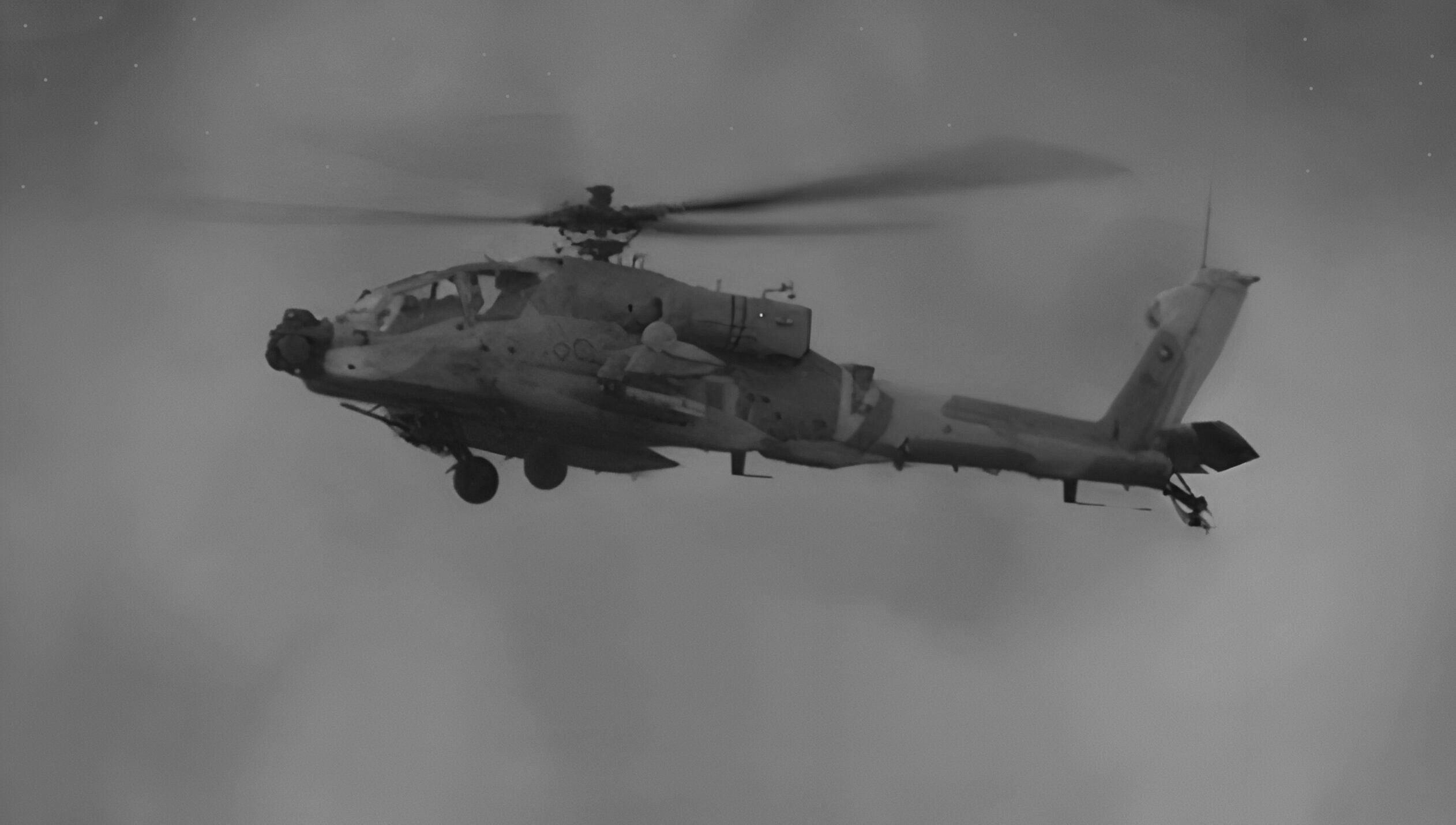

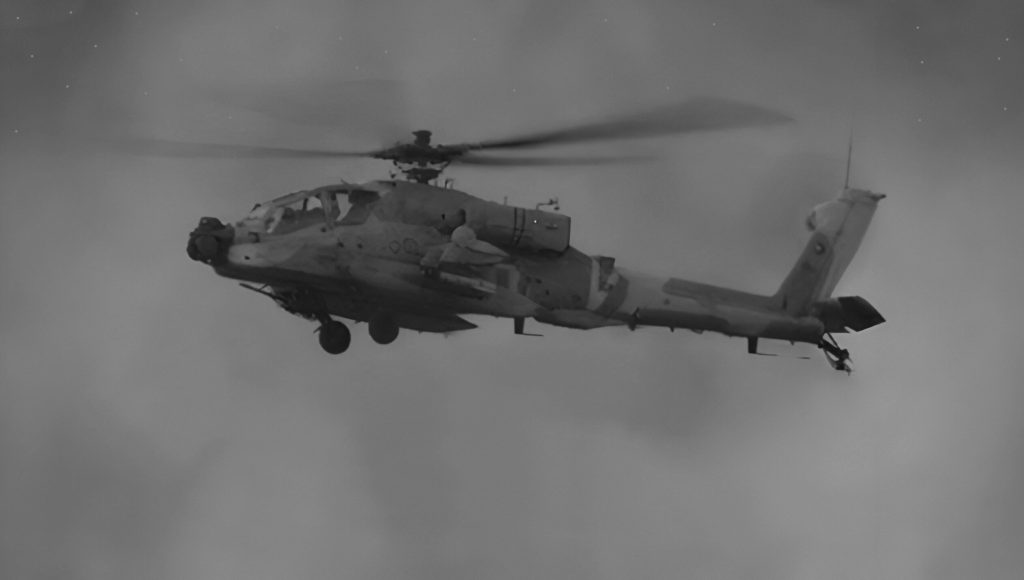

- Imaging from daylight to starlight
- Extreme low-light performance for situational awareness
- Mobility & Platform Integration
- Driver Vision Enhancer (DVE)
- Optimized for manned and unmanned platforms: UAV, UAS, UGV, USV C-UAS
- Supports handheld, goggle helmet mounted, weapon-mounted, and vehicle-based configurations
- Situational Awareness & Force Protection
- Local Situational Awareness (LSA)
- Force Protection (FP)
- Supports fire control systems (FCS) and command-level ISR
- Tactical Advantage & Target Engagement
- Target acquisition across short, mid, and long ranges
- 1064 nm JTAC SeeSpot laser detection — day and night

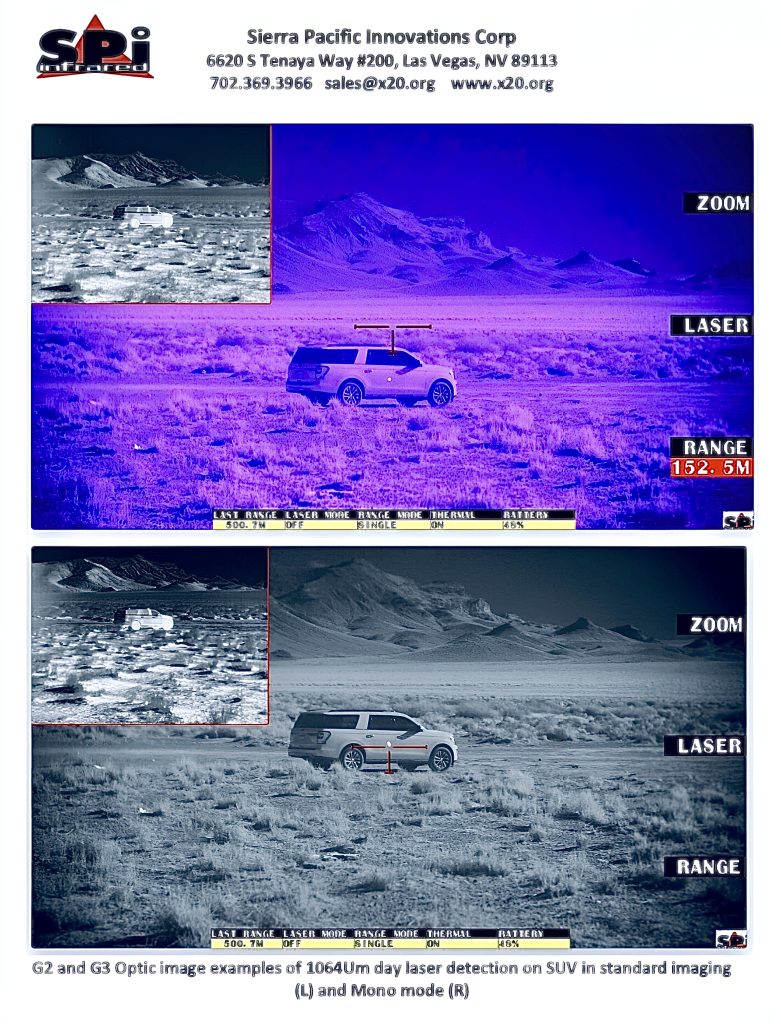

IR Laser detection day and night
Available with integrated OLED realtime high speed SXGA
micro-display for HMD head mounted custom applications

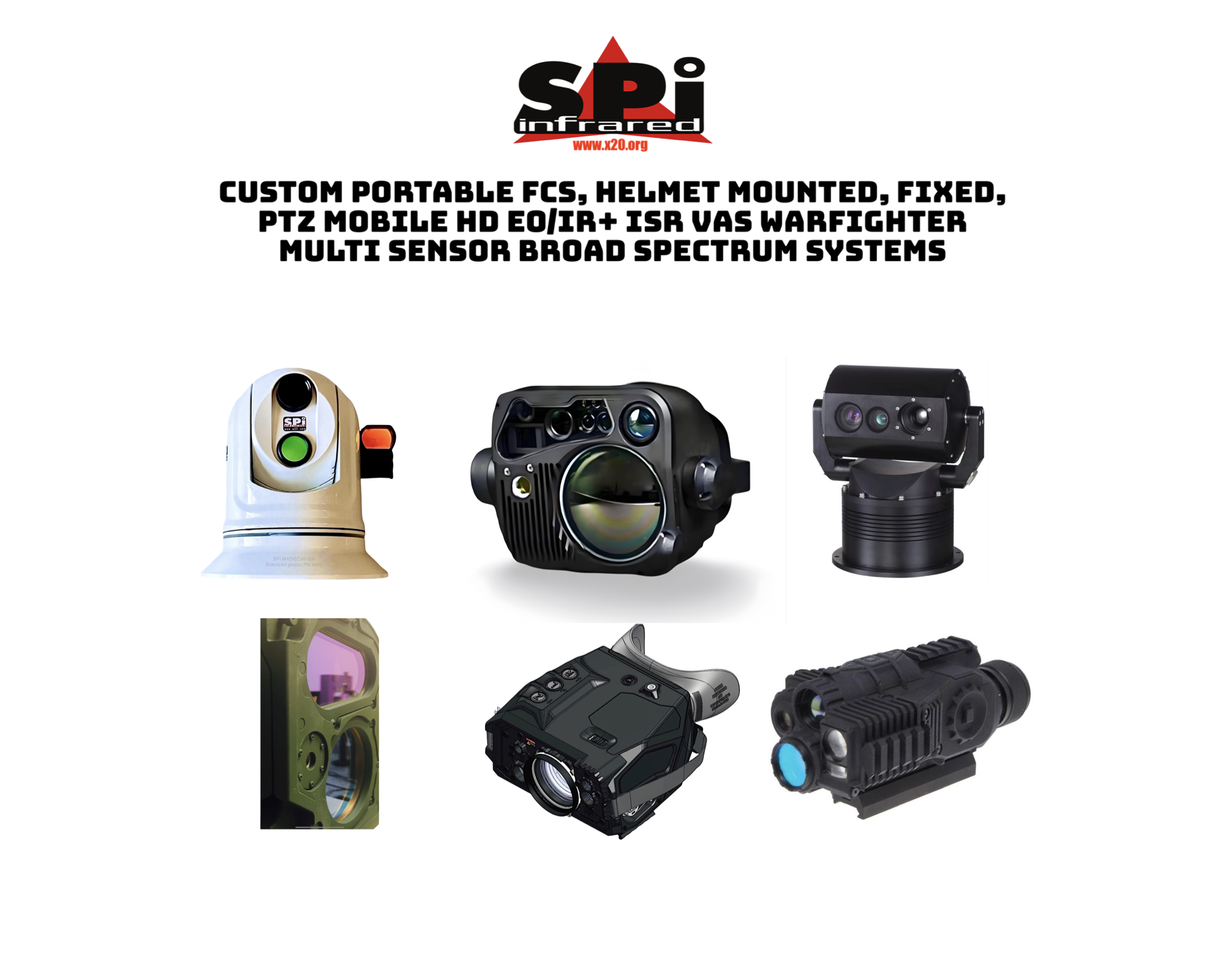

Ground, Aerial, Maritime Multi Sensor imaging systems incorporating the X26v4 sensor side by side with complimentary sensors
An array of high quality lenses available to compliment our sensors in imaging short, mid and long range targets
Contact SPI For Low Cost & Rapid Design & Delivery of Custom Multi Sensor VAS Visual Augmented System sensor suites
X26v4-S Technical Specifications
Image Sensor

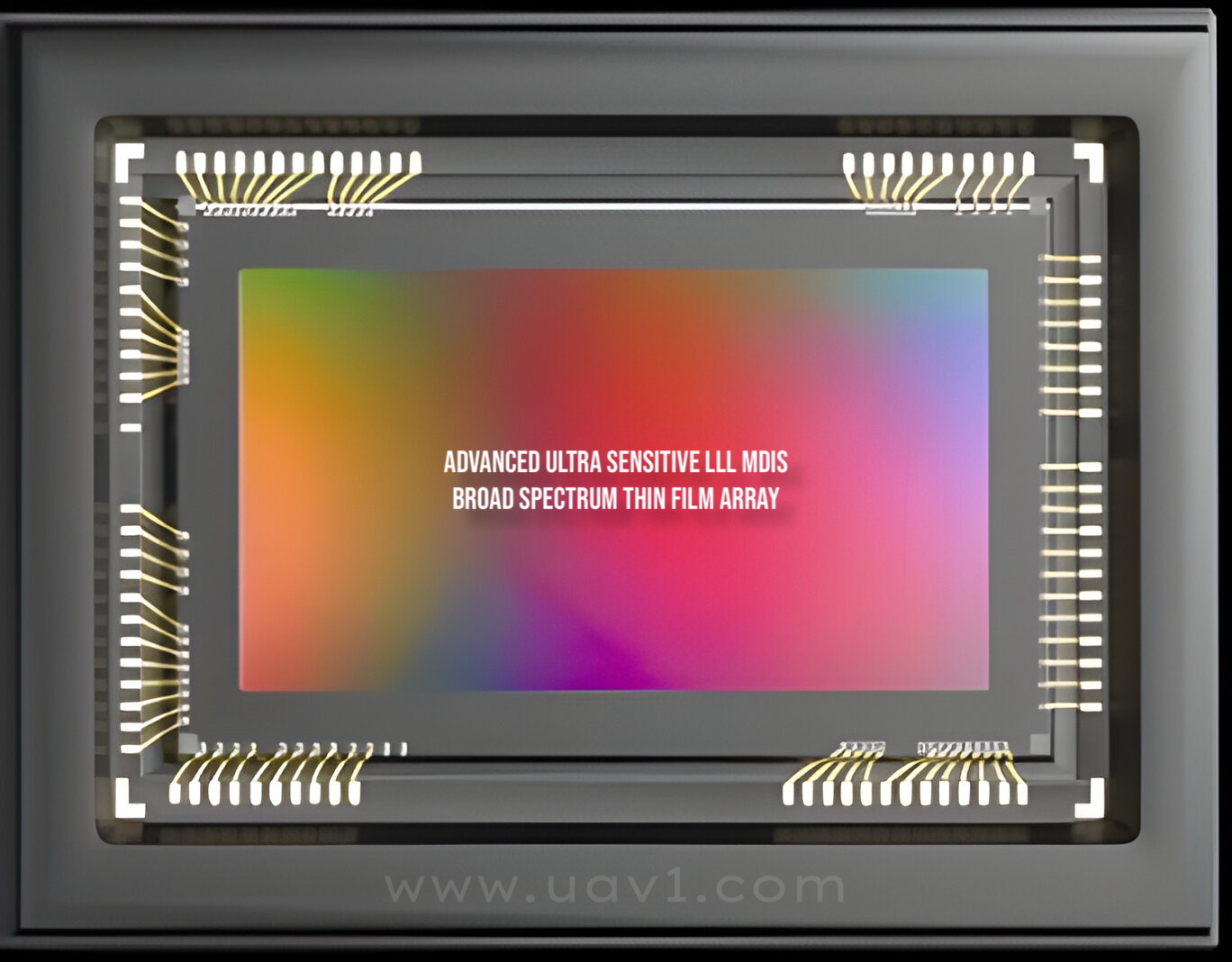

• Type: MDIS / BSTFA FPA
• Resolution: 840 × 640
• Pixel Size: 20μm
• Spectral Response: 400–1200 nm
– Optional: Extended sensitivity for JTAC 1064 nm SeeSpot laser detection (day-capable)
Low-Light Performance
• Sensitivity: Optimized for starlight / no-moon conditions
• Minimum Illumination: 0.00004 Lux
• Haze / Clutter Mitigation: Yes
• Image Correction / Enhancement: Auto
• Brightness / Dynamic Range: Auto
Display & Output
• OLED Resolution: SXGA 1280 × 1024
• Display Type: OLED with optical eyepiece, diopter adjustment (-6 to +6)
• Output: Direct OLED interface
• Applications: Suitable for head-mounted, helmet-mounted, soldier-borne NVG / HMD systems
Video & Timing
• Frame Rate: 60 Hz (120 Hz available)
• Boot Time: 3.5 seconds
• Synchronization: Internal sync
Lens & Interfaces
• Lens Mount: CS / C-mount, supports standard commercial lenses
• Communication Protocol: RS-232
Power & Physical
• Voltage: 3–5V DC
• Power Consumption: <1.1 W
• Operating Temperature: –20°C to +55°C (optional: –40°C to +70°C)
• Weight: 28g
• Dimensions: 34 mm × 19 mm
Operational Use
• 24/7/365 Day/Night Capability
X26v4-H Technical Specifications
Image Sensor
• Type: MDIS / BSTFA FPA
• Resolution: 1920 × 1200
• Pixel Size: 15μm
• Spectral Response: 400–1200 nm
– Optional: Configurable for JTAC 1064 nm SeeSpot laser detection (day-capable)
Low-Light Performance
• Sensitivity: Optimized for starlight / no-moon environments
• Minimum Illumination: 0.00004 Lux
• Haze / Clutter Mitigation: Yes
• Image Correction / Enhancement: Auto
• Brightness / Dynamic Range: Auto
Video & Timing
• Frame Rate: 30 Hz / 60 Hz
• Boot Time: < 3.9 seconds
• Synchronization: Internal and External
Display & Output
• Digital Video Output: Mini HD-SDI / HDMI
Lens & Interfaces
• Lens Mount: Compatible with COTS lenses
• Communication Protocol: RS-422
Power & Physical
• Operating Voltage: 5V DC
• Power Consumption: < 2.1 W (typical)
• Weight: < 30g
• Dimensions: 36 mm × 36 mm × 28 mm
• Operating Temperature: –20°C to +55°C
– Extended Range: –40°C to +65°C
Operational Use
• 24/7/365 Day/Night Operation
