Image Intensifier Tube: Gen 3 Auto-Gated “White Phosphor Level 1”
Magnification: 4x
FOV: 8°
SPI BADGER 6X-NGEN3-S1
NIGHT VISION WEAPON SIGHTS | PART #6X-NGEN3-S1
DESCRIPTION AND FEATURES

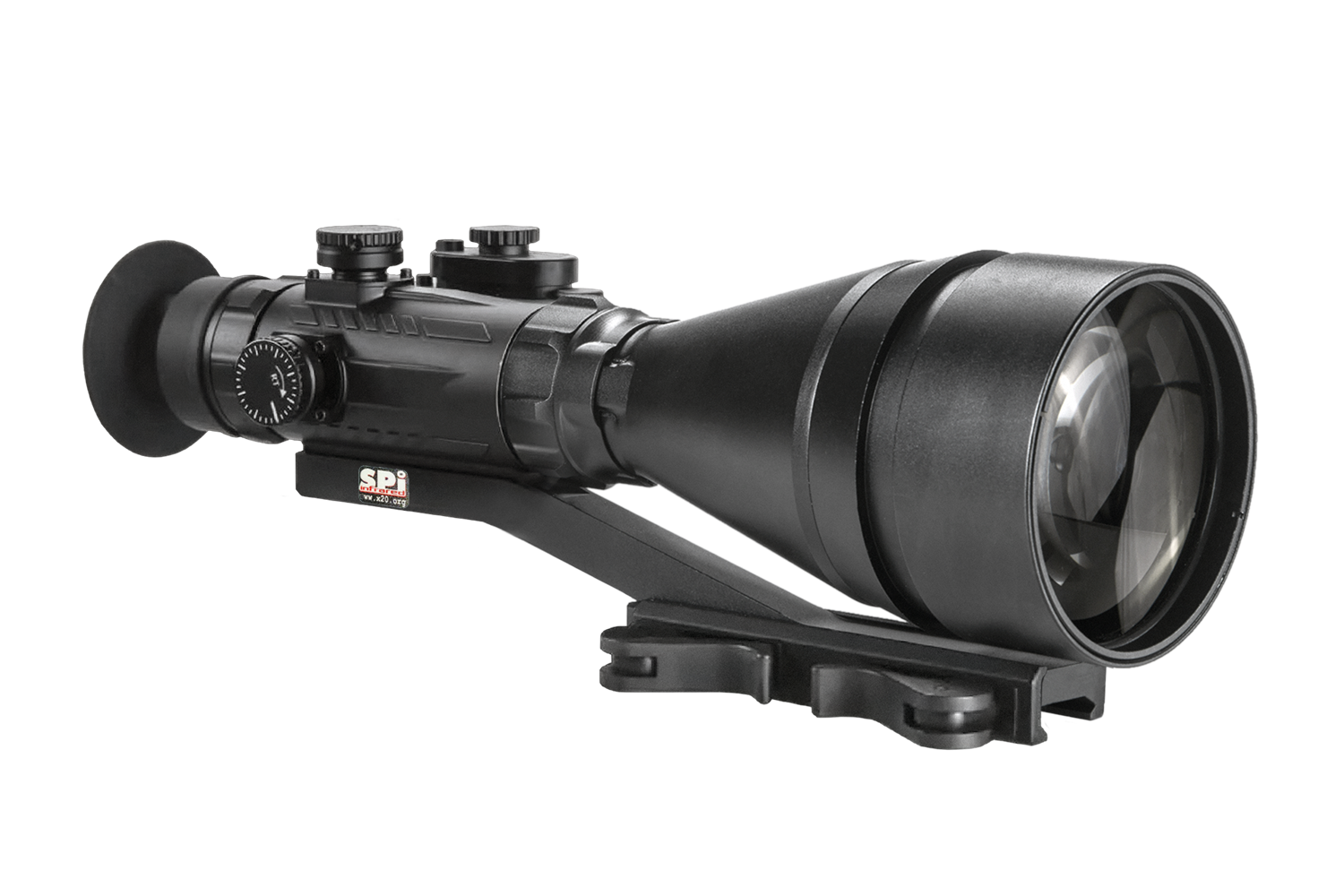

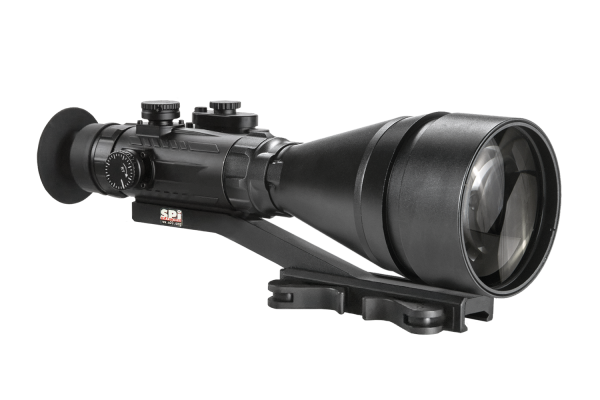

The Badger Pro 4 is a night vision weapon sight based upon the military nomenclature AN/PVS-12/12A. The Badger Pro 4 utilizes a high strength aluminum design to service the rugged day to day requirements and ever changing environments. Except for the optical elements, all external surfaces utilize a non-reflective matte black finish. Controls and adjustments are easy to operate and include power on/off switch, reticle brightness, eyepiece focus, range (distance) focus, plus windage and elevation adjustments.
- 4x or 6x magnification
- Easy to operate
- Adjustable projected reticle
- Powered by 2 AA batteries
- Waterproof
- 40 hours continuous operation
SPECIFICATIONS
Image Intensifier Tube
Gen 3 Auto-Gated "White Phosphor Level 1"
Resolution
64-72 lp/mm
Field of view cleanness by zone
Gen 3 IIT 3AW1 is offered with high quality and practically no visible spots in Zone 1.
Magnification
4x
Reticle color
Red
FOV
8.3°
Objective Lens Diameter
70 mm
Focus Range
25m to infinity
Diopter Adjustment
-6 to +2 diopters
Eye Relief
30 mm
Infrared Illuminator
Detachable, long-range
Battery Type
2 AA Batteries
Battery Life (Operating)
40 hr.
Weight
1.07 kg (2.35 lb)
Overall Dimensions
215 × 95 × 82 mm (8.4 × 3.7 × 3.2 in)
