SPI PVS-14-Delta NGEN3-M2

NIGHT VISION MONOCULARS | PART #NGEN3-M2

CHARACTERISTICS

Image Intensifier Tube: Gen 3 Auto-Gated “Level 2”
Magnification: 1x (3x and 5x optional)
Lens System: 26 mm; F/1.2
FOV: 40°

PACKAGE INCLUDES

  • Packing Box
  • System Soft Carrying Case
  • Helmet/ Head Mount Adapter
  • Head Mount Assembly
  • Neck Lanyard
  • Operators Manual
  • Batteries
  • Demist Shields
  • Sacrificial Window
  • Lens Tissue

EXPORT RESTRICTIONS

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

Night Vision Monocular Military Grade light compact durable

DESCRIPTION AND FEATURES

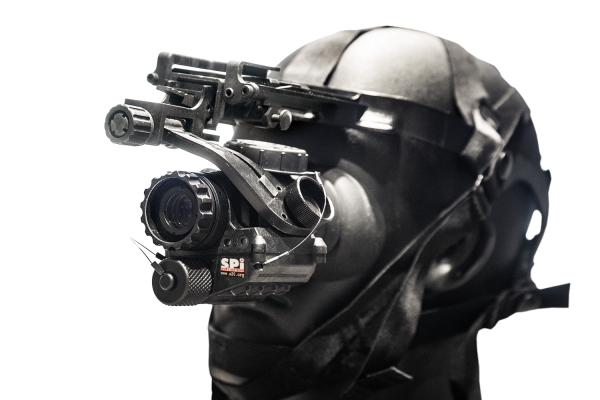

The SPI PVS14 Delta is the lightest multi-purpose night vision monocular currently available. The ultra-light PVS14 Delta is designed with new MIL-SPEC light weight optics and an improved battery compartment equipped with digital push button switches that reduces the total weight of the system from 350 grams to only 260 grams. The modified SPI PVS14 Delta retains all the characteristics of a normal AN/PVS-14, but in smaller housing dimensions. The unit features a Full Diopter Adjustment Range, Infrared LED, Gain Control, IR/Low Battery Indicator, flip up turn off and flip down turn on system and the capability to be hand-held, mounted on the helmet, headgear or weapon. The PVS14 Delta operates with just 4 controls, similar to the AN/PVS- 14: one button for power on/off, one button for turning on and off the IR LED, and two switches (+/-) for raising and lowering the Gain Control. Manufactured with US made optics and components and equipped with high-quality Gen 2+ or Gen 3 tubes, the SPI PVS14 Delta provides outstanding performance that complies with US military standards.

  • Compact and light-weight design
  • Manual Gain Control
  • Built-in Infrared illuminator
  • Powered by single AA battery
  • IR/Low Battery Indicator
  • Head or helmet-mountable/ Made in USA

SPECIFICATIONS

Image Intensifier Tube

Gen 3 Auto-Gated "Level 2"

Resolution

64-72 lp/mm

Field of view cleanness by zone

Gen 3 IIT 3AL2 is the second best quality offered by SPI with very limited number of spots in Zone 1.

Magnification

1x (3x and 5x optional)

Lens System

26 mm; F/1.2

FOV

40°

Focus Range

0.25 m to infinity

Diopter Adjustment

-6 to +4 dpt

Led Indicators

LED indicators in the FOV: Low battery; IR On; Excessive light conditions

Infrared Illuminator

Yes

Manual Gain Control

Yes

Bright Light Cut-Off

Yes

Automatic Shut-Off System

Yes

Battery Type

One AA Alkaline

Battery Life (Operating)

Up to 50 hours at 20°C

Operating Temperature Range

-51° C to +49° C (-60° F to 120° F)

Storage Temperature Range

-51° C to +85° C (-60° F to 185° F)

Weight

260 g (9.2 oz)

Overall Dimensions

114 × 63 × 69 mm (4.5 × 2.5 × 2.75 in)

Package Includes

Head Mount Assembly, Brow Pad, Eye Cup, Helmet/ Head Mount Adapter, System Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Paper, Diopter Lens Cap, Sacrificial Window, Demist Shields, Operator’s Manual, Battery
