SPI WILDCAT-7 NGEN2-G3

NIGHT VISION GOGGLES | PART #NGEN2-G3

CHARACTERISTICS

Image Intensifier Tube: Gen 2+ “Level 3”
Magnification: 1x
Lens System: 24mm, F/1.2
FOV: 40°

PACKAGE INCLUDES

  • One Lithium Battery CR123A
  • Lens Tissue
  • Battery adapter CR123A 3V / AA 1.5V
  • SPI Cap Goggle Kit W
  • Soft Carrying Case
  • Packing Box
  • Instruction Manual

EXPORT RESTRICTIONS

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

night vision binocular illumination military grade

DESCRIPTION AND FEATURES

The SPI Wildcat-7 is a bi-ocular Night Vision goggle system assembled with premium-grade optics and simplified electronics for outstanding dependability. The Wildcat-7 provides bright and clear Night Vision images, even in the most trying conditions. Configured with an expanded choice of Gen 2+ and Gen 3 image tubes, Wildcat- 7 delivers high performance at any price point. The SPI Wildcat-7 includes a built-in short-range IR light source and offers a wide variety of accessories such as 3X and 5X magnification lenses for mid-to-long-range viewing, head or helmet mounts for hands-free operation, and additional, high-powered IR illuminators for long-range use. Waterproof, rugged, light, and compact, the Wildcat-7 is the perfect device for a variety of tough operations.

  • Lightweight compact rugged goggle system

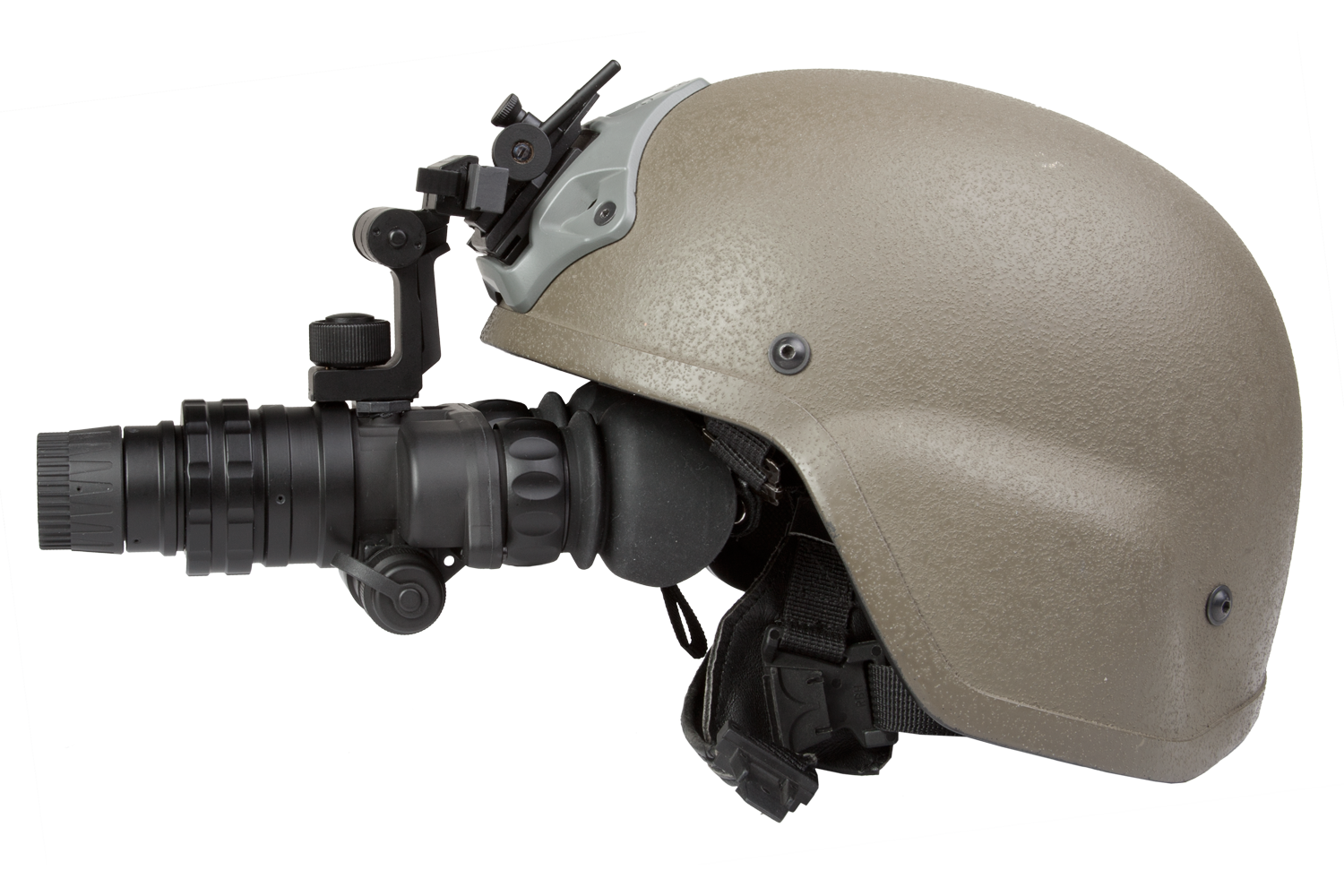

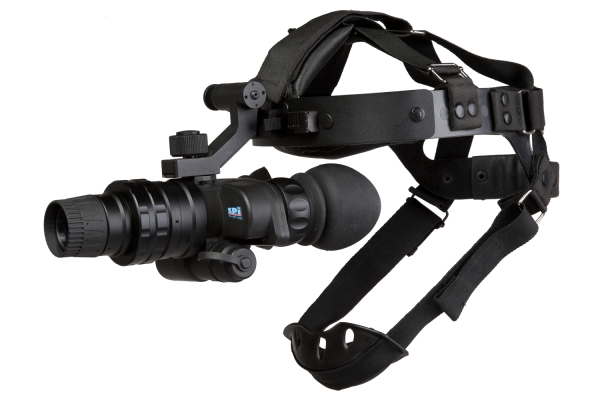

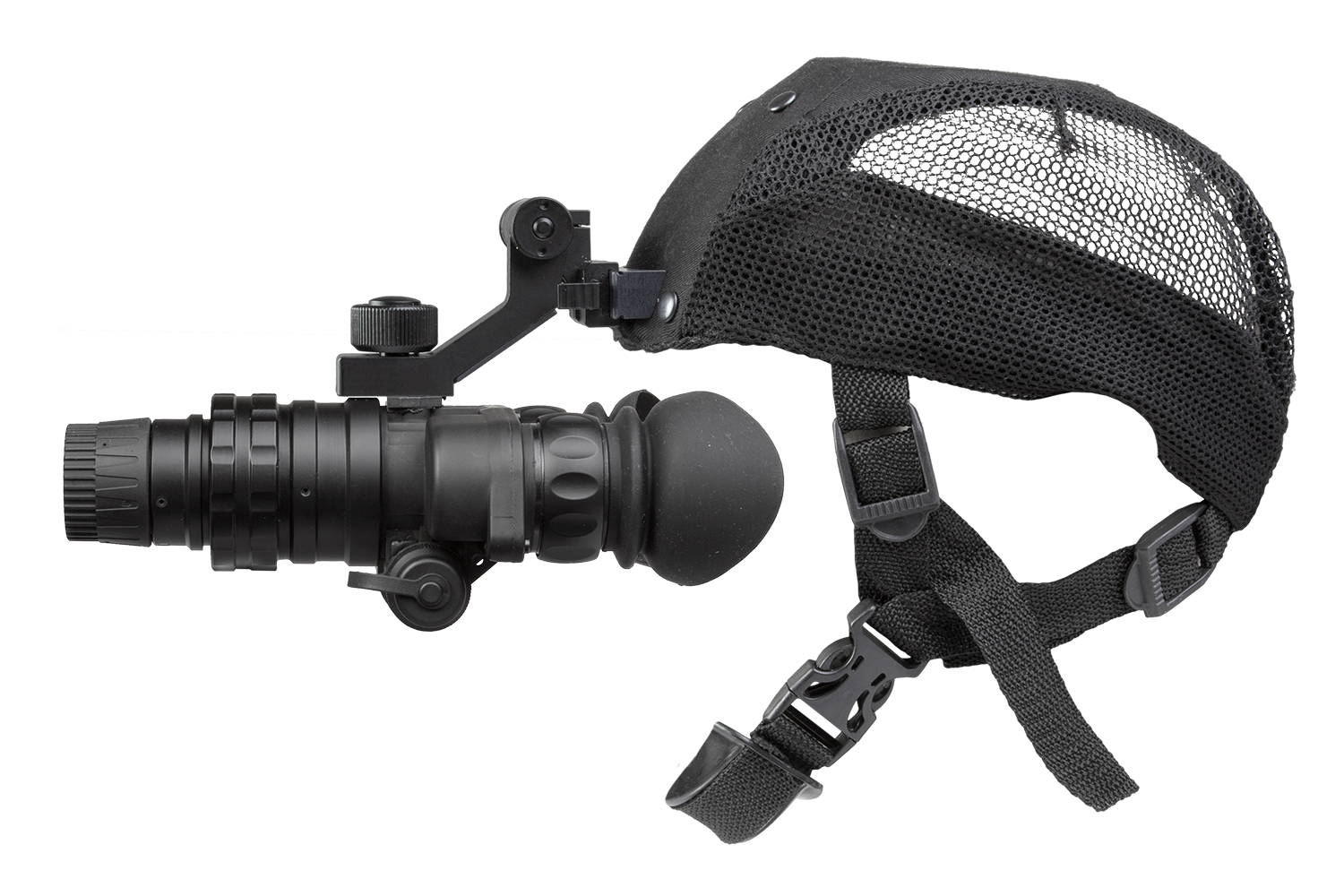

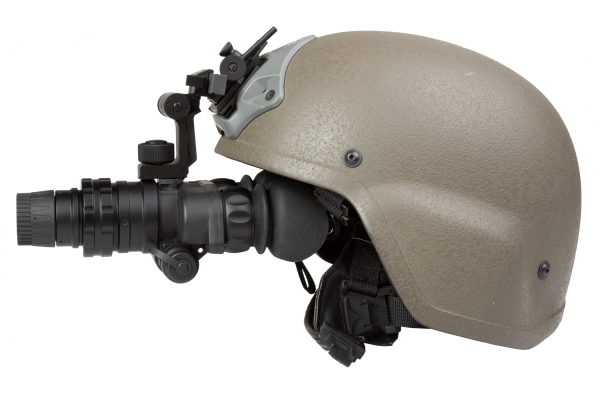

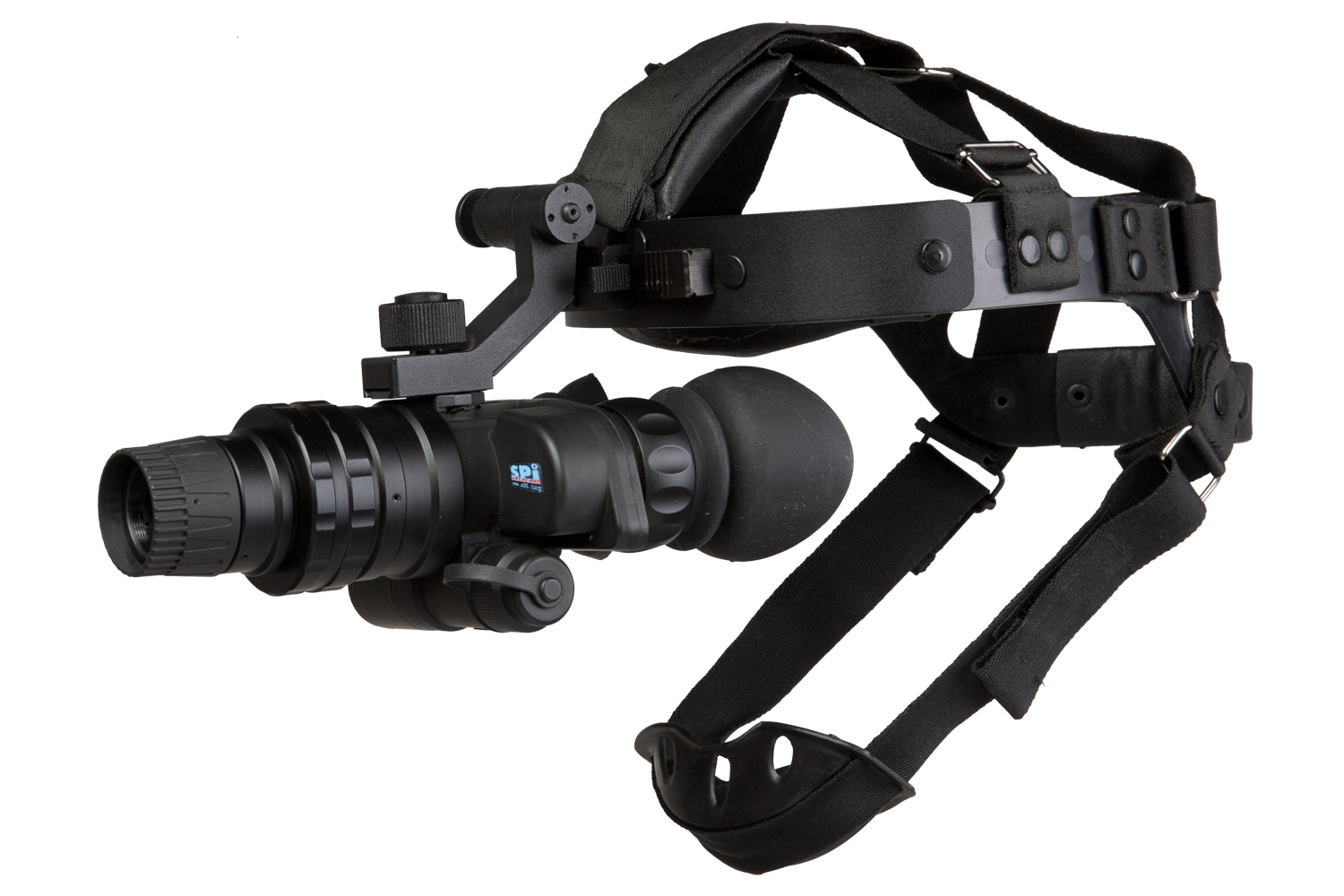

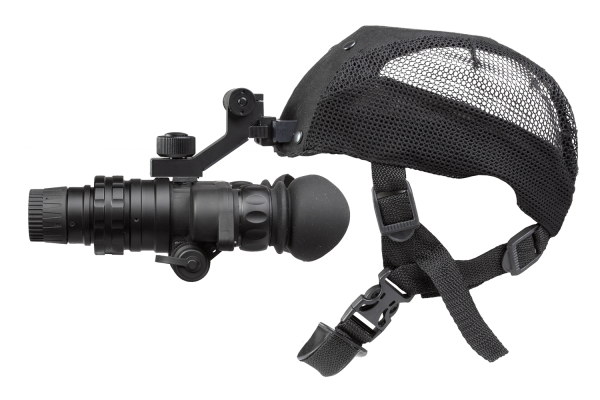

  • Multi-purpose: Hand-held, head-mounted or helmet-mounted
  • Comfortable flip-up headgear
  • Multi-coated all-glass optics
  • Wide angle infrared illuminator
  • Auto brightness control
  • Bright light cut-off Utilizes single CR123A lithium battery or AA Alkaline, adapter included
  • Waterproof

SPECIFICATIONS

Image Intensifier Tube

Gen 2+ "Level 3"

Resolution

47-54 lp/mm

Field of view cleanness by zone

Gen2 IIT NL3 offers good quality at competitive pricing.

Magnification

1x

Lens System

24mm, F/1.2

FOV

40°

Focus Range

0.25 m to Infinity

Diopter Adjustment

-5 to +5 dpt

Led Indicators

Low battery; IR On; Excessive light conditions

Automatic Brightness Control

Yes

Infrared Illuminator

Yes

Bright Light Cut-Off

Yes

Automatic Shut-Off System

Yes

Battery Type

One CR123A (3V) or AA (1.5 V)

Battery Life (Operating)

Up to 60 hours at 20°C

Waterproof

Yes

Operating Temperature Range

-40°C to +50°C (-40°F to +122°F)

Storage Temperature Range

-50°C to +70°C (-58°F to +158°F)

Weight

0.45 kg (0.9 lbs)

Overall Dimensions

188 × 122 × 70 mm (7.4 × 4.8 × 2.8 in)

Package Includes

Goggle Kit W, Soft Carrying Case, Lens Cloth, Battery Adapter,User Manual
