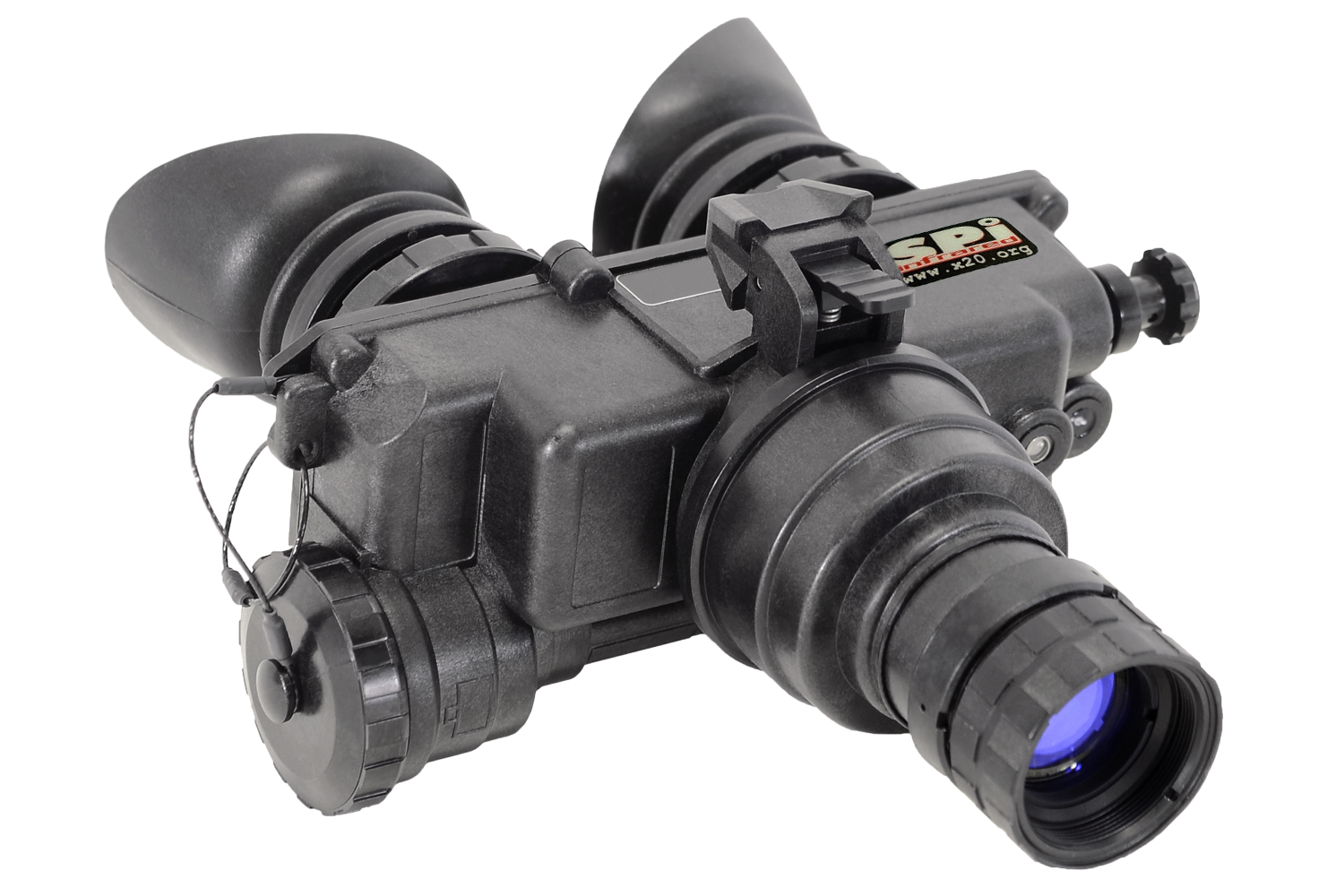

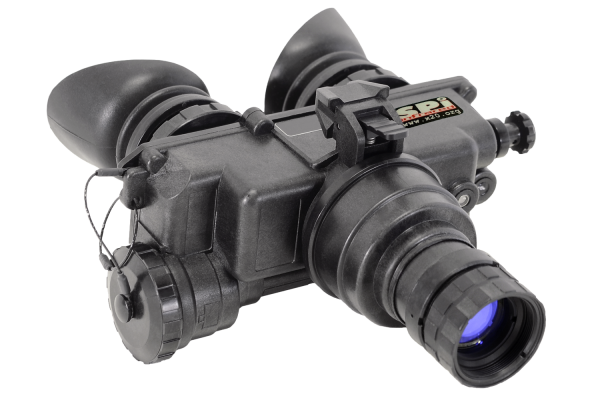

SPI PVS-7 NGEN3-G2

NIGHT VISION GOGGLES | PART #NGEN3-G2

CHARACTERISTICS

Image Intensifier Tube: Gen 3 “Level 2”
Magnification: 1x
Lens System: 27 mm; F/ 1.2
FOV: 40°

PACKAGE INCLUDES

  • Packing Box
  • Demist Shields
  • Operators Manual
  • One Lithium Battery CR123A
  • Lens Tissue
  • Neck Lanyard

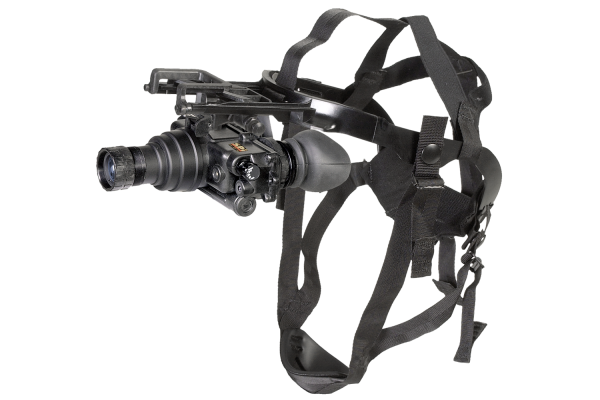

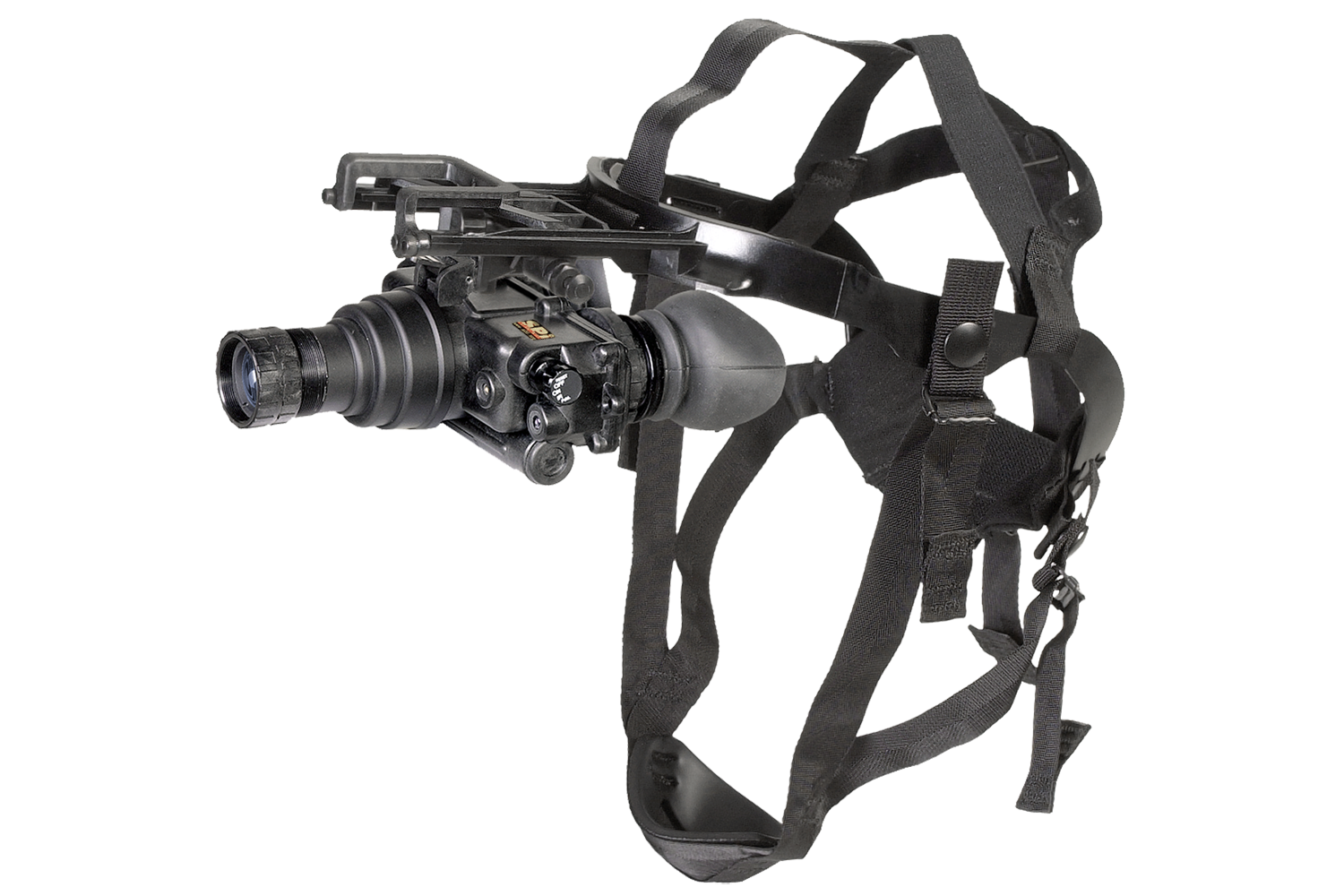

  • Head Mount Assembly
  • Sacrificial Window
  • Soft Carrying Case

EXPORT RESTRICTIONS

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

night vision binocular illumination military grade

DESCRIPTION AND FEATURES

“The PVS-7 is widely recognized for its unsurpassed dependability and ergonomic design. This U.S. Military-grade night vision goggle system has repeatedly proven its worth in combat, and is the highest-quality AN/PVS-7 B/D system on the market. The PVS-7 can be outfitted with high-performance Gen 2+ and Gen 3 image intensifier tubes (available in Green phosphor or P45 white phosphor). The PVS-7 is equipped with Automatic Brightness Control (ABC) to adjust image brightness in changing light conditions to maintain image definition and clarity. The builtin infrared illuminator provides a light source beyond the visible spectrum to enable the user to operate in complete darkness without being detected. Additionally, the PVS-7 has a bright light cut-off feature to protect the image tube from sources of intense light, and a flip-up shut-off feature that can be used with the optional helmet mount system. The PVS-7 has two LED indicators in the eyepiece for the IR illuminator on and low battery indicator. Lightweight, tough, and versatile, the PVS-7 can be handheld, or mounted to the user’s head/helmet. It is compatible with afocal magnifier lenses for superior long-range viewing.”

  • “Compact, rugged design
  • Waterproof

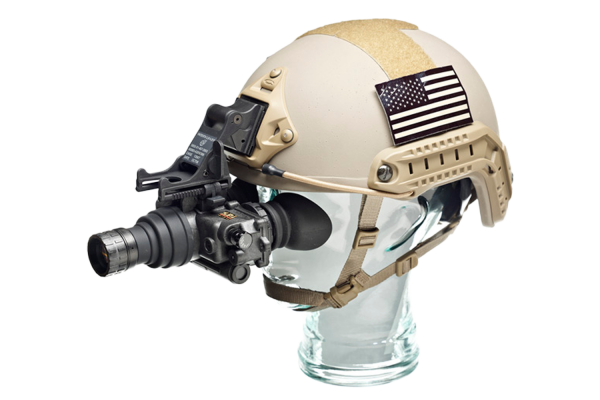

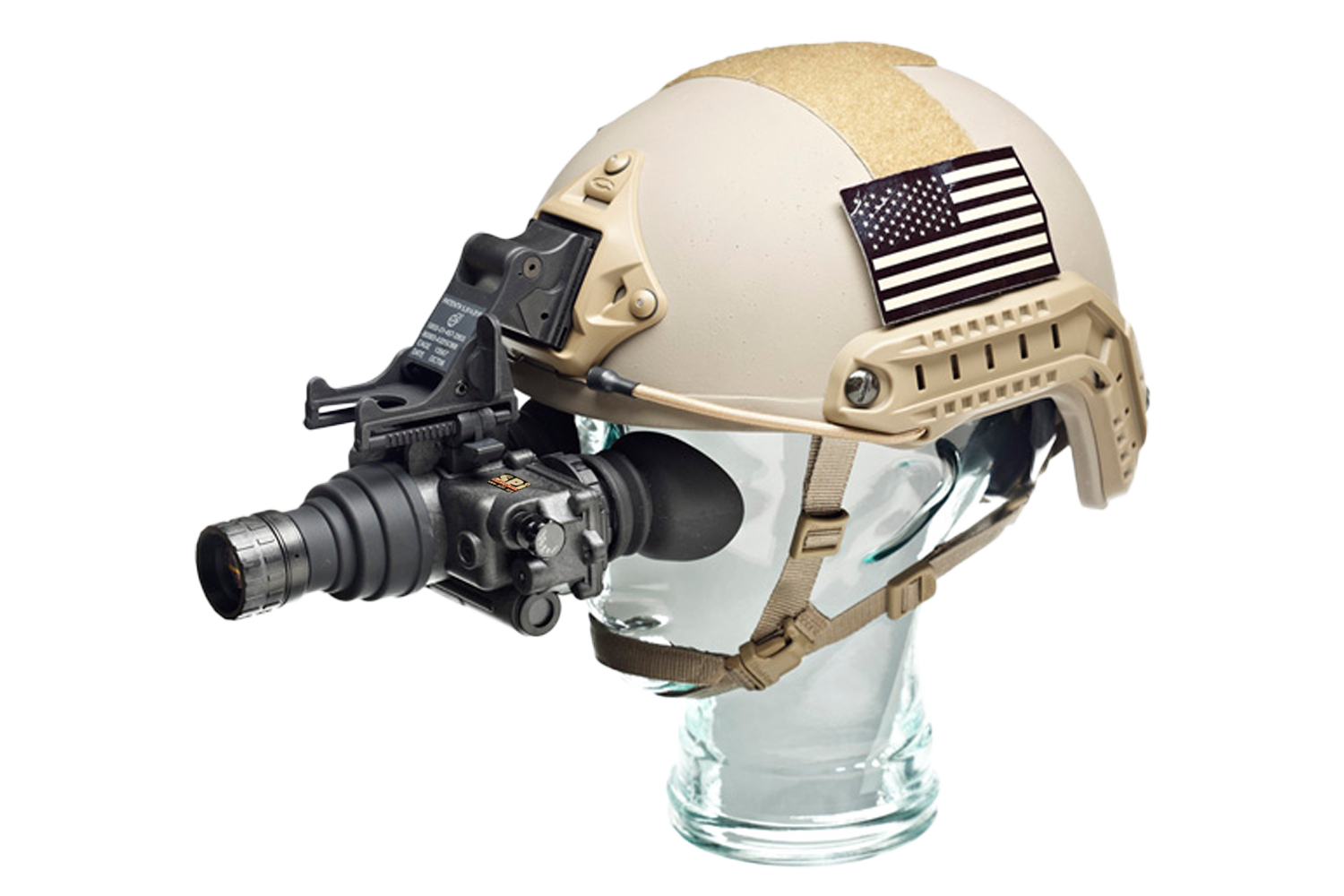

  • Head or helmet-mountable for hands-free operation
  • Ergonomic, simple, easy-to-operate controls
  • Built-in Infrared illuminator and flood lens

SPECIFICATIONS

Image Intensifier Tube

Gen 3 "Level 2"

Resolution

64-72 lp/mm

Field of view cleanness by zone

Gen 3 IIT 3NL2 is the second best quality offered by SPI with very limited number of spots in Zone 1.

Magnification

1x

Lens System

27 mm; F/ 1.2

FOV

40°

Focus Range

0.2 m to infinity

Diopter Adjustment

-6 to +2 dpt

Led Indicators

Low battery; IR On; Excessive light conditions

Automatic Brightness Control

Yes

Infrared Illuminator

Yes

Bright Light Cut-Off

Yes

Automatic Shut-Off System

Yes

Battery Type

2 AA Alkaline or 1 Lithium (BA-5567/ U)

Battery Life (Operating)

Up to 60 hours at 20°C

Operating Temperature Range

-40°C to +50°C (-40°F to +122°F)

Storage Temperature Range

-50°C to +70°C (-58°F to +158°F)

Weight

0.68 kg (1.5 lbs)

Overall Dimensions

162 × 152 × 76 mm (6.4 × 6.0 × 3.0 in)

Package Includes

Head Mount Assembly, Medium & Thick Brow Pads, Eye Cups, Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Paper, Sacrificial Window, Demist Shields, Operator’s Manual
