SPI NVG-50 NGEN2-G1

NIGHT VISION GOGGLES | PART #NGEN2-G1

CHARACTERISTICS

Image Intensifier Tube: Gen 2+ “Level 1”
Magnification: 1x (3x optional)
Lens System: 19 mm; F/1.26
FOV: 51°

PACKAGE INCLUDES

  • One Lithium Battery CR123A
  • Lens Tissue
  • Instruction Manual
  • Battery adapter CR123A 3V / AA 1.5V
  • Soft Carrying Case

EXPORT RESTRICTIONS

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

night vision binocular illumination military grade

DESCRIPTION AND FEATURES

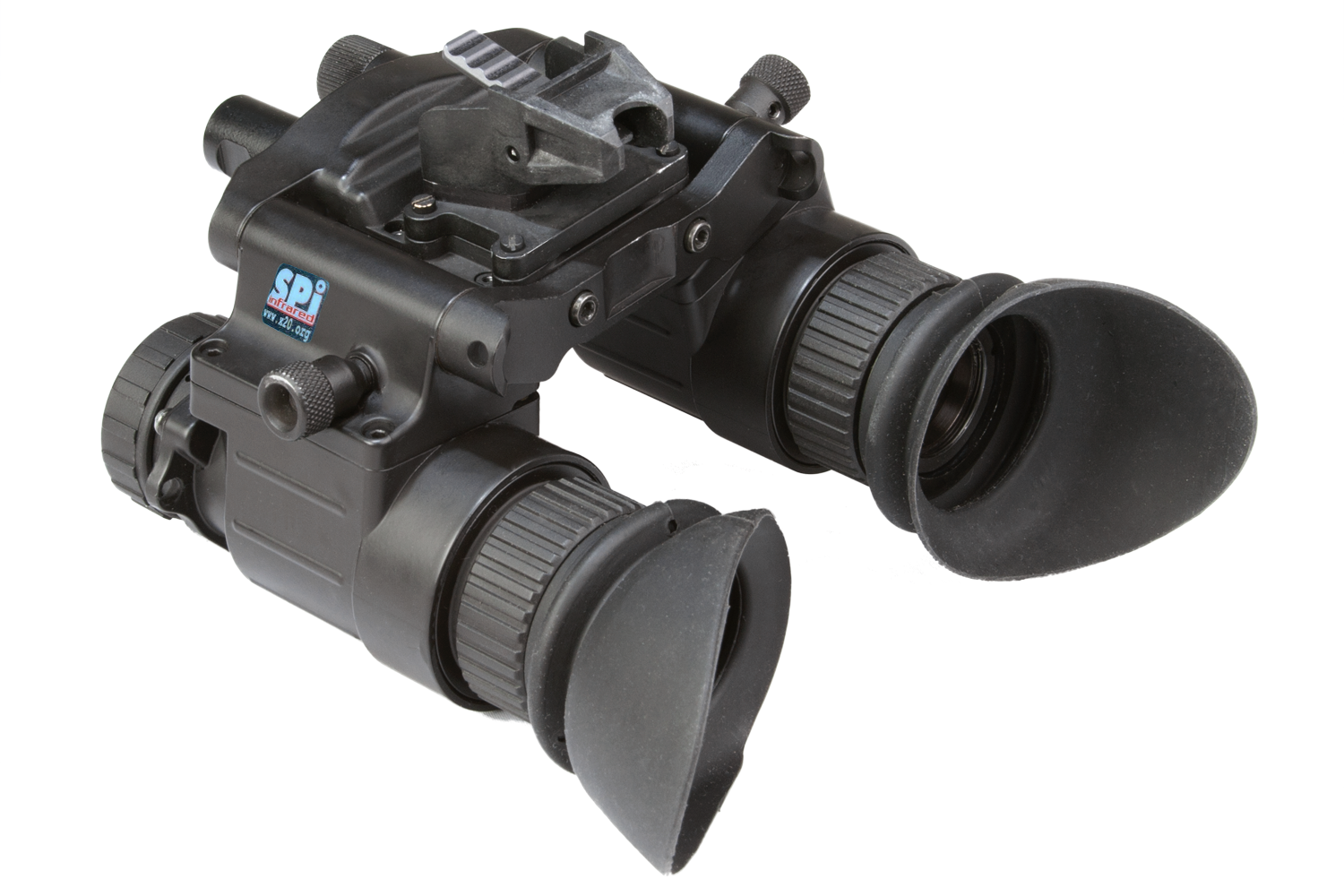

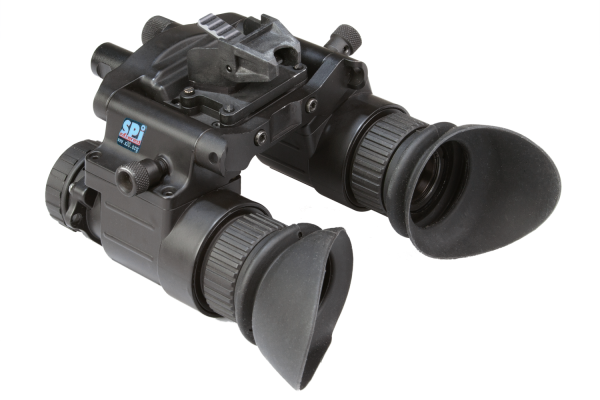

The SPI NVG-50 is a dual-channel night vision system. With a 51° field of view (FOV), it provides a large visual field without needing to move the binoculars. The NVG-50 uses advanced multi-coated optics and is built to last with a compact composite housing. Operating from a single AA alkaline battery or CR123A battery, the NVG-50 can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.

  • Redundant dual-tube design
  • True stereoscopic vision
  • Wide 51° field of view
  • Lightweight & compact

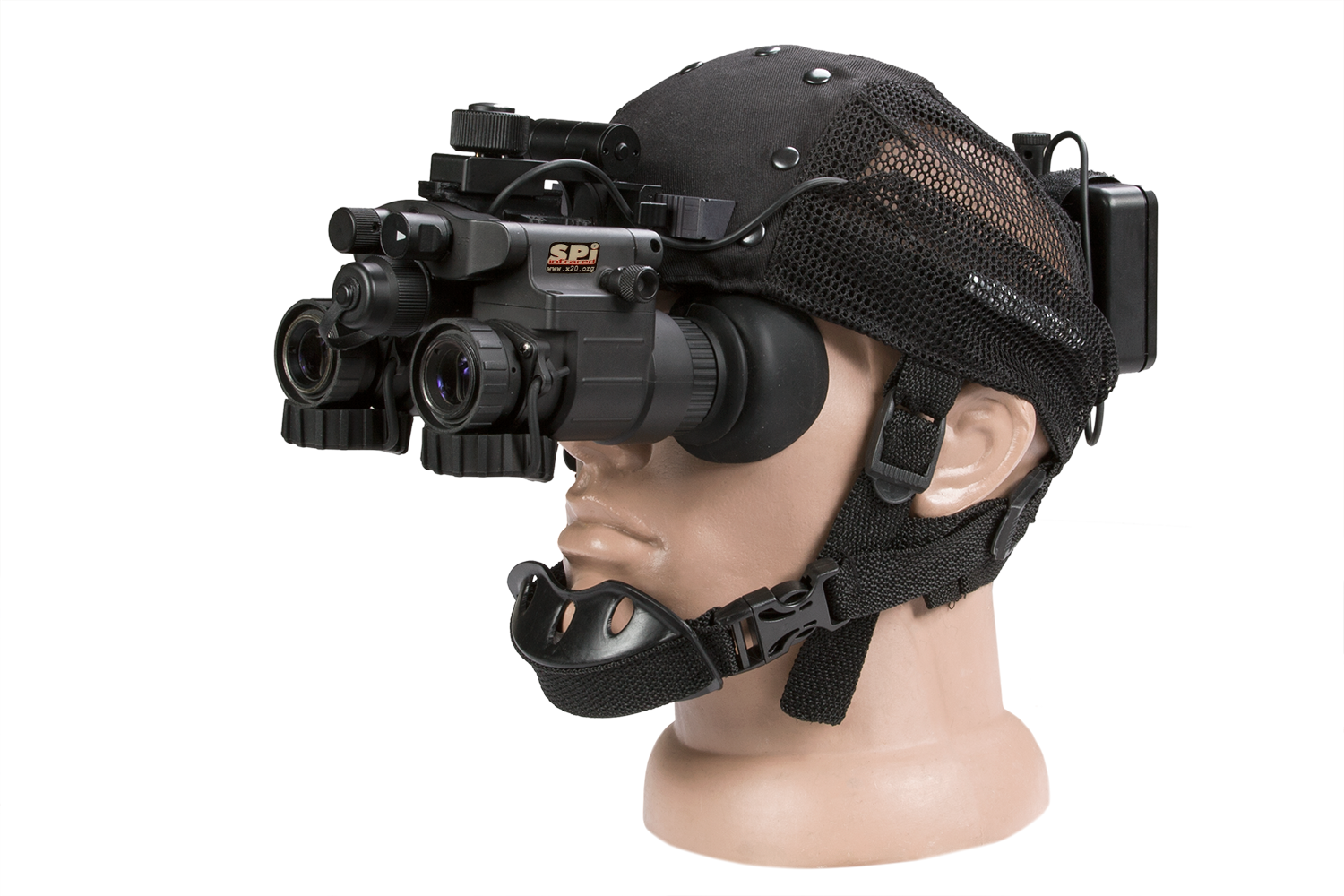

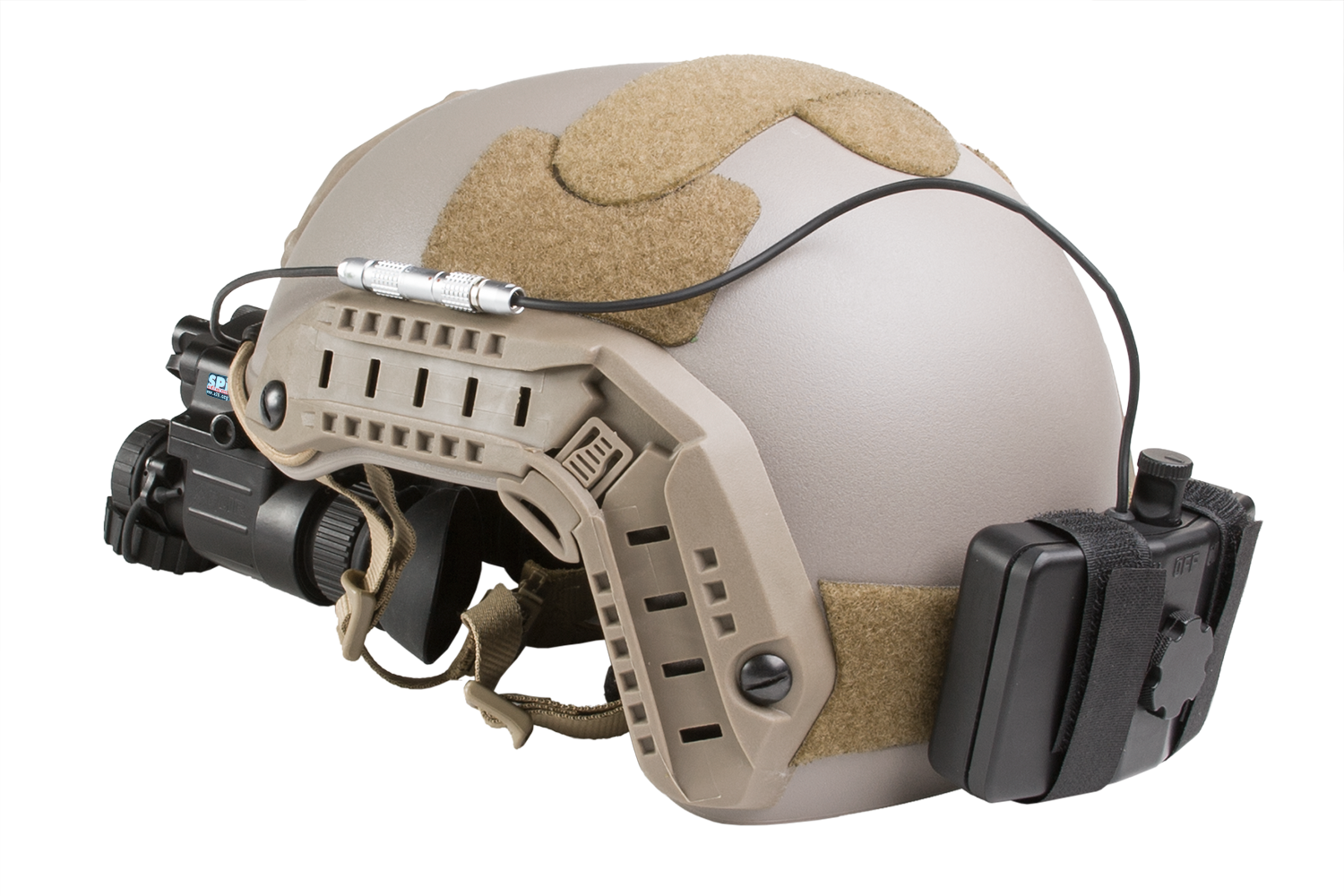

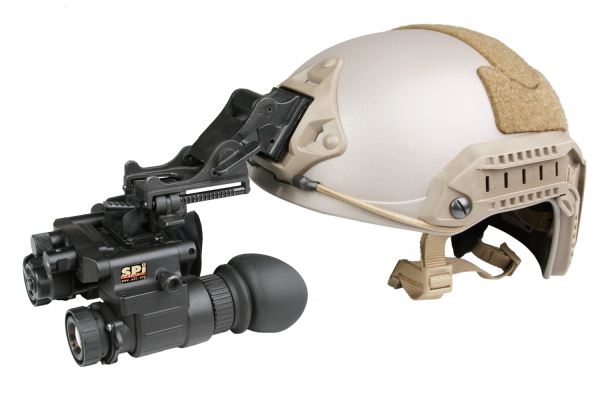

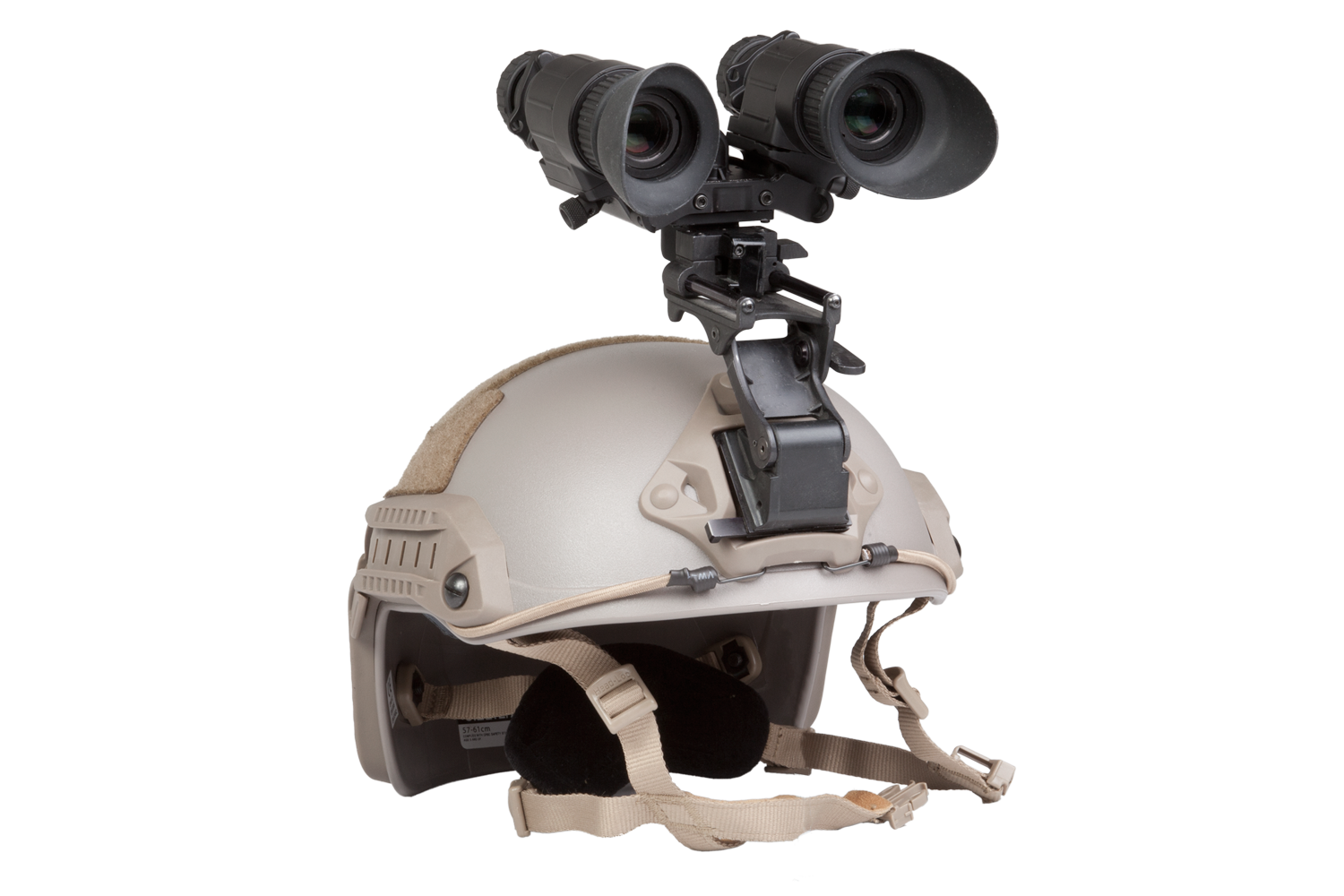

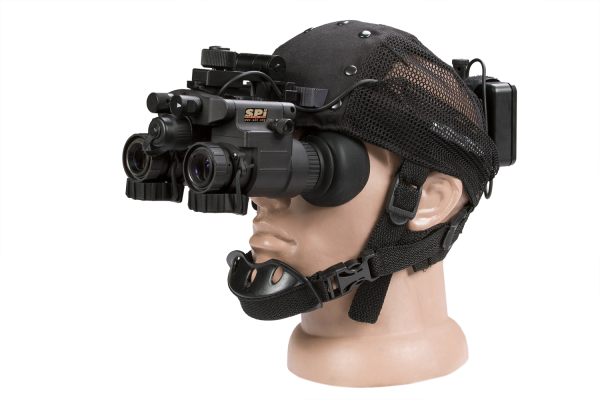

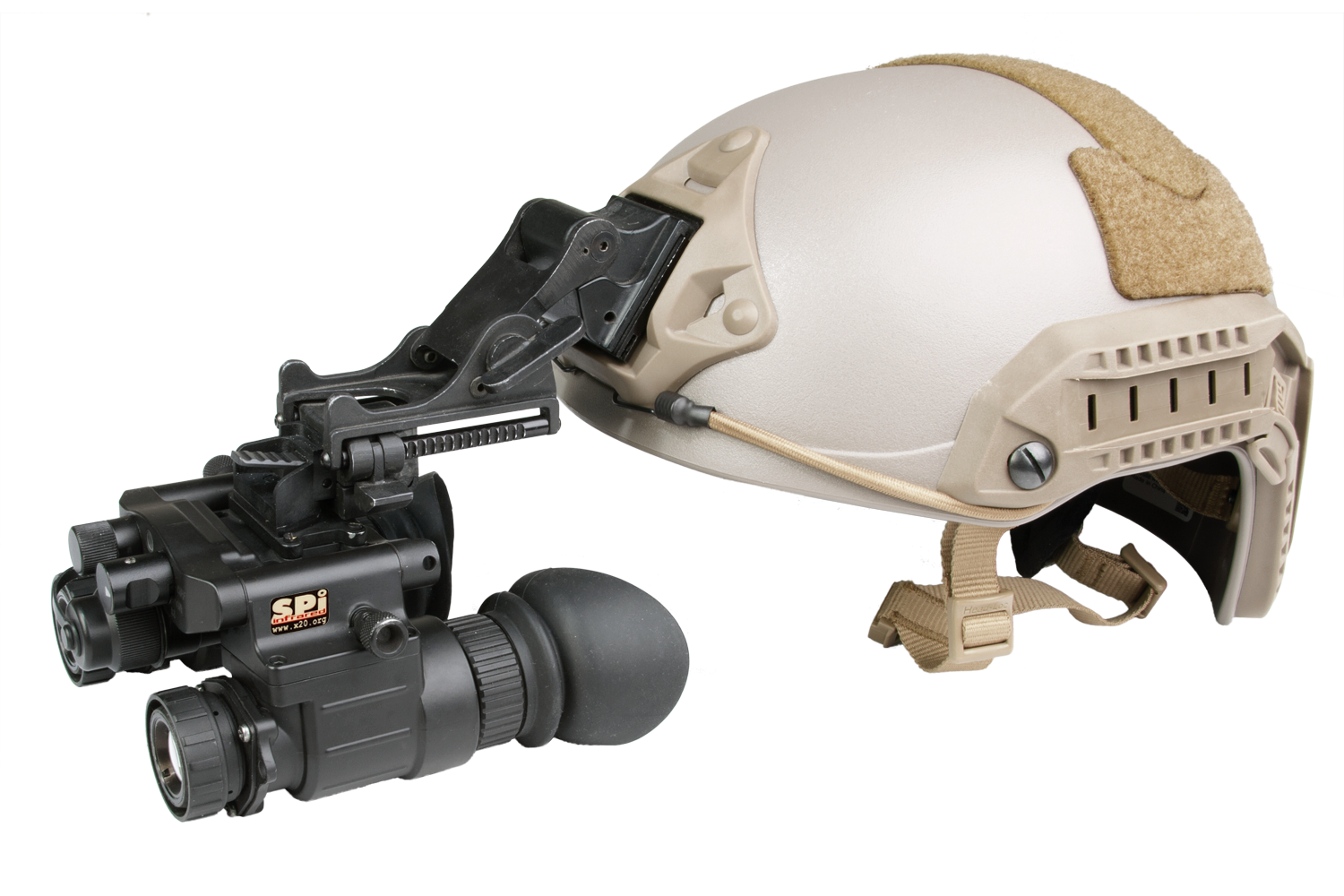

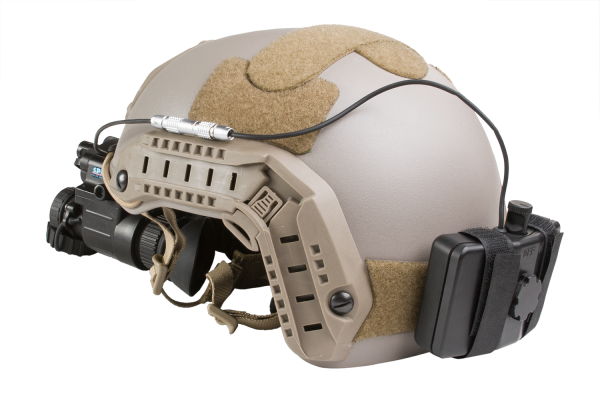

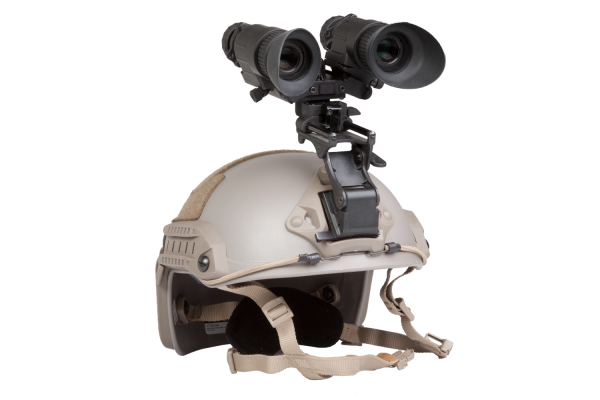

  • Head or helmet mountable for hands-free operation
  • Bright light cut-off
  • Ergonomic, simple, easy to operate controls
  • Built-in Infrared illuminator and flood lens
  • Utilizes single CR123A lithium or AA battery

SPECIFICATIONS

Image Intensifier Tube

Gen 2+ "Level 1"

Resolution

55-72 lp/mm

Field of view cleanness by zone

NL1 Gen 2 IIT offered by SPI. There are practically no visible spots in Zone 1.

Magnification

1x (3x optional)

Lens System

19 mm; F/1.26

FOV

51°

Focus Range

0.25 m to infinity

Eye Relief

17 mm

Diopter Adjustment

-6 to +2 dpt

Led Indicators

Low battery; IR on; Excessive light conditions

Infrared Illuminator

Yes; Two power levels

Manual Gain Control

Yes

Bright Light Cut-Off

Yes

Automatic Shut-Off System

Yes

Battery Type

One CR123A (3V) or AA (1.5 V)

Battery Life (Operating)

Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)

Operating Temperature Range

-40°C to +50°C (-40°F to +122°F)

Storage Temperature Range

-50°C to +50°C (-58°F to +122°F)

Weight

615 g (1.35 lbs)

Overall Dimensions

112 × 118 × 74 mm (4.4 × 4.6 × 2.9 in)
