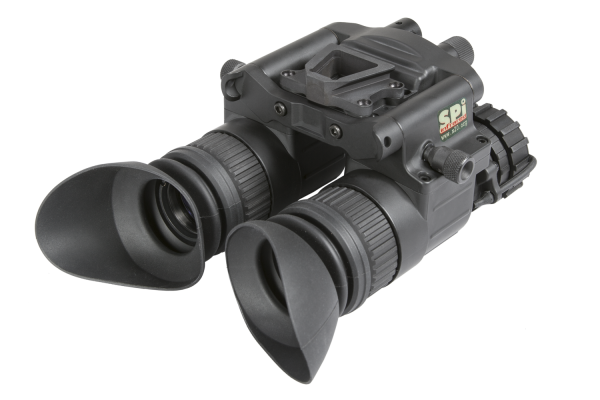

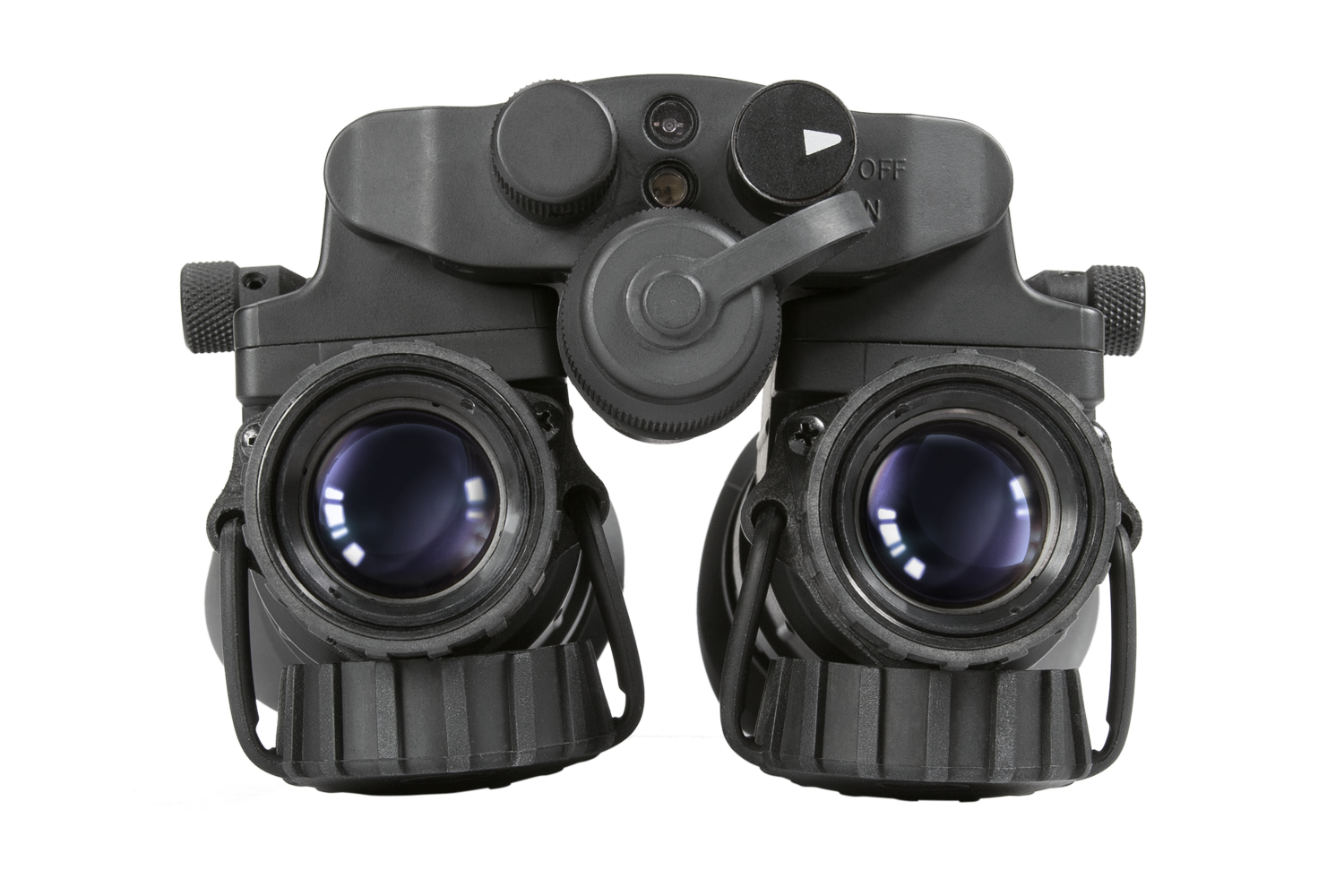

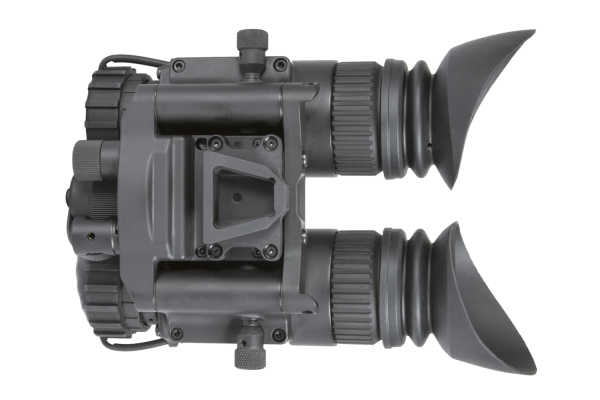

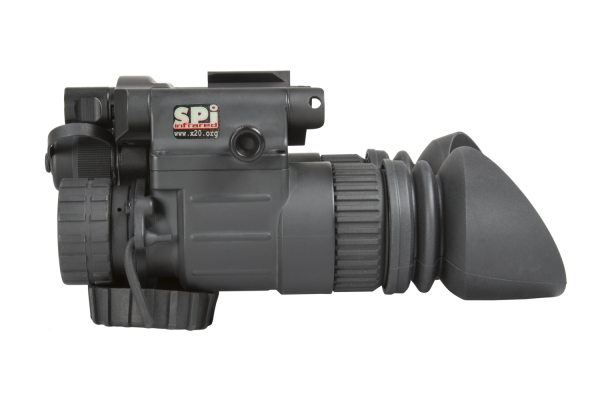

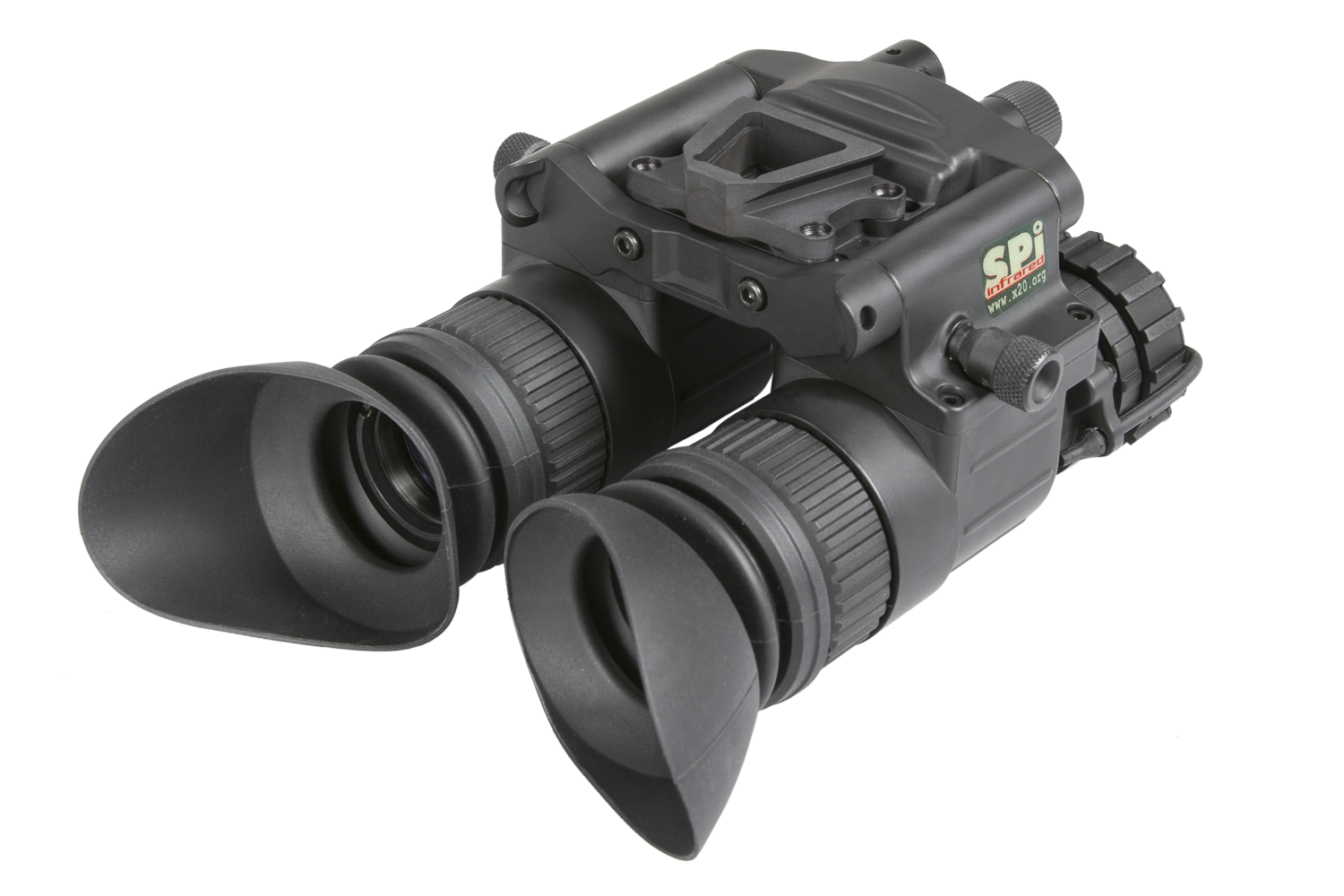

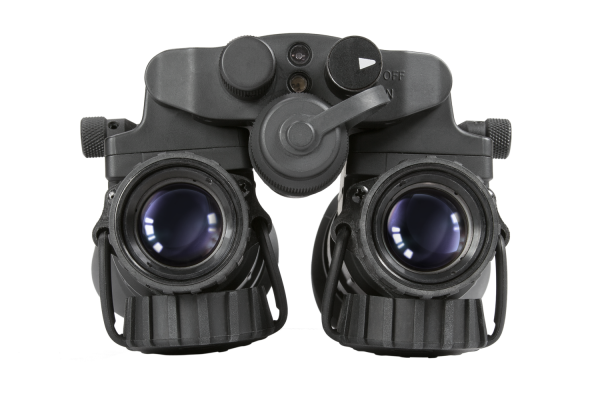

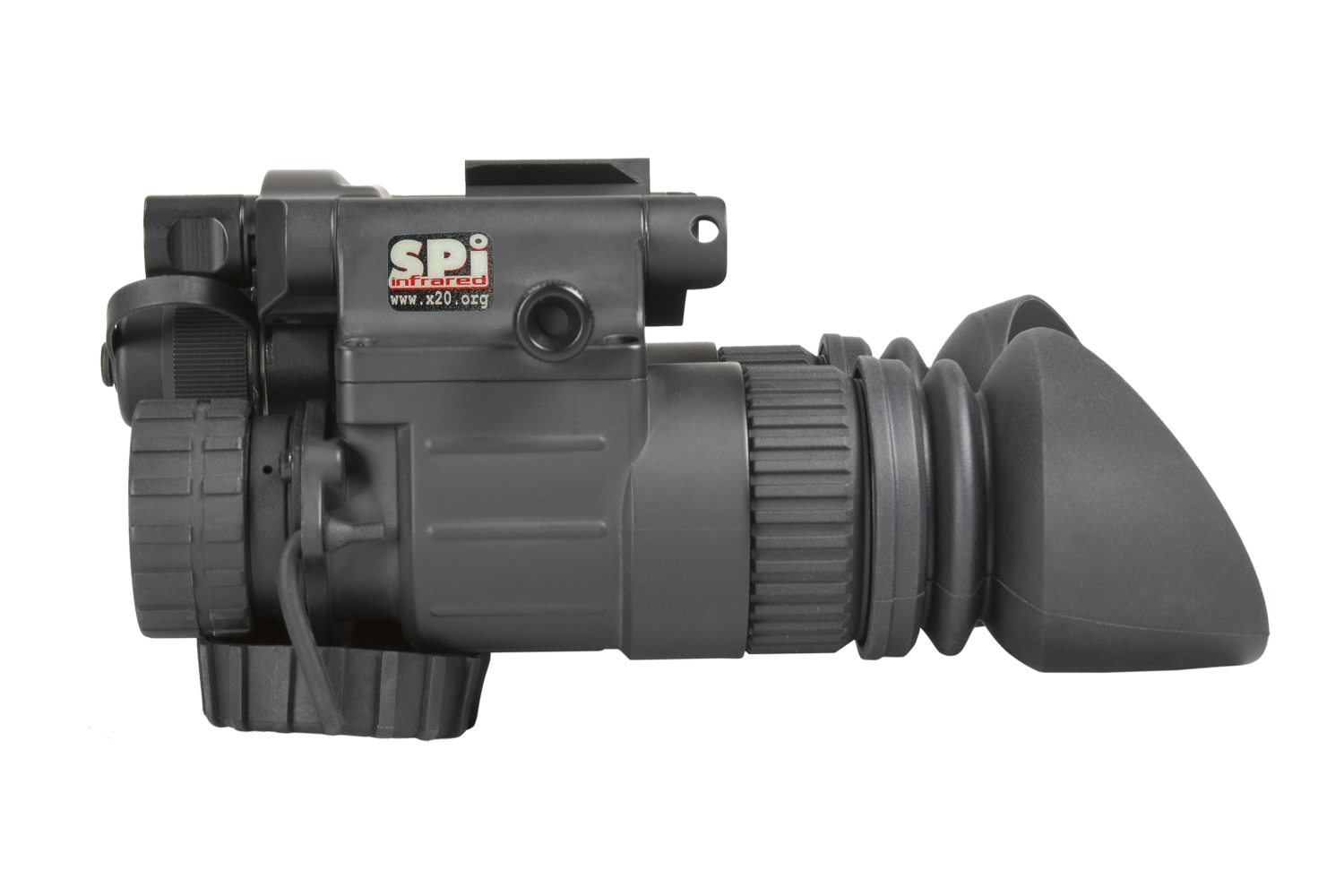

SPI NVG-40 WGEN3-G1

NIGHT VISION GOGGLES | PART #WGEN3-G1

CHARACTERISTICS

Image Intensifier Tube: Gen 3 Auto-Gated “White Phosphor Level 1”
Magnification: 1x
Lens System: 27 mm, F/1.3
FOV: 40°

PACKAGE INCLUDES

  • One Lithium Battery CR123A
  • Lens Tissue
  • Instruction Manual
  • Battery adapter CR123A 3V / AA 1.5V
  • Soft Carrying Case

EXPORT RESTRICTIONS

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

night vision binocular illumination military grade

DESCRIPTION AND FEATURES

The SPI NVG-40 is a dual-channel night vision system. With a 40° field of view, it provides a large visual field without needing to move the binoculars. The NVG-40 uses advanced multi-coated optics and is built to last with a compact composite housing. Operating from a single AA alkaline battery or CR123A battery, the NVG can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.

  • Redundant dual-tube design
  • incredible resolution and sensitivity in ultra low light scenarios
  • True stereoscopic vision
  • Lightweight & compact
  • Priced well In comparison to other comparable high-end, dual tube NVGs

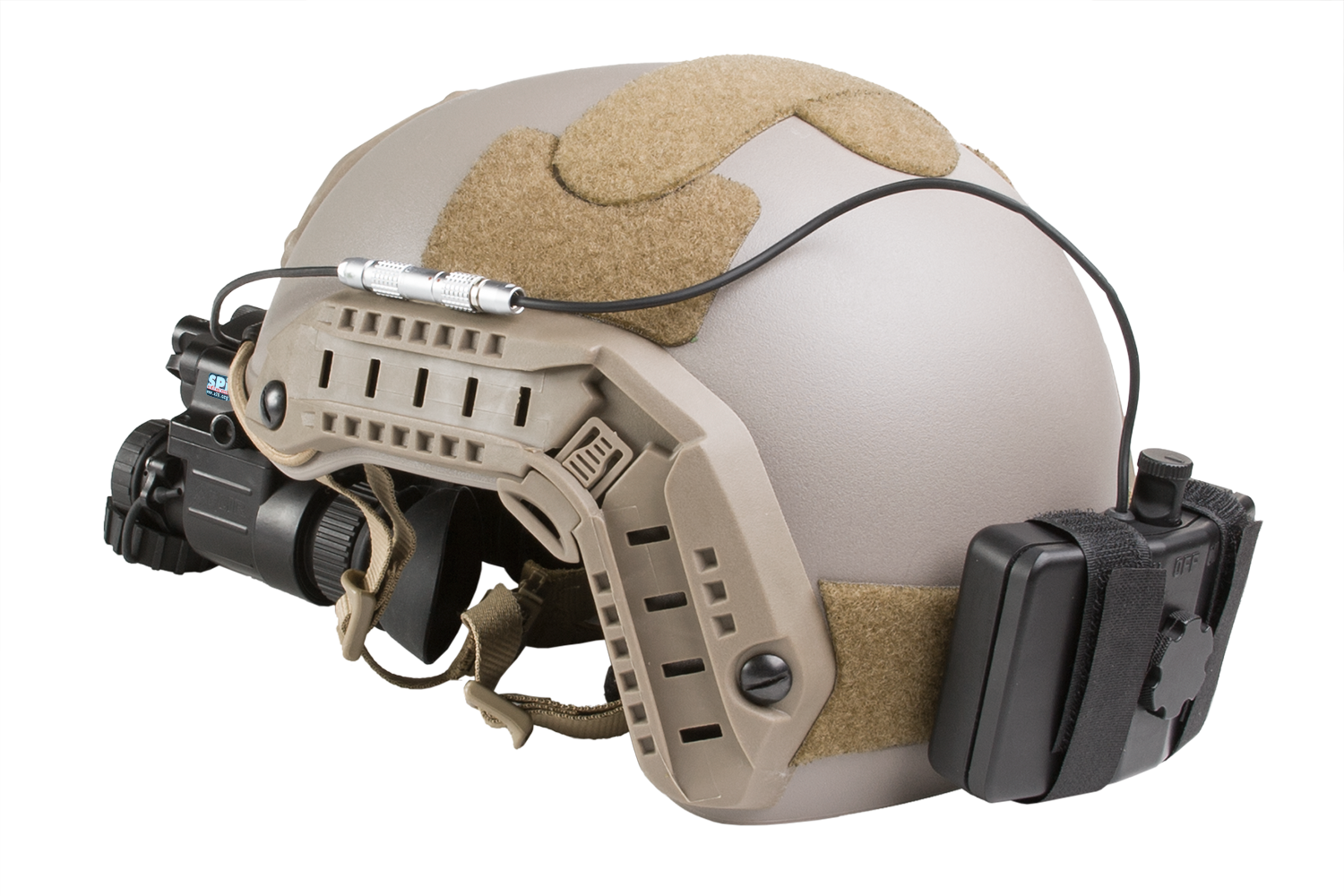

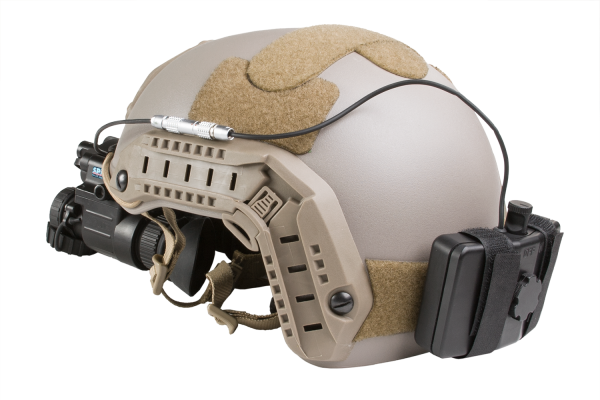

  • Head or helmet mountable for hands-free operation
  • Bright light cut-off
  • Ergonomic, simple, easy to operate controls
  • Built-in Infrared illuminator and flood lens
  • Utilizes single CR123A lithium or AA battery

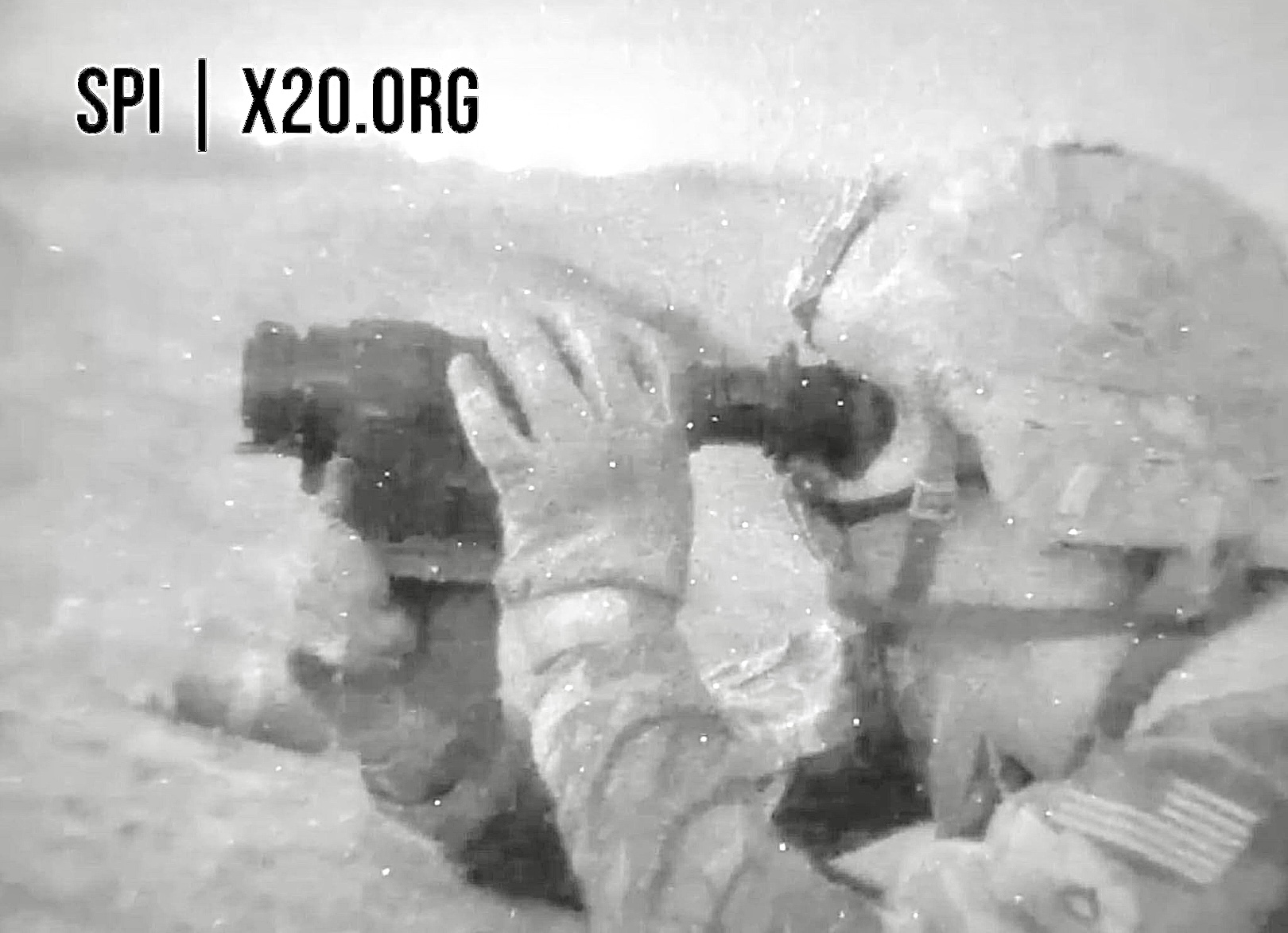

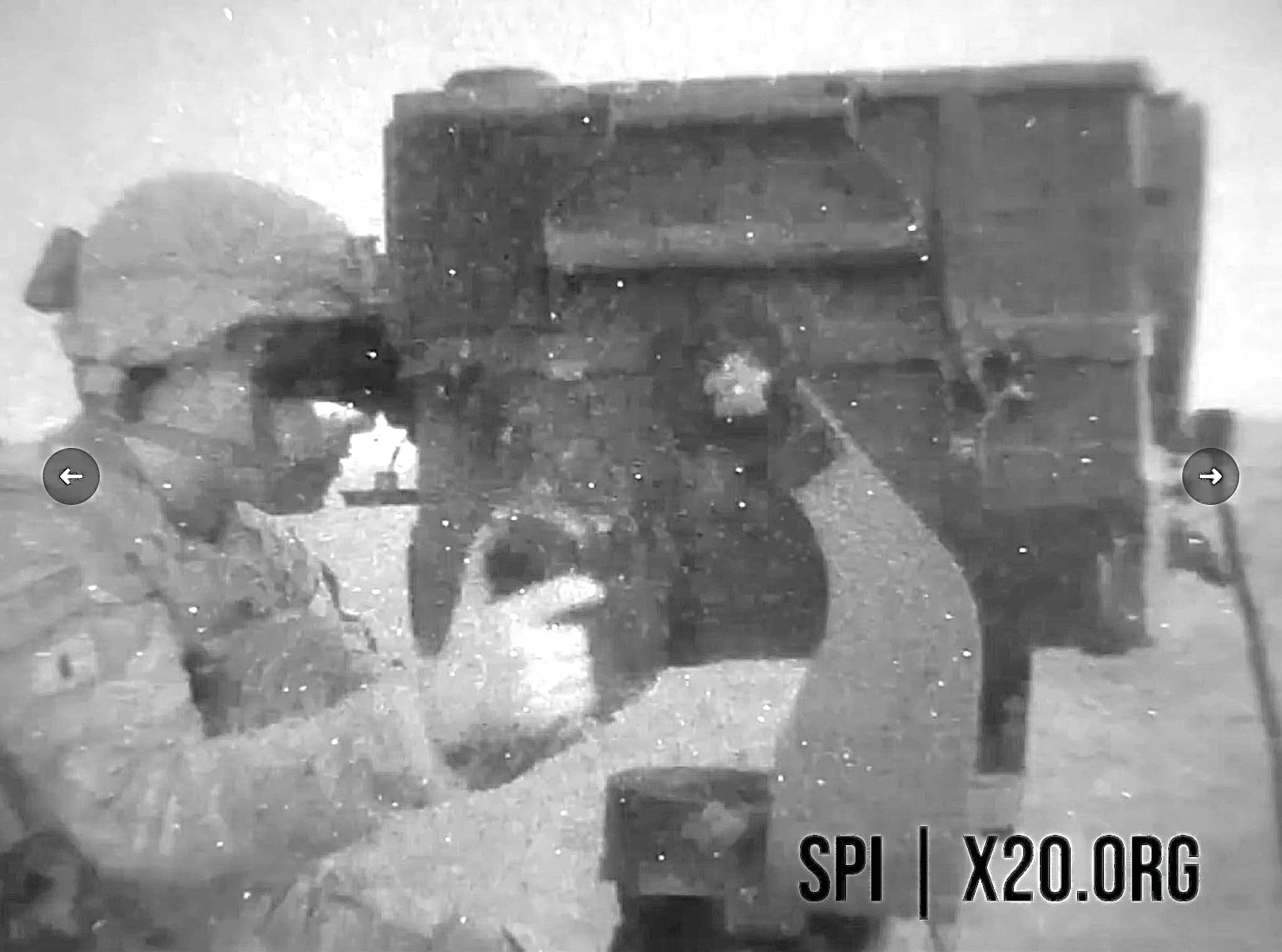

White phosphor WP NVG night vision dual tube binocular goggles

White phosphor WP NVG night vision dual tube binocular goggles

White phosphor WP NVG night vision dual tube binocular goggles

SPECIFICATIONS

Image Intensifier Tube

Hand Picked Gen 3 Typical 2200+ FOM Auto-Gated "White Phosphor Level 1"

Resolution

64-72 lp/mm

Field of view cleanness by zone

Gen 3 IIT 3AW1 is offered with high quality, high resolution & sensitivity US ultra clean Image Intensifier Tubes

Magnification

1x

Lens System

Coated/hardened 27 mm adjustable optics

FOV

40°

Focus Range

0.25 m to Infinity

Eye Relief

25 mm

Diopter Adjustment

-6 to +2 dpt

Led Indicators

Low Battery IR On Excessive Light Conditions

Infrared Illuminator

Yes; Two power levels

Manual Gain Control

Yes

Bright Light Cut-Off

Yes

Automatic Shut-Off System

Yes

Battery Type

One CR123A (3V) or AA (1.5 V)

Battery Life (Operating)

Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)

Operating Temperature Range

-40°C to +50°C (-40°F to +122°F)

Storage Temperature Range

-50°C to +70°C (-58°F to +158°F)

Weight

645 g (1.42 lbs)

Overall Dimensions

115 × 118 × 74 mm (4.5 × 4.6 × 2.9 in)

Package Includes

Night Vision Goggles, Goggle Kit, Soft Carrying Case, Lens Cloth, Battery Adapter, User Manual
