SPI NOMAD-A9 NGEN3-G1

NIGHT VISION GOGGLES | PART #A9 NGEN3-G1

PACKAGE INCLUDES

  • Packing Box

EXPORT RESTRICTIONS

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

night vision binocular illumination military grade

DESCRIPTION AND FEATURES

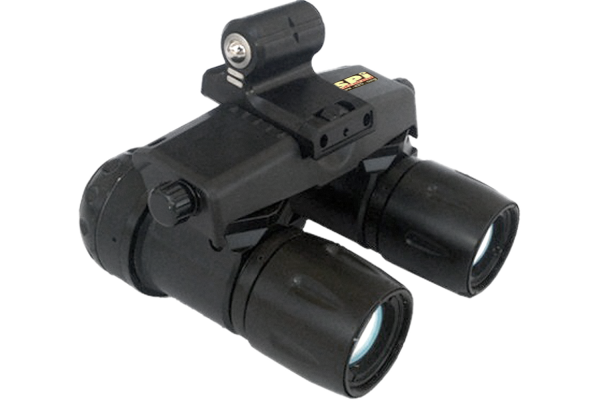

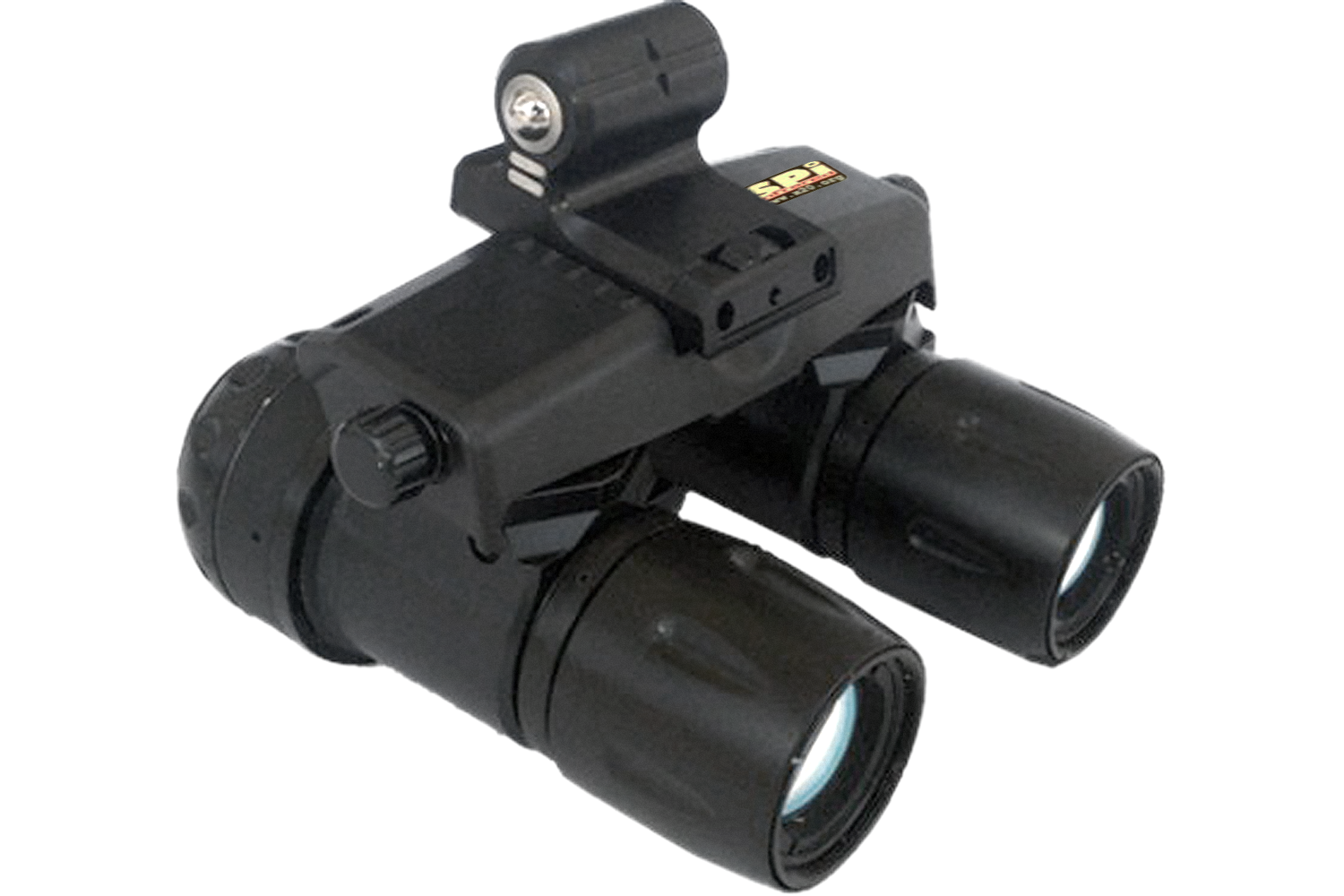

The Nomad A-9 Aviator Night Vision Goggle System represents a variant of the AN/AVS-6(v)/9 series ANVIS Goggle, which is the US Army/Navy standard fielded issue. SPI brings a new level of performance to the system by offering the Nomad A-9 with both standard P-43 green and high contrast P-45 white phosphor image intensifier tubes. The Nomad A-9 System is equipped with Class A or Class B filter coatings on the objective lenses and offer a 40° minimum field of view. The large format 27mm eye relief eyepieces can be adjusted from +2 to -6 diopters for most corrective lenses. In addition, the Nomad A-9 accommodates inter-pupillary spans between 51mm to 72mm and offers over 10° tilt adjustments to compensate for a wide range of in-service helmet applications.

SPECIFICATIONS

Field of View

40°

System Resolution

1.3cy/mR minimum

IPD

52mm – 72mm

Vertical Adjustment

25mm

Fore/Aft Adjustment

27mm

Collimation

Convergence: 1.0° Dipvergence: 0.33° Tilt Adjustment: 10°

Battery Type/Life

AA 1.5VDC / 80 hours battery pack load

Environmental

MIL-STD-810H

Magnification

1.0X

Focus Range

25cm to infinity

Diopter Adjustment

-6 to +2 dpt

Weight

Binocular: 500g Mount: 150g

Package Includes

Nomad A-9 Unit Assembly, Helmet Mount Assembly, Soft Carrying Case, Counterweight, 4 each AA Batteries, Battery Pack Assembly, Neck Cord, Lens Tissue, Screwdriver, Manual
