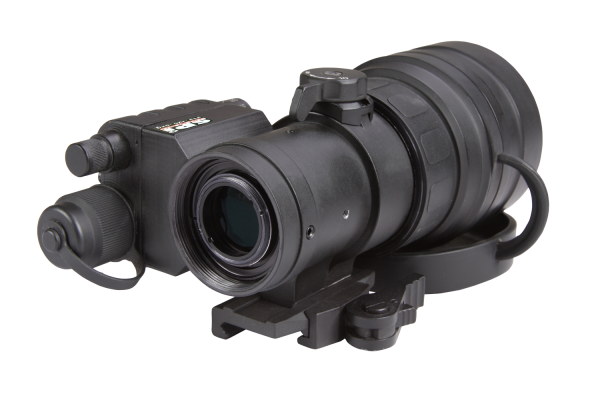

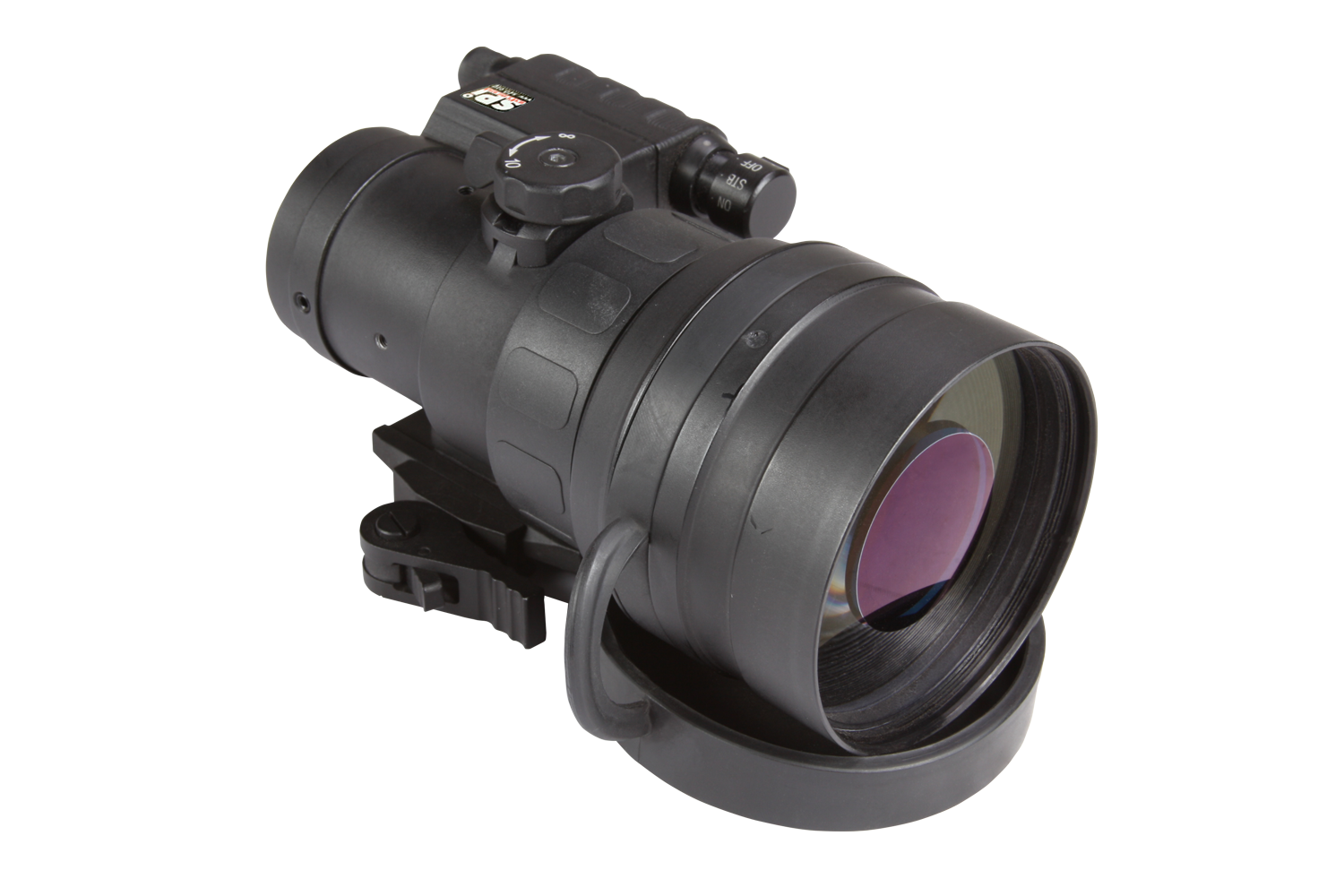

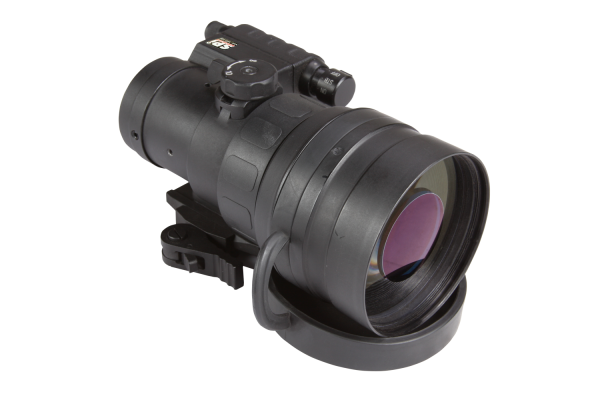

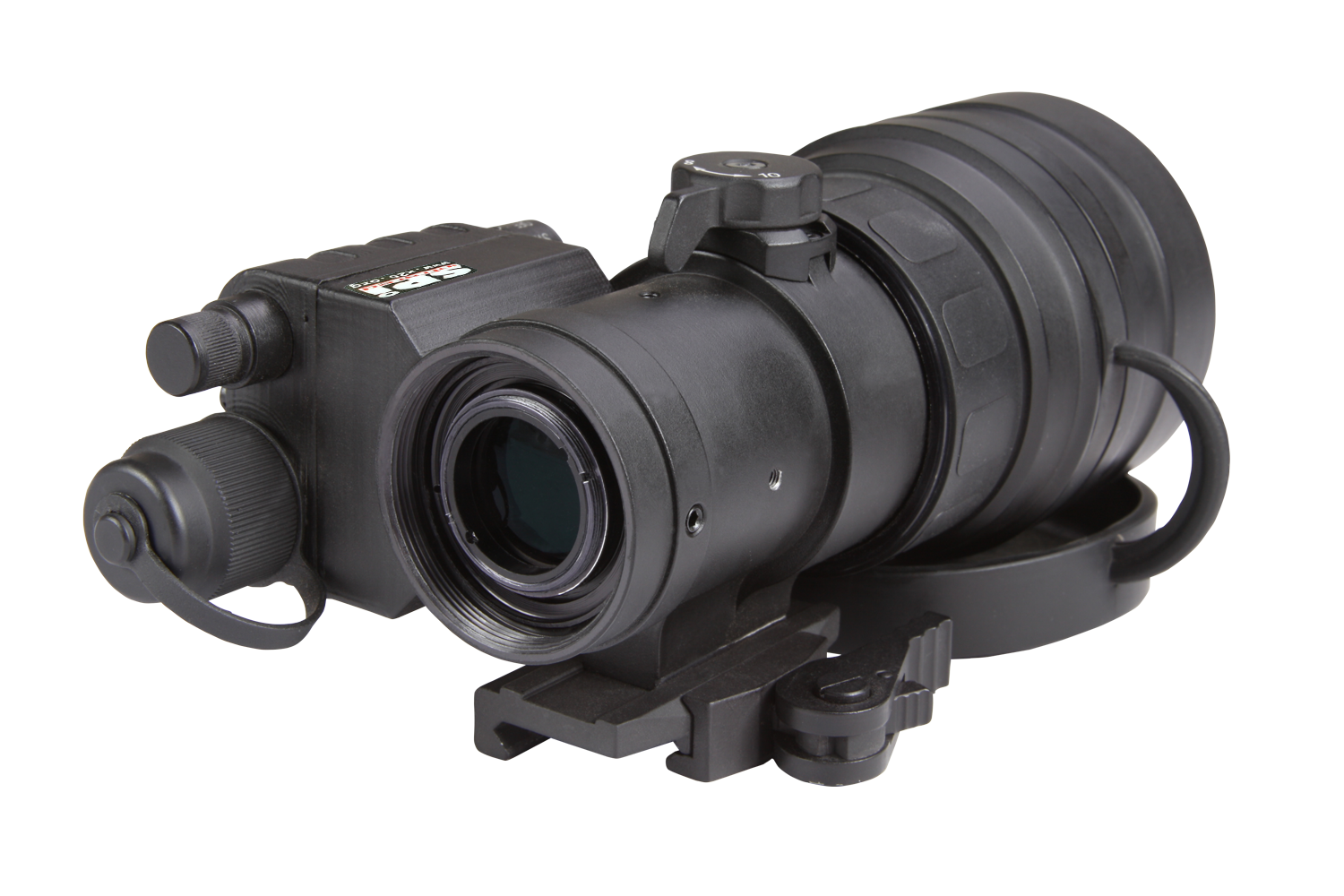

SPI CHOCTAW-22 NGEN3-C1

NIGHT VISION CLIP-ON SYSTEMS | PART #NGEN3-C1

CHARACTERISTICS

Image Intensifier Tube: Gen 3 “Level 1”
Magnification: Unity 1x
Lens System: 80 mm; F/1.44
FOV: 12°

PACKAGE INCLUDES

  • Packing Box
  • SPI SPARK850
  • Long Range Infrared Illuminator with Mount
  • Dovetail to Weaver Transfer Piece
  • Rechargeable Battery
  • Charger
  • Operators Manual
  • One Lithium Battery CR123A
  • Lens Tissue
  • Soft Carrying Case

EXPORT RESTRICTIONS

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

clip-on scope mount illuminator night vision military grade

DESCRIPTION AND FEATURES

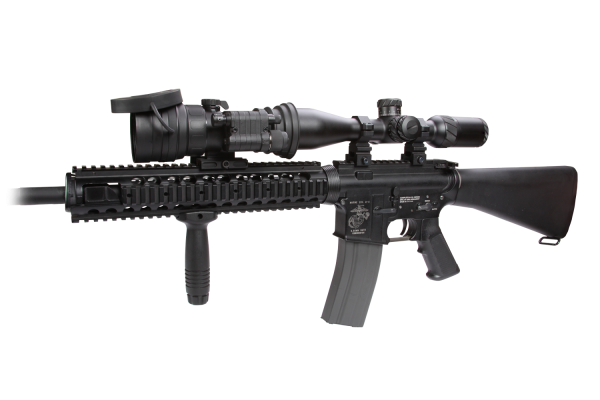

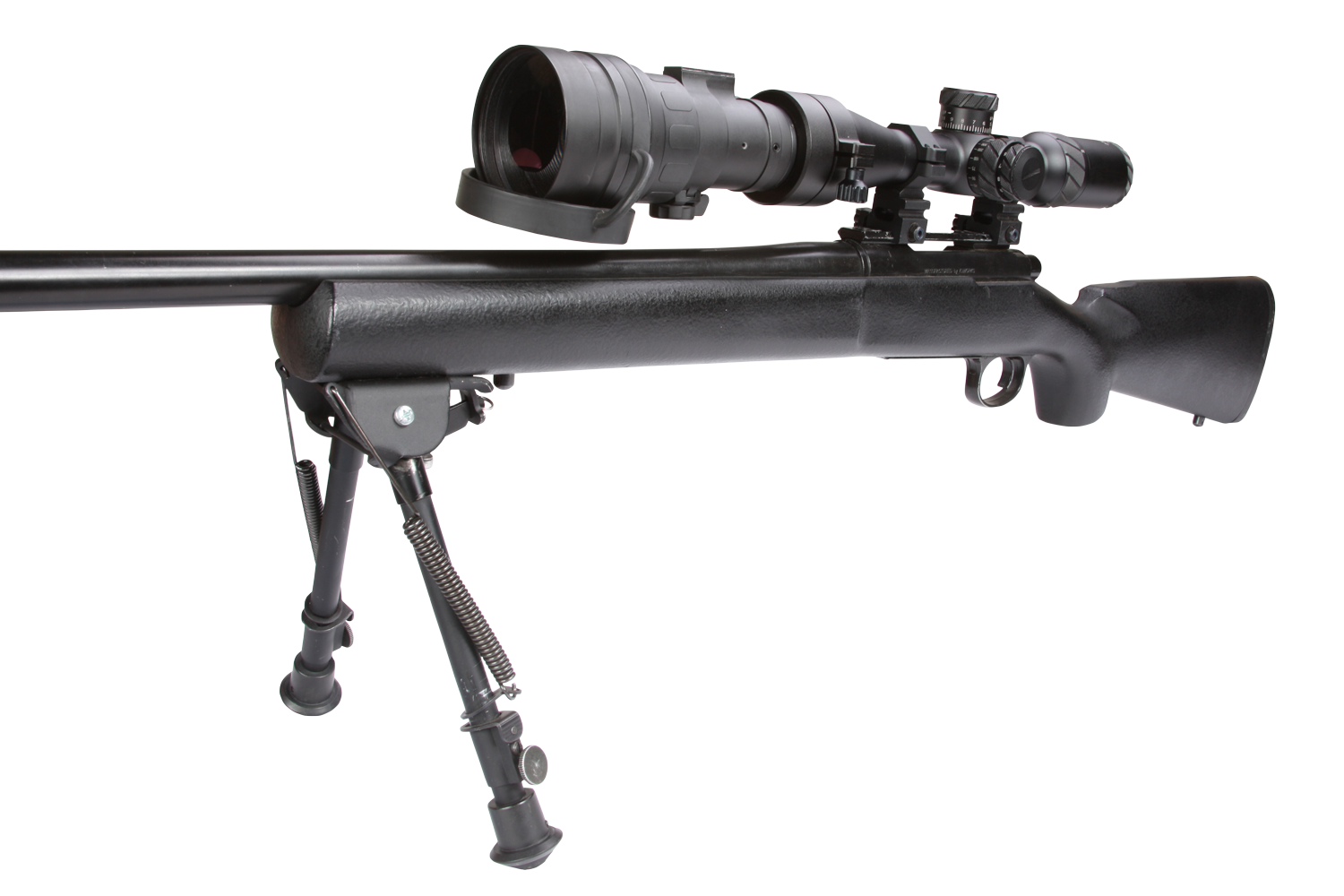

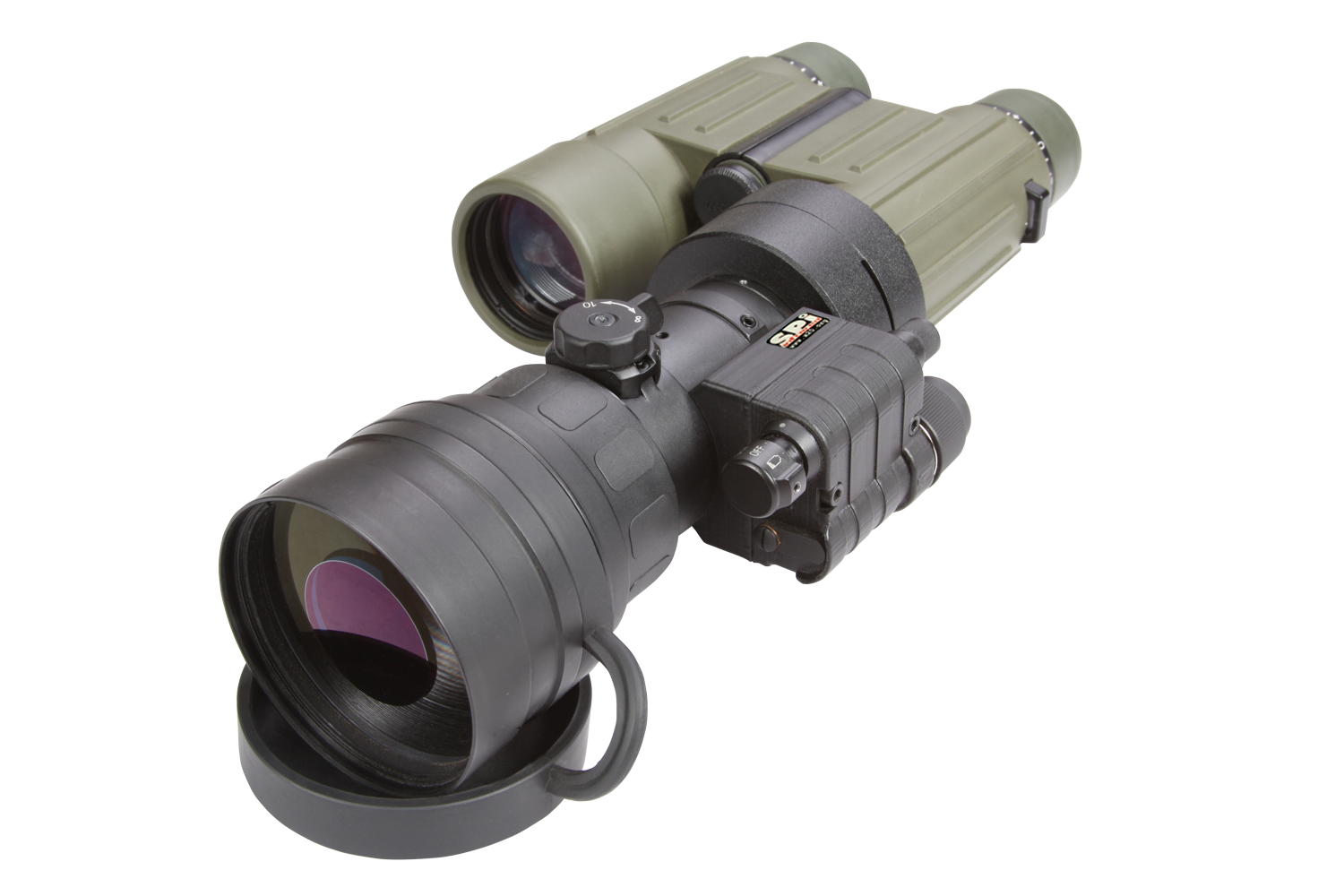

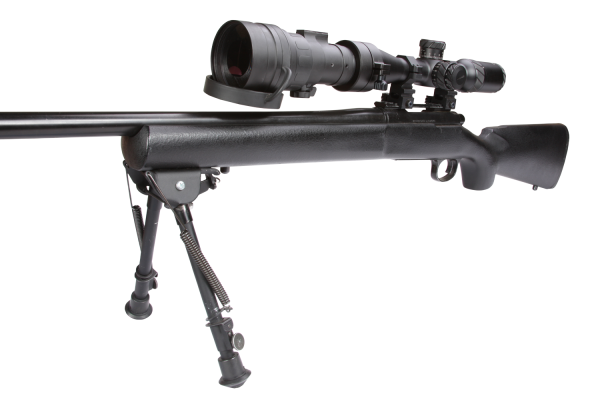

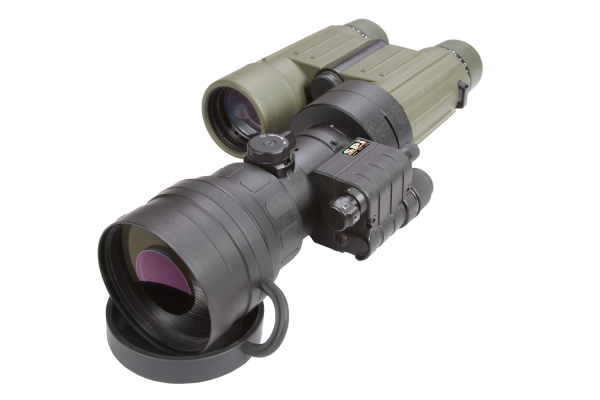

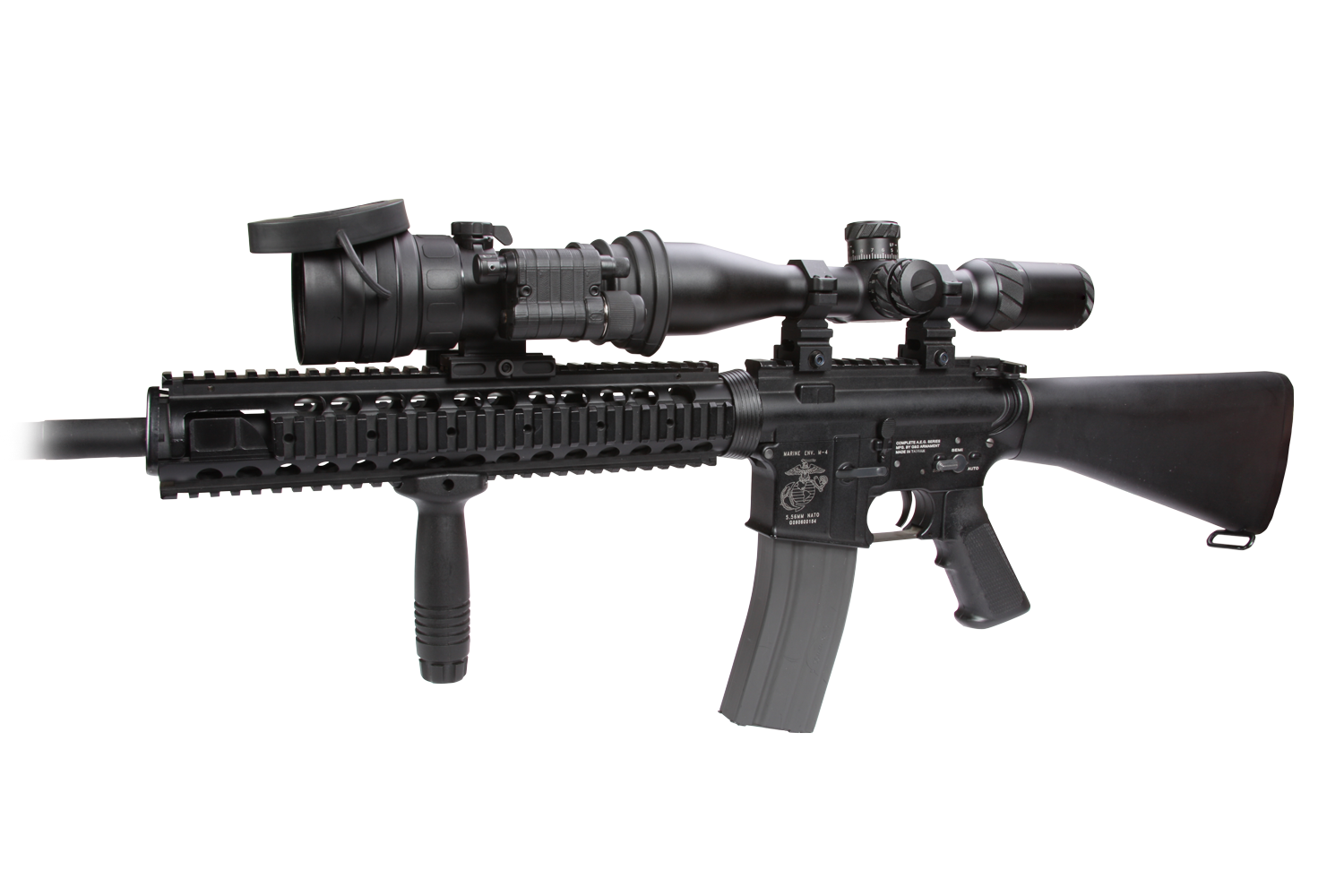

SPI Choctaw 22 Night Vision Clip-On (NVCO) system uses the latest advances in night vision clip-on technology. Designed for mid-range nighttime shooting, the Choctaw 22 delivers exceptional clarity, reliability, and versatility providing the most significant functionality and features at the lowest possible price. The Choctaw 22 is mounted to a standard Weaver or Picatinny rail in front of an existing day scope; transforming it into a Night Vision Device with no re-zeroing required. This NVCO can be used with day scopes of up to 7x magnification for optimal performance and is equipped with a quick release mount and wireless remote control. It provides unmatched target acquisition and enhanced aiming capabilities, making it extremely practical and effective during the most challenging missions.

  • Simple, quick conversion of daytime scopes to NVDs
  • Manual gain control
  • Mounts in front of any daytime scope, no re-zeroing required
  • Powered by a single Alkaline 1.5 V AA or 3 V CR123A Lithium battery
  • Bright-light cut-off system
  • Quick-release mount

SPECIFICATIONS

Image Intensifier Tube

Gen 3 "Level 1"

Resolution

64-72 lp/mm

Magnification

Unity 1x

Lens System

80 mm; F/1.44

FOV

12°

Focus Range

10m to infinity

Controls

Direct

Led Indicators

Low battery; Excessive light conditions

Infrared Illuminator

Detachable; Long-range

Manual Gain Control

Yes

Bright Light Cut-Off

Yes

Automatic Shut-Off System

Yes

Battery Type

One CR123A (3V) or AA (1.5 V)

Battery Life (Operating)

Up to 60 hours at 20°C

Exit Pupil Diameter

22 mm

Operating Temperature Range

-40°C to +50°C (-40°F to +122°F)

Storage Temperature Range

-50°C to +50°C (-58°F to +122°F)

Weight

0.75 kg (1.65 lbs)

Overall Dimensions

168×85×80 mm ( 6.6×3.3×3.1 in)

Package Includes

Night Vision Clip-On, Lens Cloth, Soft Carrying Case, SPARK850 Long-Range Infrared Illuminator
