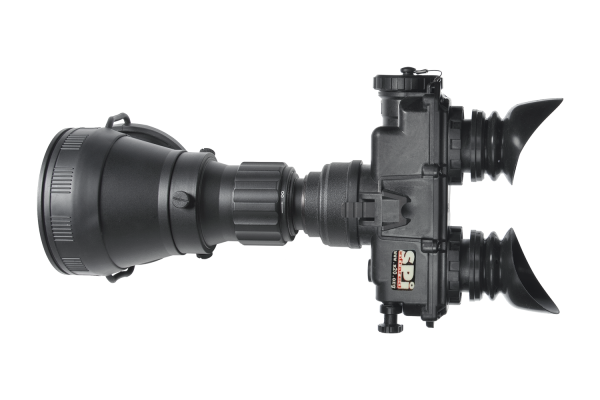

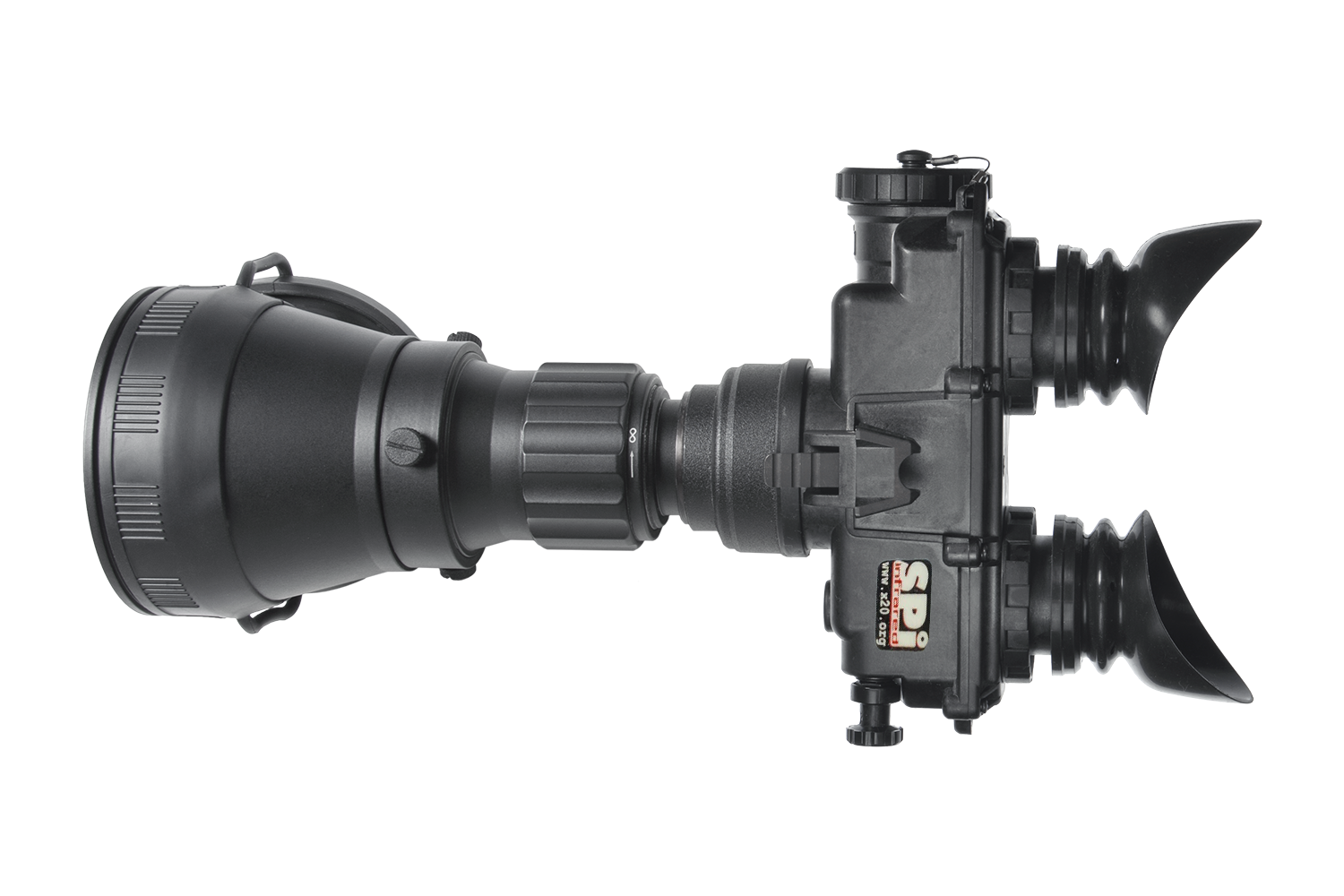

SPI BLACKBIRD 6X-NGEN3-B1

NIGHT VISION BINOCULARS | PART #NGEN3-B1

CHARACTERISTICS

Image Intensifier Tube: Gen 3 “Level 1”
Magnification: 5.6x
Lens System: 145 mm; F/1.8
FOV: 7°

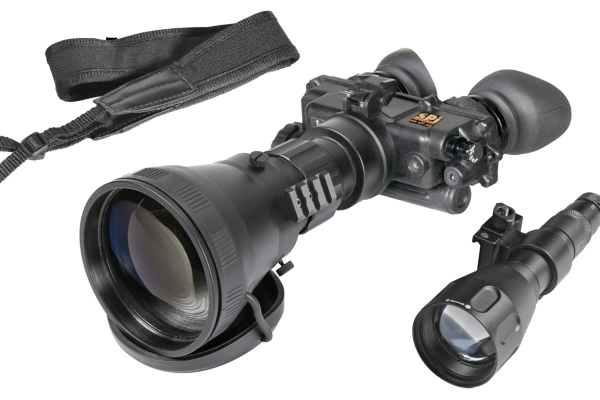

PACKAGE INCLUDES

  • SPI Sioux850 Long Range Infrared Illuminator with Mount
  • Dovetail to Weaver Transfer Piece
  • Rechargeable Battery
  • Charger
  • Operators Manual
  • Lens Tissue
  • One Lithium Battery CR123A,
    Soft Carrying Case

EXPORT RESTRICTIONS

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

Binocular Night Vision range IR illiminator

DESCRIPTION AND FEATURES

The SPI Blackbird-LE night vision bi-ocular is the perfect tool for mid-range and long-range observation. The Blackbird-LE is compatible with a range of professional high quality objective lenses to match all users’ requirements currently available in three configurations – 5x, 8x, and 10x magnification. The Blackbird-LE is a professional night vision device favored by law enforcement and military units due to its unmatched performance, even in extreme temperatures and challenging weather conditions such as rain or excessive humidity. The device can be outfitted with either a Gen 2+ or Gen 3 high-performance image intensifier (II) tube, which can be repaired or upgraded easily. The bright light shut-off feature ensures that the high-quality photocathode tube is protected. The Blackbird-LE is also equipped with Automatic Brightness Control (ABC), which adjusts the image brightness automatically, providing the highest possible image quality even in changing light conditions. Blackbird-LE is supplied with two AA batteries and its operating time is up to 40 hours of continuous use.

  • 5x, 8x or 10x magnification
  • Lightweight rugged design
  • Waterproof
  • Auto brightness control
  • Ergonomic, simple, easy to operate controls

SPECIFICATIONS

Image Intensifier Tube

Gen 3 "Level 1"

Resolution

64-72 lp/mm

Field of view cleanness by zone

Gen 3 IIT 3NL1 is the highest resolution and the cleanest offered by SPI. There are practically no visible spots in Zone 1.

Magnification

5.6x

Lens System

145 mm; F/1.8

FOV

Focus Range

25m to Infinity

Diopter Adjustment

-6 to +2 dpt

Led Indicators

Low battery; IR On; Excessive light conditions

Automatic Brightness Control

Yes

Infrared Illuminator

Detachable long-range IR illuminator

Bright Light Cut-Off

Yes

Automatic Shut-Off System

Yes

Battery Type

2 AA Alkaline or 1 Lithium (BA-5567/U)

Battery Life (Operating)

Up to 60 hours at 20°C

Operating Temperature Range

-40°C to +50°C (-40°F to +122°F)

Storage Temperature Range

-50°C to +50°C (-58°F to +122°F)

Weight

1.02 kg (2.25 lbs)

Overall Dimensions

282 × 152 × 96 mm ( 11.1 × 6.0 × 3.8 in)

Package Includes

Night Vision Binocular, Sioux850 Detachable Long-Range IR Illuminator Lens Cloth, Soft Carrying Case
