SPI Stinger T336-50-S



Detector type: FLIR Tau 2 17μm Uncooled Microbolometer
Refresh rate: 60 Hz
Resolution: 336 x 256
FOV: 7.8 ° × 5.9° (H x V)


  • Two Lithium CR123A batteries
  • Lens Tissue
  • Operators Manual
  • Remote Control
  • Soft Carrying Case


Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

thermal vison imaging scopes military grade hunting weapons

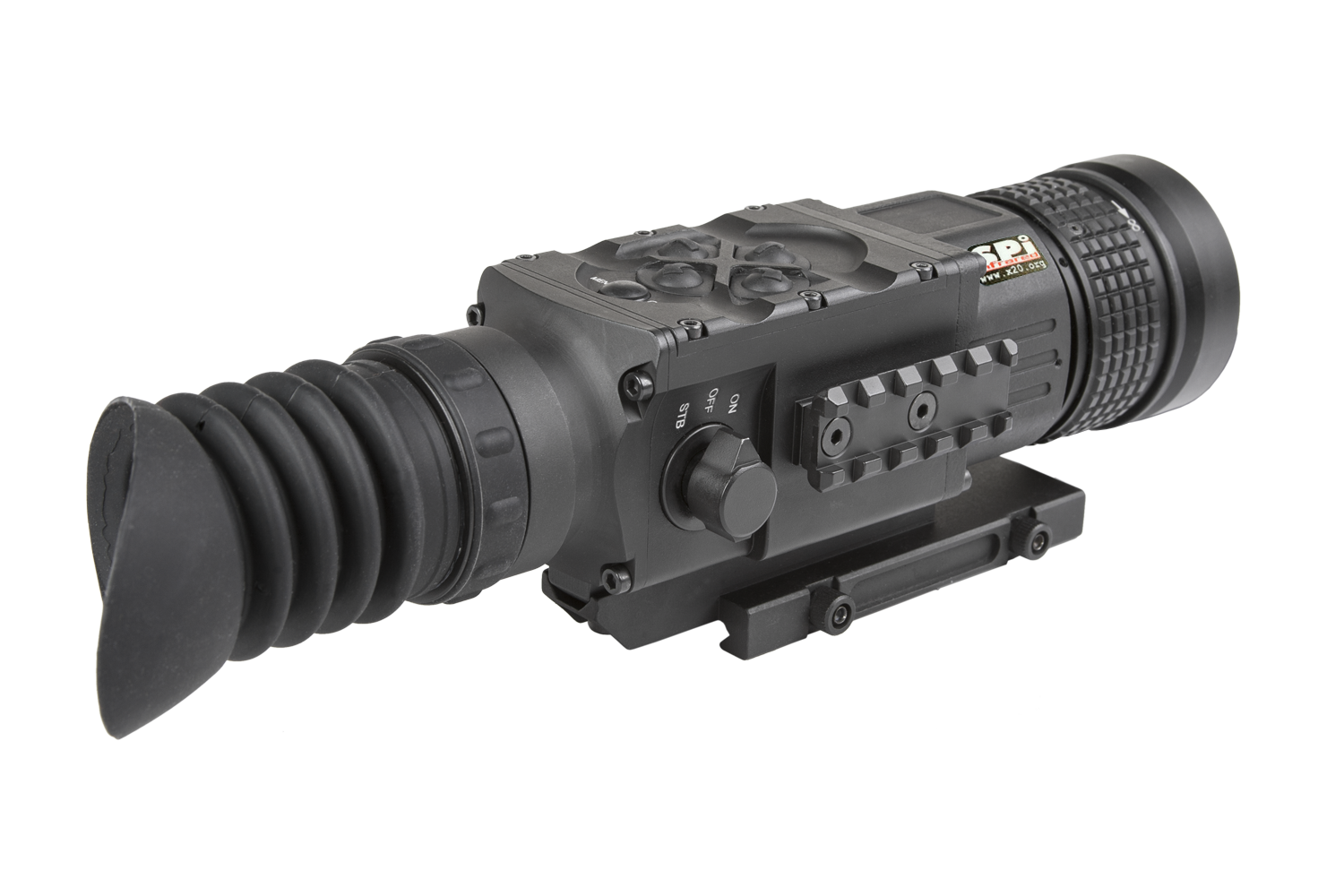

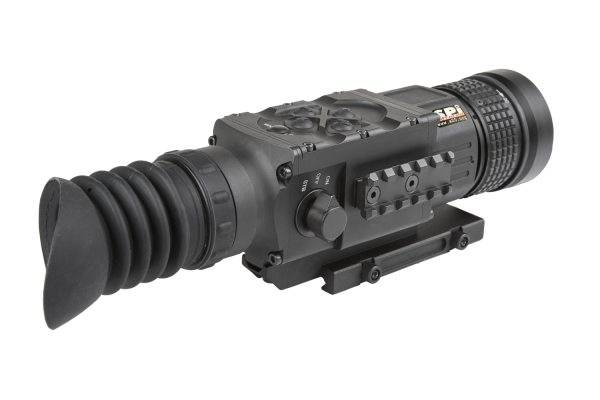

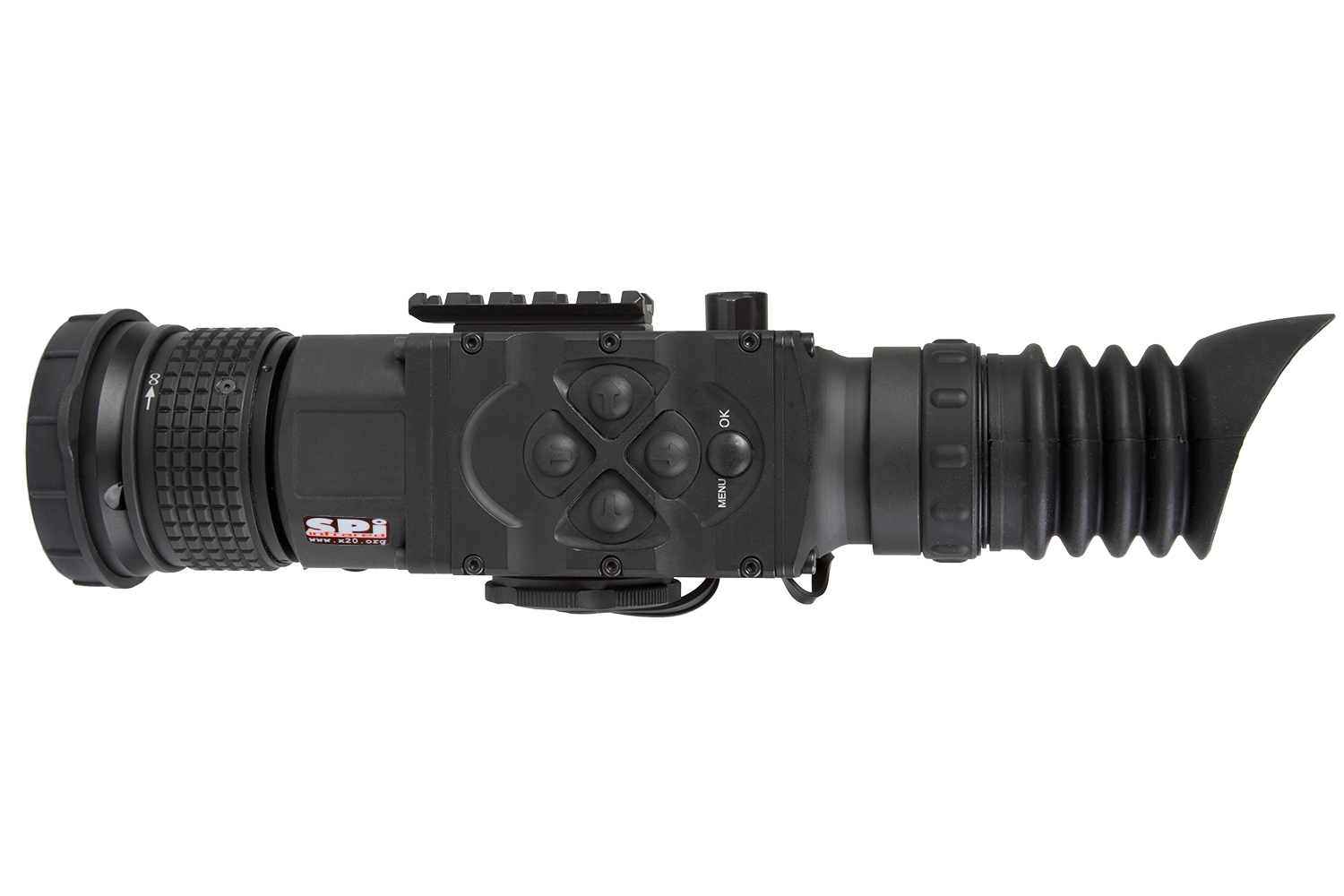

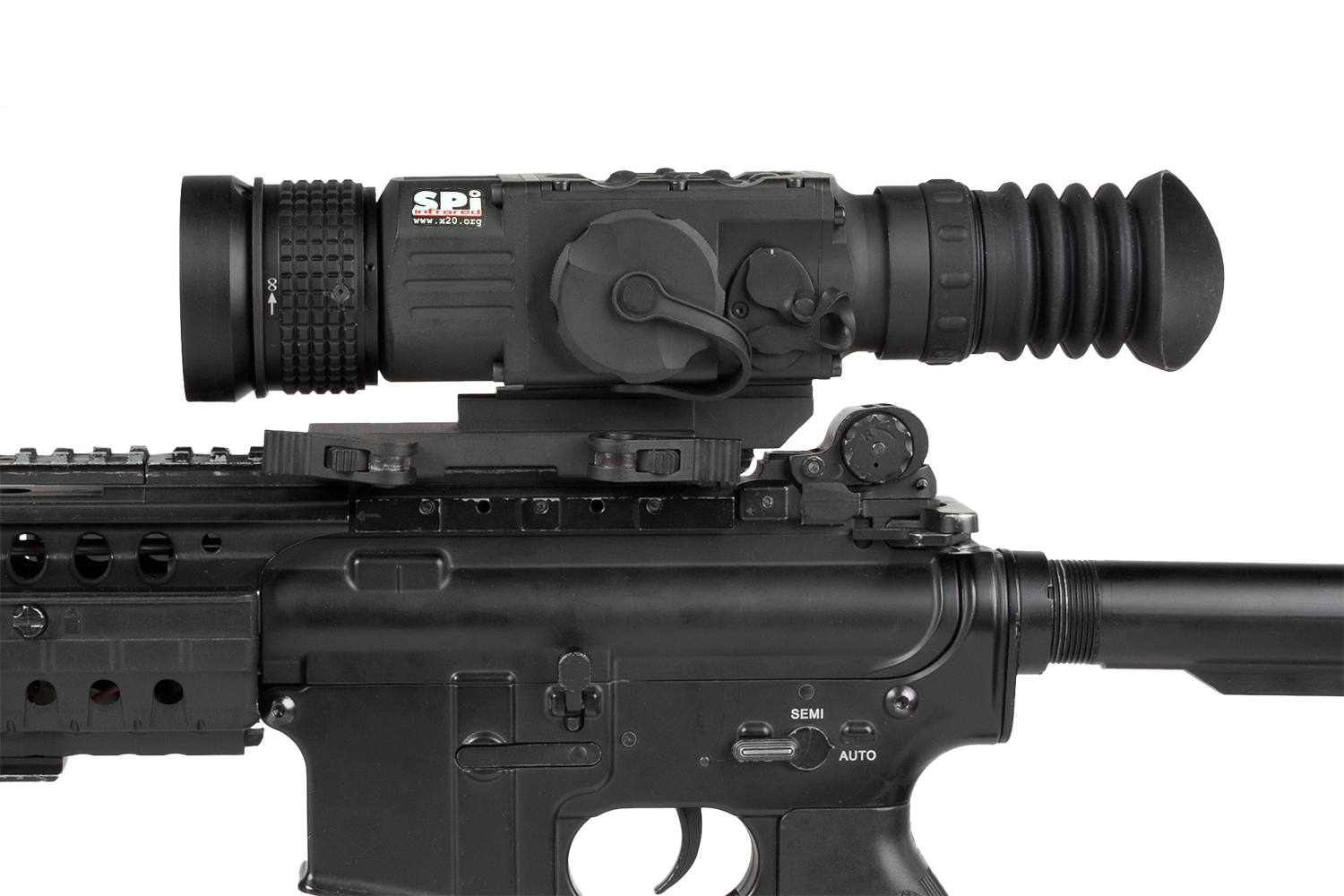

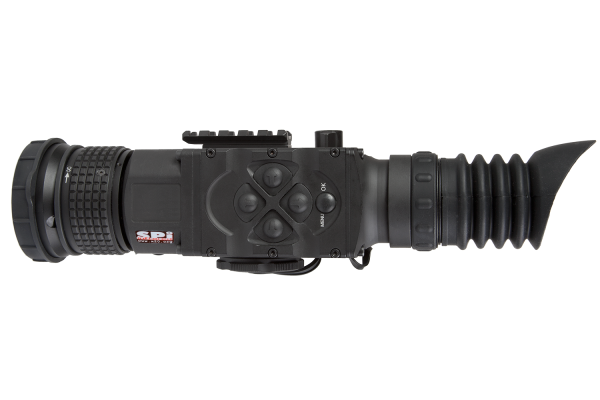

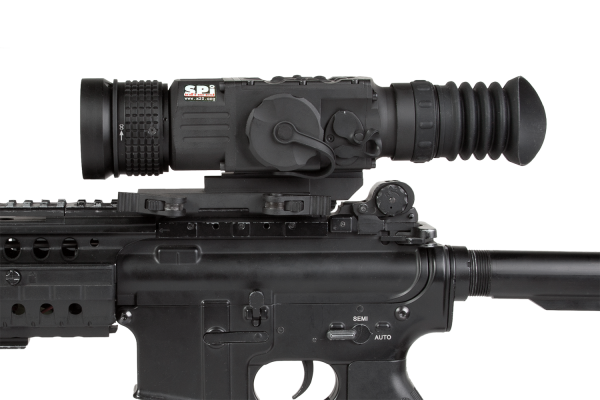

The SPI Stinger is a long-wave infrared, uncooled, thermal imaging weapon sight designed for 24 hours operation, eliminating the need to dismount the unit from the rifle. The housing is made of high-grade aircraft aluminum alloy, making it lightweight, but in the same time tough to tolerate high recoil. The waterproof design of SPI Stinger grants excellent performance even under severe environmental and weather conditions. The device has a variety of modifications providing users with opportunity to choose between a set of different Germanium objective lenses ( 25 mm, 50 mm, or 75 mm) and FLIR Tau 2 detector types (336×256 or 640×512), which allows the operator to achieve the most suitable performance for the tasks he faces. The Stinger’s user-friendly interface, comfortable and ergonomic buttons, together with the wireless remote control, makes adoption and application incredibly simple. The Stinger includes a variety of color palettes and reticle patterns, adjustable image brightness and contrast, an internal menu, and digital zoom. Optionally the capabilities of the device can be extended with WiFi module, external video recorder or monitor. While long term missions any commercially available battery pack can be connected via micro-USB port to drastically increase operation time.

  • FLIR Tau 2 17μm pitch thermal sensor
  • Lightweight and robust design
  • Easy to operate device
  • Manually adjustable eyepiece and objective lens
  • Real-time display/ Multiple color palettes
  • Digital zoom: 1x, 2x, 4x, and 8x
  • Multiple reticle patterns
  • Wireless remote control
  • Waterproof
  • External Wi-Fi module
  • Integral MIL-STD-1913 rails for optional accessories
  • Powered by two standard CR123A batteries
  • External power supply via micro USB


Storage temperature range -50°C to +70°C -58°F to +158°F)
Exit Pupil Diameter 10 mm
Reticle Changeable reticle pattern
Remote control Wireless (Activates/ Deactivates the scope in Standby Mode)
Imaging palettes Changeable
Extended battery attachment (optional) Two 18650 rechargeable batteries (3.7V), four CR123 rechargeable batteries with voltage 3.7V max, or four standard CR123A 3V Lithium batteries (operational time up to 8 hr)
Environment Rating Waterproof
Detector type FLIR Tau 2 17μm Uncooled Microbolometer
Refresh rate 60 Hz
Resolution 336 x 256
Start up 3 seconds
Lens system 50 mm; F/1.0
Optical magnification 3x
Field of view (H × X) 7.8 ° × 5.9° (H x V)
Digital zoom 1x, 2x, 4x
Diopter adjustment range -5 to +5 dpt
Focusing range 5 m to infinity
Eye relief 45 mm
Display (800×600)
Video output Composite analogue video (PAL)
Interfacing – S620 Connector (Power In, Analog Video In/Out, HD Video Recorder, Extended Battery Attachment ) – Micro USB (Power Bank, Video Recorder, WiFi Attachment)
Battery Type Two CR123A 3V Lithium Batteries or CR123 Type Rechargeable Batteries with Voltage from 3.0V to 3.7V (2)
Battery Life (Operating) Up to 4 hr (optional up to 12 hrs)
Operating Temperature Range -40°C to +50°C (-40°F to +122°F)
Weight 0.84 kg (1.85 lbs)
Overall Dimensions 228 × 71 × 81 mm (9.0 × 2.8 × 3.2 in)
Package Inludes Thermal imaging riflescope, Lens cloth, Soft carrying case, User manual
