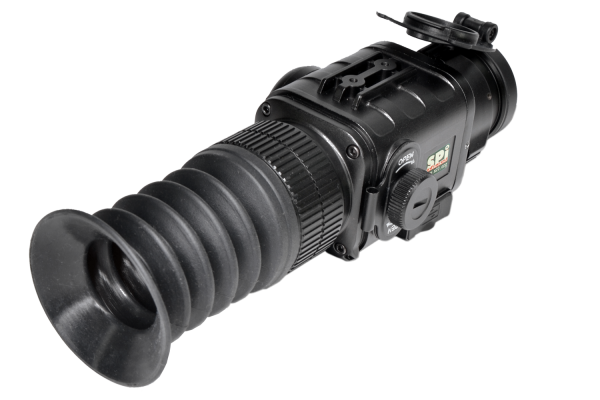

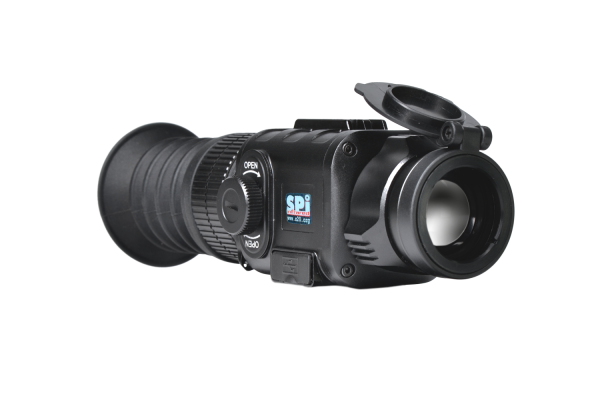

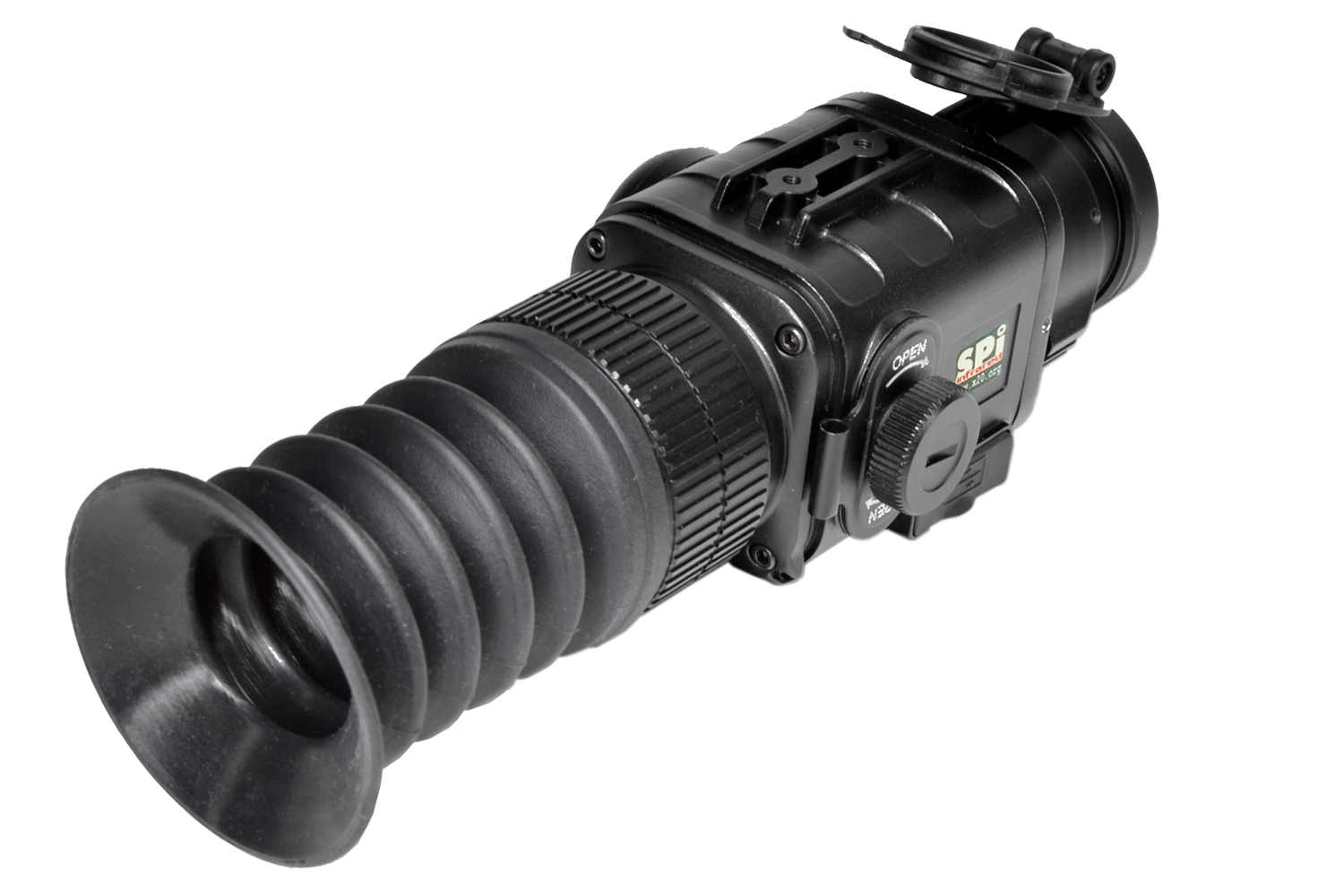

SPI Stinger Micro T384-35-MS



Detector type: 17μm, Uncooled
Refresh rate: 50Hz
Resolution: 384 x 288
FOV: 10.6 ° × 8° (H x V)


  • Two Lithium CR123A batteries


Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

thermal vison imaging scopes military grade hunting weapons compact


The SPI Stinger-Micro TS35 and Stinger-Micro TS50 are the compact thermal imaging scopes developed for 24 hours operation under any weather and environmental conditions. Two modifications of objective lenses allows to choose perfect unit for your needs where 35 mm lens designed for short range shooting, while 50 mm lens model will be great for medium range missions. Powered with two CR123 batteries the SPI Stinger-Micro gives up to 5 hours of continues work. An external 5V power bank (battery pack) can be easily connected via a USB connector for a significant increase of operating time

  • Lightweight and compact design
  • Easy to operate device
  • High resolution 1024×768 display
  • Waterproof
  • Powered by two standard CR123A batteries
  • External power supply via micro USB


Close-up range 5 m
Video / photo format AVI / JPG
On-board memory 128 MB (32 GB optional)
Degree of protection IP67
Shock and vibration 1200 g/ms
Storage temperature range -40°C to +70°C (-40°F to +158°F)
Detector type 17μm, Uncooled
Resolution 384 x 288
Lens system 35 mm; F/1.1
Optical magnification 1.9x
Field of view (H × X) 10.6 ° × 8° (H x V)
Digital zoom 2x, 4x
Diopter adjustment range -5 to +5 dpt
Eye relief 60 m
Display OLED (1024×768)
Battery Type Two CR123
Battery Life (Operating) Up to 5 hr
External power supply 5V USB
Power supply 3.6~7.2V
Operating Temperature Range -25°C to +50°C (-4°F to +122°F)
Weight 0.38 kg ( 0.83 lbs)
Overall Dimensions 176 x 61 x 67 mm (6.9 × 2.4 × 2.6 in)
