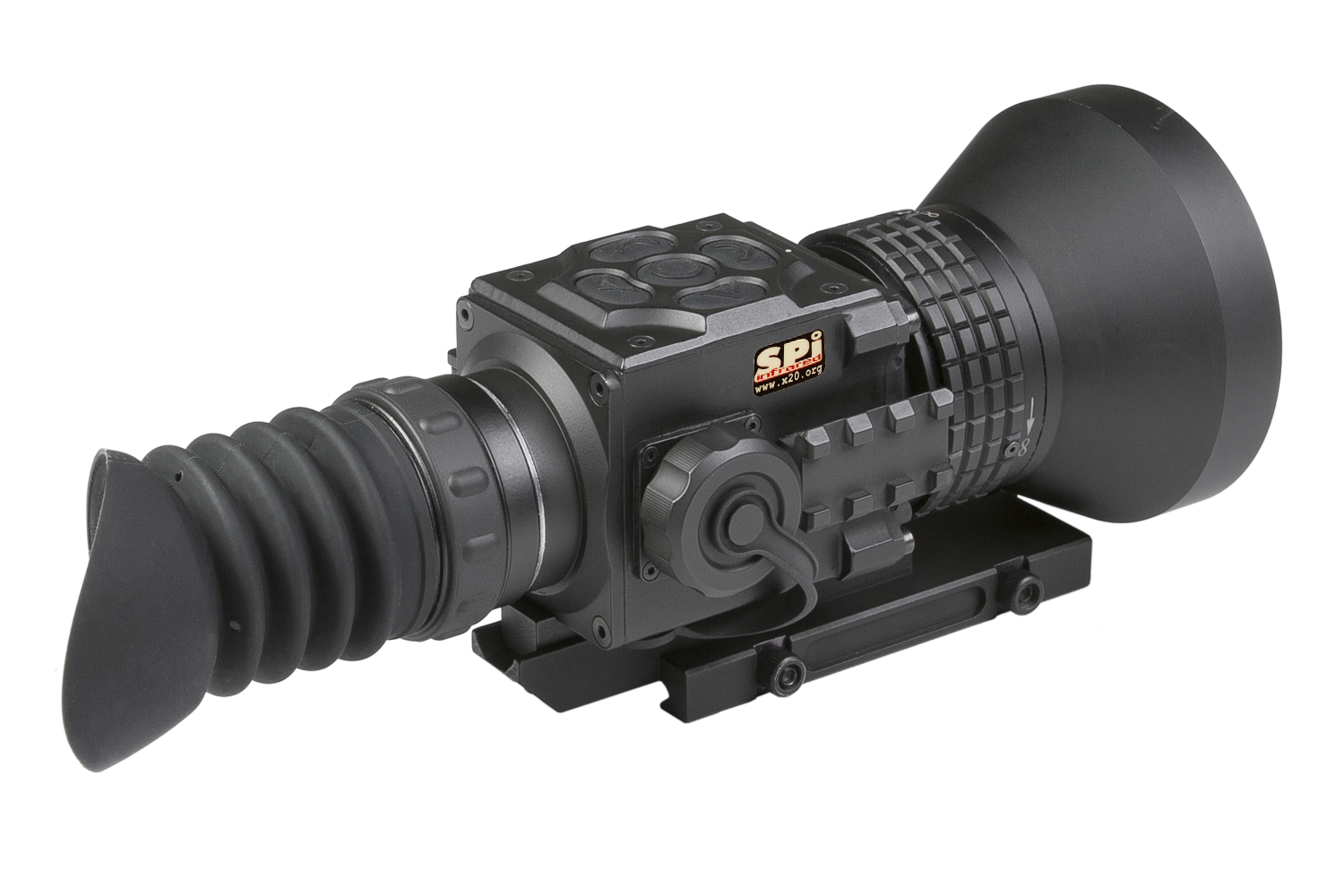

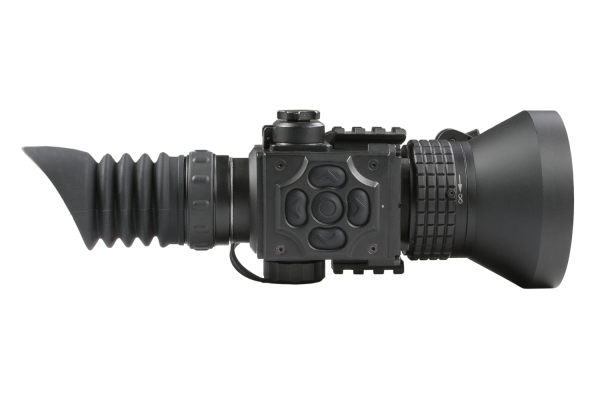

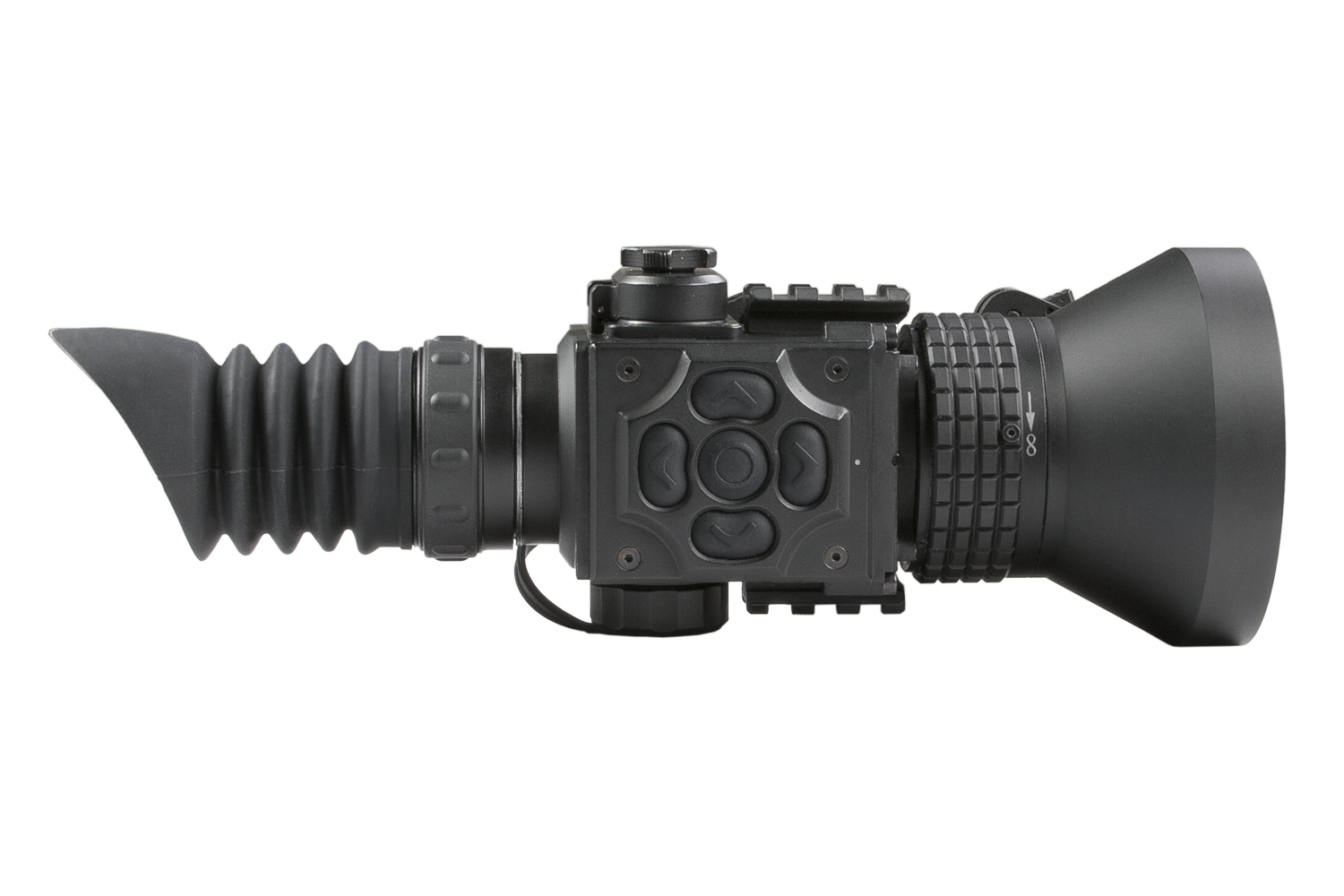

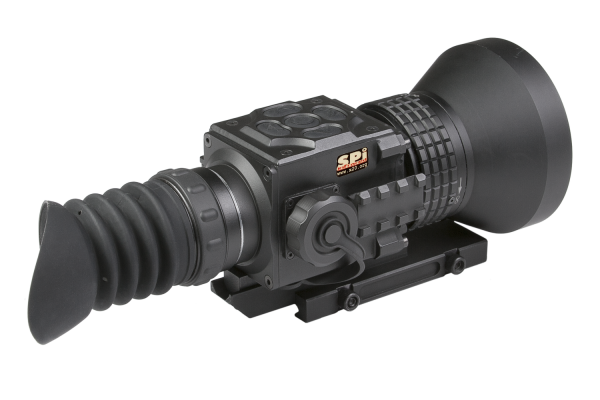

SPI Provocator T384-75-S

THERMAL WEAPON SIGHTS | PART #T384-75-S

CHARACTERISTICS

Detector type: 17μm Uncooled Microbolometer
Refresh rate: 50 Hz
Resolution: 384 x 288
FOV: 5.0 ° × 3.7° (H x V)

thermal vison imaging scopes military grade hunting weapons

DESCRIPTION AND FEATURES

The SPI Provocator is the compact thermal imaging scope developed for 24 hours operation under any weather and environmental conditions. The riflescope is made of high-grade construction materials that are lightweight, weatherproof and tough. Three modifications of objective lenses allow choosing perfect unit for your needs where 25 mm lens is designed for short range shooting, 50 mm lens model will be great for medium range missions, while 75 mm lens will become a perfect solution for long range aiming. Powered with two CR123 batteries The Provocator provides up to 5 hours of continuous work and optional external (5V) battery pack with high-capacity is capable of increasing the total operation time to up to 44 hours. Optionally the capabilities of the device can be extended with Wi-Fi module, external video recorder, or monitor.

  • Lightweight and compact design
  • Superior clarity, versatility and reliability
  • Waterproof & shockproof
  • Easy to operate control panel
  • High resolution display
  • Various reticle types and colors
  • 5 Zeroing profiles
  • 2x and 4x digital zoom
  • Picture in Picture mode with 2x digital zoom
  • Automatic or manual (silent) calibration
  • Stadiametric rangefinder
  • Powered by two standard CR123A batteries
  • External power supply via micro-USB
  • Optional external Wi-Fi module and video recorder

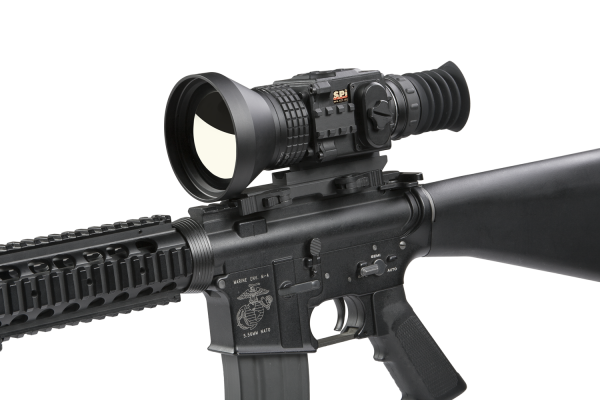

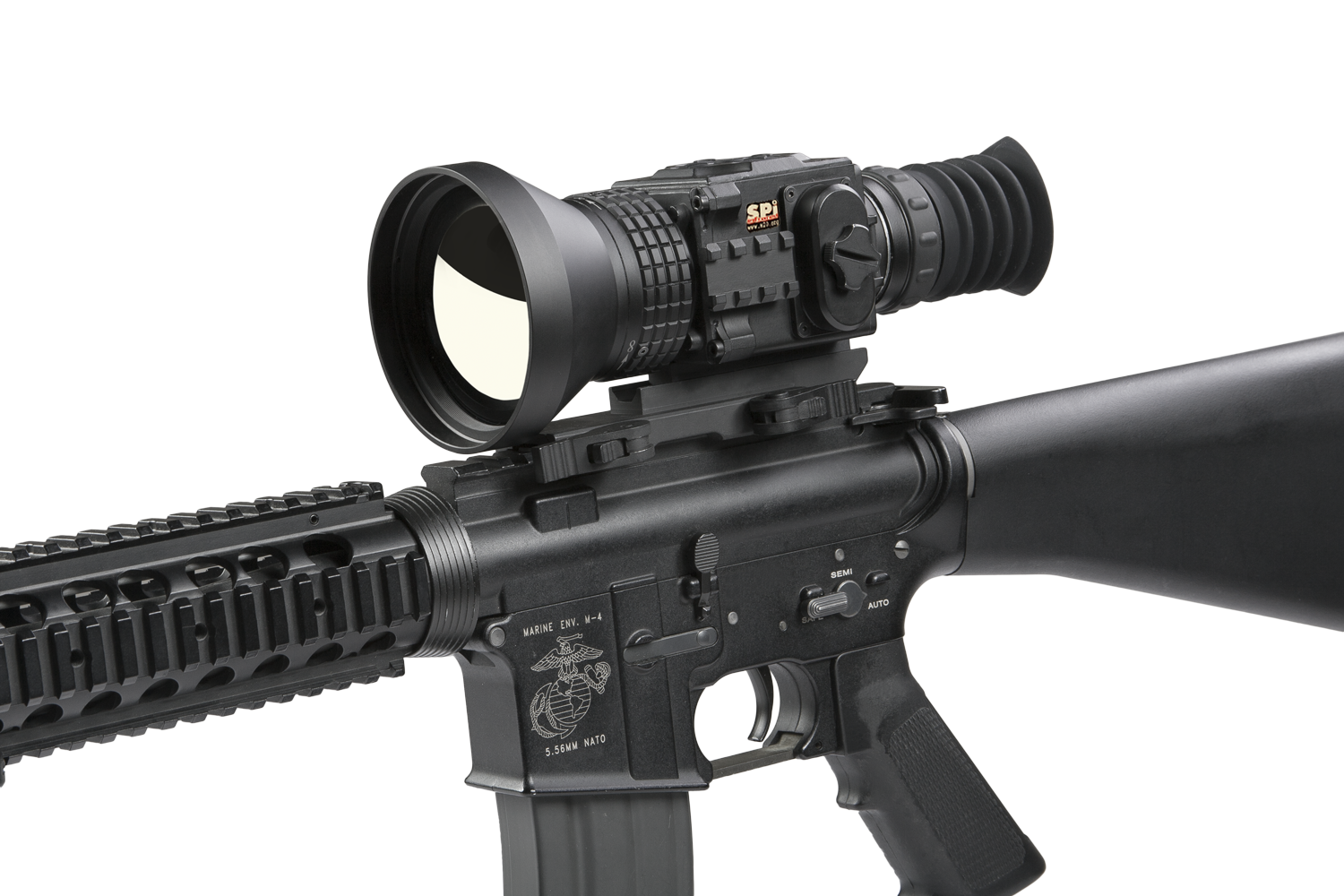

  • Integral MIL-STD-1913 rail on unit for optional accessories

SPECIFICATIONS

Detector Pitch 17μm Uncooled Microbolometer
Refresh rate 50 Hz
Resolution 384 x 288
Lens system 75 mm; F/1.0
Optical magnification 3.6×
Field of view (H × X) 5.0 ° × 3.7° (H x V)
Digital zoom 1×, 2×, 4×, PIP
Diopter adjustment range -5 to +5 dpt
Focusing range 10 m to infinity
Eye relief 40 mm
Display HD Display 1024×768
Video/Photo Format AVI / JPG
Temperature imaging palettes 11 Image palettes
Interfacing S620 Connector (Power In, Analog Video In/Out, Digital Video Recorder); Micro-USB (External Battery Pack)
Battery Type Two CR123A 3V Lithium Batteries
Battery Life (Operating) Up to 5 hr
Power supply 5V USB / 3.6~7.2V
Operating Temperature Range -40°C to +70°C (-40°F to +158°F)
Degree of Protection IP67
Weight 0.76 kg (1.67 lbs)
Overall Dimensions 270 x 93 x 102 mm (10.6 x 37 x 4.0 in)
Package Inludes Thermal Imaging Riflescope, Lens Cloth, Soft Carrying Case, User Manual
