Detector type: Vanadium Oxide Uncooled Focal Plane Arrays
Refresh rate: 50 Hz
Resolution: 384 x 288
FOV: 16.51° x 12.42° (H × V)
DESCRIPTION AND FEATURES

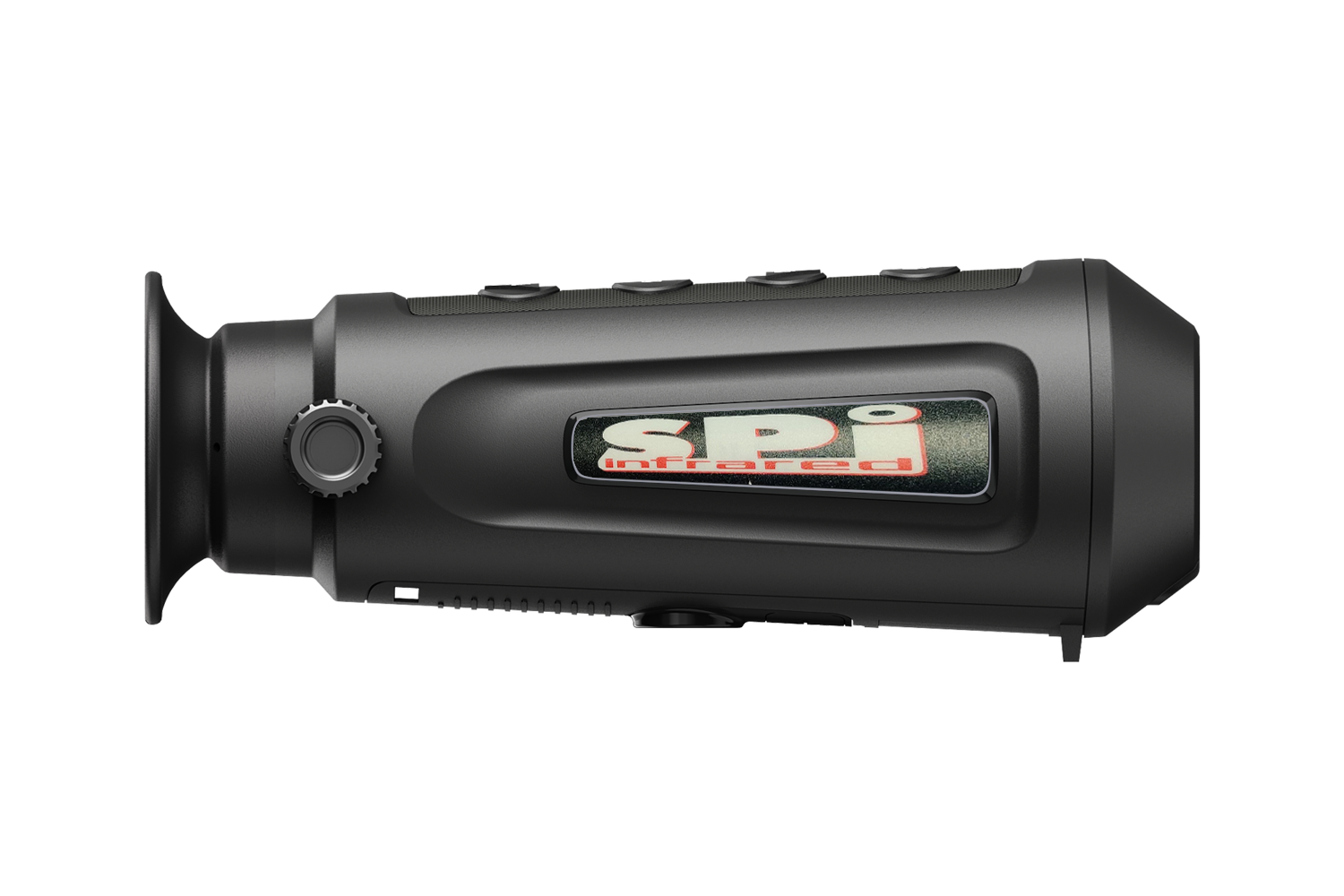

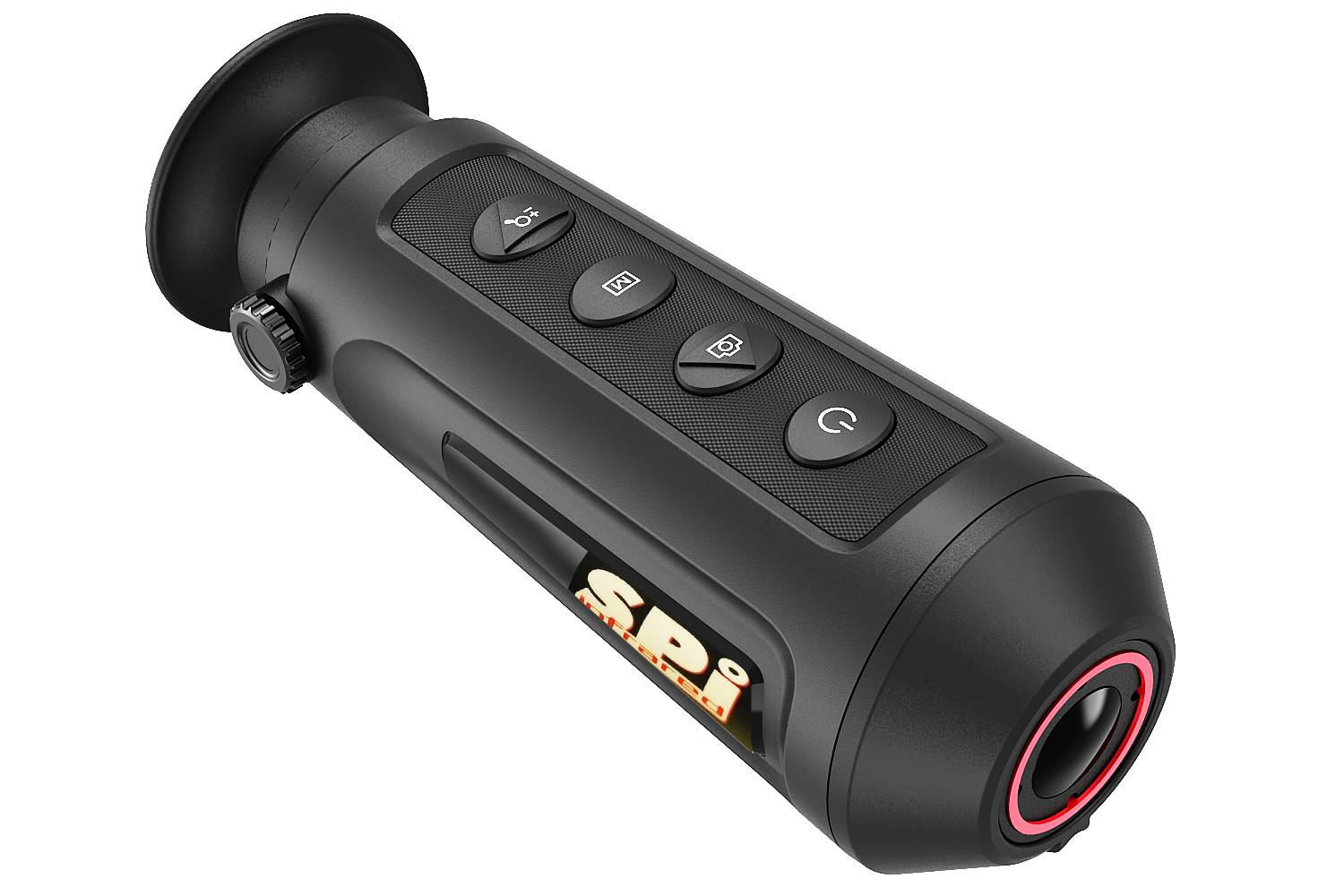

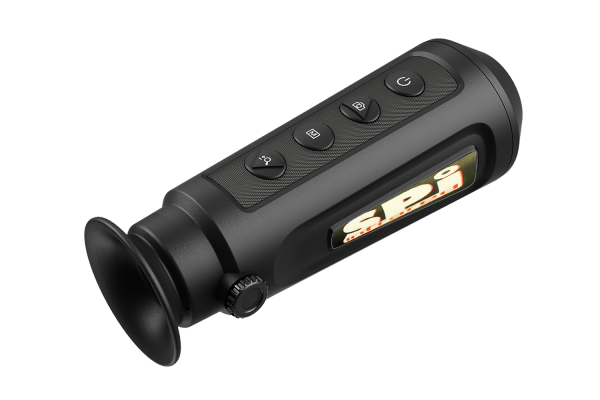

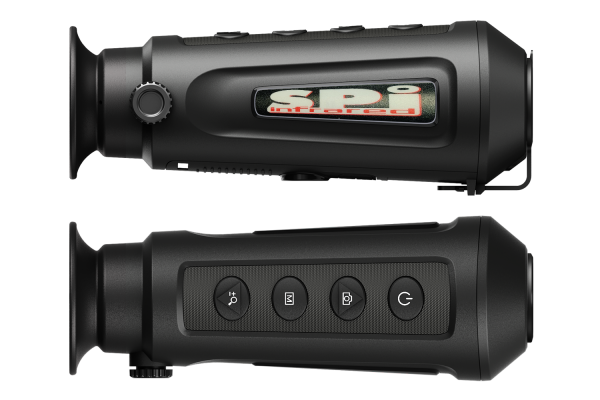

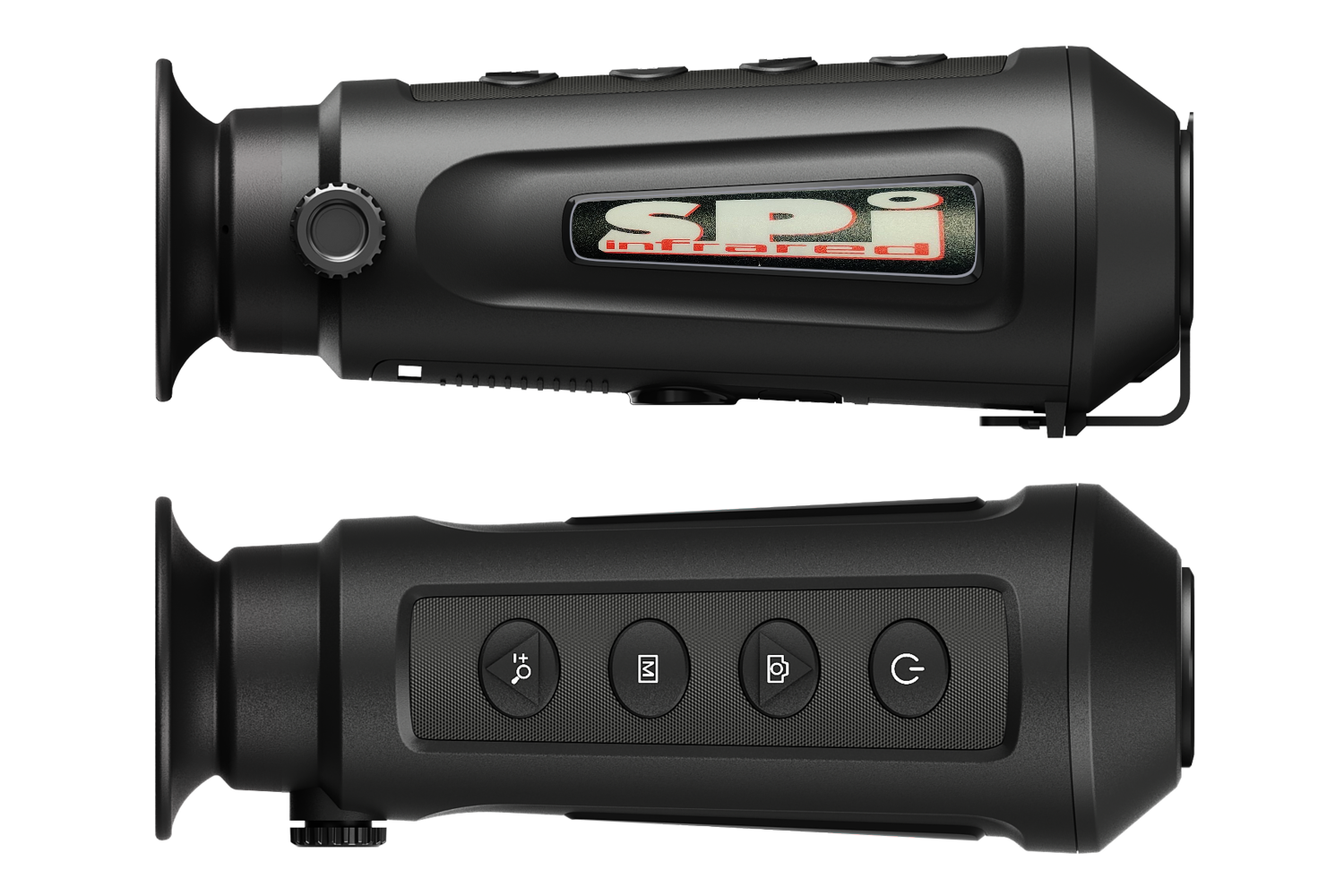

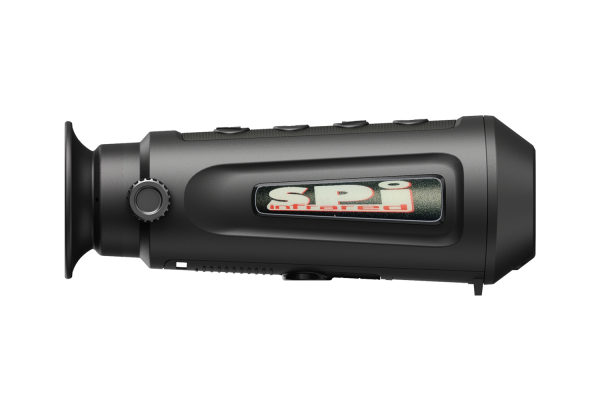

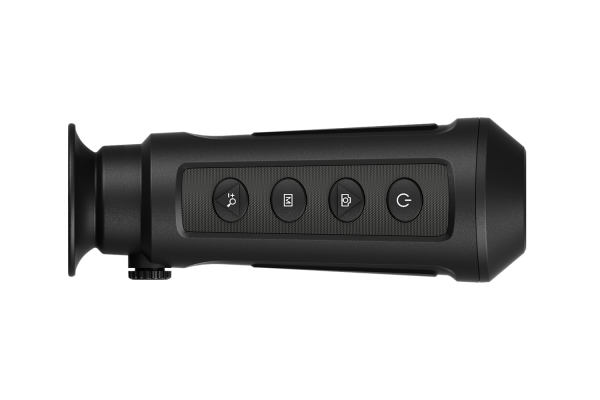

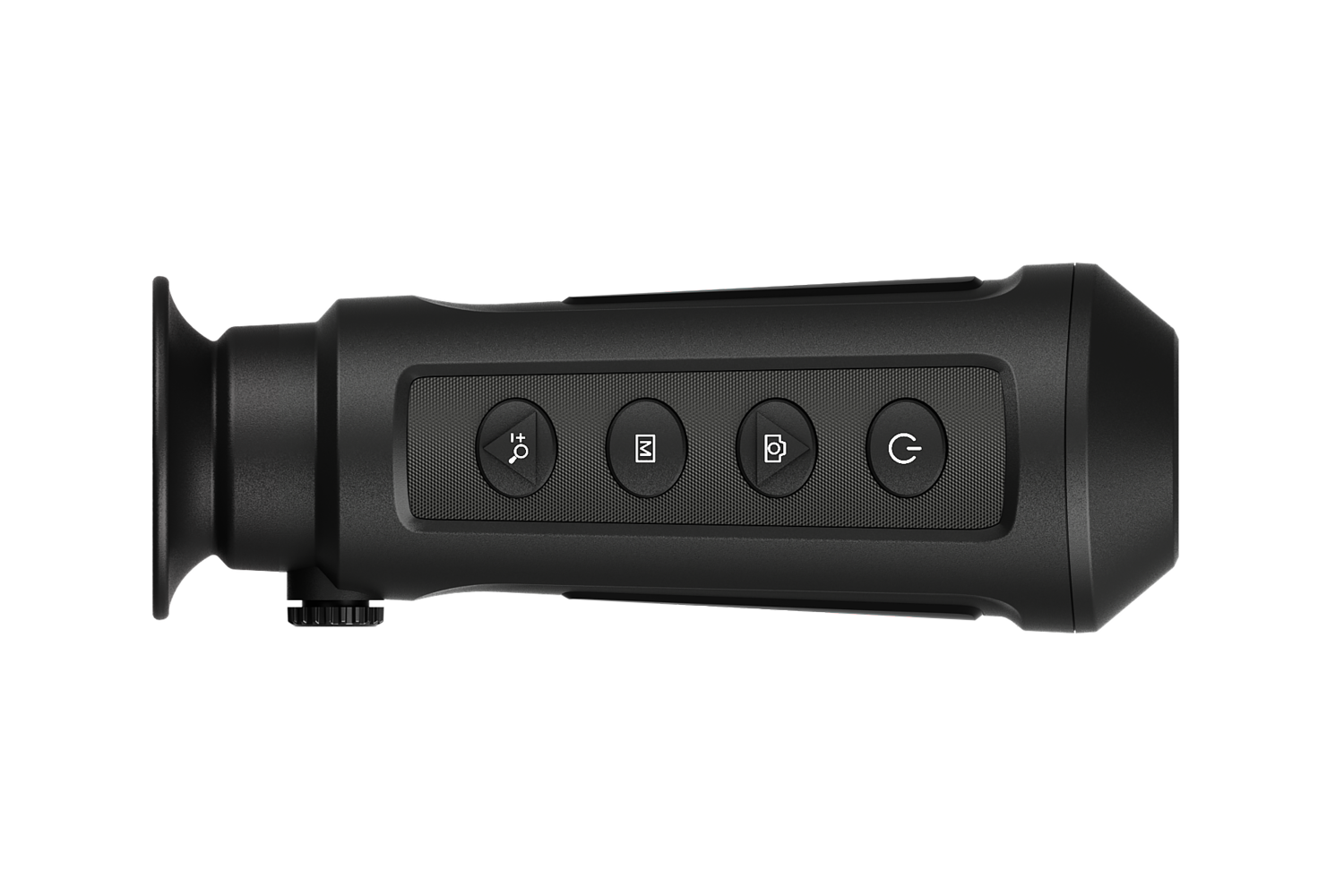

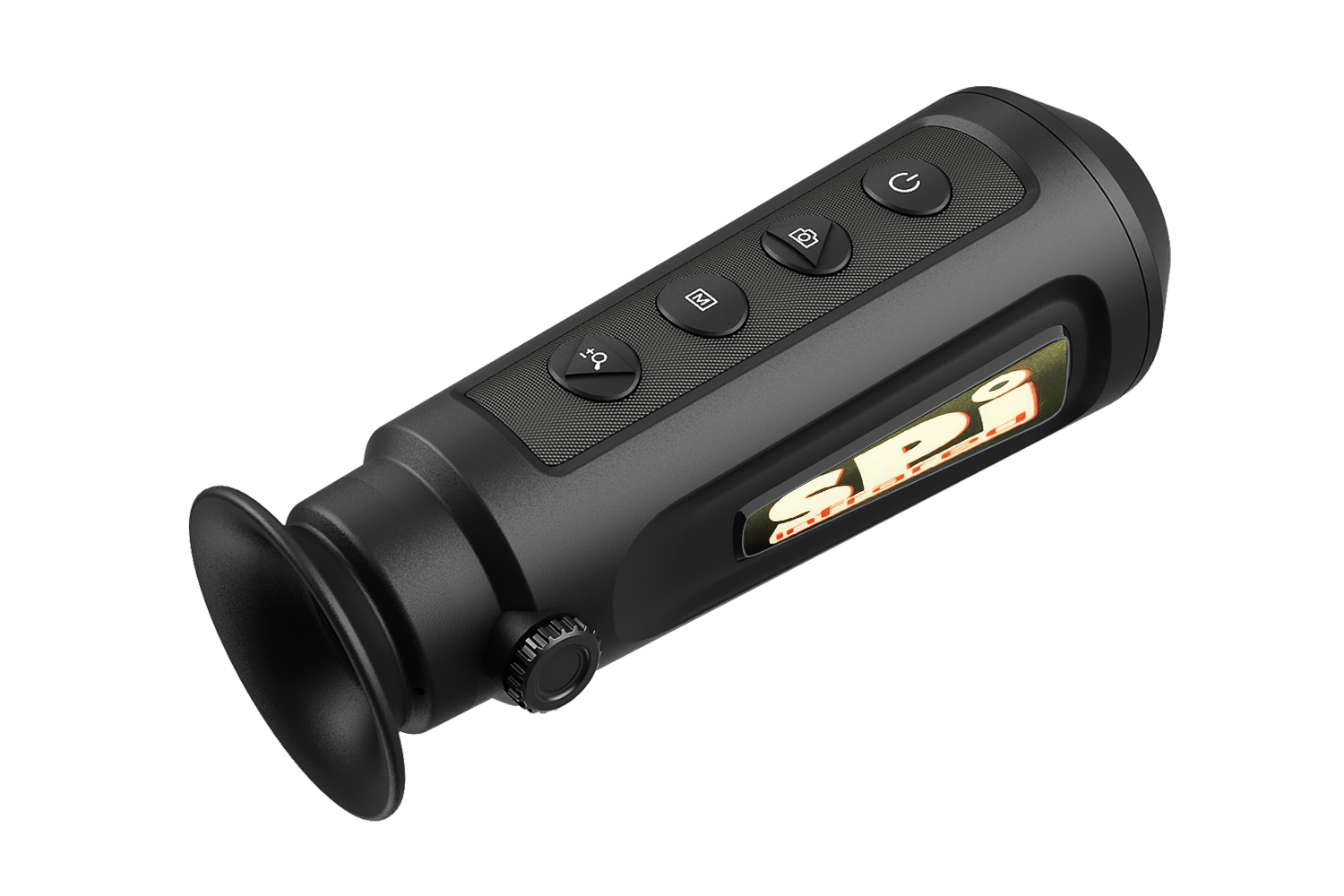

The Wasp-Micro handheld observational thermal monocular is equipped with a 160×120 or 384×288 infrared detector and a 720×540 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, Wi-Fi hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, antismuggling, criminal seizing, hiking, travel, and hunting, etc.
FUNCTIONS:
Distance Measurement:
The device realizes distance measurement function after marking the top and bottom of target, and input the target height.
Hot Spot Mark:
The device detects and marks the hot spot of highest temperature.
Mode Switch:
Device supports pallet switch and distance measurement.
Storage:
Built-in memory module supports video recording/snapshot capturing.
Digital Zoom:
Device supports 1×, 2×, and 4× digital zoom.
Wi-Fi Hotspot:
Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.
- 160×120 or 384×288 resolution, high sensitivity detector
- Adaptive AGC, DDE, 3D DNR
- 720×540 resolution LCOS display
- Built-in rechargeable Lithium battery
- More than 7 hours continuous running (with Wi-Fi hotspot function off)
- Wi-Fi hotspot
- Type-C interface
SPECIFICATIONS
| Detector type | Vanadium Oxide Uncooled Focal Plane Arrays |
| Response Waveband | 8μm to 14μm |
| FFC (Flat Field Correction) | Auto, Manual, External Correction |
| Highest Temperature Spot Tracking | Yes |
| Standby Mode | Yes |
| Refresh rate | 50 Hz |
| Resolution | 384 x 288 |
| Lens system | F1.0 |
| NETD | less than 35 mk (@25°C), F#=1.0 |
| Lens (focal length) | 15 mm |
| Field of view (H × X) | 16.51° x 12.42° (H × V) |
| Digital zoom | 1×, 2×, 4× |
| Display | 720×540, 0.2 inch, LCOS |
| Storage | Built-in memory module (8 GB) |
| Record Video | On-board video recording |
| Capture Snapshot | Yes |
| Battery Type | Built-in rechargeable Lithium battery |
| Wi-Fi | Yes |
| Battery Operating Time | More than 7 hours continuous running (with Wi-Fi hotspot function off) |
| Battery Capacity Display | Yes |
| Power supply | 5 VDC/2 A, 1.5 W, USB Type-C Interface |
| Operating Temperature Range | -20°C to 55°C (-4°F to 131°F) |
| Weight | 270 g (0.6 lb) |
| Overall Dimensions | 161 × 61 × 57 mm (6.3 × 2.4 × 2.2 in) |
| Protection Level | IP67 |
