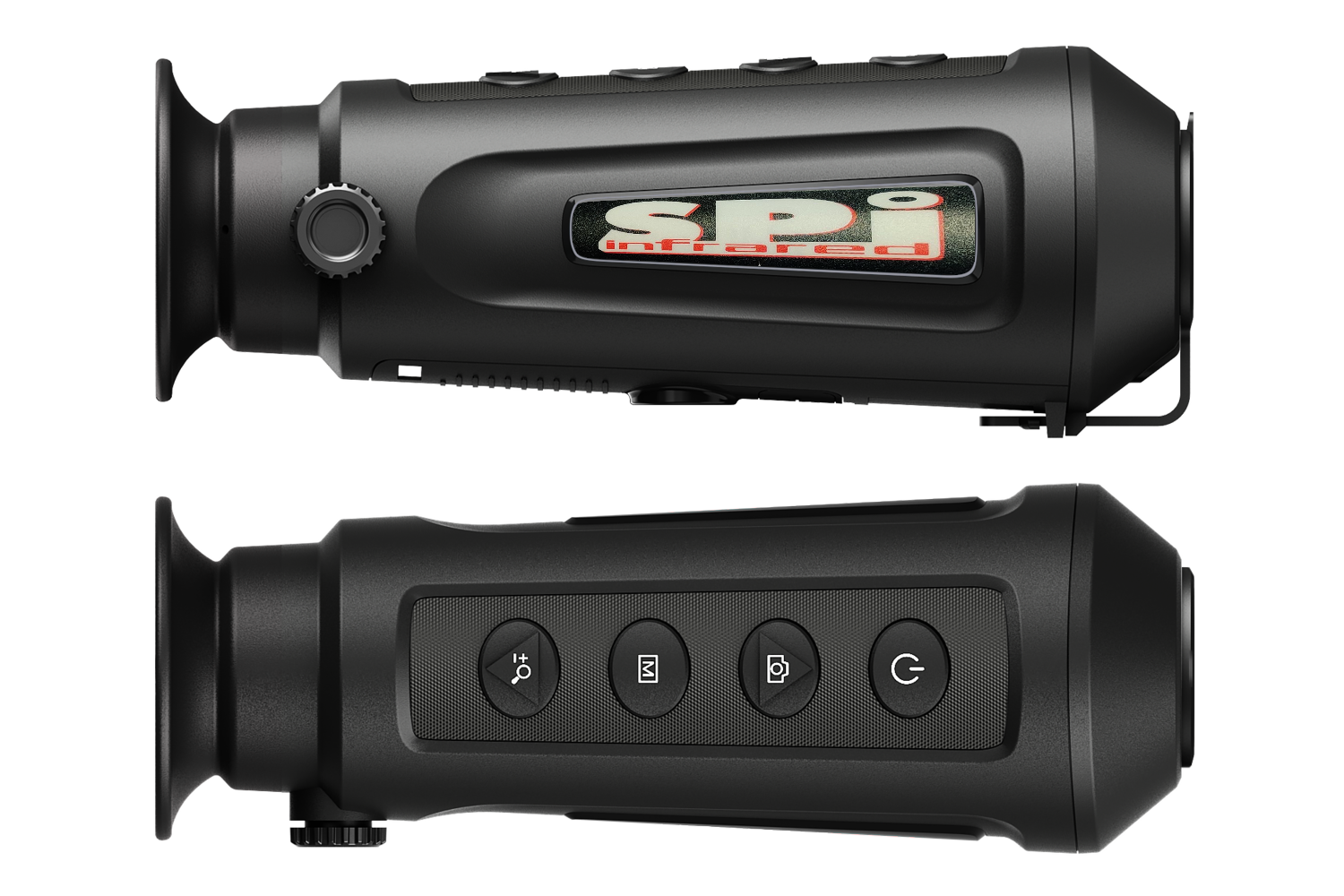

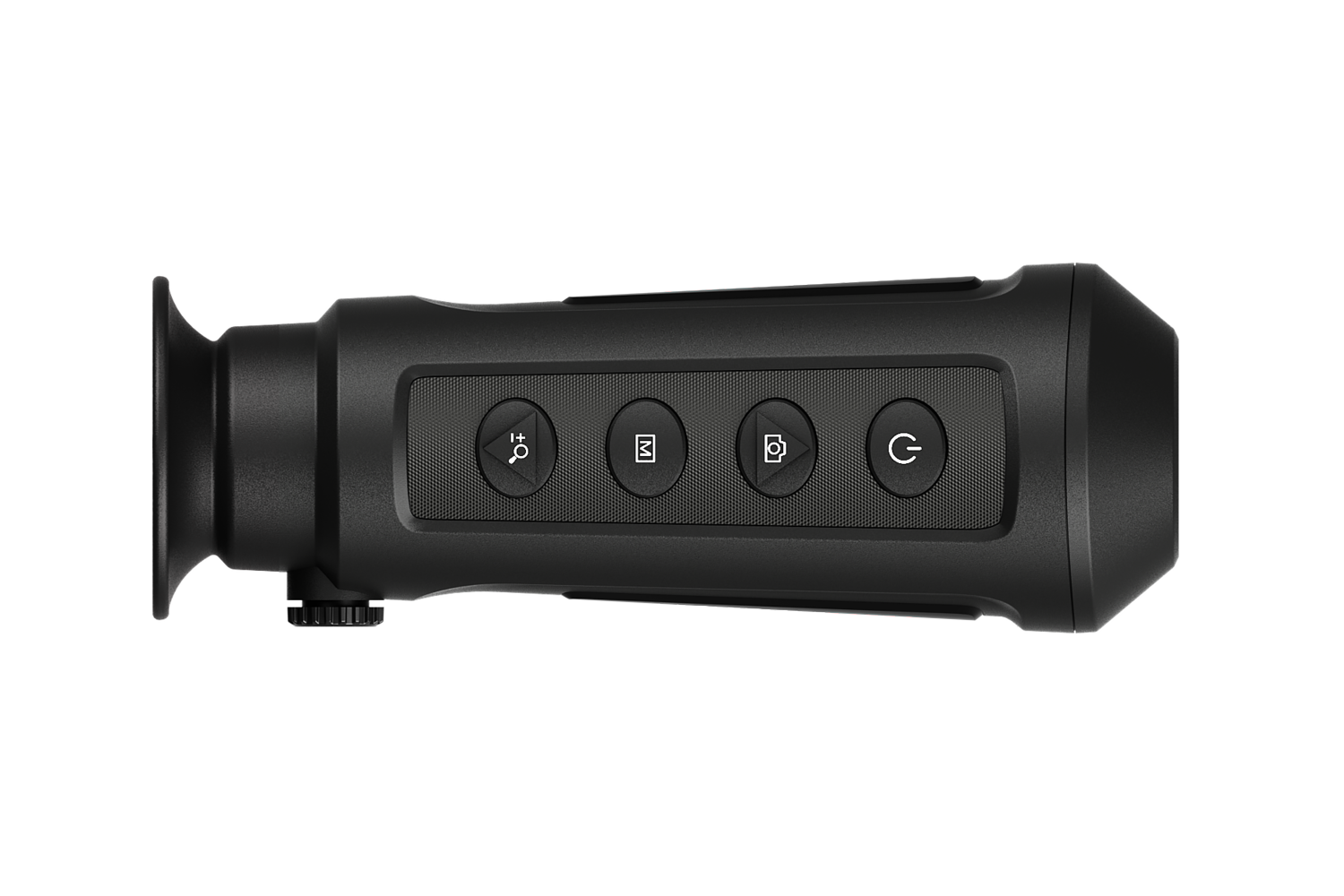

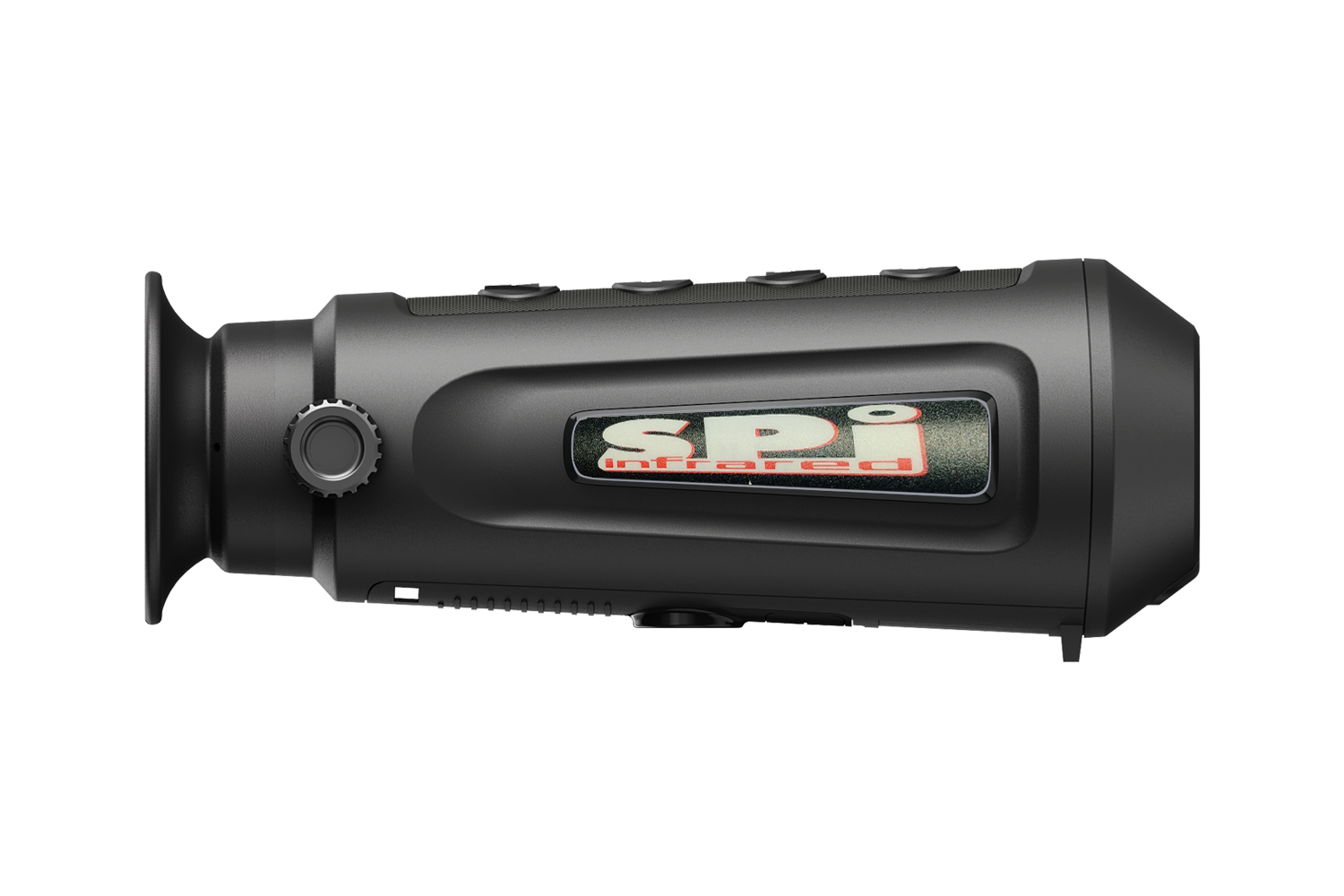

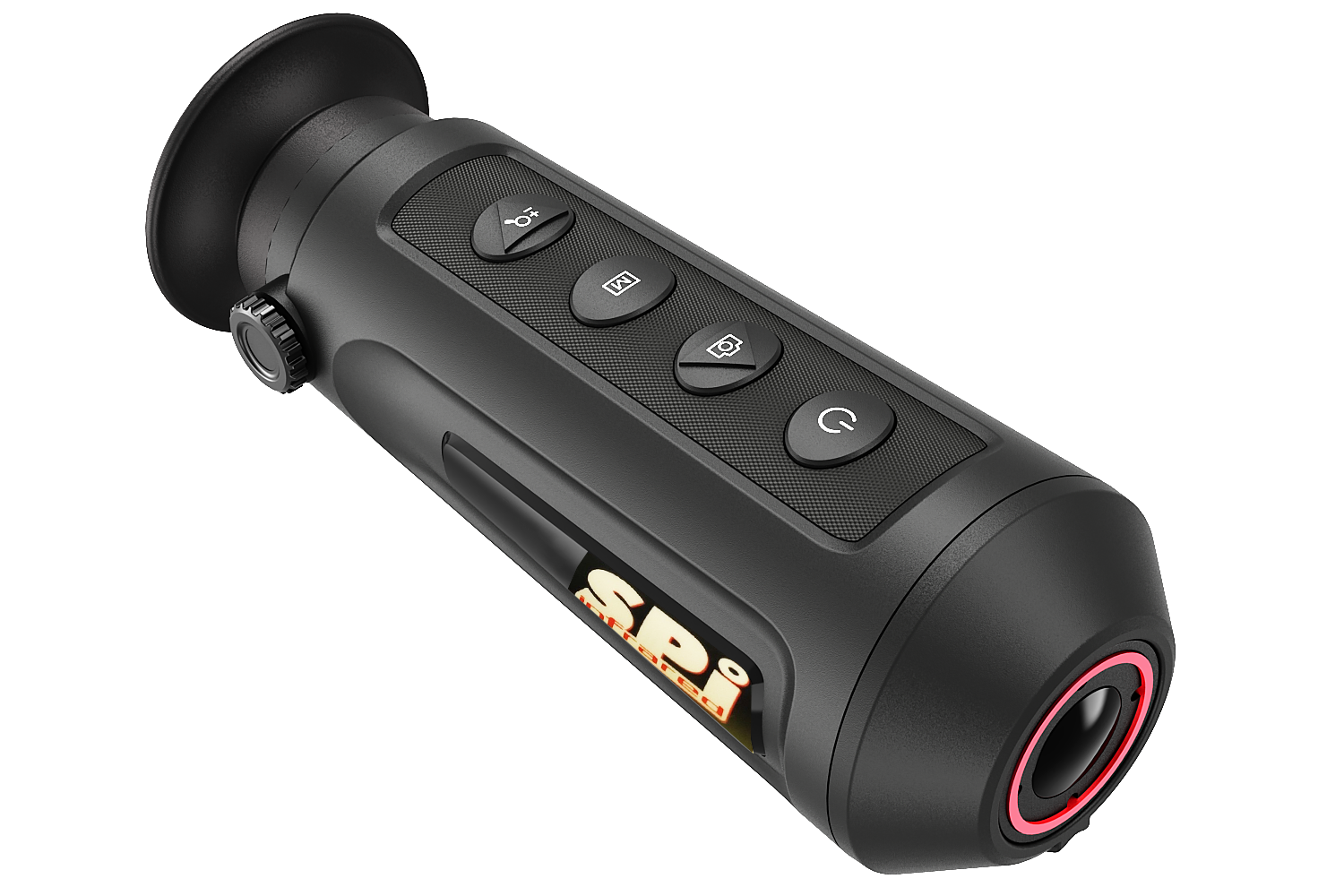

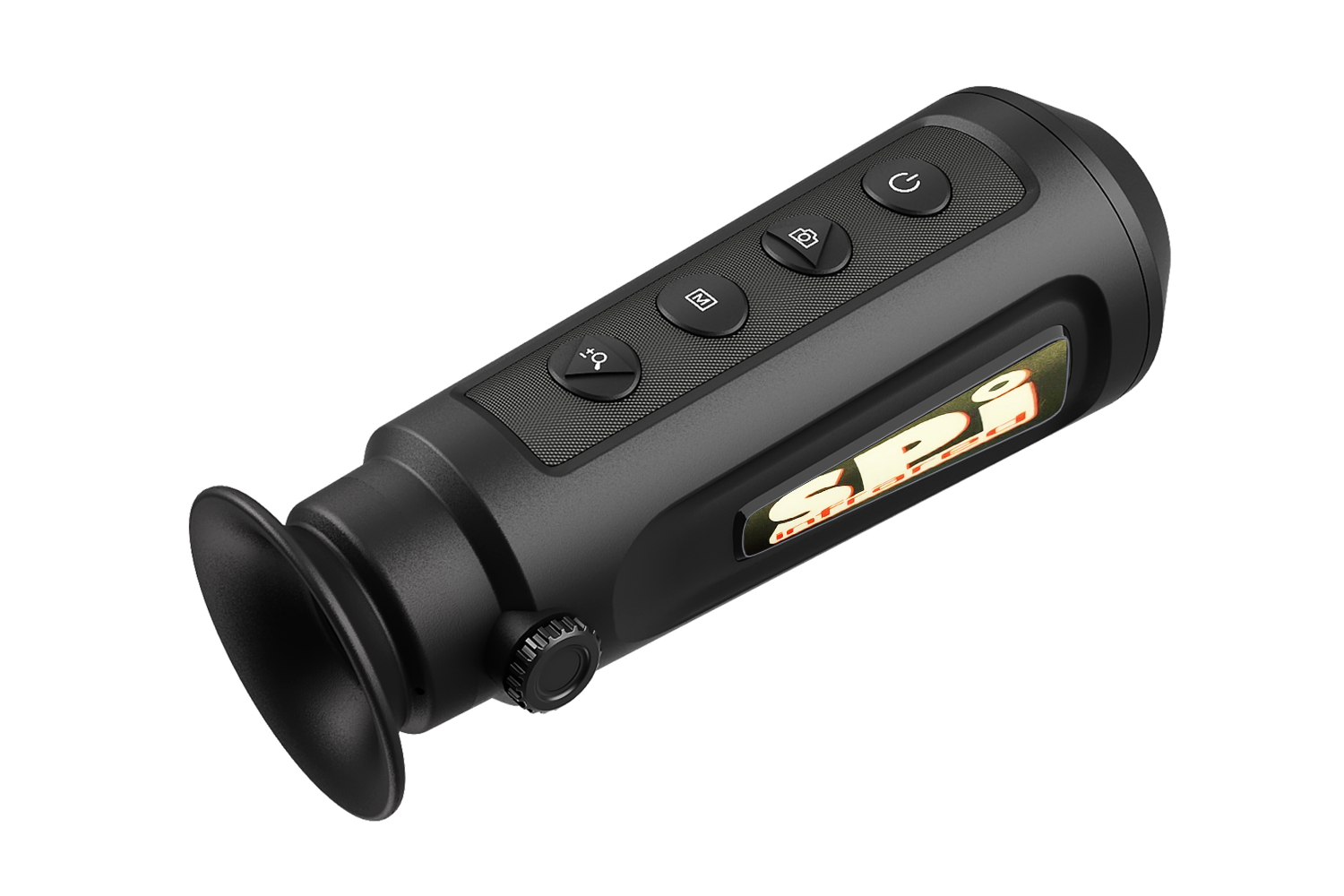

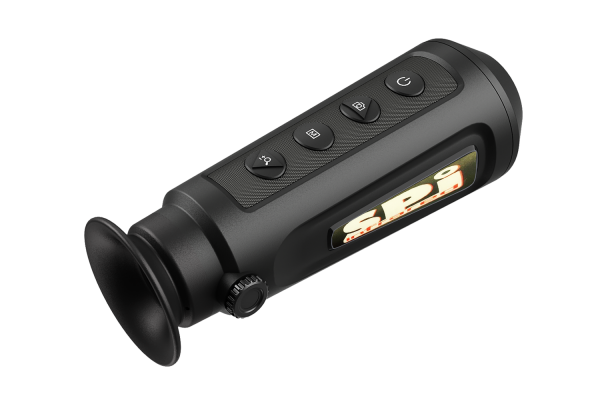

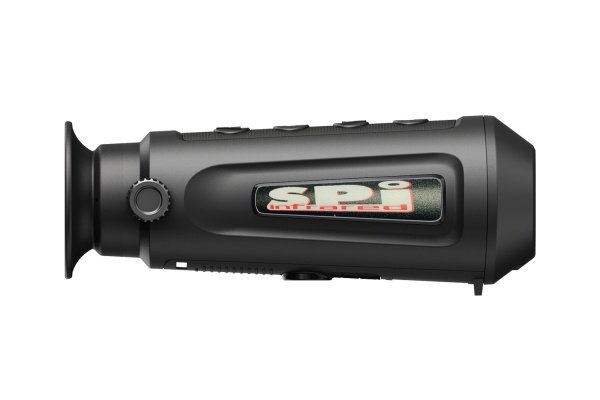

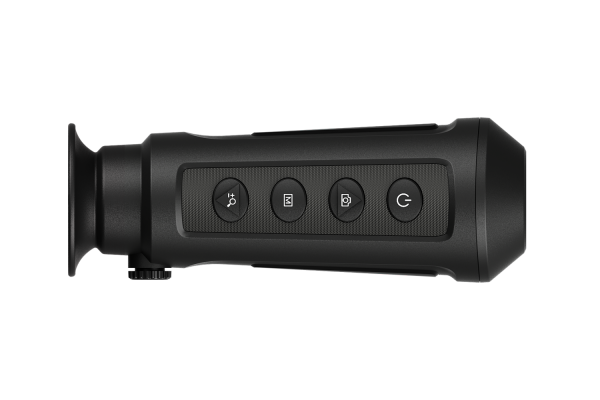

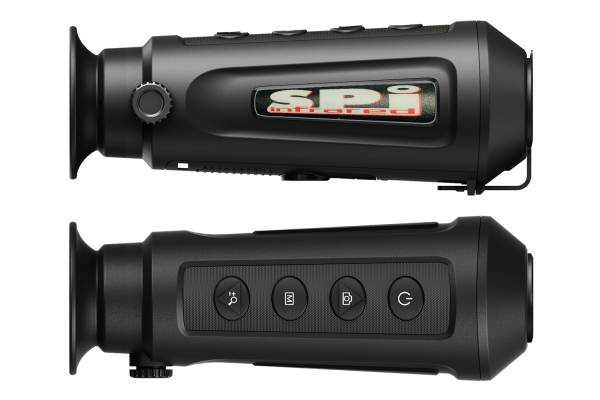

SPI Wasp-Micro T160MM

THERMAL MONOCULARS | PART #T160MM

CHARACTERISTICS

Detector type: Vanadium Oxide, Uncooled Focal Plane Arrays
Refresh rate: 50 Hz
Resolution: 160 x 120
FOV: 15.61° × 11.74° (H × V)

PACKAGE INCLUDES

  • USB Cable
  • Wrist Strap
  • Packing Box
  • Operators Manual
  • Lens Tissue
Thermal imaging monocular optics military grade durable compact

DESCRIPTION AND FEATURES

The SPI Wasp-Micro handheld observational thermal monocular is equipped with a 160×120 or 384×288 infrared detector and a 720×540 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, Wi-Fi hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, antismuggling, criminal seizing, hiking, travel, and hunting, etc.

FUNCTIONS:

Distance Measurement:
The device realizes distance measurement function after marking the top and bottom of target, and input the target height.
Hot Spot Mark:
The device detects and marks the hot spot of highest temperature.
Mode Switch:
Device supports pallet switch and distance measurement.
Storage:
Built-in memory module supports video recording/snapshot capturing.
Digital Zoom:
Device supports 1×, 2×, and 4× digital zoom.
Wi-Fi Hotspot:
Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.

  • 160×120 or 384×288 resolution, high sensitivity detector
  • Adaptive AGC, DDE, 3D DNR
  • 720×540 resolution LCOS display
  • Built-in rechargeable Lithium battery
  • More than 7 hours continuous running (with Wi-Fi hotspot function off)
  • Wi-Fi hotspot
  • Type-C interface

SPECIFICATIONS

Detector type Vanadium Oxide, Uncooled Focal Plane Arrays
Response Waveband 8μm to 14μm
FFC (Flat Field Correction) Auto, Manual, External Correction
Highest Temperature Spot Tracking Yes
Standby Mode Yes
Refresh rate 50 Hz
Resolution 160 x 120
Lens system F1.1
NETD less than 35 mk (@25°C), F#=1.1
Lens (focal length) 6.2 mm
Field of view (H × X) 15.61° × 11.74° (H × V)
Digital zoom 1×, 2×, 4×
Display 720×540, 0.2 inch, LCOS
Storage Built-in memory module (8 GB)
Record Video On-board video recording
Capture Snapshot Yes
Battery Type Built-in rechargeable Lithium battery
Wi-Fi Yes
Battery Operating Time More than 7 hours continuous running (with Wi-Fi hotspot function off)
Battery Capacity Display Yes
Power supply 5 VDC/2 A, 1.5 W, USB Type-C Interface
Operating Temperature Range -20°C to 55°C (-4°F to 131°F)
Weight 270 g (0.6 lb)
Overall Dimensions 161 × 61 × 57 mm (6.3 × 2.4 × 2.2 in)
Protection Level IP67
