Detector type: 17μm Uncooled
Refresh rate: 50 Hz
Resolution: 384 x 288
FOV: 7.4 ° × 5.6° (H x V)
SPI Dauber T384-50-MC
THERMAL CLIP-ON SYSTEMS | PART #T384-50-MC
CHARACTERISTICS
PACKAGE INCLUDES
- Two Lithium CR123A batteries
EXPORT RESTRICTIONS
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
DESCRIPTION AND FEATURES

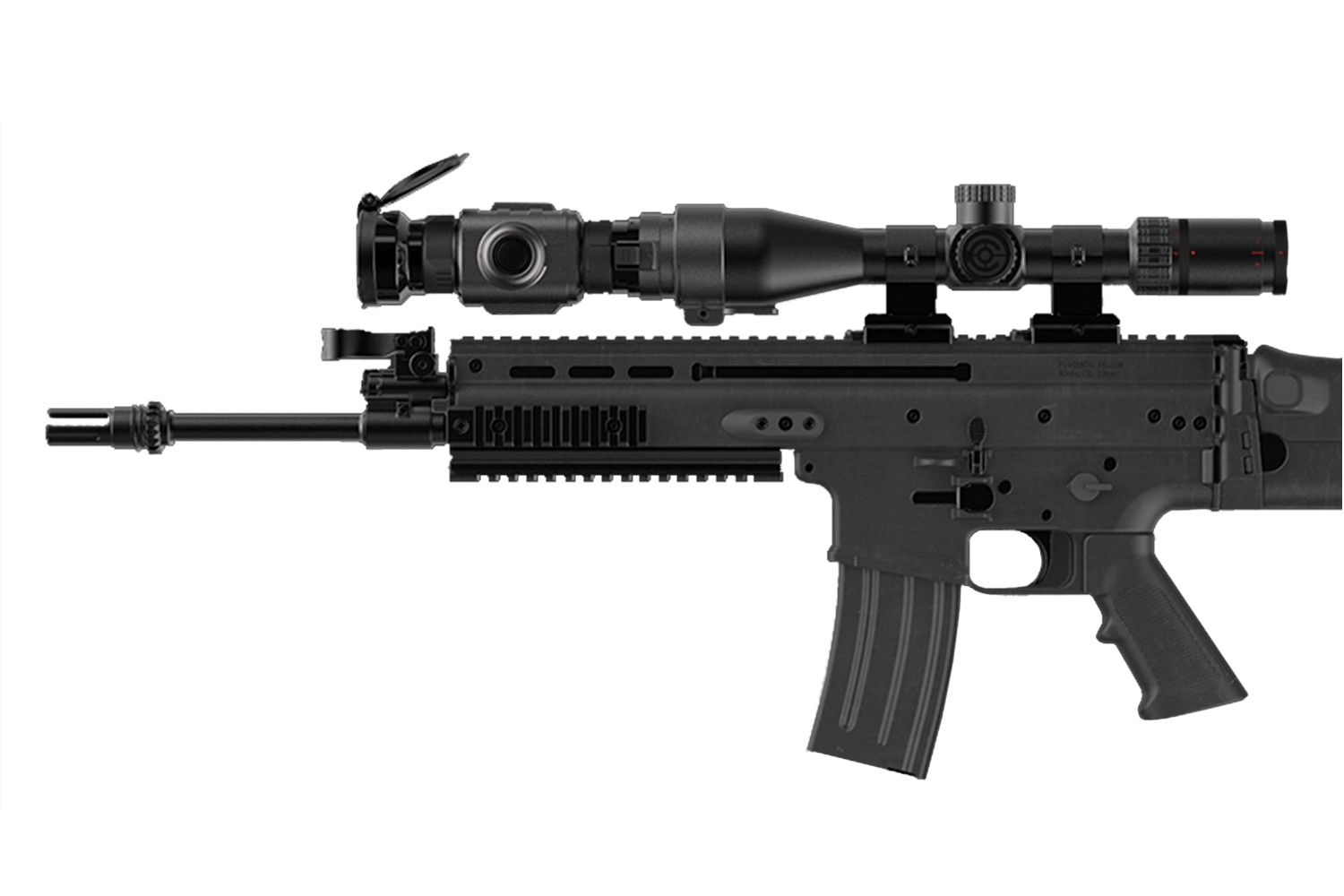

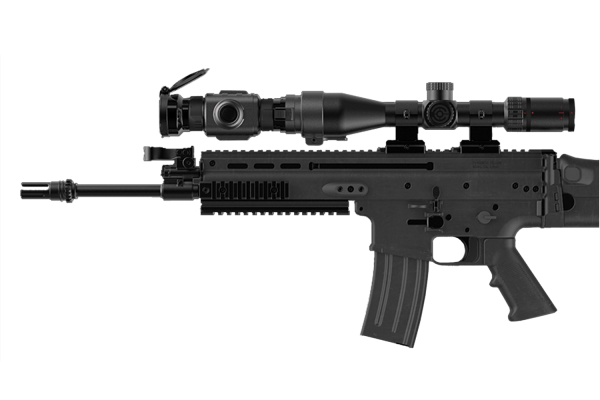

The SPI Dauber-Micro TC50 is a compact thermal imaging clip-on system that allows quick transformation of the day optics into thermal imaging device without any special skills. Dauber-Micro can be easily attaching on up to 8x magnification scopes for medium range use. Powered with two CR123 batteries the Dauber-Micro gives up to 5 hours of continues work. An optional external battery pack with high-capacity is capable of increasing the total operation time to up to 44 hours.
- Compact and lightweight design
- Easy to operate device
- Waterproof
- External power supply via micro USB
- Powered with two CR123 batteries
SPECIFICATIONS
| Storage temperature range | -40°C to +70°C (-40°F to +158°F) |
| Close-up range | 5 m |
| Video / photo format | AVI / JPG |
| On-board memory | 128MB (32 GB optional) |
| Degree of protection | IP67 |
| Shock and vibration | 1200 g/ms |
| Detector type | 17μm Uncooled |
| Resolution | 384 x 288 |
| Lens system | 50 mm; F/1.1 |
| Optical magnification | 1x |
| Field of view (H × X) | 7.4 ° × 5.6° (H x V) |
| Digital zoom | 2x, 4x |
| Diopter adjustment range | -5 to +5 dpt |
| Eye relief | 60 mm |
| Display | OLED (1024×768) |
| Battery Type | Two CR123 |
| Battery Life (Operating) | Up to 5 hr |
| External power supply | 5V USB |
| Power supply | 3.6~7.2V |
| Operating Temperature Range | -25°C to +50°C (-4°F to +122°F) |
| Weight | 0.43 kg (0.94 lbs) |
| Overall Dimensions | 162 x 65 x 67 mm (6.3 × 2.8 × 2.6 in) |
