Detector type: Ultra Sensitive, hand selected Uncooled Microbolometer with solar protection
Refresh rate: 60Hz
Resolution: 384 x 288
FOV: 7° × 5° (H x V) / 384-35-C MODEL: 8° × 10°

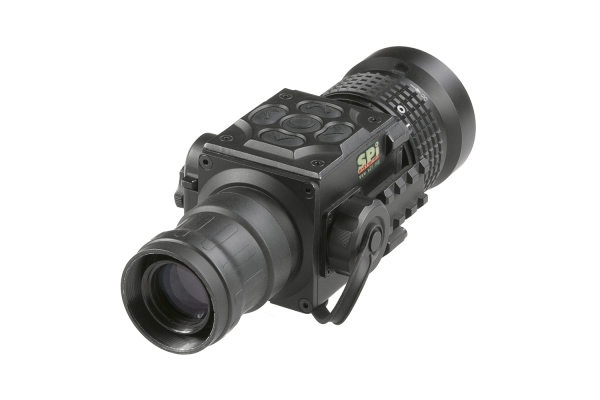

SPI Spartan T384-50-C
THERMAL CLIP-ON SYSTEMS | PART #T384-50-C
CHARACTERISTICS
EXPORT RESTRICTIONS
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
DESCRIPTION AND FEATURES
The SPI Spartan is a compact thermal imaging clip-on system that allows quick transformation of the day optics into thermal imaging device without any special skills. The Spartan can be easily attached on up to 8x magnification scopes for medium range use. Powered with two CR123 batteries the unit provides up to 5 hours of continuous work. An optional external battery pack with highcapacity is capable of increasing the total operation time to up to 44 hours. The Spartan can be also connected to an optional video recorder for shooting real time video or external Wi-Fi module for conjunction with smartphones.
- Quick conversion of daytime optics into thermal imaging scope
- Ultra sensitive, high performance clip on thermal sniper sight

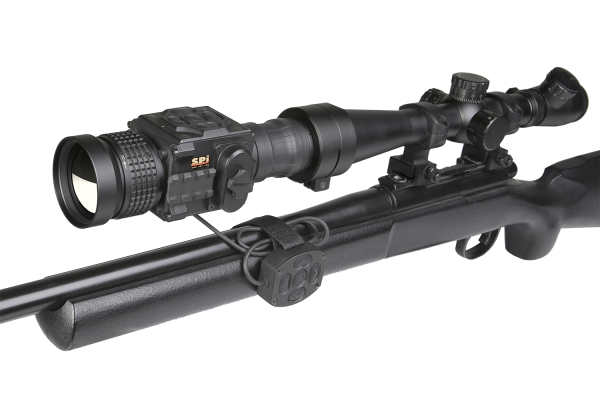

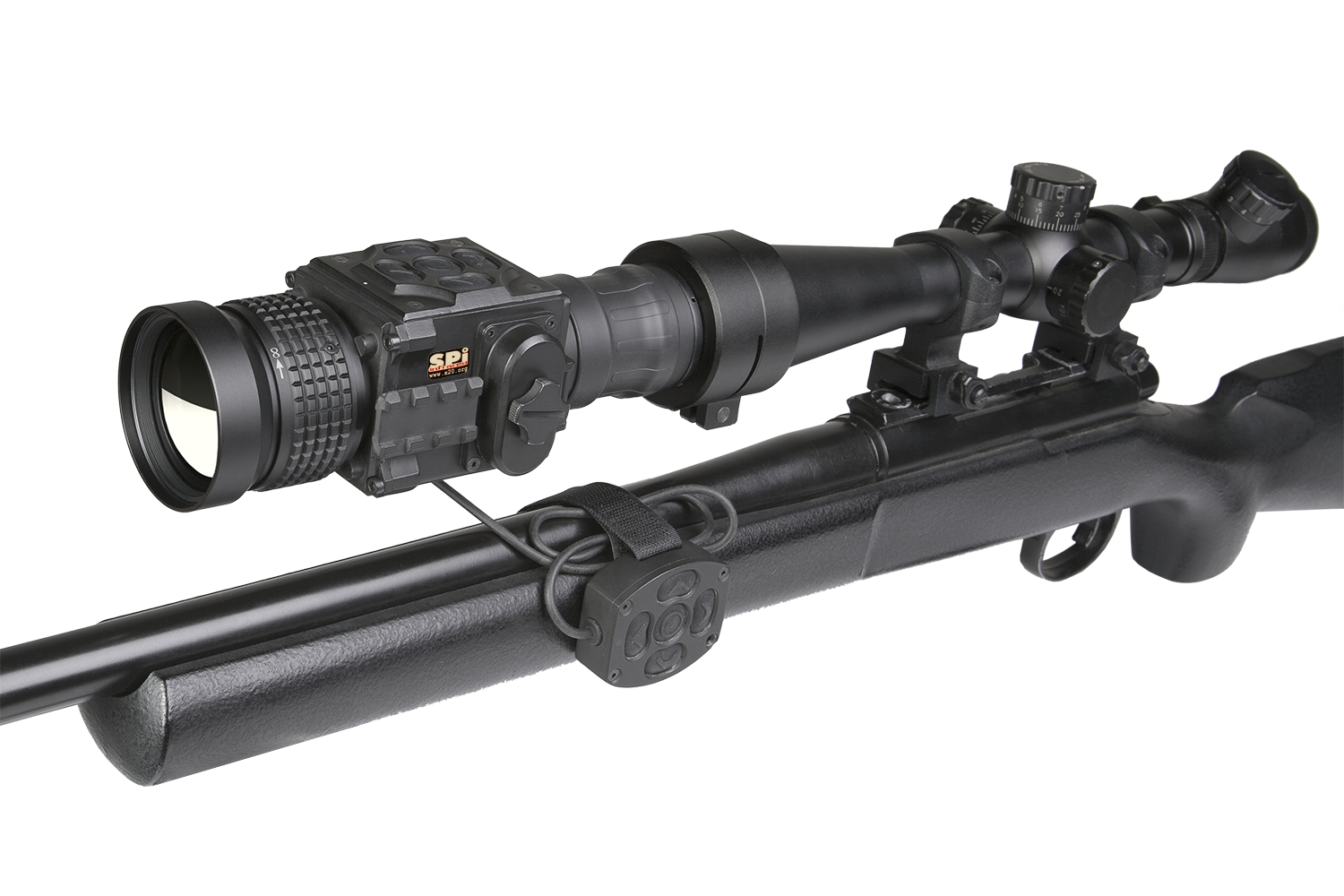

- Mounts in front of any daytime scope, no re-zeroing is required
- Electronic accuracy correction
- Lightweight and compact design
- Superior clarity, versatility and reliability
- Waterproof & shockproof
- Easy to operate control panel
- High resolution display
- Picture in Picture (PIP )mode with duo-zoom situational awareness mode
- Automatic or manual (silent) calibration
- Rangefinder
- Powered by two standard CR123A batteries
- External power supply via micro-USB
- Optional external Wi-Fi module and video recorder
- Integral rails on unit for optional accessories
SPECIFICATIONS
| Detector type | Hand Select ultra sensitive Uncooled Microbolometer UFPA with solar protection |
| Refresh rate | 60 Hz |
| Resolution | 384 x 288 |
| Lens system | 50 mm; F/1.0 |
| Optical magnification | Variable |
| Field of view (H × X) | 7° × 5° (H x V) / 384-35-C MODEL: 8° × 10° |
| Digital zoom | 1×, 2×, 4×, PIP DUO-Zoom situational awareness mode |
| Focusing range | 10 m to infinity |
| Display | HD Display 1280×1024 OLED |
| Video/Photo Format | AVI / JPG |
| Temperature imaging palettes |
11 Image palettes |
| Interfacing | S620 Connector (Power In, Analog Video In/Out, Digital Video Recorder); Micro-USB (External Battery Pack) |
| Battery Type | Two CR123A 3V Lithium Batteries |
| Battery Life (Operating) | Up to 5 hr |
| Power supply | 5V USB / 3.6~7.2 V |
| Operating Temperature Range | -40°C to +70°C (-40°F to +158°F) |
| Degree of Protection | IP67 |
| Weight | 0.5 kg (1.1 lbs) |
| Overall Dimensions | 192 x 70 x 64 mm (7.6 x 2.8 x 2.5 in) |
| Package Inludes | Thermal Imaging Clip-On, Lens Cloth, Soft Carrying Case, User Manual, all accessories. |
