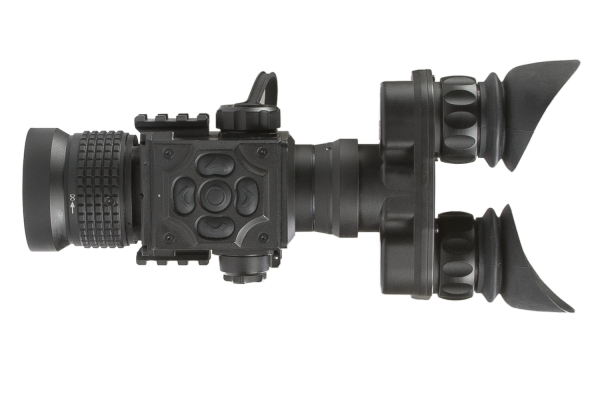

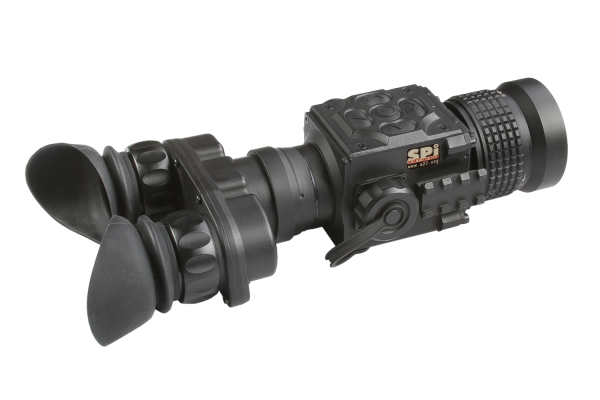

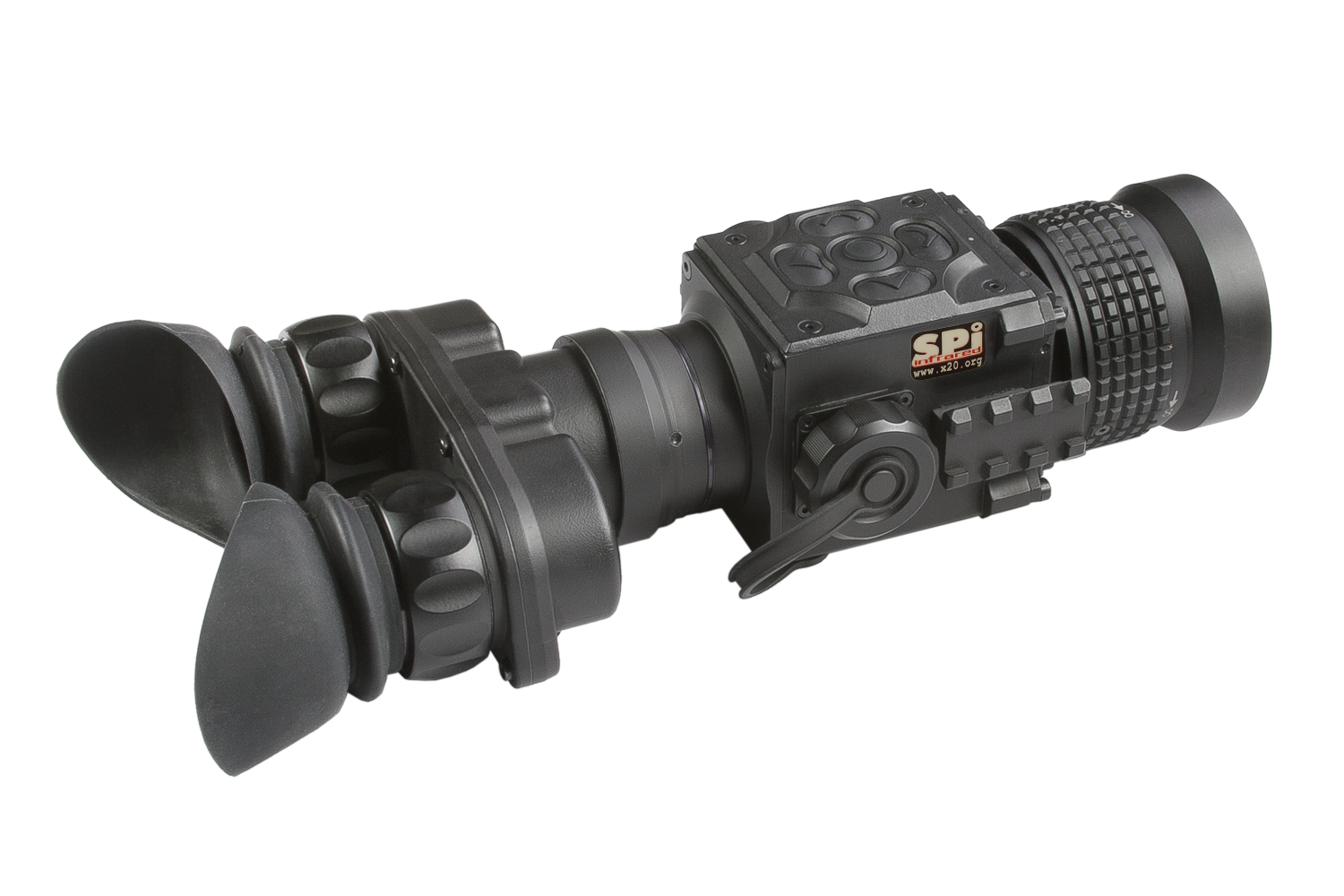

SPI Navigator T384-50-B

THERMAL BINOCULARS | PART #T384-50-B

CHARACTERISTICS

Detector type: 17μm Uncooled Microbolometer
Refresh rate: 50 Hz
Resolution: 384 x 288
FOV: 7.5° × 5.6° (H x V)

PACKAGE INCLUDES

  • Thermal imaging bi-ocular
  • Lens Cloth
  • Soft Carrying Case
  • User Manual
Thermal Binocular Field of View optics

DESCRIPTION AND FEATURES

The SPI Navigator is the latest and most technologically advanced thermal imaging device for observation currently available on the market. Bi-ocular is made of high-grade aluminum and magnesium alloy, making the unit both durable and lightweight. Due to its waterproof capability the device performs well even in severe weather conditions and challenging environment. The Navigator is available in two modifications – with 50 mm and 75 mm Germanium objective lenses – which allow selecting the most suitable version for the task at hand. The unit can be easily mounted on a tripod which grants operator convenient/hands free use of thermal binocular.
The Navigator’s user-friendly interface, comfortable and ergonomic buttons makes adoption and application incredibly simple. The thermal imaging unit offers ten different variants of image palettes: white hot/black hot, etc. that can be easily adapted depending on different environmental conditions.
This high-tech bi-ocular can take either two CR123A 3V Lithium Batteries or two CR123 rechargeable batteries, with voltage ranging from 3.0 V to 3.7 V. In addition, the external battery pack (5V) connected via micro-USB port provides an additional operating time.

  • Lightweight and compact design
  • Dual eye viewing system for comfortable, extended viewing sessions
  • Superior clarity, versatility and reliability
  • Easy to operate control panel
  • High resolution display
  • 2x and 4x digital zoom
  • Picture in Picture mode with 2x digital zoom
  • Automatic or manual (silent) calibration
  • Stadiametric rangefinder
  • Powered by two standard CR123A batteries
  • External power supply via micro-USB

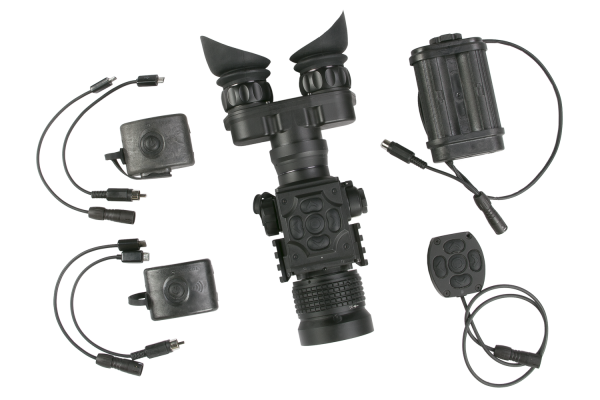

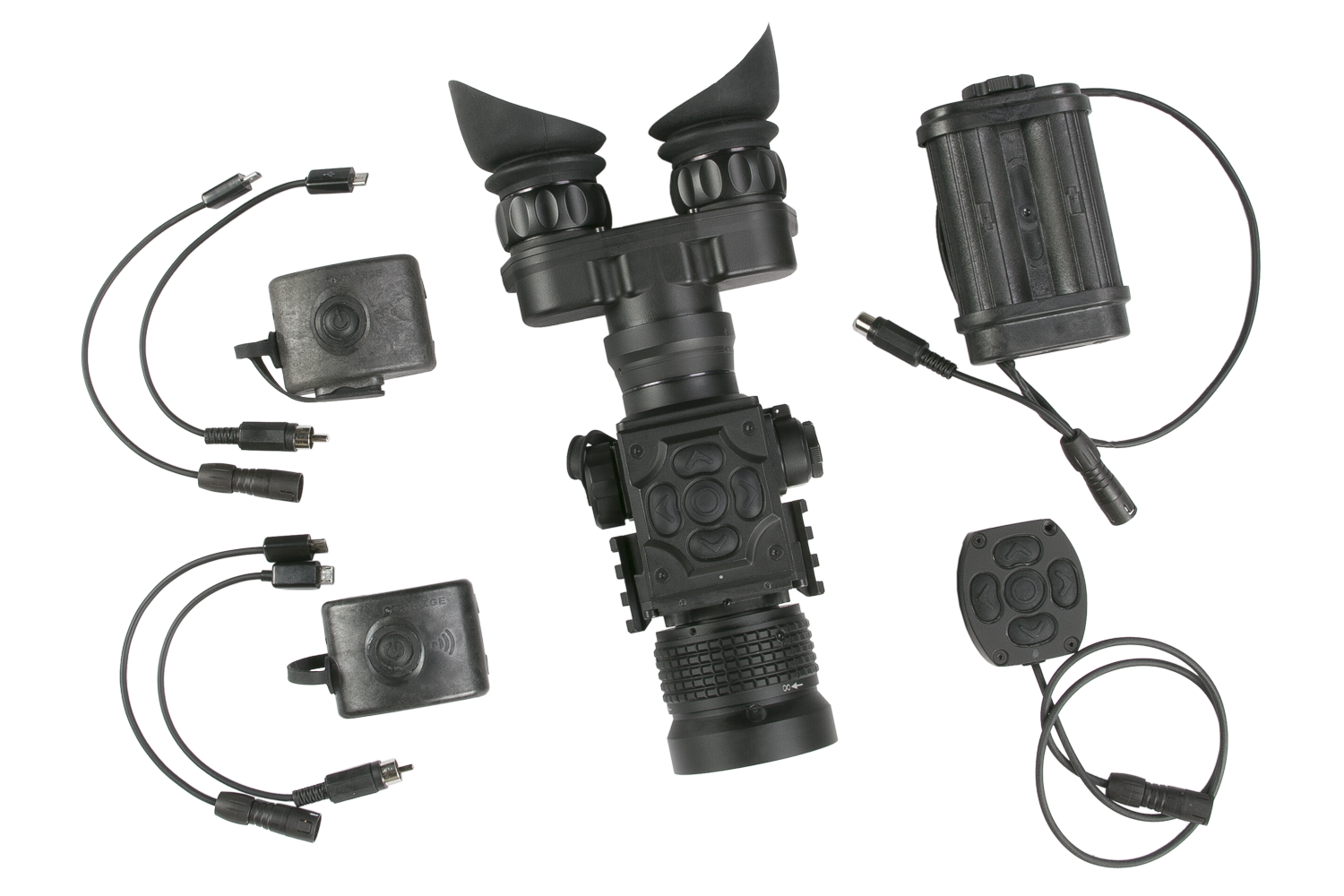

  • Optional external Wi-Fi module and video recorder
  • Integral MIL-STD-1913 rail on unit for optional accessories
  • Tripod mountable

SPECIFICATIONS

Detector type 17μm Uncooled Microbolometer
Refresh rate 50 Hz
Resolution 384 x 288
Lens system 50 mm; F/1.0
Optical magnification 2.5×
Field of view (H × X) 7.5° × 5.6° (H x V)
Digital zoom 1×, 2×, 4×
Diopter adjustment range -5 to +5 dpt
Focusing range 10 m to infinity
Display HD Display 1024×768
Video/Photo Format AVI / JPG
Temperature imaging palettes 11 Image palettes
Interfacing S620 Connector (Power In, Analog Video In/Out, Digital Video Recorder); Micro-USB (External Battery Pack)
Battery Type Two CR123A 3V Lithium Batteries
Battery Life (Operating) Up to 5 hr
Power supply 5V USB / 3.6~7.2V
Operating Temperature Range -40°C to +70°C (-40°F to +158°F)
Degree of Protection IP67
Weight 0.75 kg (1.6 lbs)
Overall Dimensions 273 x 125 x 64 mm (10.7 x 4.9 x 2.5 in)
Package Inludes Thermal imaging bi-ocular, Lens Cloth, Soft Carrying Case, User Manual
