Detector type: Uncooled Microbolometer
Resolution: 640 x 480
FOV: 8.3° x 6.5° (H x V)

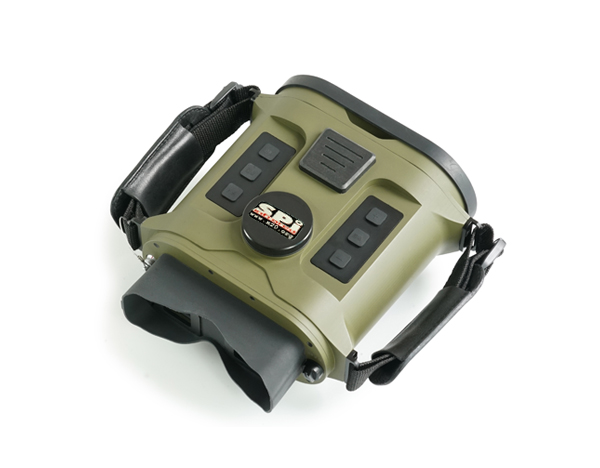

SPI Cyclone T640-75-B
THERMAL BINOCULARS | PART #T640-75-B
CHARACTERISTICS
PACKAGE INCLUDES
- Packing Box
- Wrist Strap
- Neck Lanyard
- Lens Tissue
- One Lithium Battery CR123A
- Operators Manual
- Soft Carrying Case
DESCRIPTION AND FEATURES
THE GAME CHANGING ALL-IN-ONE THERMAL BINOCULARS
A Thermal Imager, a Starlight CCD Night Vision Device, a Laser Range Finder, a Digital Magnetic Compass and a GPS, SPI Cyclone Multifunction Thermal Binoculars acquires the very best technologies in one device to provide high-precision target detection.
DUAL DETECTOR DUAL VISION
Using cutting edge high sensitivity (<40mk) 640*480 resolution thermal detector and starlight CCD (<0.0001Lux) detector for dual mode display, switch the button <1s and your night vision is just like daytime.
DESIGN FOR THE MILITARY, NOW YOU
Engaged in real battles and applied to military as well as security operations. With IP67 fully waterproof and 6 hours’ battery life, SPI Cyclone detects human from up to 3500m, able to work between -40 °C – 60°C.
SPECIFICATIONS
| INFRARED IMAGING | |
|---|---|
| Detector Type | Uncooled Microbolometer |
| Detector Resolution | 640 * 480px |
| NETD | ≤40mk |
| Spectral Range | 8-14um |
| Pixel Pitch | 17um |
| The focal length | 75mm |
| FOV | 8.3°x6.5° |
| Focusing | Automatic |
| VISIBLE LIGHT | |
| The focal length | 8-50mm |
| Resolution | 540TVL |
| Focusing | Electrical |
| The IMAGE PROCESSING | |
| Display | OLED |
| Polarity | White Hot/Black Hot/Multiple Color Modes |
| Digital Zoom | 2x 4x |
| Video Output | PAL |
| Storage Video | Built-in 32G memory card |
| Location/Time | Displays time and location on the screen |
| Other Features | |
| GPS | CEP<5m |
| Digital Magnetic Compass | Azimuth range: -180°-180° Elevation range: -90°-90° Accuracy<0.5° |
| Laser Range Finder | Range:50-3000m (maximum 4000m), (Customizable) |
| POWER SUPPLY | |
| Battery Type | 18650 Rechargeable Battery |
| Battery Life | Continuous Working Time After Charging≥6hs |
| RANGE | |
| Detection Range | For Man :2500m For Vehicle: 1500m |
| Recognition Range | For Man :3500m For Vehicle: 2500m |
| ENVIRONMENTAL ADAPTATION | |
| Working Temp | -40°C ~ +60°C |
| Storage Temp | -45°C ~ +65°C |
| Protection | IP67 |
| PHYSICAL PROPERTIES | |
| Weight | ≤2100g (Including Batteries) |
| Dimensions | 220mm*210mm*100mm |
