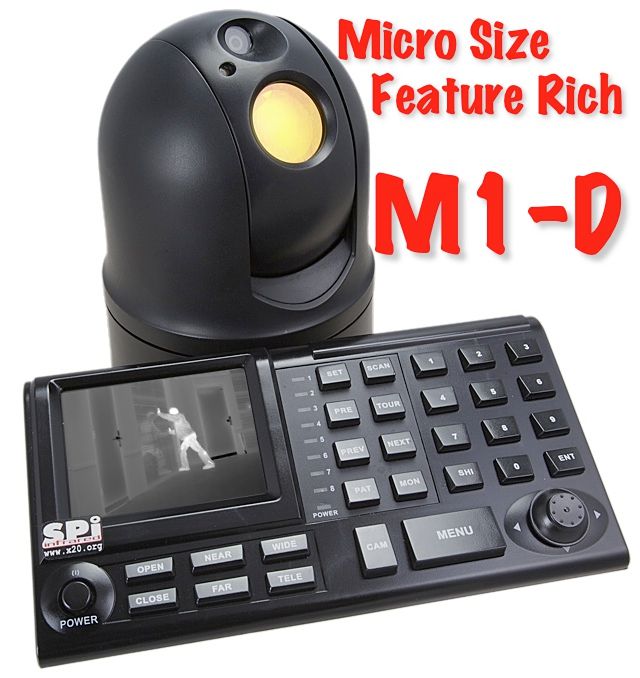

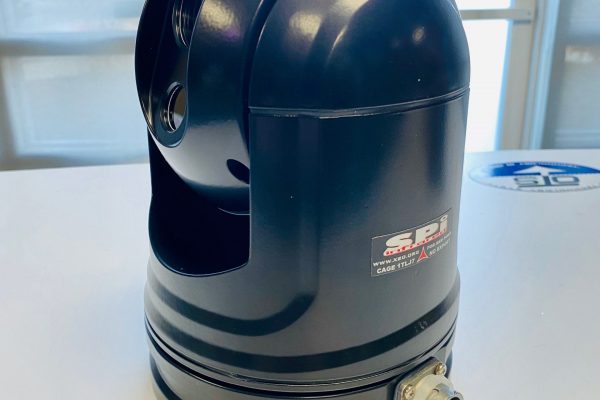

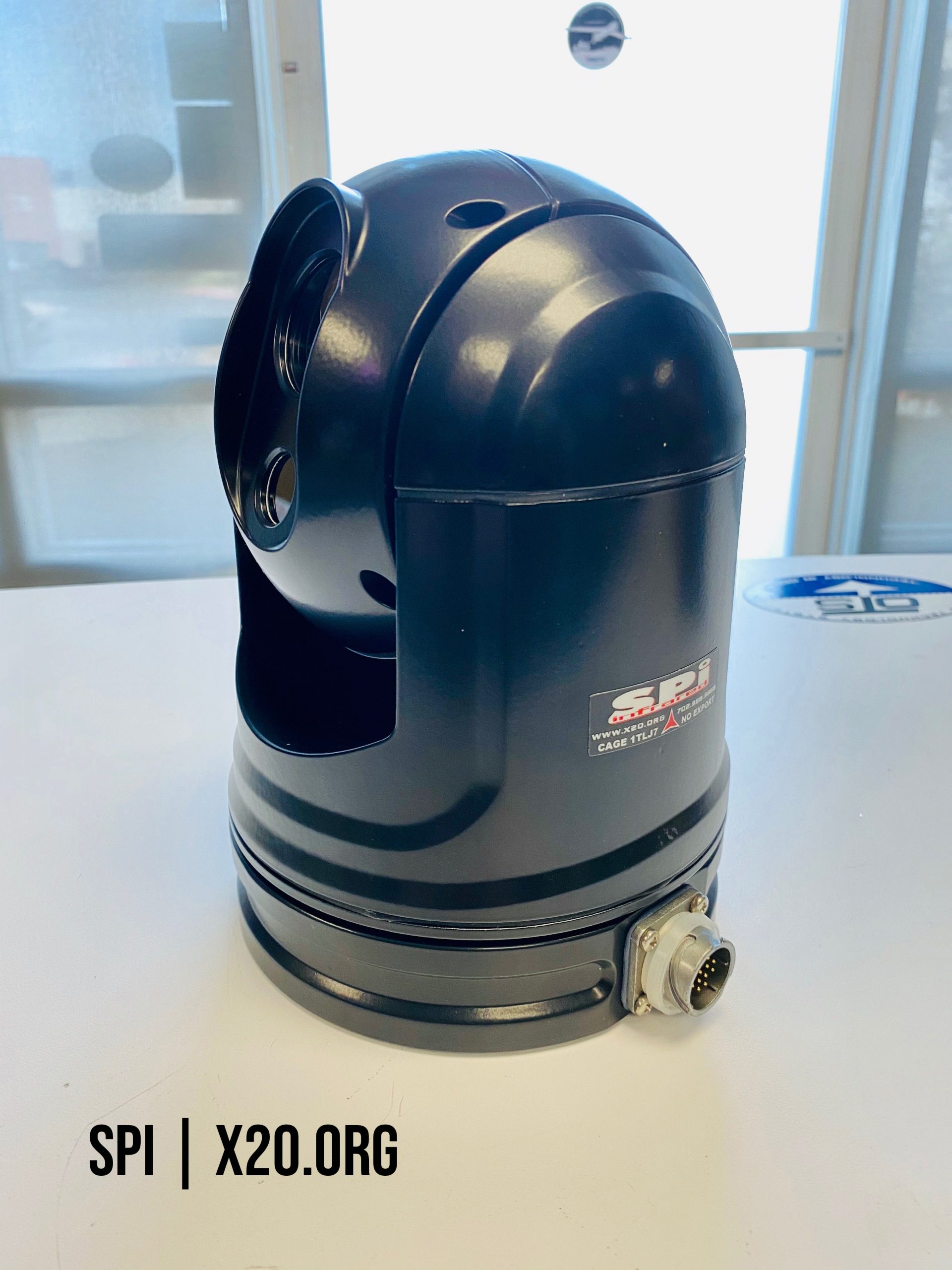

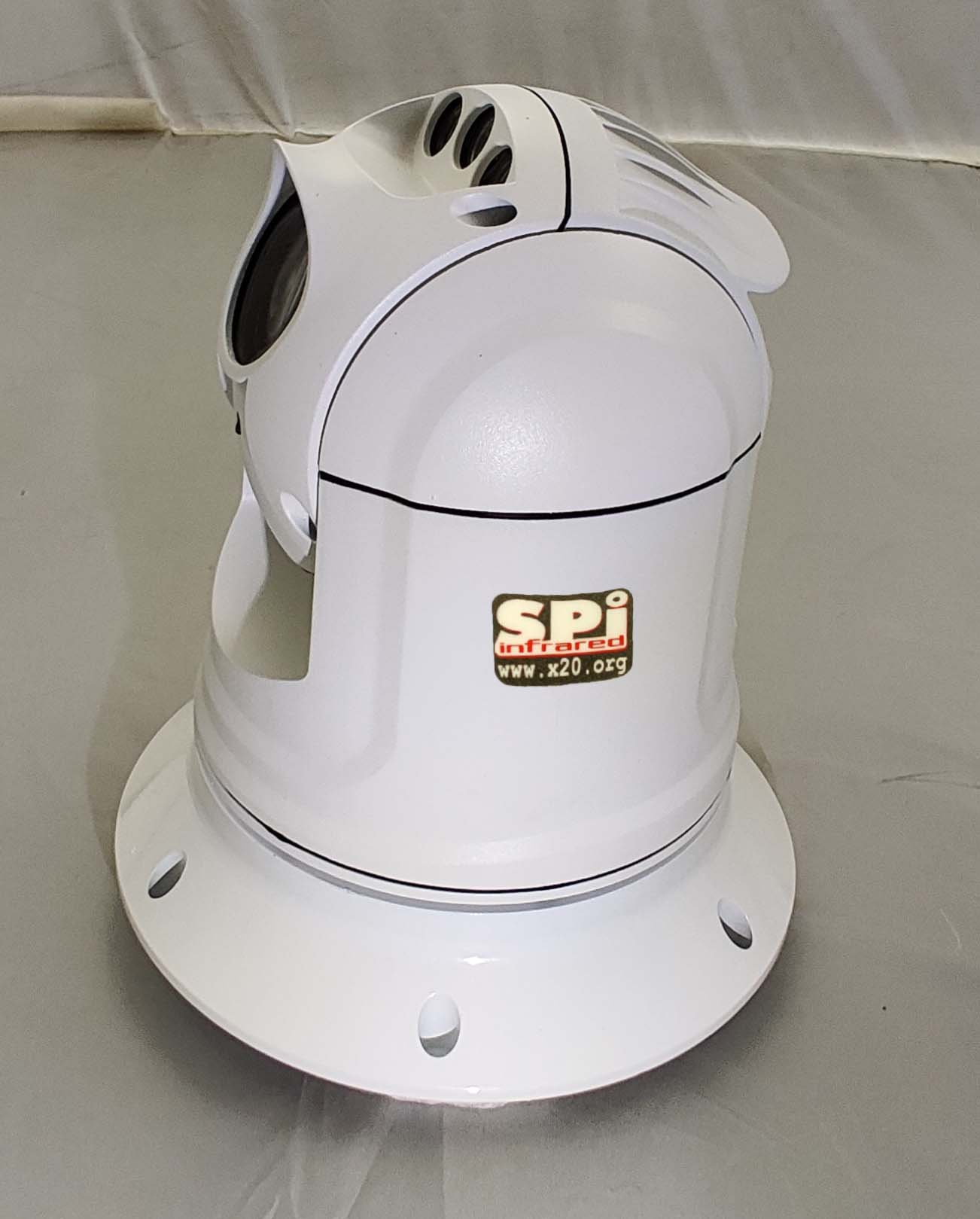

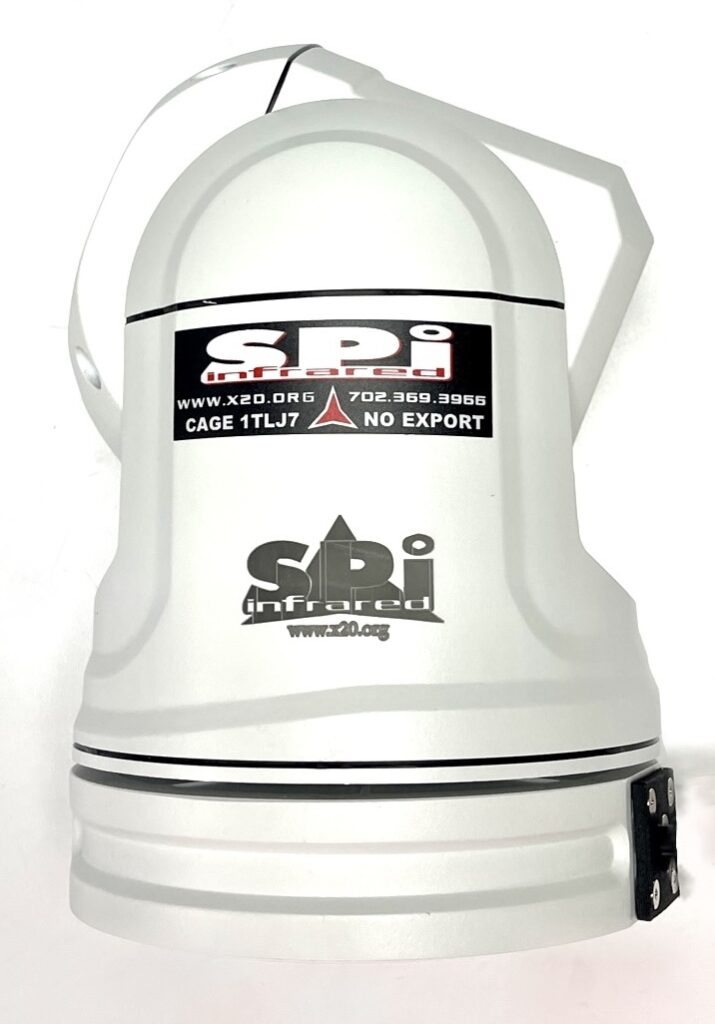

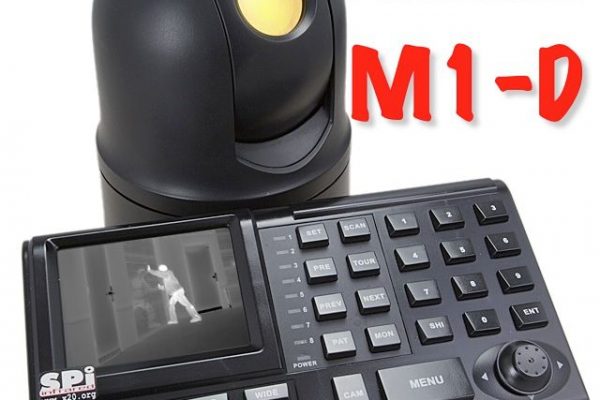

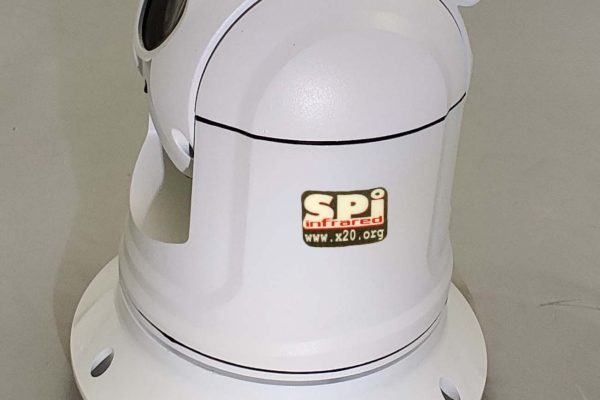

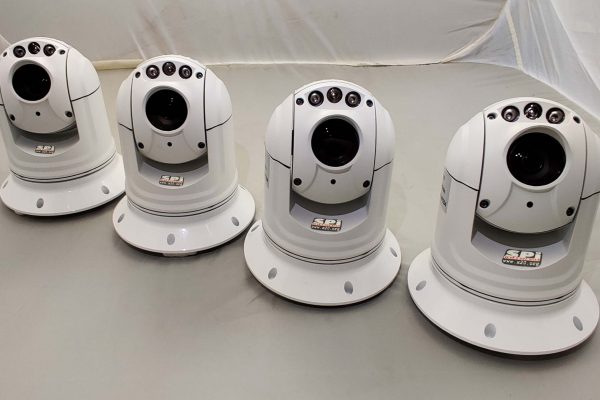

SPI M1-D

Ultra-Compact Multi-Sensor PTZ Thermal
PART #SPI-M1-D

CHARACTERISTICS

Compact Lightweight Car boat thermal flir PTZ day/night vision imaging System
Small light rugged Vehicle car mobile marine boat mounted thermal imaging flir PTZ camera System
640 x 512 ultra sensitive High-Resolution Thermal Sensor
Precision PTZ Pan Tilt bi-directional positioner with zero backlash
Multi-Sensor System – CCTV, FLIR & Laser
Zoom Thermal IR Imaging – 500X HD low light VIS-NIR imaging
Zoom CMOS low light CCTV daytime EO imager

PACKAGE INCLUDES

  • M1-D Camera
  • The very popular M1D comes in multiple configurations catered to a multitude of advanced applications, including ISR USV UGV Mobile, Marine and fixed PTZ Long-Range thermal flir EO-IR imaging
  • available with multiple axis Gyro stabilization for rock steady image presentation.
  • Multiple laser rangefinder LRF options are available
  • infrared illuminator, lasers for advanced situational awareness
  • analog, fixed, remote, ethernet, IP, RTSP and multiple connectivity options are available.
  • Lens Cleaning Kit
  • 20′ main cable
  • 500x HD BSI CMOS low light long range color camera
  • 12 VDC Power
  • anti fog, haze, clutter and turbulence mitigation
  • Exceptional image quality, Detection capabilities and Reliability
  • Fully waterproof
  • Operators Manual
  • Image Stabilization (Optional)
  • Network Interface Encoder (Optional)
  • long range thermal imaging (optional)
  • LRF laser rangefinder (optional)

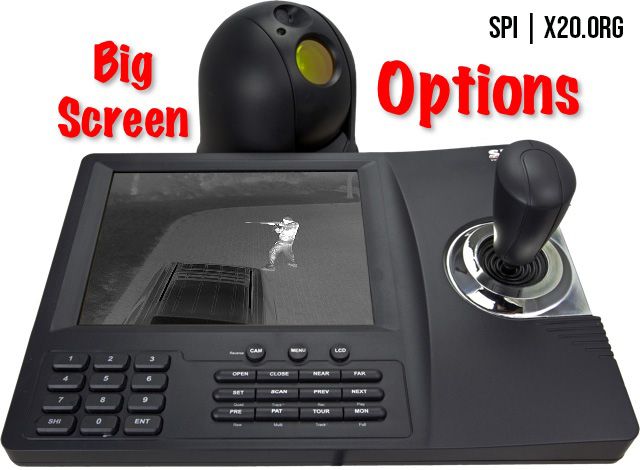

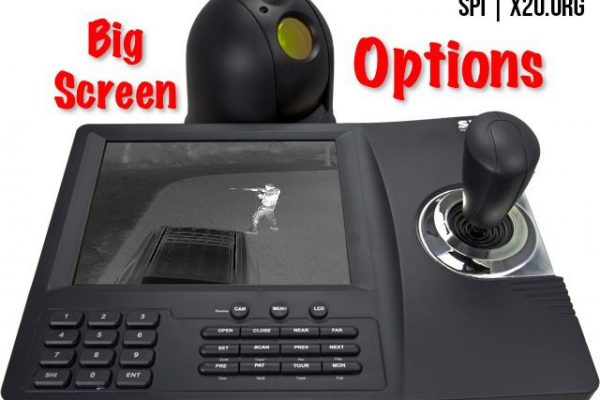

  • Control Keyboards with Integrated LCD 3″-8″ (Optional)
  • IP version includes unlimited use to use IP Graphical User Interface (GUI) c2 command and control software suite




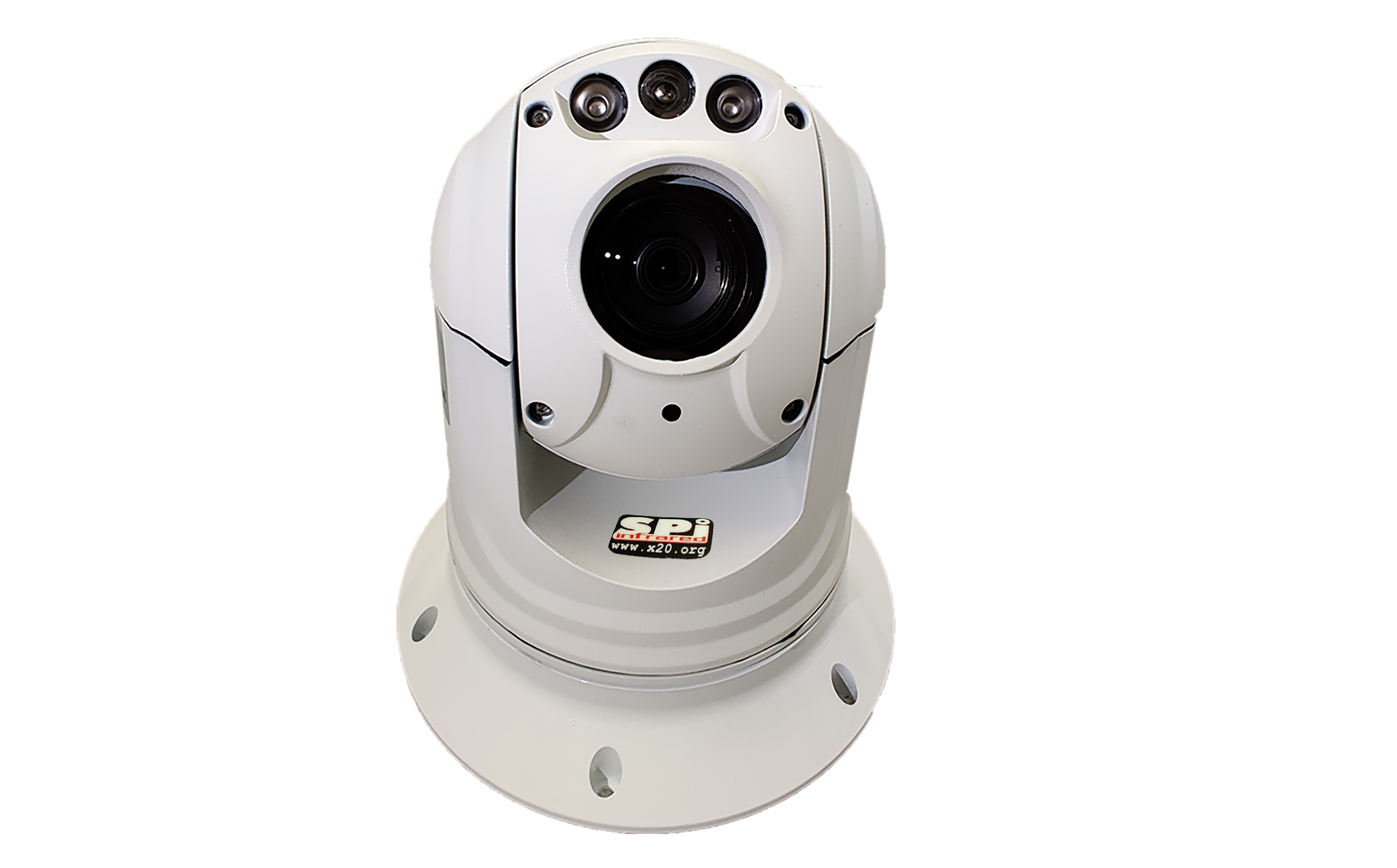

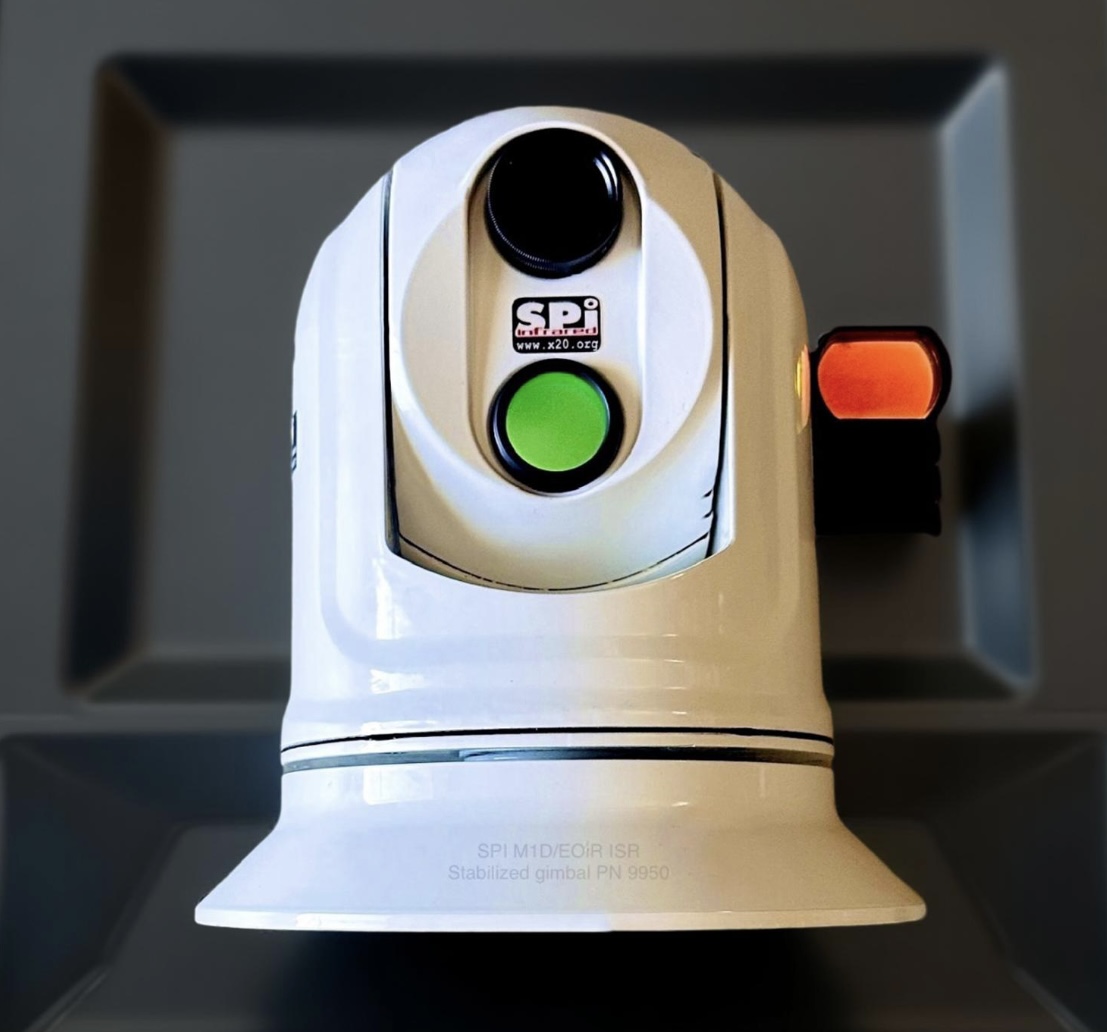

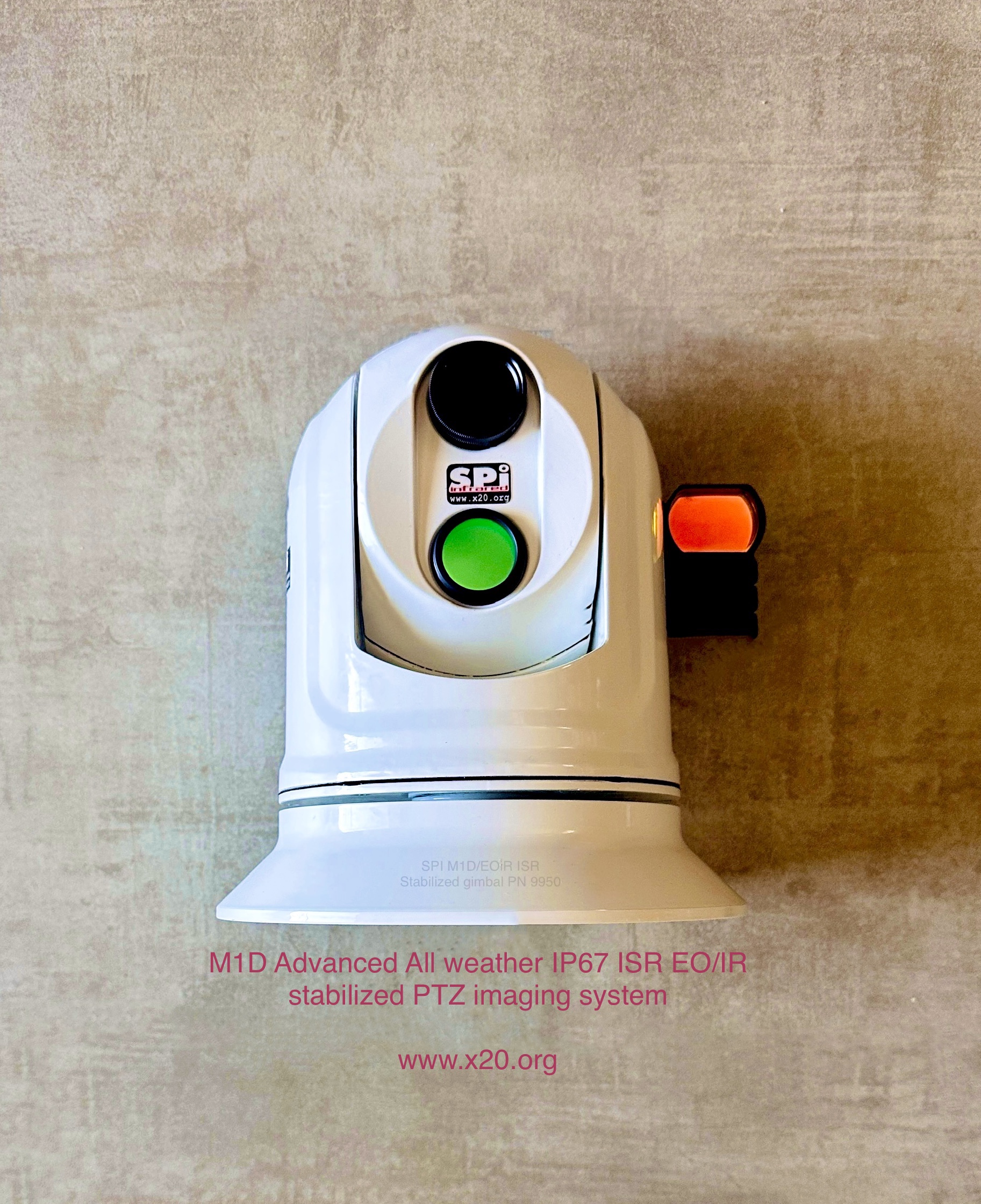

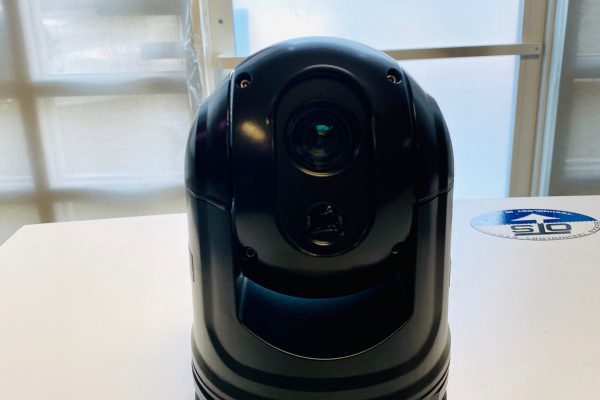

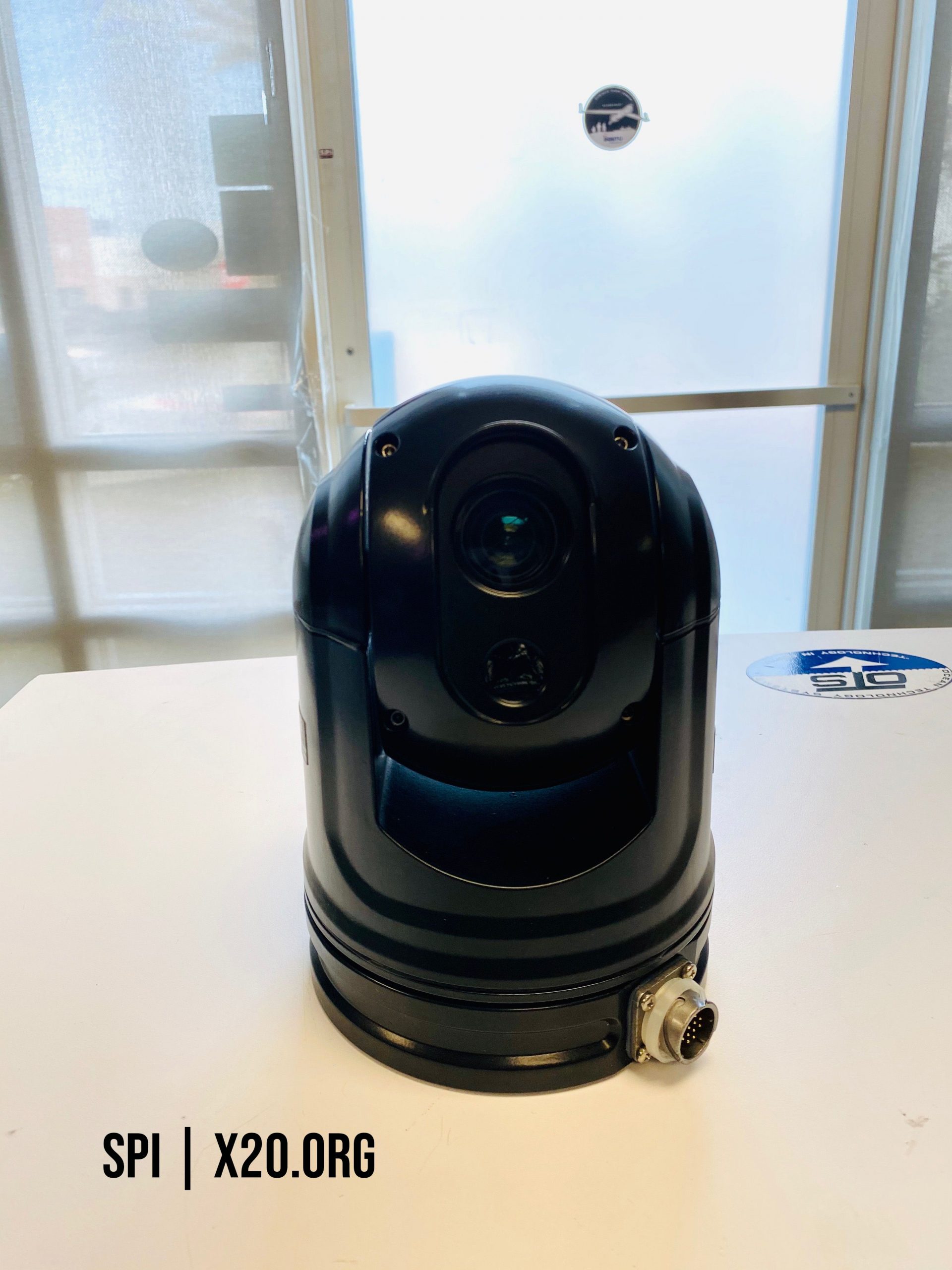

M1D V4 HD MODEL with additional features and extended ranges



Gyrostabilized thermal camera flir PTZ HD stabilization marine USV UGV 4k gimbal

Gyro stabilized thermal camera

M1D v4 gyrostabilized marine PTZ flir thermal IR imaging camera / EO-IR gimbal

Marine gyro stabilized thermal cameraLong range thermal flir rifle scopes

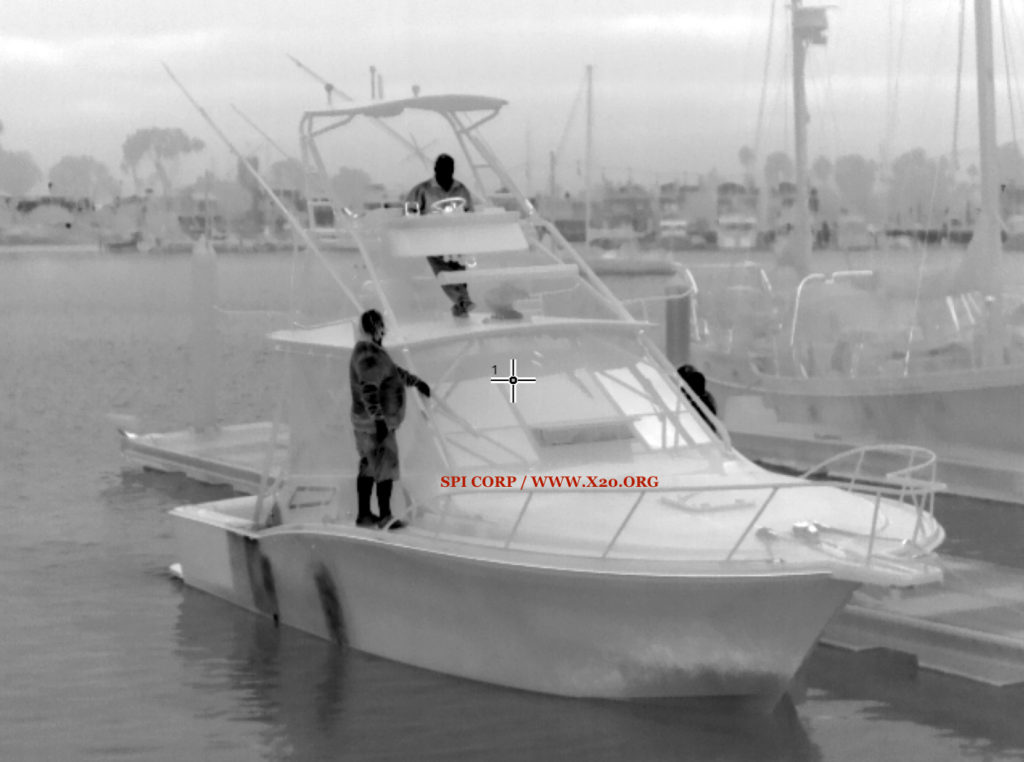

marine ptz flir thermal camera

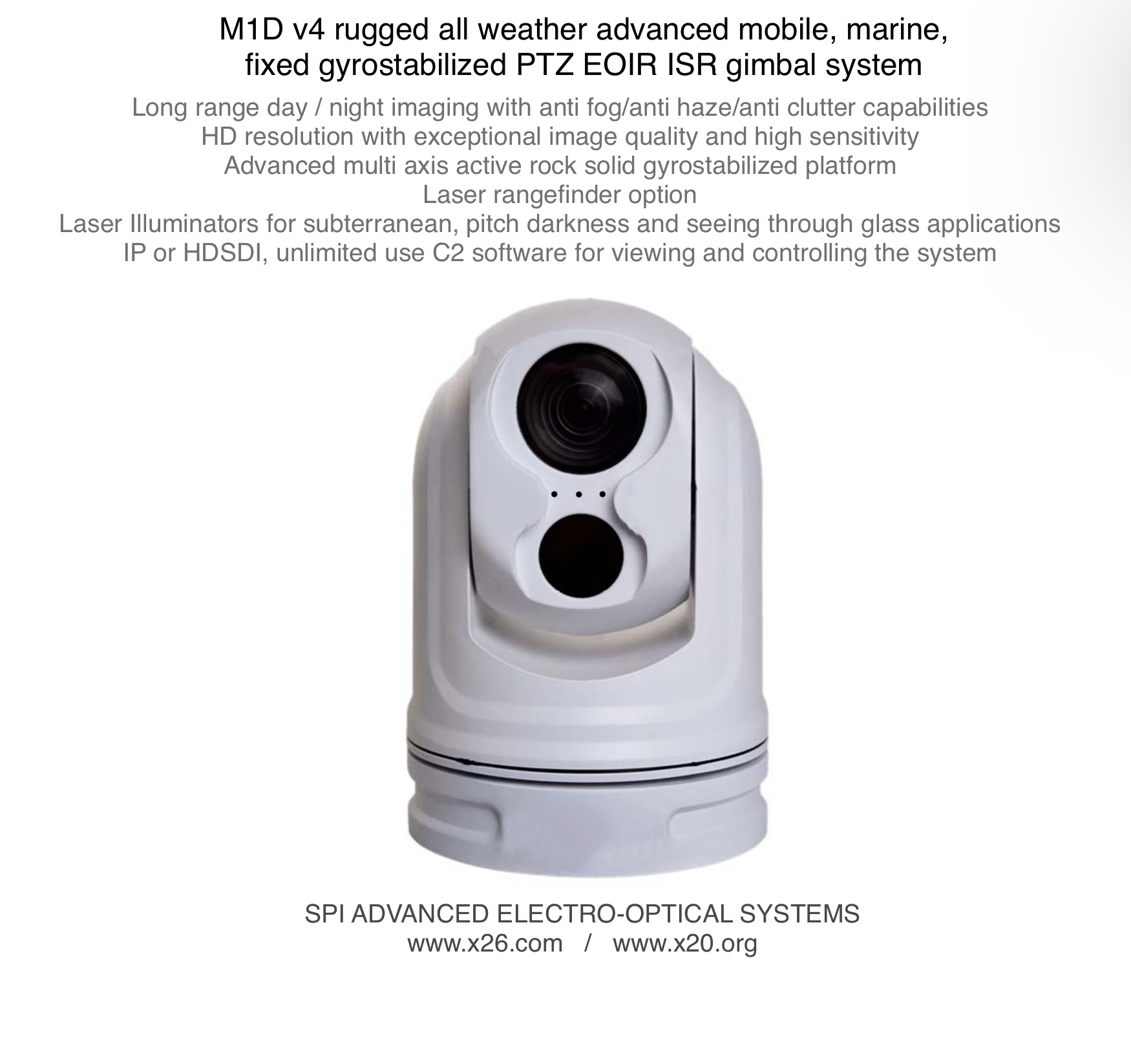

The M1D v4 HD is an IP PTZ multi purpose, affordable All Weather EO/IR Gimbal with Thermal imaging FLIR IR Camera, VIS/NIR EO Low Light Level (LLL) Camera, Illuminator and image stabilization. The system is available in HDSDI / Analog or IP ETHERNET configuration with absolute positioning feedback. The M1-D v4 thermal camera is the latest multi sensor pan tilt infrared system from SPI CORP.





NEW:

Available with active 0.04°  Active multi axis GYRO STABILIZATION providing rock steady stabilization and with your choice of effective 65mm or 90mm thermal imaging lenses, 1000 meter Illuminators or 3. 5 KM Laser range finder.

We offer the best pricing on the Highest performing most accurate and
reliable short, Medium and
long range thermal flir PTZ cameras for sale.



Gyro stabilized thermal camera




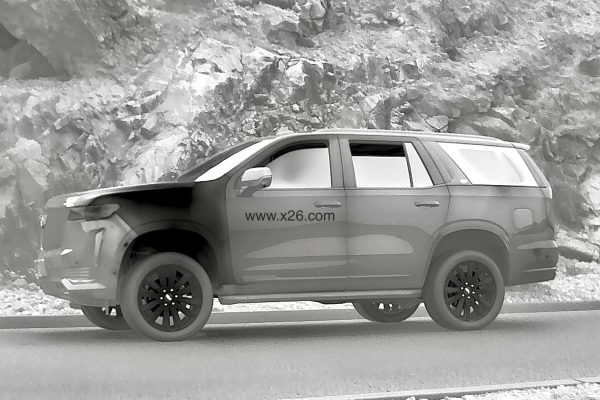

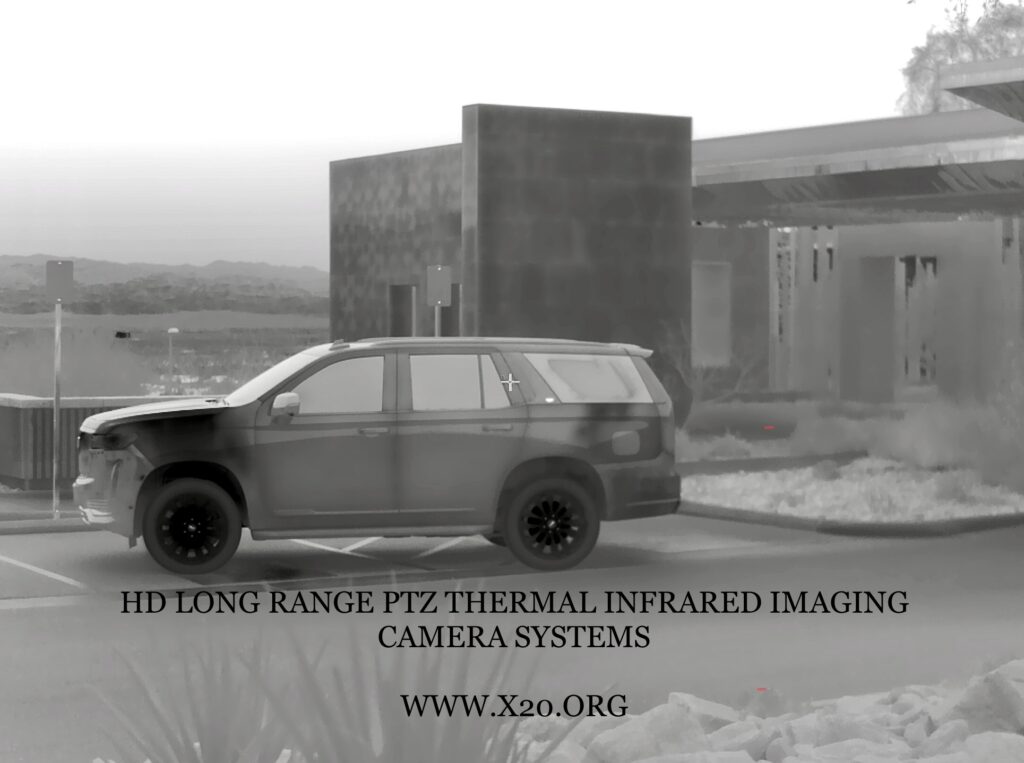

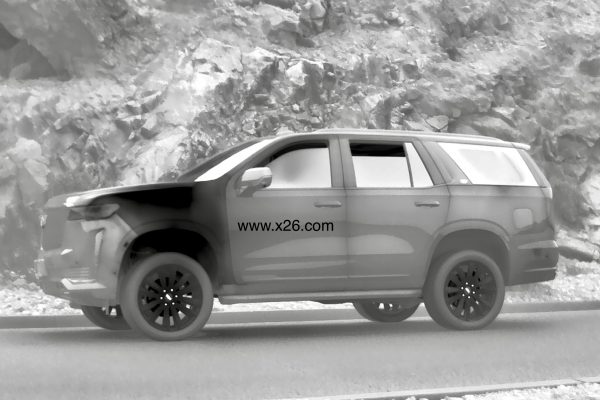

HD long range thermal imaging



The M1-D v4 is the first affordable micro PTZ camera to feature integrated thermal imaging camera (FLIR), CCTV camera and laser designator in an ultra compact rugged housing. The M1-D v4 is an all weather gimbal remote positioning gyrostabilized system suitable for mounting on a wide range of vehicles, vessels and stationary platforms. The M1-D v4 pan tilt zoom gimbal is the breakthrough product that you have been waiting for to satisfy your imaging needs 24/7/365.



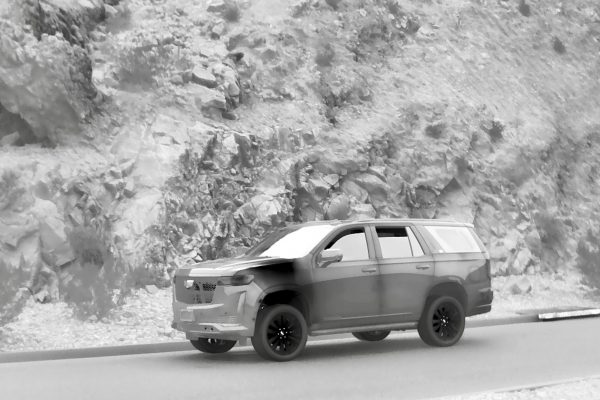

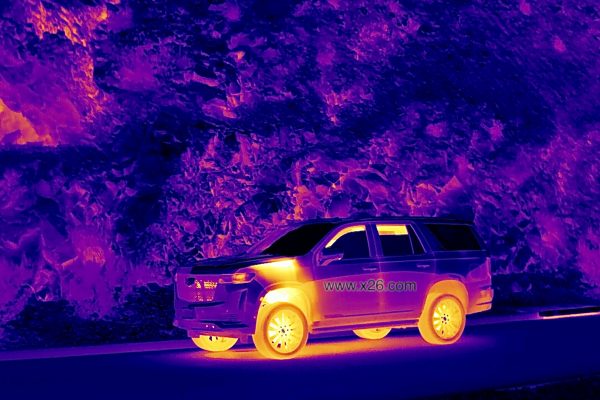

HD long range thermal imaging

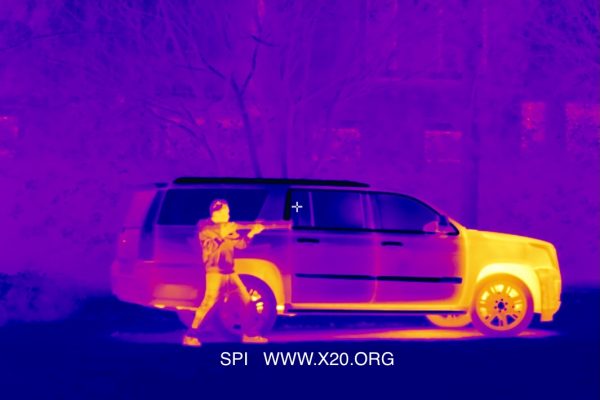

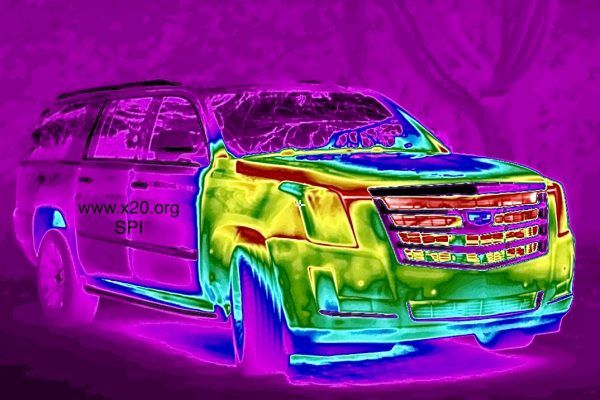

The M1D roof mounted gyrostabilized thermal imaging PTZ flir camera is a great choice as a vehicle mounted FLIR camera for situational awareness, drivers vision enhancer DVE and search & rescue SAR applications.

Long range thermal binocular

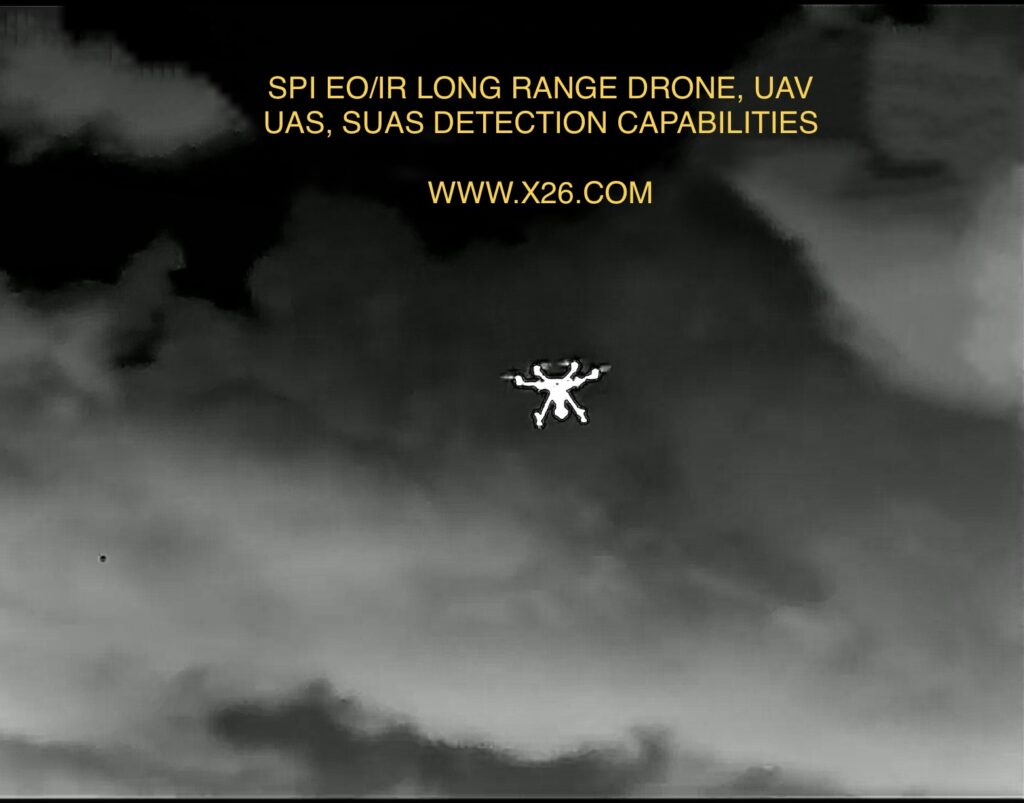

The M1-D  v4 PTZ thermal camera for drones platform is available with the latest in high resolution HD thermal imaging sensors to give you an unrivaled view of the world around you.

Long range thermal cameras



The M1D PTZ FLIR comes standard with high resolution ultra sensitive 640×512 FPA Thermal imager with effective 30mm germanium coated sealed optics.

Ultra long range marine rated stabilized zoom lenses available up to 1550mm

Long range thermal camera



EOIR_MARINE_m9_PTZ_CAMERA



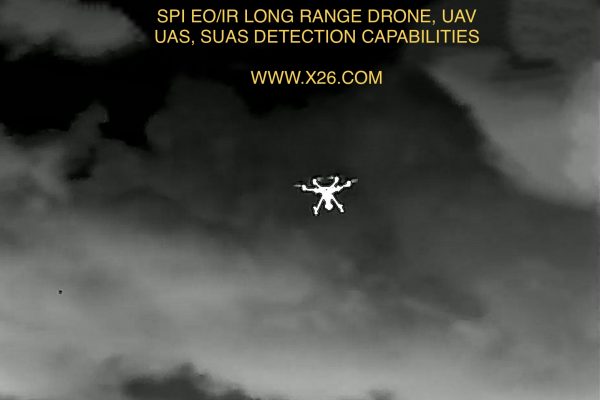

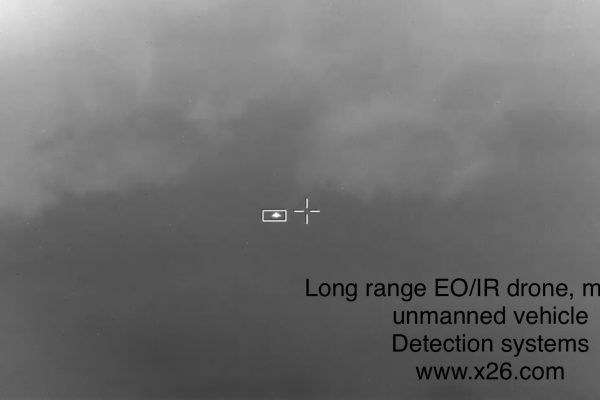

Ideal for UAV, UGV, USV, UAS, SUAS, mobile, marine, fixed applications.

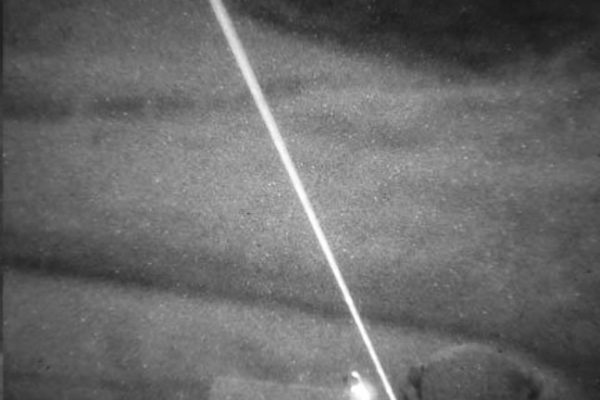

The stabilized Micro M1-D v4 has an impressive 500x HD ultra low light VIS-NIR (400-1100 nm) EO sensor, with the included IR illuminator you can use the system in absolute pitch darkness in EO mode and also see-through glass windows along with gyro stabilization, the system is a very impressive manned or unmanned EO/IR C4ISR solution.

Long range thermal cameras

Mobile thermal PTZ camera



Model M1D-v4
IR Camera
Image Sensor Maintenance free LWIR Uncooled Microbolometer FPA
Working Band 7μm~14μm
Spectral Resolutions 640×512
Lens F:1 hardened, coated, anti glare Germanium
NETD ≤40mk
Zoom Variable
Lens effective 15mm, 25mm, 35mm, 65mm, 90mm
FOV Variable, depending on IR lens selection
Color Palettes 14 color plus mono styles

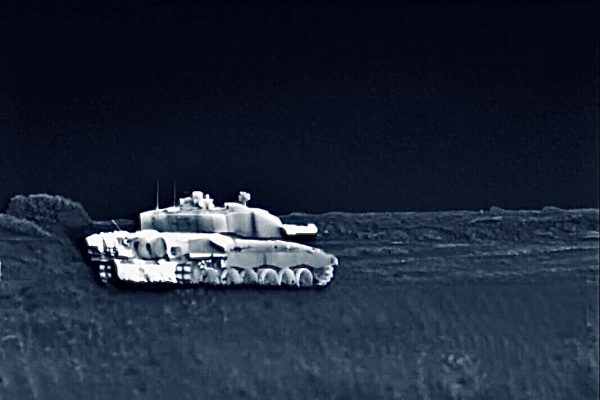

Detecting Range Vehicle: up to 5000m

Man: up to 2000m

LONGER RANGES AVAILABLE

Measurement (optional)
Temperature measurement -20℃ ~ +550℃
Accuracy ± 2℃ or ± 2% of reading
Measurement Modes Global,spot, area, isotherm, line profile,alarm for temperature above or below
EO Camera
EO Imager HD BSI VIS/NIR 400-1100Nm broadband, Low Light Level LLL
Window Protective, anti glare Fused Silica 99%
Video Format(NET) 1080P/30, 1080P/25, 720P/60, 720P/50, 720P/30, 720P/25
Video Format PAL/NTSC
 Zoom 500 X
 Penetration Anti haze, anti fog, anti glare, turbulence mitigation
Horizontal Field of View 63-2 degree
Lens Sapphire
Laser Rangefinder yes, optional 3.5 kilometer
IR Illuminator yes, up to 1000 meters
Gyro stabilization yes, optional Dual axis
Focus Auto
Wiper yes, optional
Image Stabilization Yes
Network [Available in HDSDI and BNC outputs]

System is available in either serial analog with BNC/HD SDI or optional IP Ethernet

DUAL AXIS GYRO-STABILIZATION w/Anti jitter MODELS ARE AVAILABLE with OPTIONAL:

65MM thermal lens f1.0
90MM thermal lens f1.0
Custom ultra long range stabilized system with zoom MWIR lenses up to 1550 mm available
Laser rangefinder: 3.5 Kilometer (includes Wiper)
1000 meter IR illuminator
Gyro stabilization: Dual Axis 0.04°

Image Resolution Max:1920*1080@60fps
Image Compression H.264, H.265
Image Code Stream Dual streams output
Protocols HTTP, RTSP, TCP, UDP, ONVIF
Ethernet Interface 10 / 100M
Interface
Video Output 1 Channel Thermal Imaging Video or 1 Channel Visual Imaging Video; BNC
Comm Interface RS485
PTZ
Pan Range 360°Continuous
Pan Speed 0.1° ~ 80°/s
Tilt Range -20° ~ 90°
Tilt Speed 0.1° ~ 60°/s
General
Communications Pelco-D / Pelco-P Protocol
Baud Rate 2400/4800/9600/19200 self-Adaptive
Address 0-255(soft address)
IR Illuminators For penetrating glass and pitch darkness viewing
Environmental IP67 Marine rated
Dimensions Φ147mm x 205mm Height
Power Supply 10V-24V 35W Max(Motor Drive & Illumination On)
Operating Temperature -25℃ ~ +60℃

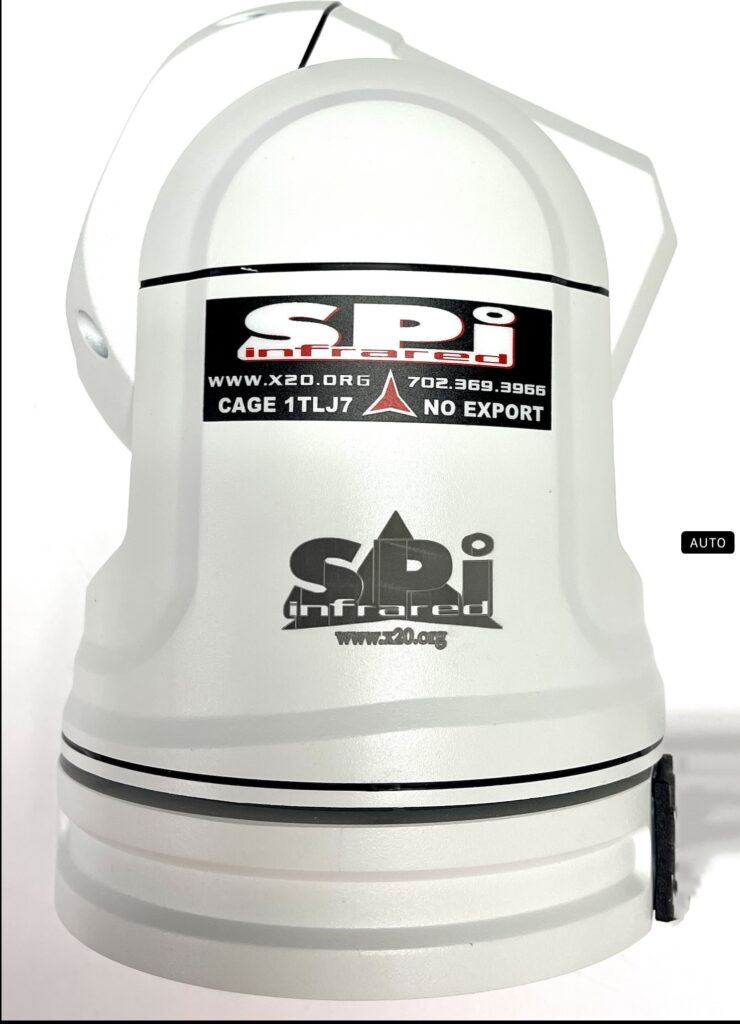

Gyrostabilized PTZ thermal camera



PTZ flir thermal night vision camera



The M1D v4 rugged mobile marine gyro stabilized HD is an rock steady multi axis stabilized IP or Analog based PTZ multi purpose, affordable All Weather EO/IR Gimbal with Thermal imaging FLIR IR Camera, VIS/NIR EO Low Light Level (LLL) Camera, Illuminator and image stabilization. The system is available in HDSDI / Analog or IP ETHERNET configuration with absolute positioning feedback. LRF laser rangefinders and other sensors are also available, The M1-D v4 robot thermal camera is the latest multi sensor pan tilt zoom (PTZ) flir IR infrared long range security / surveillance system from SPI CORP.


NEW:

Available with active 0.04°  Active multi axis GYRO STABILIZATION providing rock steady stabilization and with your choice of effective 65mm or 90mm thermal imaging lenses, 1000 meter Illuminators or 3. 5 KM Laser range finder.

Gyro stabilized thermal camera


HD long range thermal imaging



The M1-D v4 is the first affordable robot micro PTZ camera to feature integrated thermal imaging camera (FLIR), CCTV camera and laser designator in an ultra compact rugged housing. The gyro stabilized marine grade M1-D v4 is an all weather gimbal remote positioning gyrostabilized system suitable for mounting on a wide range of vehicles, vessels and stationary platforms. The M1-D v4 pan tilt zoom gimbal is the breakthrough product that you have been waiting for to satisfy your imaging needs 24/7/365.



HD long range thermal imaging

The M1D roof, mobile, marine mounted gyrostabilized thermal imaging PTZ flir camera is a great choice as a vehicle mounted FLIR camera for situational awareness, drivers vision enhancer DVE, marine and search & rescue SAR applications.

Long range thermal binocular

The M1-D  v4 PTZ gyro stabilized thermal camera for drones, marine, mobile platforms is available with the latest in high resolution HD thermal imaging sensors to give you an unrivaled view of the world around you.

Long range thermal cameras



The M1D PTZ FLIR Gyro stabilized gimbal comes standard with high resolution ultra sensitive 640×512 FPA Thermal imager with effective 30mm germanium coated sealed optics standard, other lenses up to an ultra long range zoom 1550MM is available.

Long range thermal camera

IP PTZ gyrostabilized thermal Imaging flir cameras overview

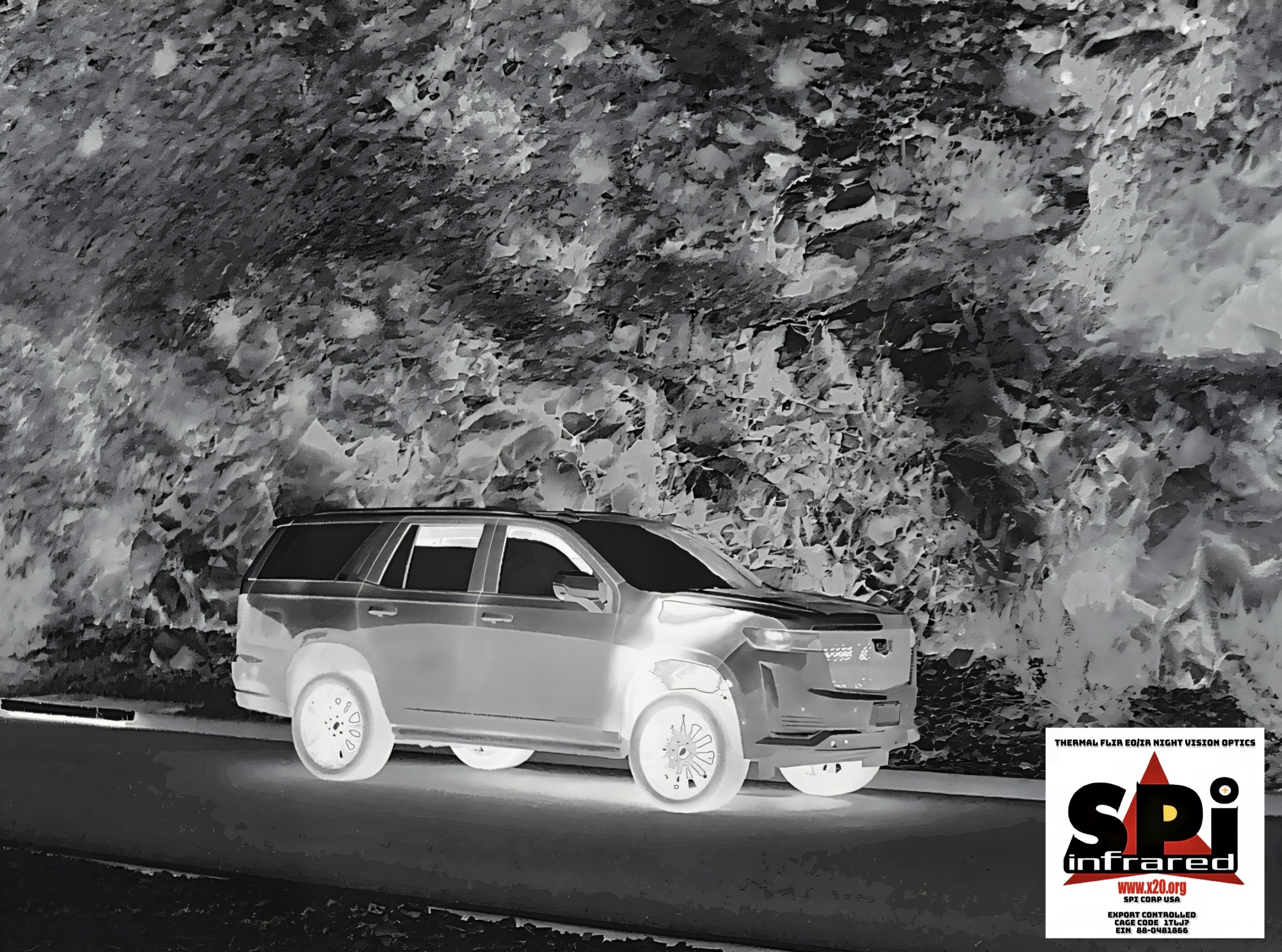

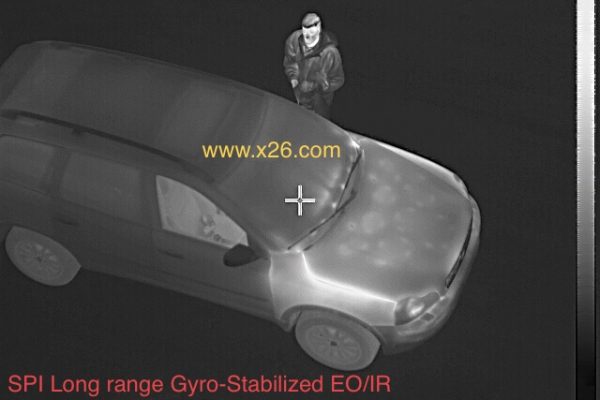

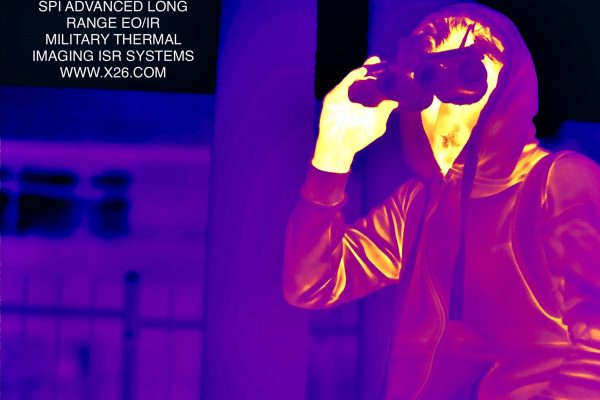

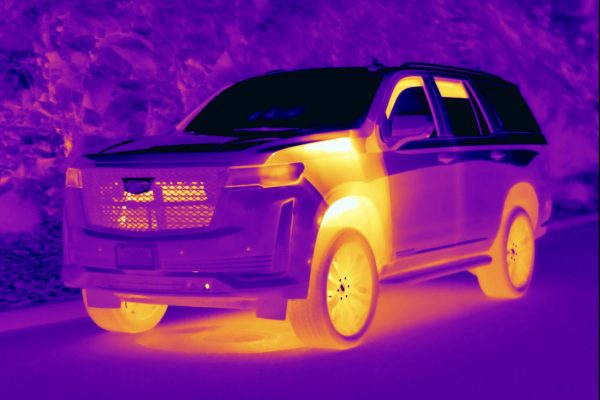

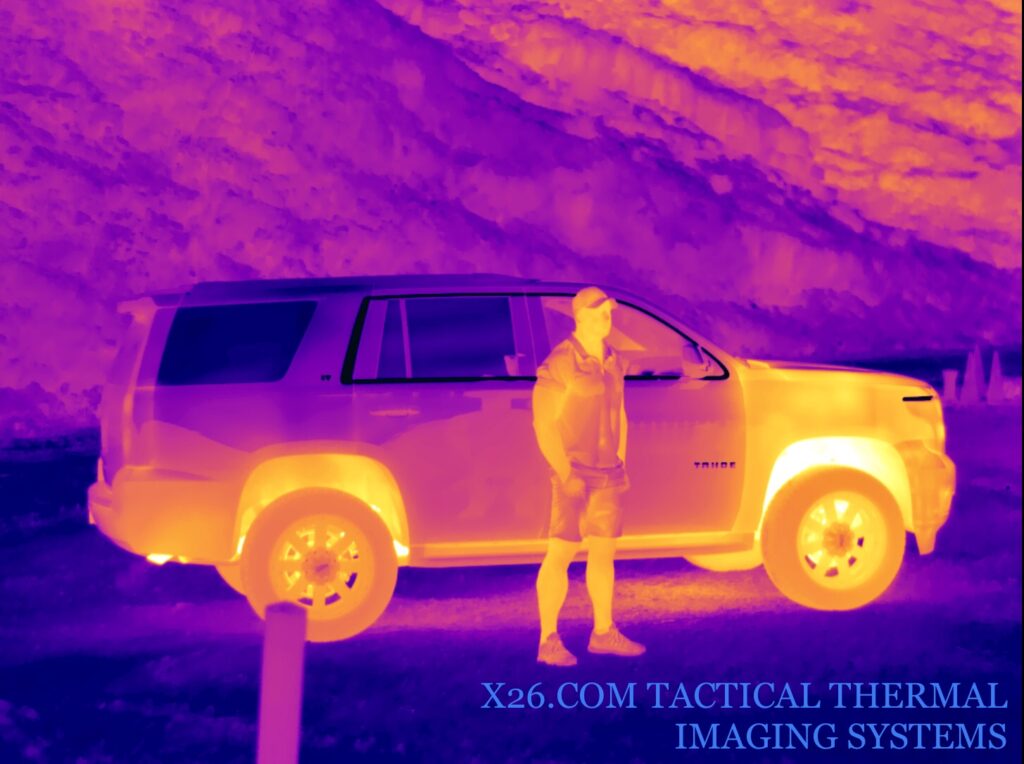

Ip gyrostabilized Thermal cameras, unlike traditional visible cameras, use heat rather than light to see an object, giving them a huge advantage over other imaging technologies. Using minute differences in infrared (IR) radiation they produce a high-contrast thermal image in complete darkness. It is unaffected by bright light and has the ability to see through obstructions such as smoke, dust, and light fog.
This makes thermal ideal for a number of applications including but not limited to surveillance & security search and rescue, fire, marine and land navigation, machine vision, and wide area situational assessment, thermal imaging or ip FLIR cameras are truly amazing instruments, Everything above absolute zero (-273°C) emits thermal IR radiation. Thermal cameras convert this into a digital image that can be displayed, distributed and recorded. Humans, animals, and vehicles are very hot in contrast to a background making them easily detectable by a thermal imaging camera, even at distances up to 30km.
This technology gives you state-of-the-art protection that can be used in the most demanding applications where the limitations of traditional CCTV and camera technologies just cannot compare, thermal imaging flir cameras provide the ultimate night vision capabilities in pitch darkness, IR radiation passes through smoke, dust, modest foliage, and light fog with ease, making a person clearly visible even in the worst lighting conditions.

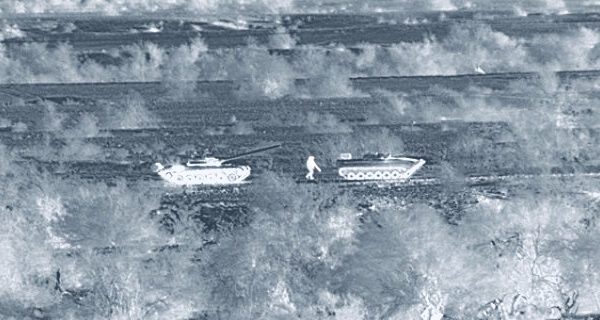

Ip gyrostabilized Thermal Infrared imaging cameras boast extremely long ranges & distance despite the resolution, large sensor size and small lens. DRI/Detection, (D) Recognition, (R) & Identification (I) (DRI)  (Johnston criteria) , is the universal standard for rating thermal cameras. Detection means that you will be able to see the target, however it will be little more than a blur at a few pixels. Specifically it means that the target is visible on at least one pixel, and that there is a good chance that the target is actually something of suspicion. Recognition, Contrary to popular belief, recognition does not mean that you can recognize an individual. Recognition simply means that you are able to recognize
an object’s class (human vs car, truck vs tank, etc). Identification, Identification of an object means that you are able to differentiate between objects. For example, being able to identify the exact type of vehicle not just its class. The terms detection, recognition, and identification do not relate to performance, but rather are calculated based on their pixel counts. To put this in perspective, an iPhone 5 has a resolution of 1136 x 640 which is over 725,000 pixels. Human detection only requires 3.6 x 1 pixels and human identification only requires 28 x 8 pixels; which is an extraordinarily small amount on the screen that can easily go unnoticed by the human eye
Thermal imaging energy is passive and, unlike other technologies, does not artificially increase light or require illumination for clean crisp images both day and night for detection of intruders at extreme ranges. Our thermal cameras let you see further than any other night vision technology.
There are also certain situations where ip thermal imaging can be better than regular CCTV cameras even during the day. CCTV cameras can be rendered useless by direct or reflected sunlight, and they rely on contrast in order to identify a intruder. In areas where contrast is poor, visible cameras can be rendered useless.

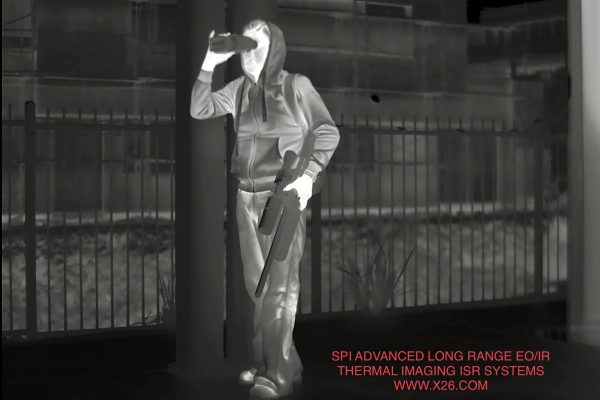

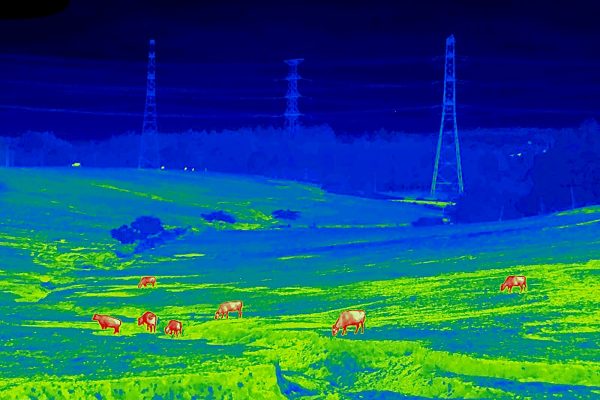

Since humans always give off much more thermal energy than their environment they are easily picked up by video analysis software or human viewers. Trespassers hiding in shadows or bushes are easily spotted, providing maximum protection of your assets and unparalleled situational awareness, ip Thermal flir cameras are ideal for detection because they use heat rather than light, meaning they require no artificial illumination. They are able to take advantage of the full view, allowing them to offer both wide-angle and long-range imagery.
gyrostabilized Ip Thermal cameras offer numerous advantages and can be optimized to suite a host of applications and industries. For security and surveillance applications one thermal camera can replace many traditional cameras and reduce the need for motion and intrusion detectors when integrated with video analytics to provide an automated intrusion detection system. This allows them to actually reduce equipment and installation costs on projects while enhancing security and effectiveness, ip Midwave IR or MWIR or Cooled thermal imaging cameras are a thermal camera with an integrated cryocooler, hence the name cooled camera.
The cooler brings the thermal image core to temperatures as low as -40C. Since thermal cameras work by using heat waves, cooling the core exponentially increases the sensitivity. This dramatically increases both range and performance. Since the Cooler has to constantly maintain temperatures often below freezing point, the cryogenic cooler is continuously running and requires reconditioning which means ip cooled IR gyrostabilized thermal vision cameras have a higher cost of ownership compared to standard uncooled thermal cameras.
Since ip cooled thermal night vision IR cameras are so sensitive to minute temperature differences, they can spot a target with only a few degrees temperature difference than its background. Ip Cooled thermal cameras are typically Mid-Wave Infrared (MWIR) and typically use wavelengths of 3-5UM (3000nm~5000nm). The combination of the cooled image core and the ability to work on the MWIR spectrum, when used with our long-range optics, means ultra-long range detection capabilities (up to 20 miles or 30km) even if there is only a few degrees temperature variance between the target and background, ip MWIR Thermal imaging cameras are a significant investment and are considerably more expensive then uncooled counterparts. However their superior range and performance allows them to replace up to 8 uncooled cameras, making them a viable and cost effective solution for certain applications such as home land security, and coastal surveillance, Uncooled or Longwave ip LWIR thermal imaging cameras are infrared cameras that do not require cryogenic cooling.
A common detector design is based on the micro bolometer, a tiny vanadium oxide resistor with a large temperature coefficient, a silicon element with large surface area, low heat capacity, and good thermal isolation. Changes in scene temperature cause changes in the bolometer temperature which are converted to electrical signals and processed into an image. Uncooled sensors are designed to work in the ip Long-Wave Infrared (LWIR) band from 7-14 microns (7000nm-14000nm) the wavelength where terrestrial temperature targets emit most of their infrared energy. Ip Uncooled thermal infrared cameras provide multi kilometers of detection ranges and have virtually no maintenance cost making them account for over 80% of all thermal cameras due to their low price and high value compared to cooled cameras, ip Pan-Tilt Zoom or abbreviated as PTZ are motion controlled positionable systems, A majority of cameras installed are what the industry calls “fixed.” These are designed to monitor a specific region of interest and do not have the ability to adjust the lens or the position of the camera.  We offer the latest state of the art ip Pan Tilt Zoom PTZ systems, allowing you to pan, tilt, and zoom the camera in any direction for wide area coverage.
These systems can be controlled remotely via an operator or set for automatic tours. These features, integrated with intrusion detection, make them extremely versatile. When properly installed, one ip PTZ camera system can effectively replace many fixed ones and add flexibility to your security system, ip Thermal infrared Flir imaging systems pack a variety of electro optical infrared EOIR advantages, commonly  abbreviated as (EO-IR or EO/IR), but because they use passive heat radiation they only have the ability to render images in 256 grey scale. Visible cameras operate on the same spectrum as the human eye and reproduce images with up to many million colors, allowing you to identify a target rather then just detect and classify it. When there is sufficient amounts of light visible cameras often have larger zoom lenses to optically zoom on a target with focal lengths over 2400mm.

DESCRIPTION AND FEATURES

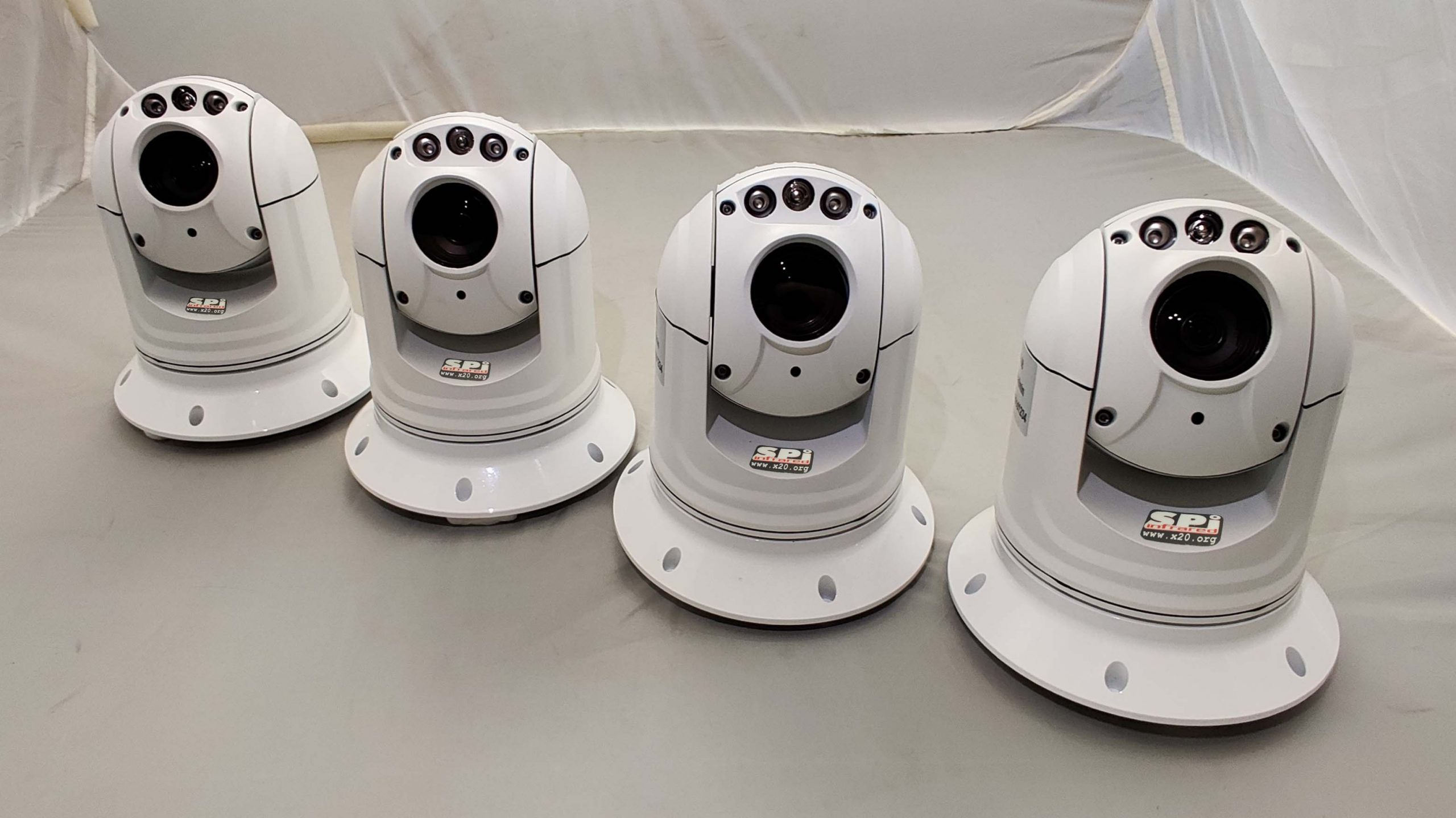

The M1-D is the next generation in multi-sensor pan-tilt imaging systems. The M1-D combines ultra-high-resolution 640×480 thermal sensor with a crisp CCTV imaging camera and long-range laser pointer. The M1-D is a fully weatherized system that is compatible with most existing vehicles, vessels, or facility infrastructures. The M1-D’s ultra-compact form factor and easy installation let you mount the system virtually anywhere. The M1-D is the ultimate in 360-degree situational awareness.

FUNCTIONS:

UP TO 640×480 HIGH-RESOLUTION THERMAL SENSOR:
640X480 thermal resolution provides 307,200 pixels for the ultimate in imaging quality and long-range target performance.
MULTI SENSOR SYSTEM – CCTV, FLIR, AND LASER:
Combines a CCTV visual imaging camera with state of the art thermal sensor and an integrated laser pointing device.
ZOOM THERMAL IMAGING:
Perfectly matched zoom settings for any mission from short to long-range (500x zoom v4).
ULTRA COMPACT LIGHTWEIGHT SYSTEM:
Weighing in at ~2lbs, the 4.5” diameter system is designed specifically to withstand the harsh field conditions while minimizing package dimensions.
IMAGE PRESENTATION:
Monochrome and Color modes to enhance user situational awareness and aid in target detection. Advanced OSD (On Screen Display) features adjustable crosshairs and position readout.
FLEXIBLE CONTROL OPTIONS:
Utilizes industry-standard interface protocols for easy integration into existing systems. Can be operated from a dedicated controller, existing controller, or PC.
DIGITAL DETAIL ENHANCEMENT:
For resolving the finest of image details at ultra-long ranges.
HIGH STRENGTH MAGNETIC BASE:
Easily mounts to vehicles with a magnetic base. Can be hard mounted.
OPTIONAL ACCESSORIES:
A variety of Laser Pointer options, thermal optics, and controllers are available as well as advanced stabilization to further enhance your investment.

  • 640×480, 320×240, 160×120 MicroBolometer Thermal Sensor
  • Zoom 2x, 4x, 8x
  • Autofocus through zoom, AGC, Digital Image Enhancement, DDE
  • Integrated into system IR or Visible (IR LASER DOD ONLY)
  • rocksteady gyrostabilized option
  • LRF laser rangefinder option
  • Multiple long-range thermal ir flir imaging optics available
  • Ultra smooth stable and reliable pan tilt zoom PTZ gimbal
  • PAN – 360 degrees continuous
  • TILT – 180 degrees
  • CCTV – Daylight / HD 500x Low light matched integrated CMOS video camera
  • Industry-leading multi axis Gyro stabilization

SPECIFICATIONS

Power

Power Requirements

12 VDC

Environment

Operating Temp

-32°C to +55°C (-26°F to +131°F)

Dimensions

6″ x 4″ x 3.5″

Weight

~2lbs

Mounting

Optional Digital Thermal video storage
Magnetic and hard mount

Interfaces

Command and Control

RS 485

Standard Package

Mounting

Integrated magnetic mount base

Lens cleaning kit

Complete cleaning kit in nylon pouch

Cables

20′ main cable standard

Operator’s manual

With quick start guide

Options

Image Stabilization

Multi Axis stabilization module, Hard mount vibration stabilization

Network Interface

Network interface encoder

Control Interface

Control keyboards with integrated LCD 3″-8″
