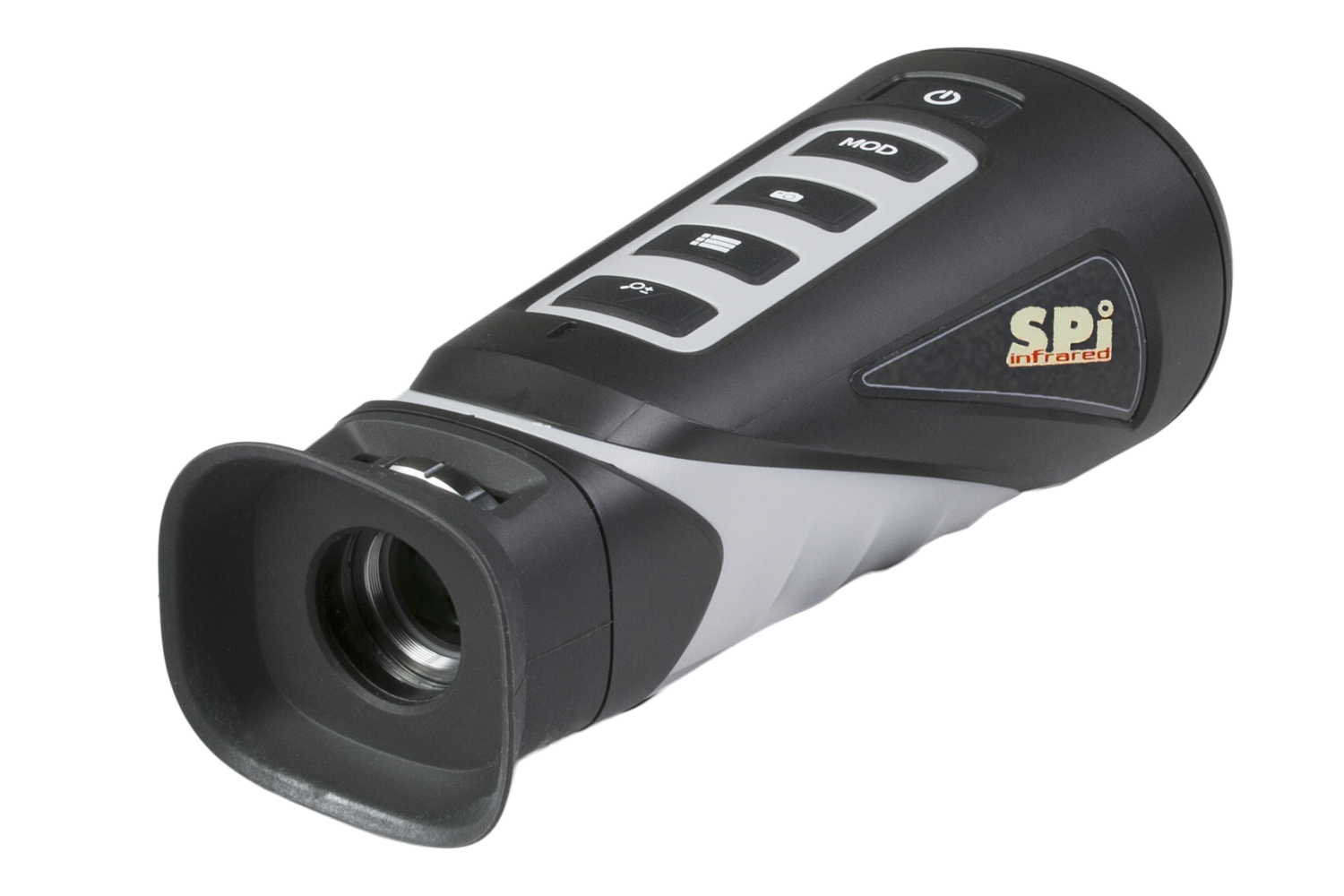

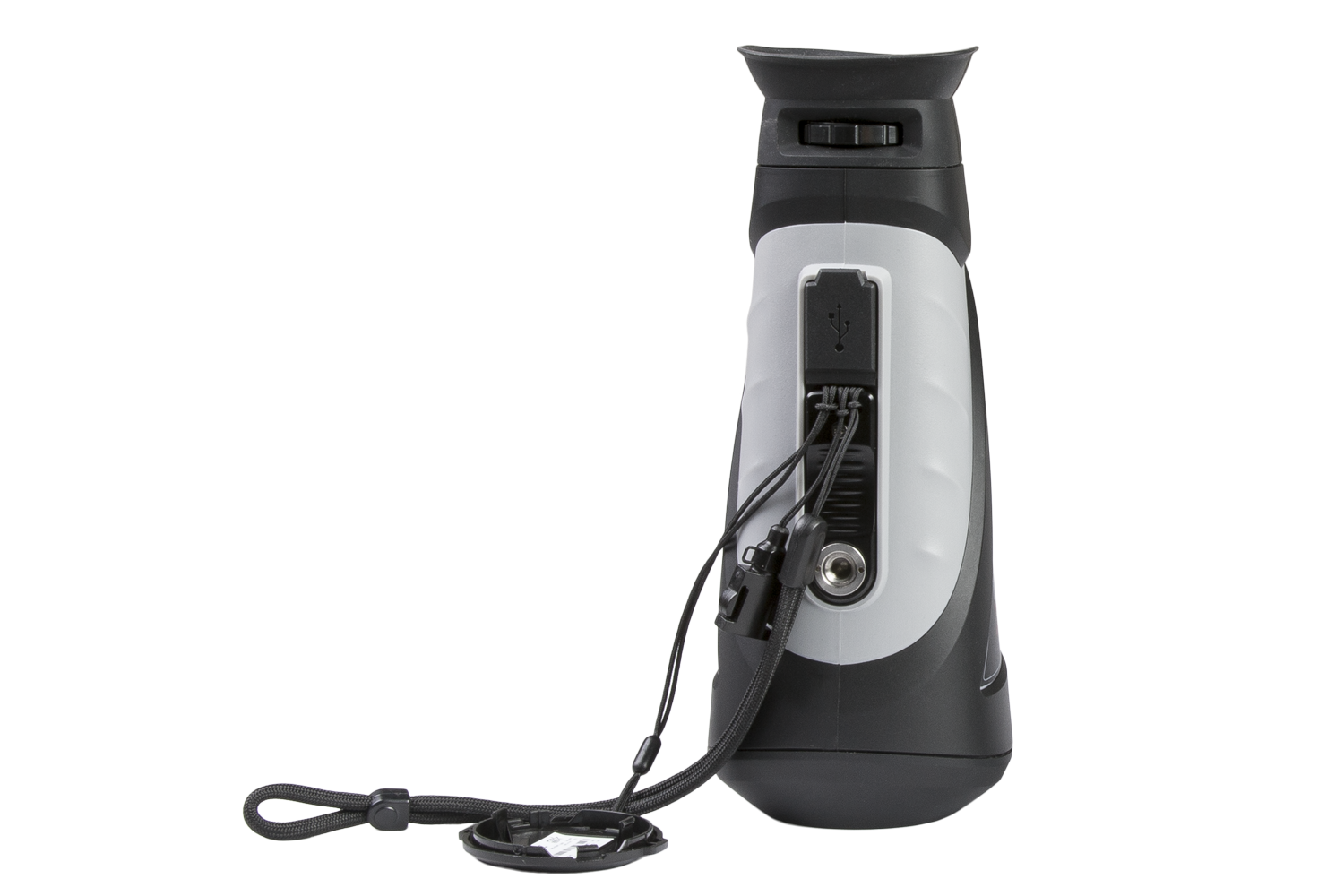

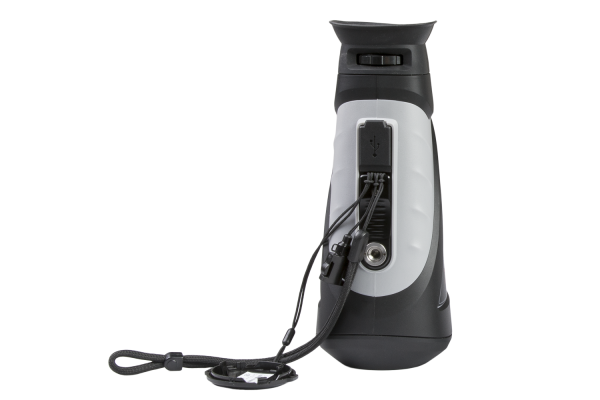

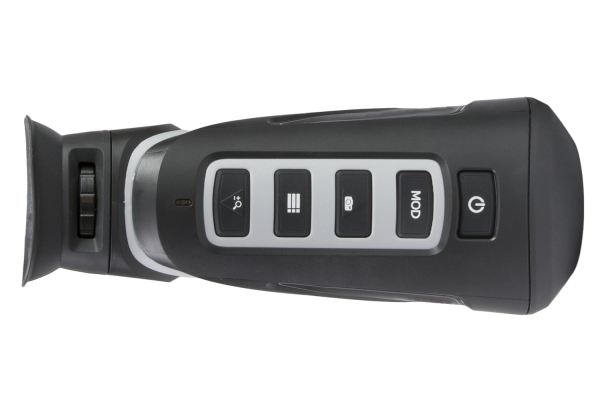

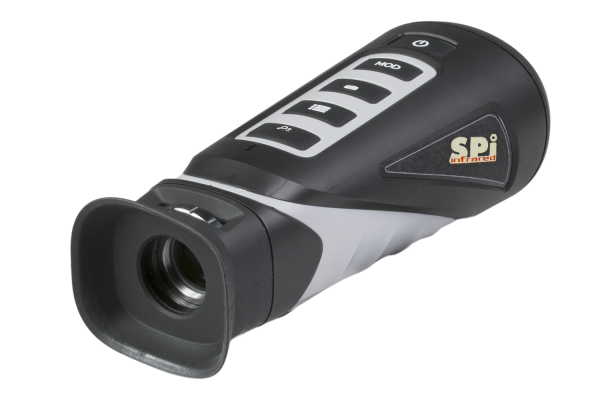

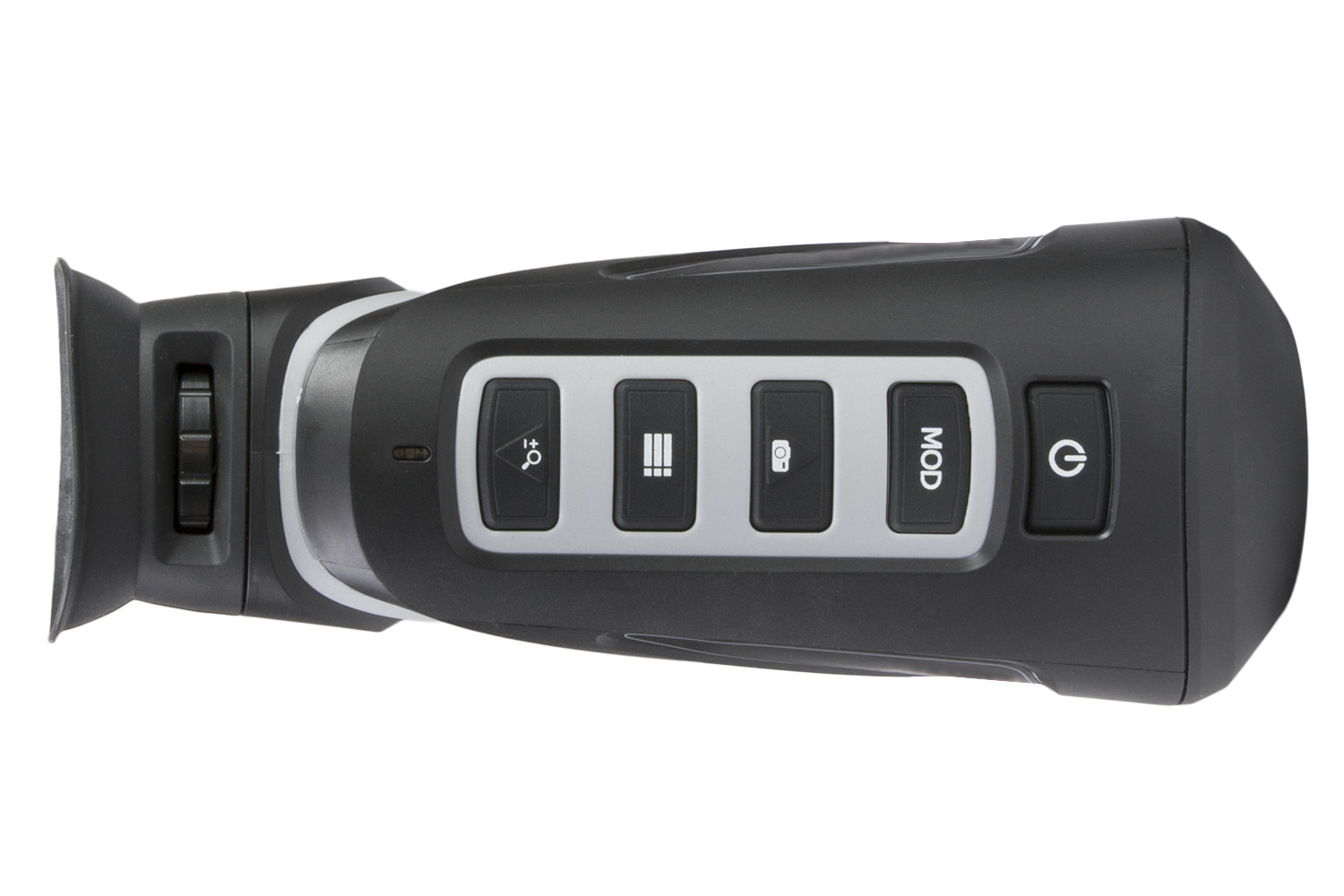

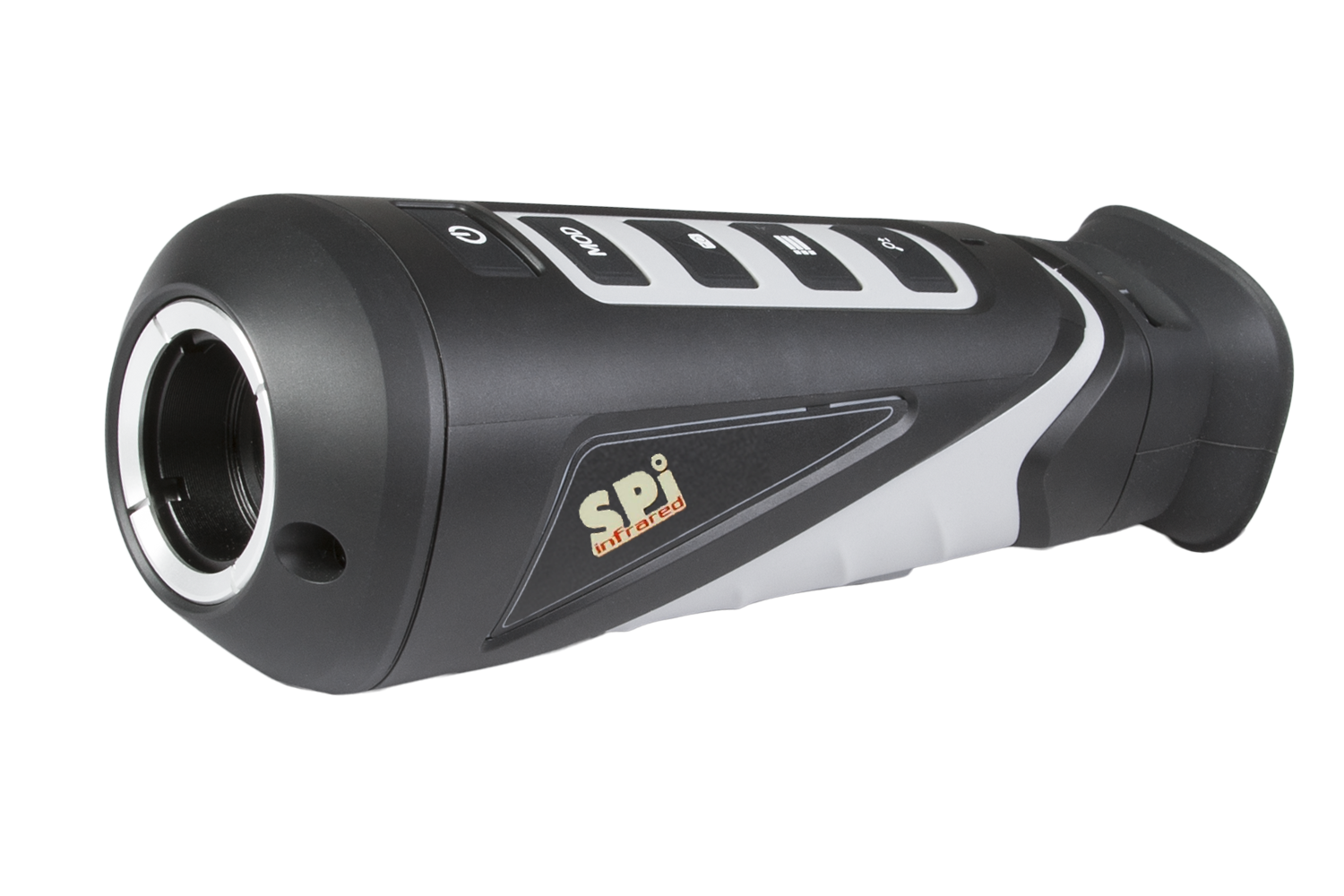

SPI Wasp T384-25-M

THERMAL MONOCULARS | PART #T384-25-M

CHARACTERISTICS

Detector type: Vanadium Oxide Uncooled Focal Plane Arrays
Refresh rate: 30 Hz
Resolution: 384 × 288
FOV: 14.88° x 11.19° (H × V)

PACKAGE INCLUDES

  • USB Cable
  • Neck Belt
  • Protective Bag
  • Operators Manual
  • Lens Tissue
Thermal imaging monocular optics military grade compact durable

DESCRIPTION AND FEATURES

The  SPI Wasp TM-384 handheld observational thermal monocular is equipped with a 384 × 288 infrared detector and a 1024×768 OLED display. It supports functions of observation, hot spot tracking, distance measurement, Wi-Fi hot spot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, anti-smuggling, criminal seizing, hiking, travel, and hunting, etc. FUNCTIONS Distance Measurement:The device realizes distance measurement function after marking the top and bottom of target, and input the target height. Hot Spot Mark:The device detects and marks the hot spot of highest temperature. Wi-Fi & Hot Spot:Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone. Mode Switch: Device supports pallet switch and distance measurement. Storage: Built-in memory module supports video recording/snapshot capturing. Digital Zoom:Device supports 1× and 2× digital zoom.

  • 384 × 288 resolution, high sensitivity detector
  • Adaptive AGC, DDE, 3D DNR, NETD less than 35 mk (@25°C), F#=1.0
  • 1024 × 768 resolution 0.39-inch OLED display
  • Built-in rechargeable Li-ion battery
  • Up to five hours continuous running (with Wi-Fi hot spot function off)
  • Wi-Fi hot spot

SPECIFICATIONS

Imaging palettes Black hot White hot Red hot Fusion
Image sensor Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution 384*288
Detector Pitch 17um
Response Wavebond 8um to 14um
NETD < 35mk(@25°C,F#=1.0)
Optical magnification 1.7x
Lens (focal length) 25mm
Field of view (H × X) 14.88° x 11.19°
F number 1.0
Digital zoom 2X
Monitor 0.39-inch, OLED, 1024 × 768
Hot Track Yes
Storage Built-in memory module (16GB)
Record Video Support on-board video recording
Capture Snapshot Yes
Battery Type Lithium Battery
Wi-Fi Yes
Battery Operating Time Up to 5 hours continuous running
Battery Capacity Display Yes
Power supply 5V DC/2A, 2W
Weight 460 g (1.01 lb)
Working Temperature/ Humidity -30 °C to 55 °C (-22 °F to 131 °F)
Overall Dimensions 189 mm × 74 mm × 66 mm (7.9″ × 2.91″ × 2.60″)
Protection Level IP67
