Detector type: FLIR Tau 2 17μm Uncooled Microbolometer
Refresh rate: 60 Hz
Resolution: 336 X 256
FOV: 7.8 ° × 5.9° (H x V)
DESCRIPTION AND FEATURES

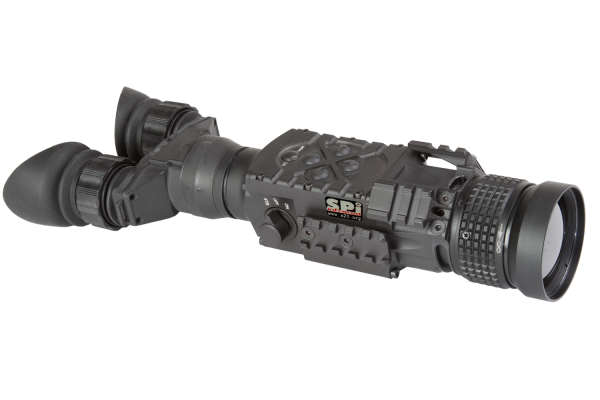

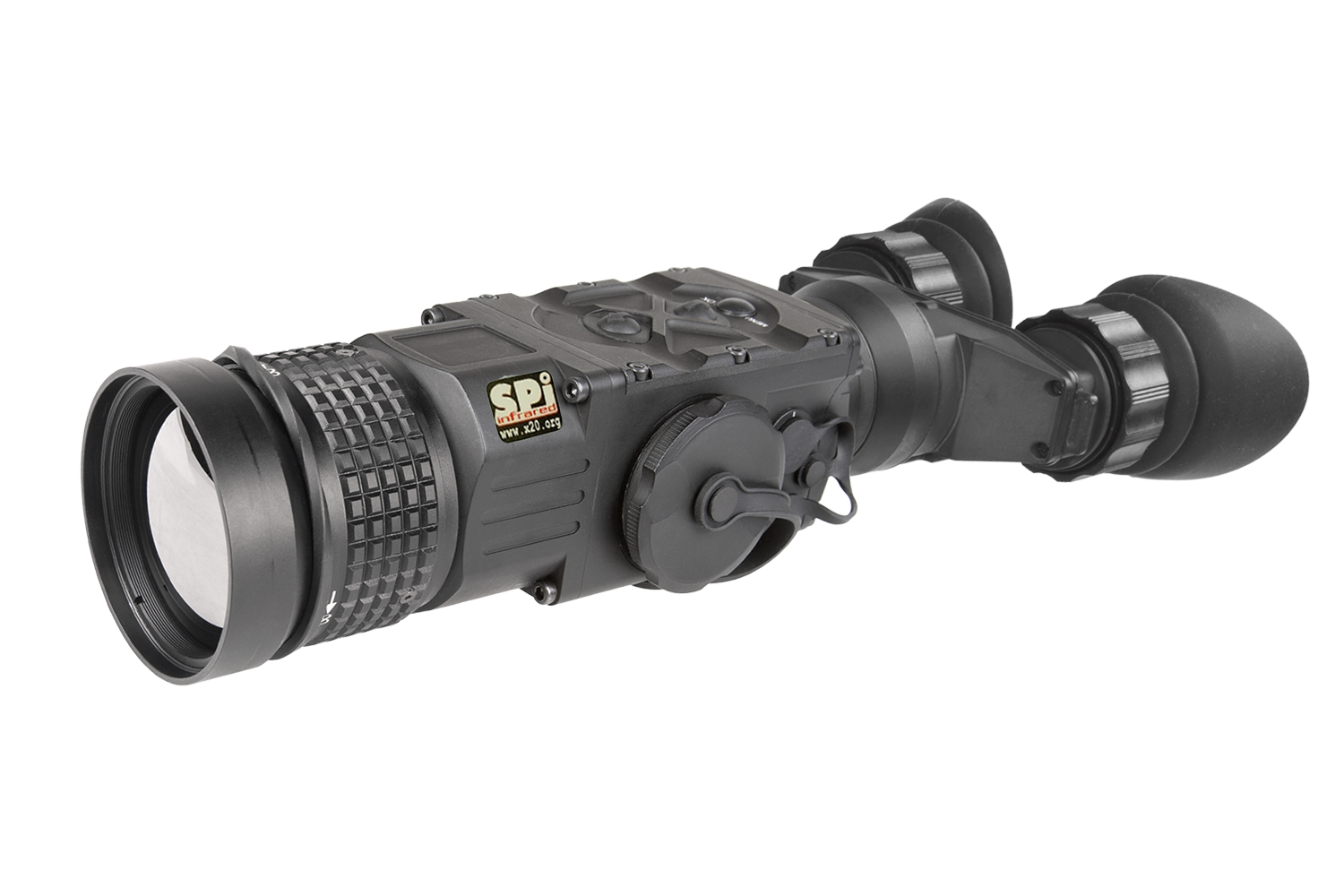

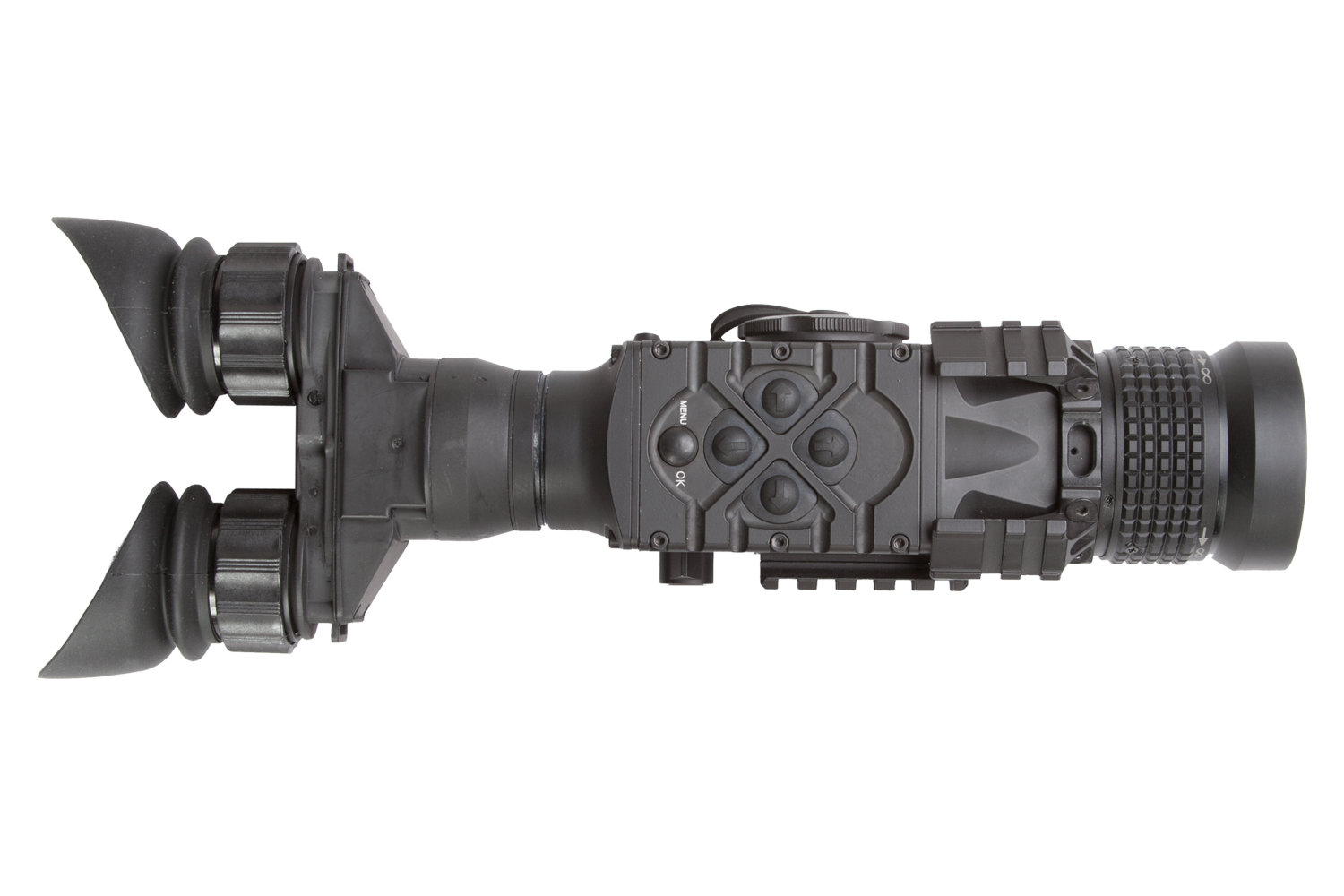

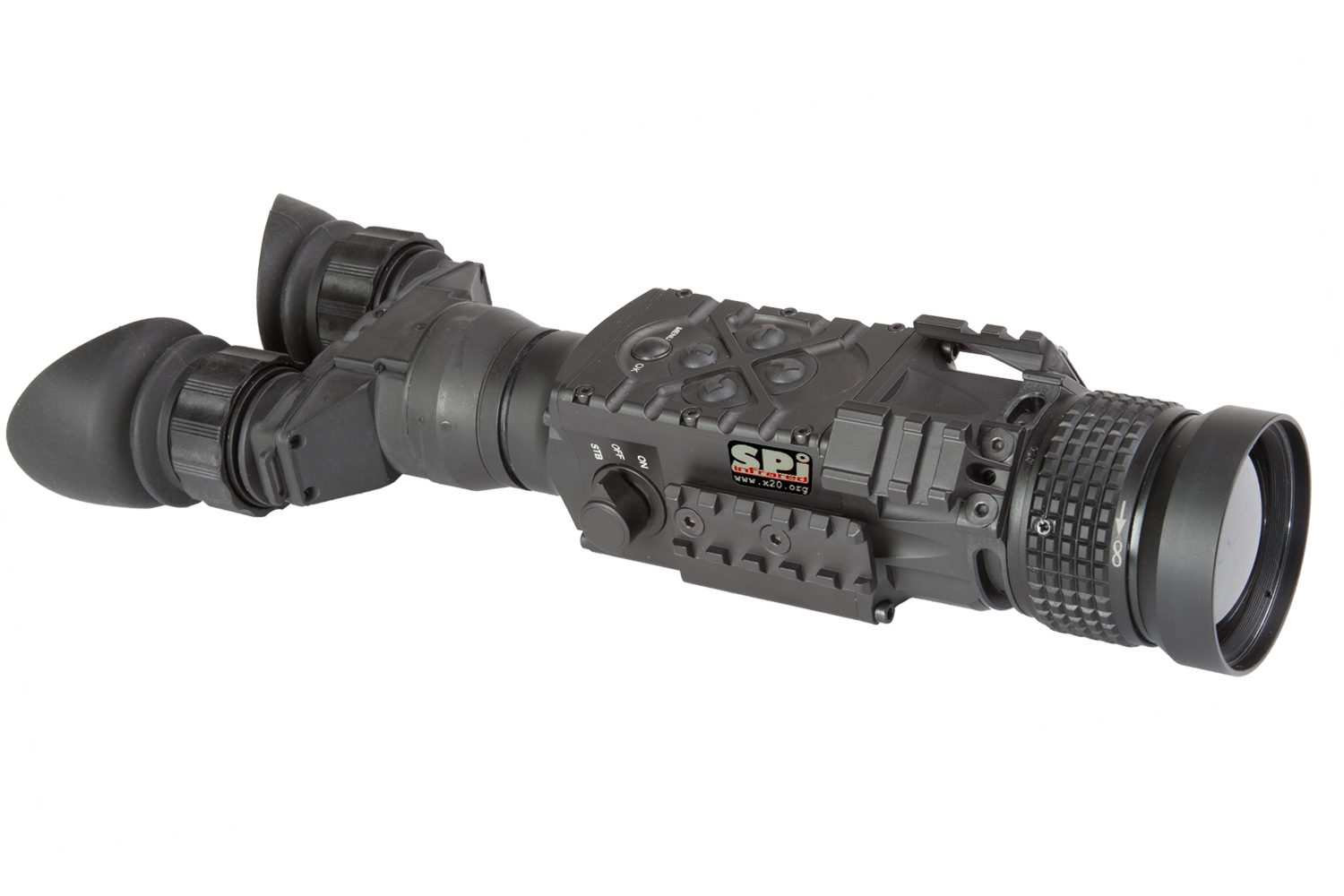

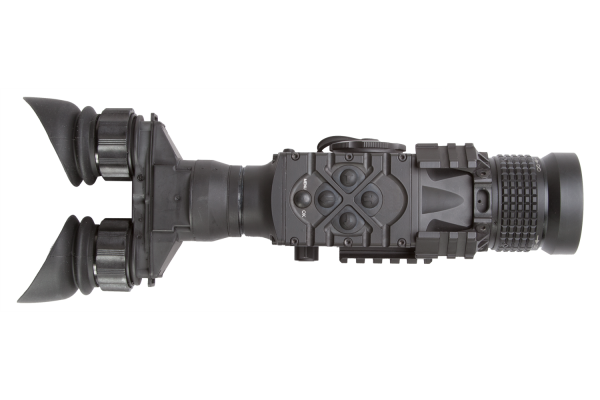

The SPI Hornet is the latest and most technologically-advanced thermal imaging device for observation currently available on the market. Bi-ocular is made of high-grade aircraft aluminum alloy, making the unit both durable and lightweight. Due to its waterproof capability the Hornet performs well even in severe weather conditions and challenging environments. The Hornet’s user-friendly interface, comfortable and ergonomic buttons, together with the wireless remote control makes adoption and application incredibly simple. Based on FLIR TAU 2 VOx microbolometer core the Hornet offers a variety of image palettes: white hot/black hot/ Rainbow, etc. that can be easily adapted depending on different environmental conditions. This high-tech bi-ocular can take either two CR123A 3V Lithium Batteries or two CR123 rechargeable batteries, with voltage ranging from 3.0 V to 3.7 V. In addition, the external battery pack connected via standard micro-USB port provides an additional operating time.
- FLIR Tau 2 17μm pitch thermal sensor
- Dual eye viewing system for comfortable, extended viewing sessions
- Lightweight and robust design
- Easy to operate device
- Manually adjustable eyepiece and objective lens
- Real-time display
- Multiple color palettes
- Digital zoom: 1x, 2x, 4x, and 8x
- Wireless remote control
- Waterproof
- External Wi-Fi module via micro USB
- Integral MIL-STD-1913 rails on unit for optional accessories
- Powered by two standard CR123A batteries
- External power supply via micro USB
- Tripod mountable
SPECIFICATIONS
| Detector type | FLIR Tau 2 17μm Uncooled Microbolometer |
| Refresh rate | 60 Hz |
| Start up | 3 seconds |
| Lens system | 50 mm; F/1.0 |
| Optical magnification | 2.9× |
| Digital zoom | 2×, 4× |
| Diopter adjustment range | -5 to +5 dpt |
| Focusing range | 5 m to infinity |
| Display | (800×600) |
| Video output | PAL (768×574 pixels)/ NTSC (640×480 pixels) |
| Temperature imaging palettes | White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow1, Ironbow2, Sepia, Color1, Color2, Ice-Fire, Rain, and OEM |
| Interfacing | S620 Connector (Power In, Analog Video In/Out, Digital Video Recorder) Micro USB (External Battery Pack) |
| Battery Type | Two CR123A 3V Lithium Batteries or CR123 Type Rechargeable Batteries with Voltage from 3.0V to 3.7V (2) |
| Battery Life (Operating) | Up to 4 hr (optional up to 12 hrs) |
| Operating Temperature Range | -40°C to +50°C (-40°F to +122°F) |
| Weight | 0.9 kg (1.9 lbs) |
| Overall Dimensions | 288 x 109 x 60 mm (11.3 x 4.2 x 2.3 in) |
| Package Inludes | Thermal imaging bi-ocular, Lens Cloth, Soft Carrying Case, User Manual |
